Makita EW210TR Water Pump Parts

Makita EW210TR Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

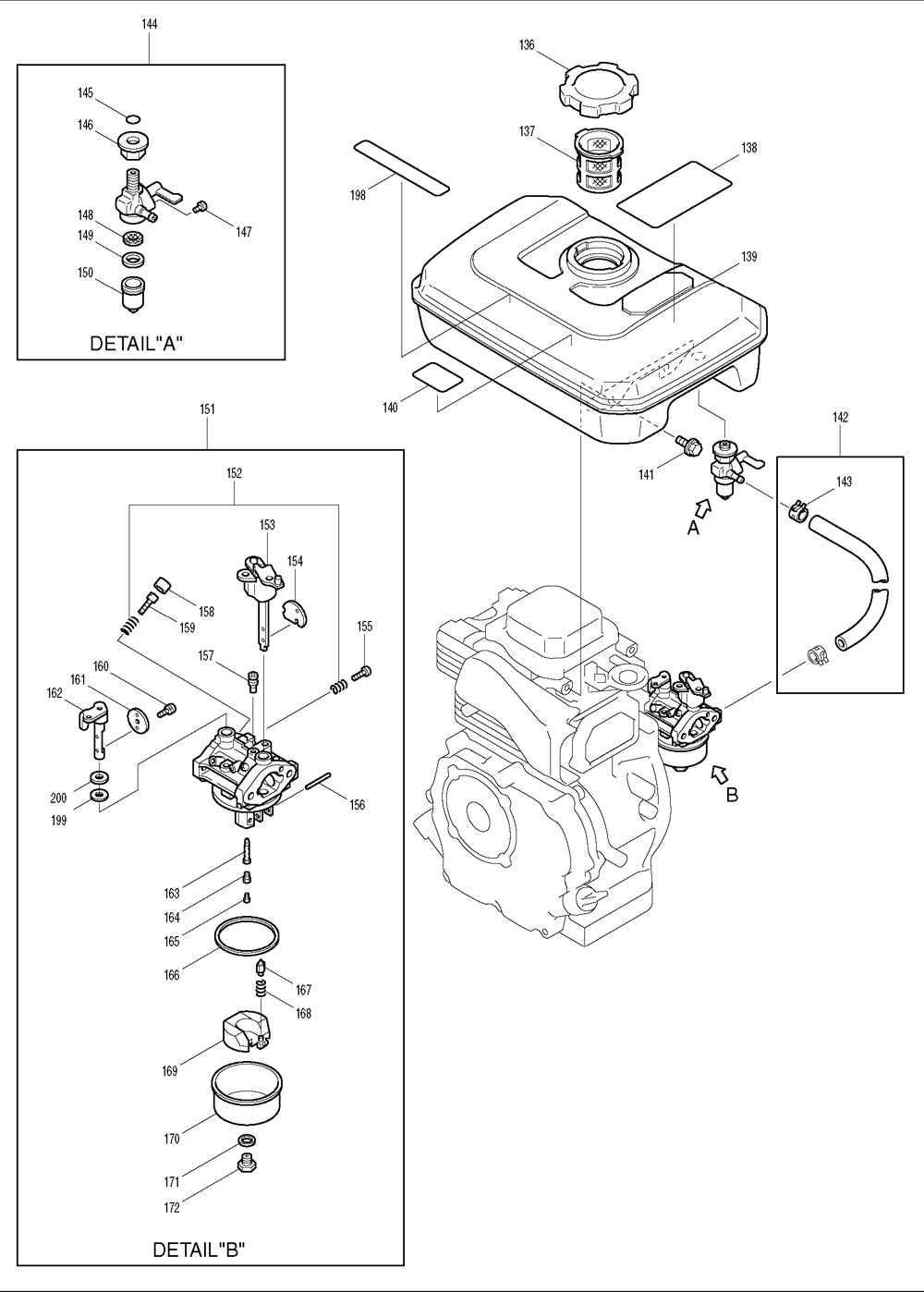

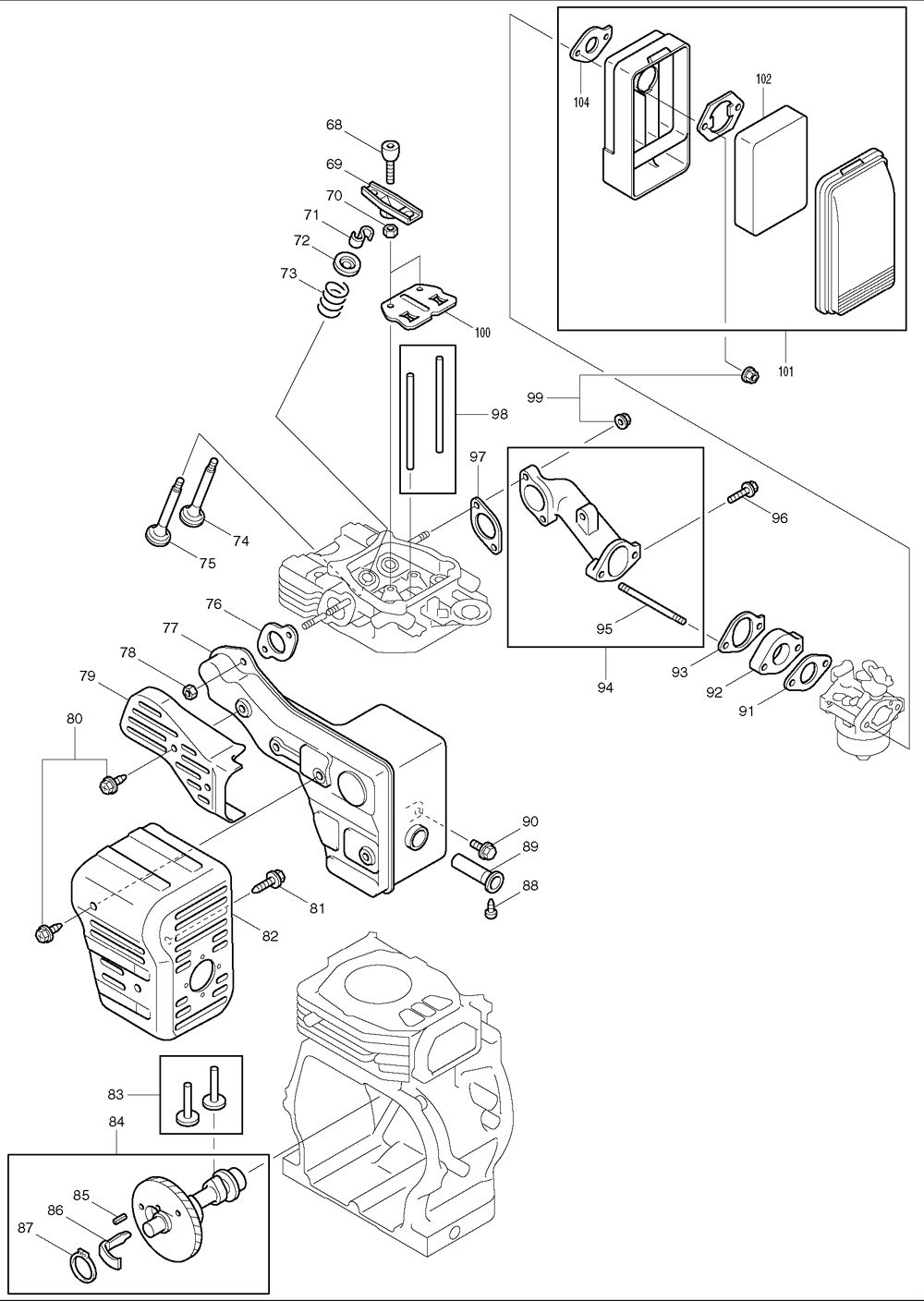

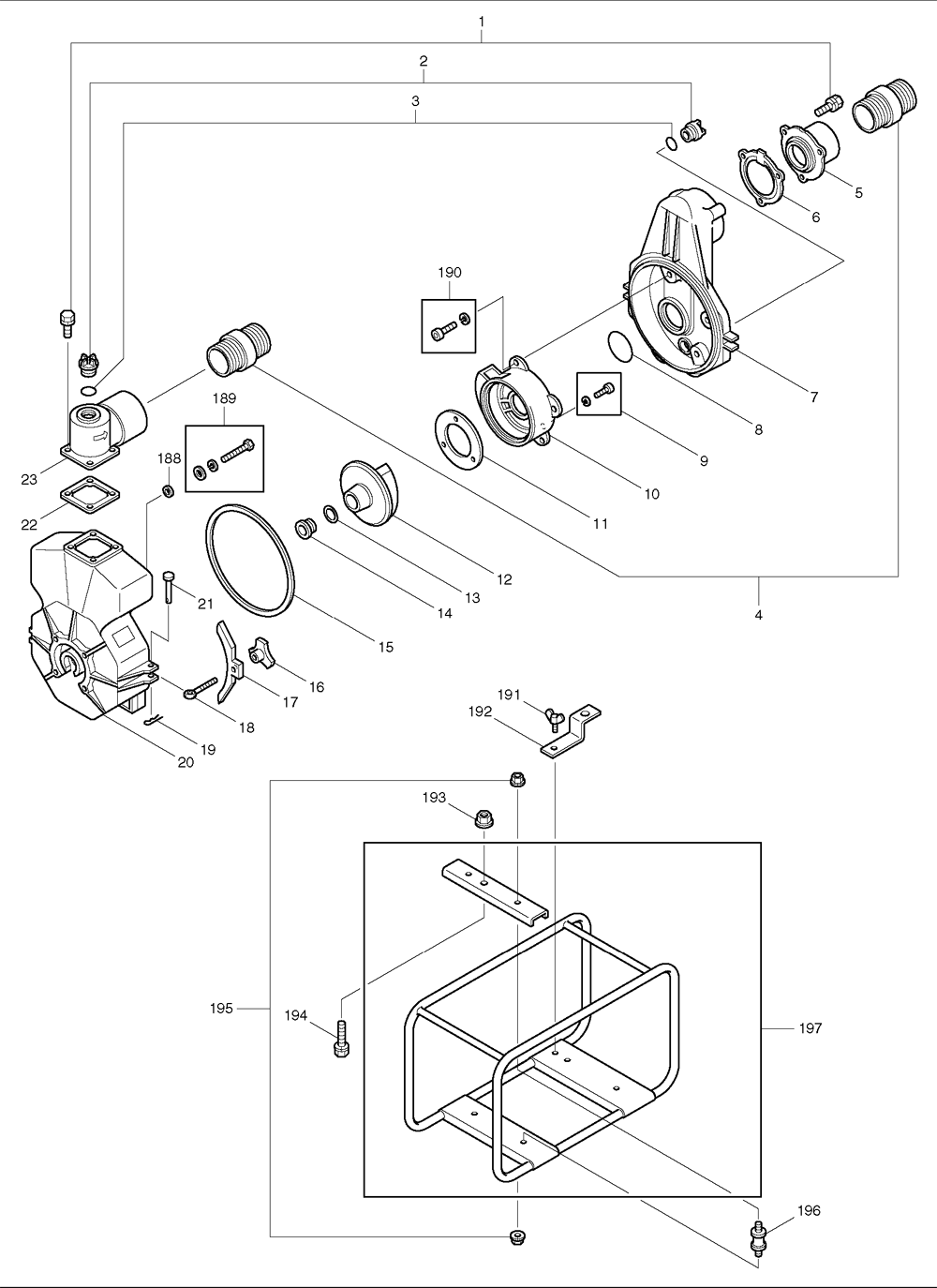

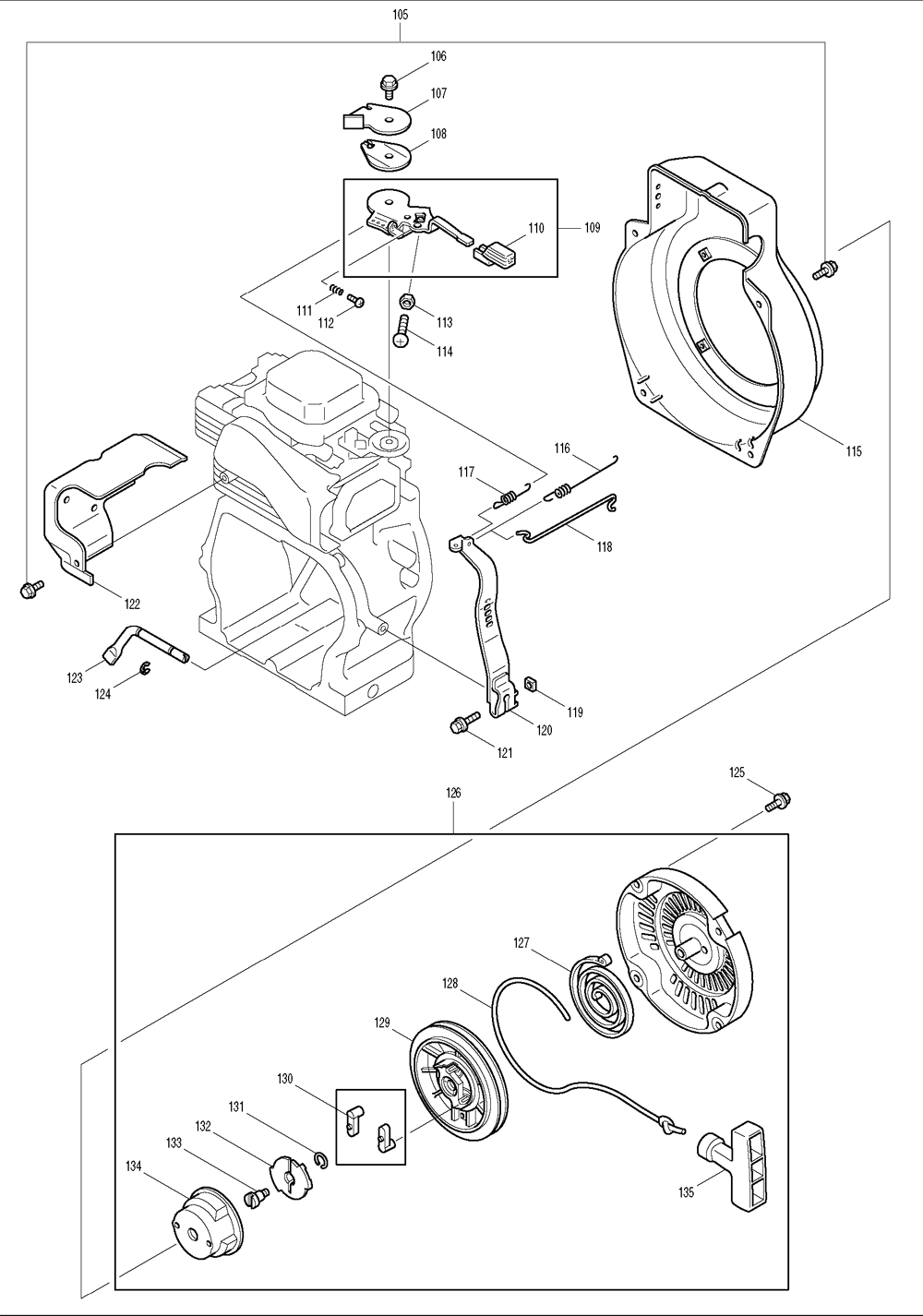

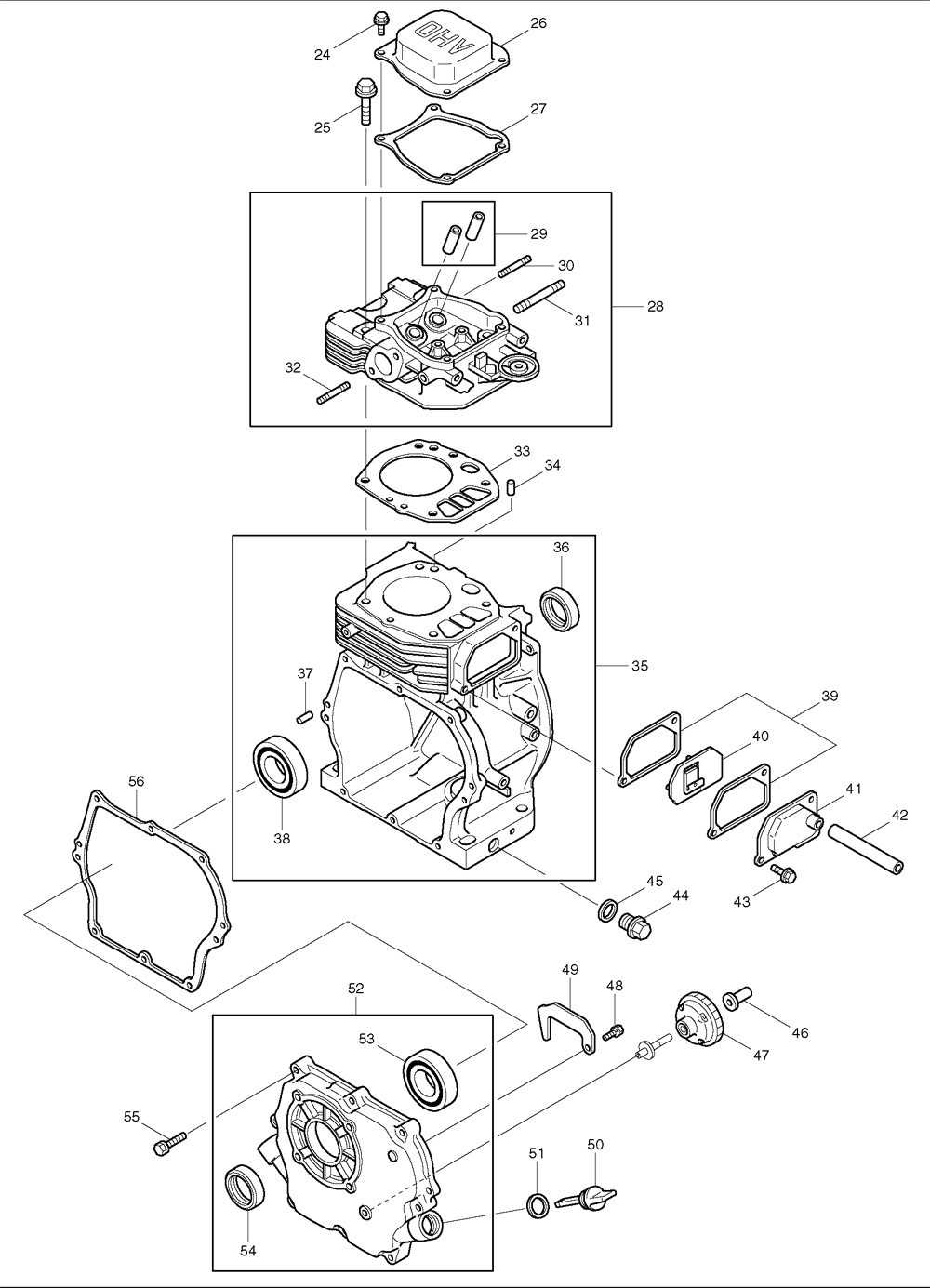

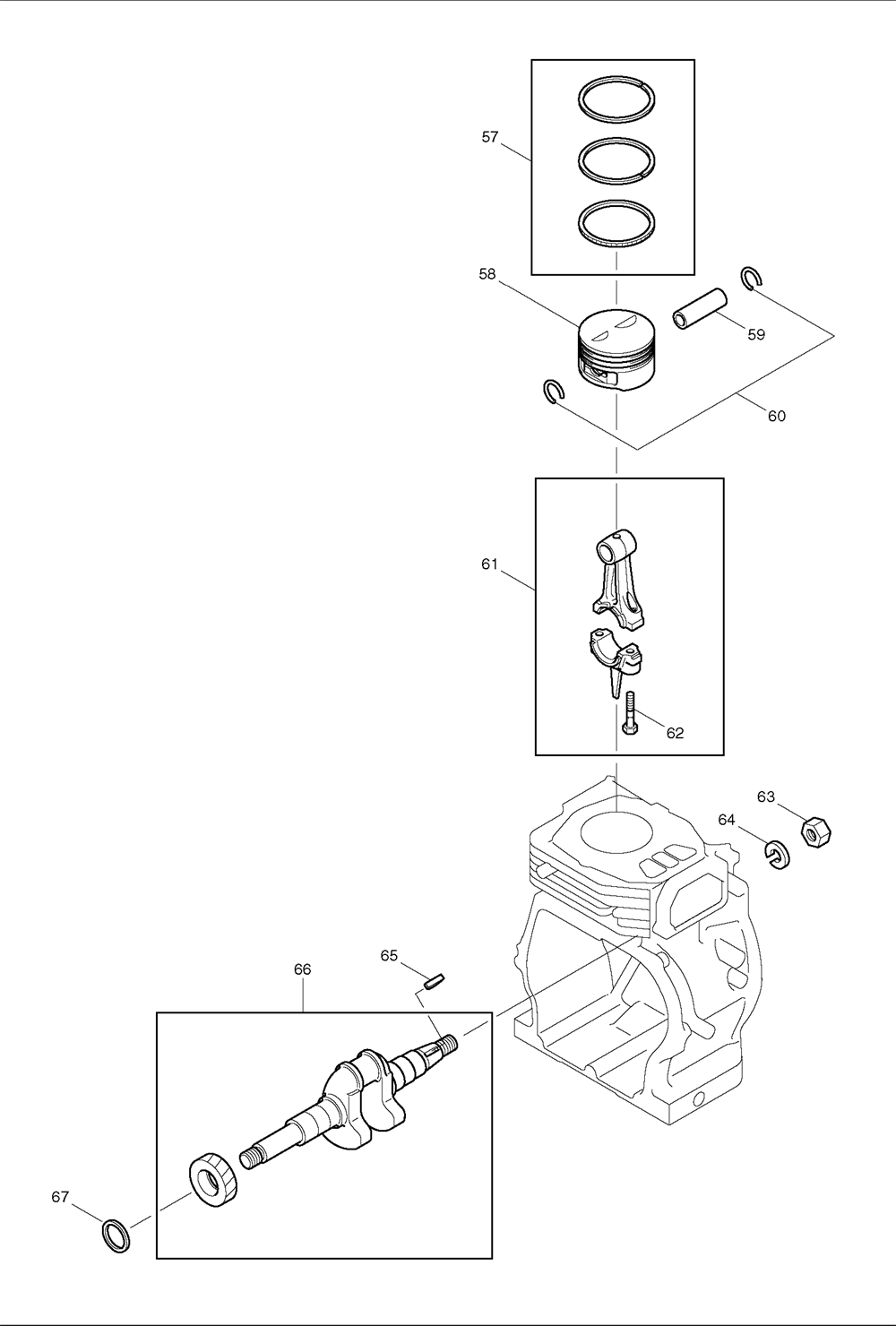

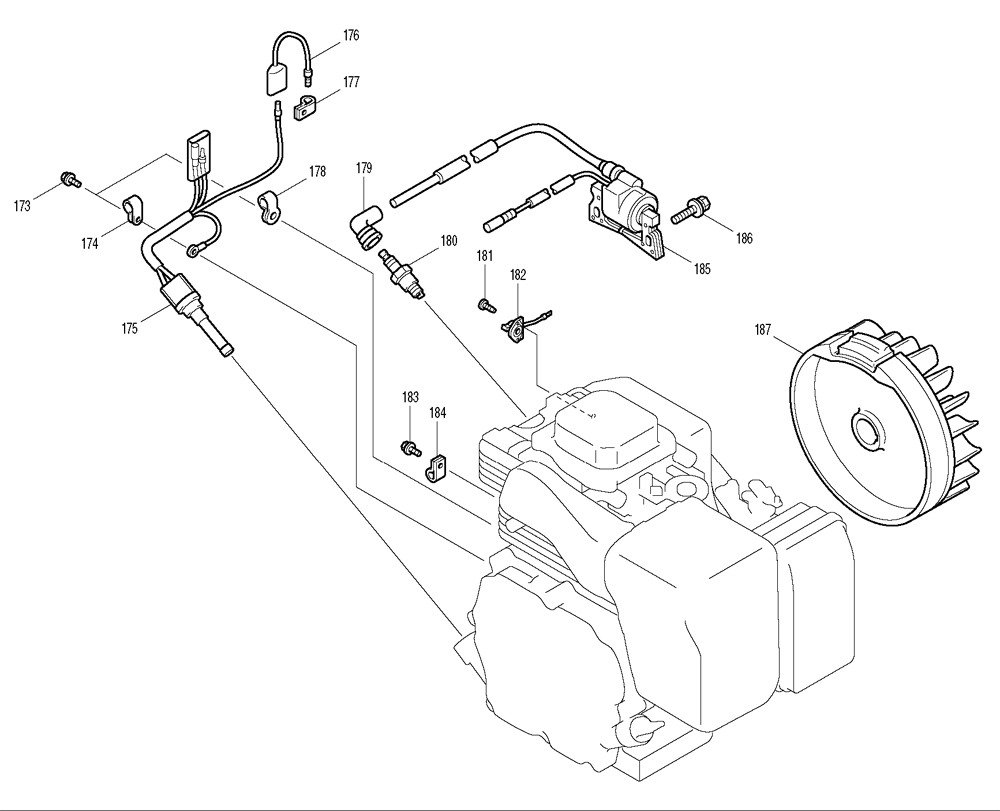

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	001-14082-50	BOLT & WASHER ASSY(M8X25),EW210TR	$1.34
35	269-10101-01	CRANKCASE COMPL., EW210TR	$274.22
2	480-05010-21	PLUG, EW210R	$4.93
3	480-05010-22	PACKING, PLUG, EW210R	$2.40
4	481-00000-80	NIPPLE,EW200TR	$29.58
5	481-00000-65	SUCTION FLANGE (NPT),EW200TR	$26.72
6	481-00000-67	CHECK VALVE, EW200TR	$13.62
7	481-00000-62	CASING, EW200TR	$331.26
8	480-05210-20	O RING, EW200TR	$4.93
9	480-05210-29	SOCKET BOLT (M6X16),EW200TR	$1.85
11	481-00000-64	LINER, EW200TR	$37.63
12	480-05210-04	IMPELLER, EW200TR	$278.49
13	480-08010-37	SHIM, EW200TR, EW300R	$3.50
13	480-08010-38	SHIM EW200TR, EW300R	$3.50
14	480-05210-08	MECHANICAL SEAL, EW200TR	$65.00
15	480-05210-17	PACKING, CASING, EW200TR	$12.19
16	480-05210-15	KNOB, EW200TR	$16.04
17	480-05210-16	CASING COVER HOLDER, EW200TR	$27.26
18	480-05210-13	COVER BOLT, EW200TR	$11.42
19	480-05210-34	SPRING PIN, EW200TR	$10.43
20	480-05210-02	CASING COVER, EW200TR	$226.79
21	480-05210-14	RIVET, EW200TR	$4.93
22	480-05010-20	PACKING, EW210RR	$4.93
23	481-00000-66	DELIVERY FLANGE, EW200TR	$38.45
24	011-00600-20	FLANGE BOLT, G6100R	$2.40
25	011-00801-00	FLANGE BOLT, G2800R	$4.93
26	253-15501-03	ROCKER COVER, G2800R	$6.69
27	269-16004-03	GASKET (ROCKER COVER), EW210TR	$6.69
28	269-13001-21	CYLINDER HEAD, EW210TR	$116.21
29	237-14202-03	VALVE GUIDE(OVER SIZE), G2800R	$9.77
30	010-50601-31	STUD, G2800R	$1.85
31	001-39066-00	STUD, G2800R	$3.50
32	010-50802-90	STUD, G2800R	$1.85
33	253-15001-33	HEAD GASKET, G2800R	$4.71
34	031-00600-20	DOWEL PIN, G2800R	$1.08
35	269-10101-01	CRANKCASE COMPL., EW210TR	$274.22
36	044-02500-70	OIL SEAL, G2800R	$6.69
37	031-00600-20	DOWEL PIN, G2800R	$1.08
38	060-02500-10	BALL BEARING, G2800R	$11.42
39	253-16006-33	GASKET(BREATHER COVER),EW210TR	$1.85
40	253-14401-11	BREATHER PLATE, G2800R	$4.93
41	253-14301-11	BREATHER COVER CPL., EW210TR	$4.93
42	085-10800-00	RUBBER PIPE, G2800R	$11.42
43	011-00600-30	FLANGE BOLT, G2800R	$1.85
44	040-11400-30	PLUG, G2800R	$3.50
45	021-11400-20	GASKET, G2800R	$1.08
46	205-41901-03	GOVERNOR SLEEVE, G2800R	$4.71
47	227-45003-01	GOVERNOR GEAR COMPLETE, G2800R	$18.46
48	004-35051-00	SCREW & WASHER, G2800R	$1.01
49	253-17502-03	SHELTER PLATE,EW210TR	$3.50
50	282-63601-H1	OIL GAUGE, G2800R	$5.70
51	021-31600-20	GASKET, G2800R	$1.08
52	253-11013-01	MAIN BEARING COVER COMPL., G2800R	$64.10
53	060-02500-10	BALL BEARING, G2800R	$11.42
54	044-02501-60	OIL SEAL 25X41.24X7MM, G2800R	$8.12
55	013-00600-40	BOLT & WASHER ASSY, G2800R	$1.63
57	253-23501-17	PISTON RING SET (STD), G2800R	$21.87
57	253-23501-27	PISTON RING SET (STD), G2800R	$21.87
57	253-23502-17	PISTON RING SET (0.25MM),G2800R	$23.08
57	253-23502-27	PISTON RING SET (.25MM OS), G2800R	$23.08
57	253-23503-17	PISTON RING SET (0.50MM), G2800R	$23.08
57	253-23503-27	PISTON RING SET (.50MM OS), G2800R	$23.08
58	269-23401-03	PISTON(FOR STD.) EW210TR	$26.72
58	269-23402-03	PISTON (OVER SIZE 0.25MM) EW210TR	$29.58
58	269-23403-03	PISTON (OVER SIZE 0.50MM), EW210TR	$29.58
59	269-23301-03	PISTON PIN, EW210TR	$5.04
59	269-23301-13	PISTON PIN, EW210TR	$5.04
60	056-51600-10	CLIP, G2800R	$1.96
61	253-22501-20	CONNECTING ROD, EW210TR	$55.00
62	238-23001-03	CONNECTNG ROD BOLT, G2410R	$3.50
63	002-18140-00	NUT, 14MM, G2800R	$3.61
64	003-20140-00	SPRING WASHER, 14MM, G2800R	$1.63
65	032-30300-10	WOODRUFF KEY, 3X6MM, G2800R	$3.50
66	253-20301-01	CRANKSHAFT COMPL. EW210TR	$150.55
67	023-02501-10	SPACER, (T=0.6), G2800R	$3.50
67	023-02501-20	SPACER (T=0.8), G2800R	$3.50
67	023-02501-30	SPACER, (T=1.0), G2800R	$3.50
68	269-35801-03	BOLT (PIVOT), G4100R	$4.93
69	269-36002-13	ROCKER ARM, G4100R	$10.10
70	017-00600-90	NUT, G4100R	$3.61
71	132-10KA0-31	COLLET VALVE, G2800R	$1.85
72	132-09KA0-40	SPRING RETAINER, G2800R	$5.26
73	253-33601-03	VALVE SPRING, G2800R	$3.61
74	269-33401-03	INTAKE VALVE, EW210TR	$15.60
75	269-33501-03	EXHAUST VALVE, EW210TR	$25.50
76	253-35201-03	MUFFLER GASKET, MAC6000	$4.93
77	269-30105-00	MUFFLER, COMPL., EW210TR	$98.07
78	017-00800-30	NUT, STAINLESS STEEL, G2800R	$1.96
79	269-34801-03	EXHAUST PIPE COVER, EW210TR	$12.19
80	015-20600-90	TAPPING BOLT,EW210TR	$1.41
81	015-20600-80	TAPPING BOLT, EW210TR	$1.85
82	253-34201-11	MUFFLER COVER, EW210TR	$22.53
83	239-33301-13	TAPPET, G4100R	$9.77
84	253-31701-11	CAMSHAFT COMPLETE, G2800R	$75.50
85	005-19041-00	SPRING PIN, G5710R	$1.34
86	227-36401-03	RELEASE LEVER, G2800R	$12.96
87	003-15220-00	SNAP RING, G2800R	$1.85
88	015-00400-60	TAPPING SCREW, G5710R	$0.82
89	269-37601-01	SPARK ARRESTER COMPL., EW210TR	$11.42
90	011-00600-20	FLANGE BOLT, G6100R	$2.40
92	253-32901-03	INSULATOR, G2800R	$3.50
93	253-35901-03	GASKET 3 (INSULATOR), G2800R	$1.08
94	253-33001-01	INTAKE PIPE, G2800R	$17.69
95	010-50602-30	STUD, G5710R	$3.50
96	011-00601-30	FLANGE BOLT, G2800R	$1.85
97	282-35901-03	GASKET, G1100	$1.41
98	269-35301-03	PUSH ROD, EW210TR	$6.69
99	002-38060-00	FLANGE NUT, G6101R	$2.40
100	269-36501-03	GUIDE PLATE, EW210TR	$1.85
101	269-32601-00	AIR CLEANER ASS'Y, EW210TR	$36.92
102	269-32610-08	ELEMENT, EW210TR	$10.10
104	227-36004-13	GASKET, G1300R	$1.41
105	011-00600-20	FLANGE BOLT, G6100R	$2.40
106	011-00600-30	FLANGE BOLT, G2800R	$1.85
107	269-43501-03	STOP PLATE, EW210TR	$4.93
109	269-43301-00	SPEED CONTROL CPL., EW210TR	$13.62
110	227-43601-03	KNOB, EW210R	$6.69
111	269-45503-03	IDLE SET SPRING, EW210TR	$1.96
112	004-31043-00	PAN HEAD SCREW, EW210TR	$0.82
113	002-27060-00	NUT, EM4251	$1.34
114	004-31063-00	SCREW, EW210R	$0.82
115	253-51291-01	BLOWER HOUSING, G2800R	$50.60
116	253-42801-03	ROD SPRING, G2800R	$5.26
117	253-42501-23	GOVERNOR SPRING, G2800R	$3.61
118	253-42701-01	GOVERNOR ROD, G2800R	$4.93
119	018-60600-20	NUT, G2800R .	$1.34
120	253-42301-23	GOVERNOR LEVER, EW210TR	$9.77
121	001-14063-00	BOLT & WASHER ASS'Y, G5710R	$1.34
122	253-52701-03	HEAD COVER, MAC6000	$15.16
123	227-42201-03	GOVERNOR SHAFT, G2800R	$9.77
124	003-13060-00	CLIP, G2800R	$1.34
125	011-00600-10	FLANGE BOLT, G6100R	$2.40
126	269-50201-30	RECOIL STARTER ASSY,EW210TR	$81.00
127	270-50115-08	SPIRAL SPRING, G4100R	$16.04
128	269-50110-08	STARTER ROPE, EW210TR	$12.19
129	269-50120-08	REEL, EW210TR	$26.72
130	270-50125-08	RATCHET, G4100R	$4.93
131	227-50131-08	FRICTION SPRING, G2800R	$5.26
132	270-50261-08	RATCHET GUIDE, G4100R	$6.69
133	227-50152-08	SET SCREW, G2800R	$4.93
134	269-50145-08	STARTER PULLEY, EW210TR	$18.13
135	261-50100-08	STARTER KNOB, G4100R	$9.22
136	043-04300-60	FUEL TANK CAP, G5711R	$16.70
137	064-13600-10	FUEL FILTER, G2400R	$4.93
138	073-20049-90	LABEL(WARING), EW210TR	$9.49
139	253-60119-01	FUEL TANK COMPL., EW210TR	$180.62
140	073-20045-20	LABEL(OIL CAUTION), EW210TR	$3.54
141	011-00600-30	FLANGE BOLT, G2800R	$1.85
142	269-62601-01	FUEL PIPE COMPL., EW210TR	$6.69
143	056-11100-20	HOSE CLAMP, G2800R	$1.41
144	064-20100-01	FUEL STRAINER, G2800R	$17.80
145	064-20003-30	O RING, G2400R	$1.85
145	243-66506-08	PACKING, G2800R	$2.40
145	064-20084-20	O-RING, MAC6000	$3.50
146	064-20042-60	NUT, G2800R	$2.40
146	064-20084-10	NUT, MAC6000	$5.26
147	064-20047-90	P.H. SCREW, G2800R	$1.41
147	064-20027-90	LOCK BOLT, EW310TR	$1.34
148	064-20042-20	FILTER, G2800R	$4.71
149	064-20064-10	RUBBER PACKING, G2800R	$2.40
149	064-20014-30	PACKING, EW310TR	$1.85
150	064-20078-10	CUP, G2800R	$4.93
150	064-20014-10	CUP, EW310TR	$3.50
152	209-62445-08	SPRING, G2800R	$3.61
153	253-62522-08	CHOKE LEVER, EW210TR	$18.13
154	253-62525-08	VALVE(CHOKE), EW210TR	$6.69
155	246-62435-08	SCREW, G5710R	$3.50
156	236-62510-08	FLOAT PIN, G2800R	$3.50
157	253-62420-08	PILOT JET (#52.5),G2800R	$6.69
158	246-62551-08	CAP, G5710R	$4.93
159	246-62436-08	PILOT SCREW, G5710R	$20.88
160	253-62352-08	SCREW, EW210TR	$1.85
161	220-62536-08	THROTTLE VALVE (#160), G2800R	$11.42
162	253-62532-08	SHAFT ASS'Y (THROTTLE), EW210TR	$24.18
163	238-62440-08	MAIN NOZZLE, G2800R	$14.61
164	235-62425-08	GUIDE HOLDER, G2800R	$8.12
165	253-62402-08	MAIN JET(#72.5), EW210TR	$9.22
166	236-62540-08	PACKING (CHAMBER), G2800R	$4.93
167	161-62352-08	NEEDLE VALVE, G2800R	$45.08
168	236-62445-08	SPRING, G2800R	$3.61
169	236-62505-08	FLOAT, G2800R	$19.34
170	236-62551-08	FLOAT CHAMBER, G2800R	$29.58
171	236-62450-08	PACKING, G2800R	$1.85
172	236-62451-08	BOLT, G2800R	$6.69
173	001-10081-60	BOLT & WASHER, G2800R	$1.63
174	214-79003-01	CLAMP, EW210R	$5.26
176	214-73122-01	WIRE 22, G2410R	$3.50
177	206-75501-01	CLAMP COMP., G2410R	$3.50
178	207-75001-01	CLAMP, G2410R	$3.50
179	065-50000-51	SPARK PLUG CAP, EW310TR	$4.93
180	065-01400-31	SPARK PLUG B6HS, EW310TR	$4.93
181	015-00400-90	TAPPING SCREW, G3510R	$1.41
183	001-10081-60	BOLT & WASHER, G2800R	$1.63
184	056-61200-50	CLAMP, G2410R	$3.50
185	269-79430-21	IGNITION COIL, G2800R	$122.42
186	001-14062-50	BOLT & WASHER, G2800R	$1.34
187	269-79330-01	FLYWHEEL COMPL., EW210TR	$124.65
188	480-05010-06	SEAL PACKING, EW310TR	$3.50
189	480-05010-05	BOLT M8X48, EW210R	$1.85
190	480-05210-29	SOCKET BOLT (M6X16),EW200TR	$1.85
191	480-05210-36	WING BOLT M6X15, EW400TR	$3.50
192	480-05210-35	SUPPORT, EW400TR	$12.96
193	002-38100-00	FLANGE NUT, G12010R	$1.96
194	001-14084-00	BOLT & WASHER ASSY'(M8X40),EW210TR	$1.34
195	480-10010-24	NUT & WASHER ASS'Y M8, EW300TR	$1.96
196	480-05210-19	CUSHION RUBBER, EW200TR	$14.61
197	481-00001-32	FRAME, EW210TR	$127.46
198	253-95201-13	EMISSION CONTROL LABEL, EW210TR	$4.84
199	106-62392-18	SEAL, G6100R	$3.50
200	253-62355-08	RING, EW210TR	$3.17
201	064-20032-30	SPRING, EW310TR	$1.96
1003	253-99001-27	GASKET SET (STD), G2800R	$25.17
