Makita EW200TR Water Pump Parts

Makita EW200TR Water Pump Parts Image

Makita EW200TR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Tool Diagram    (Click image to Zoom in) View larger Image

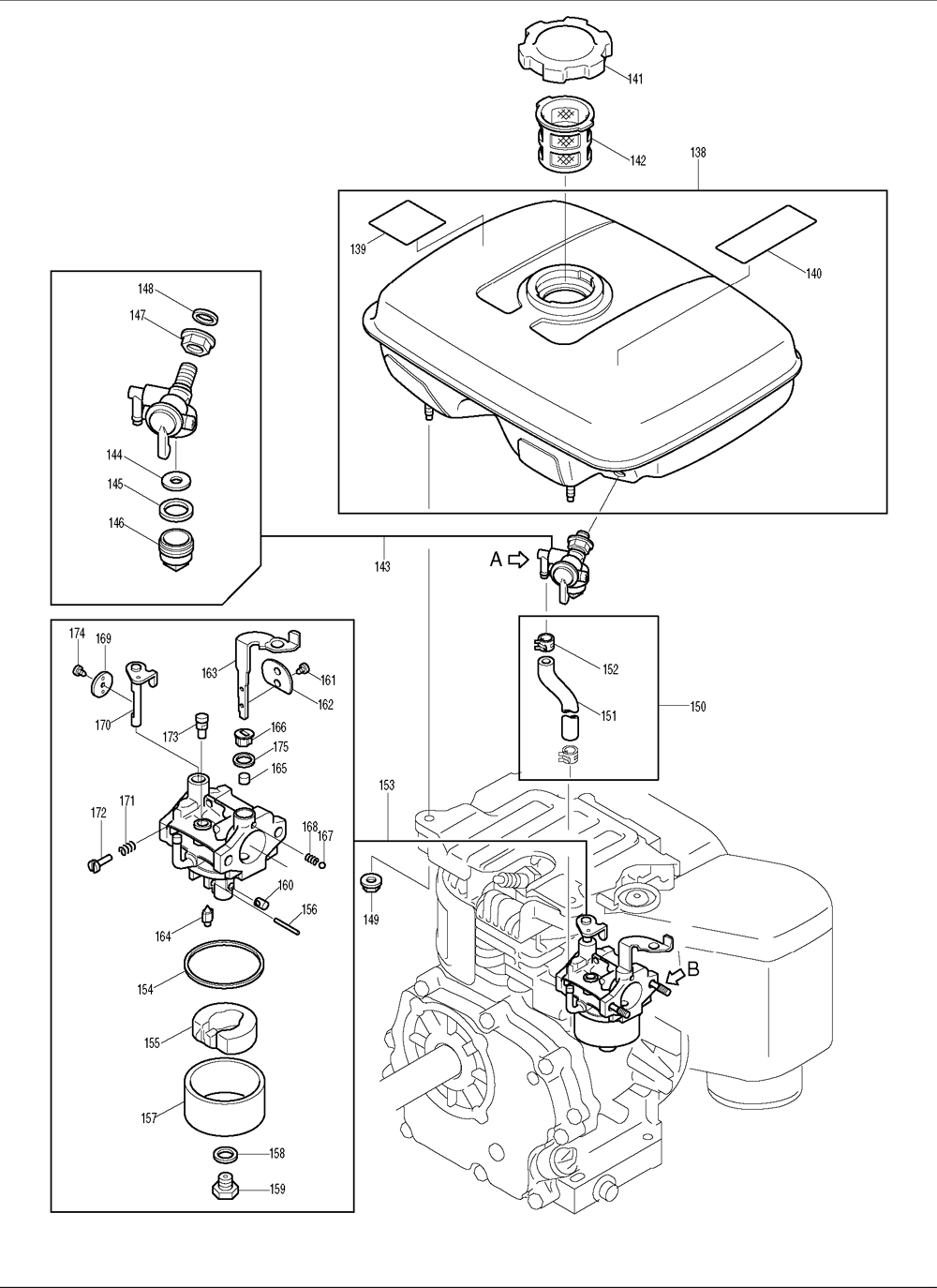

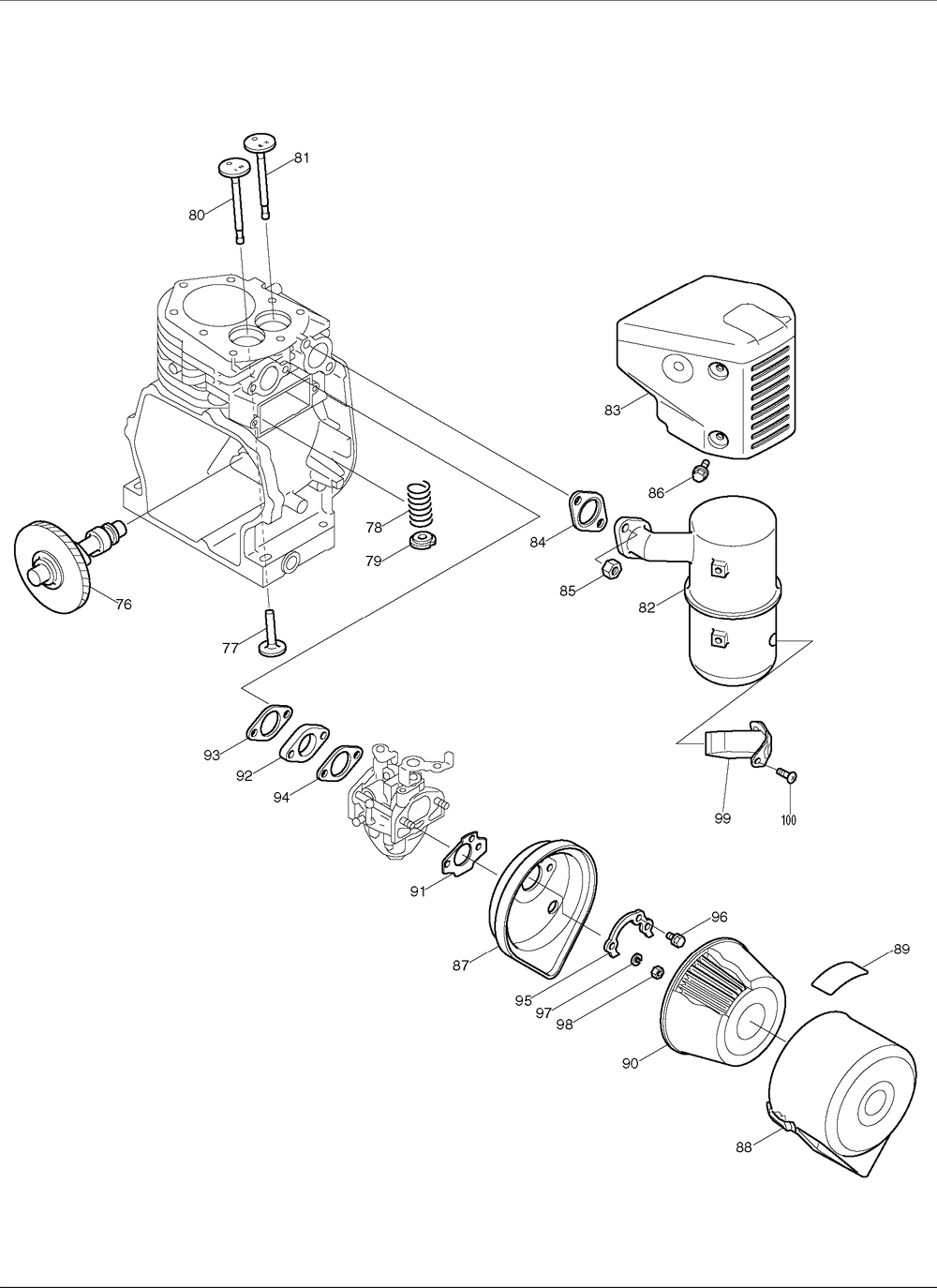

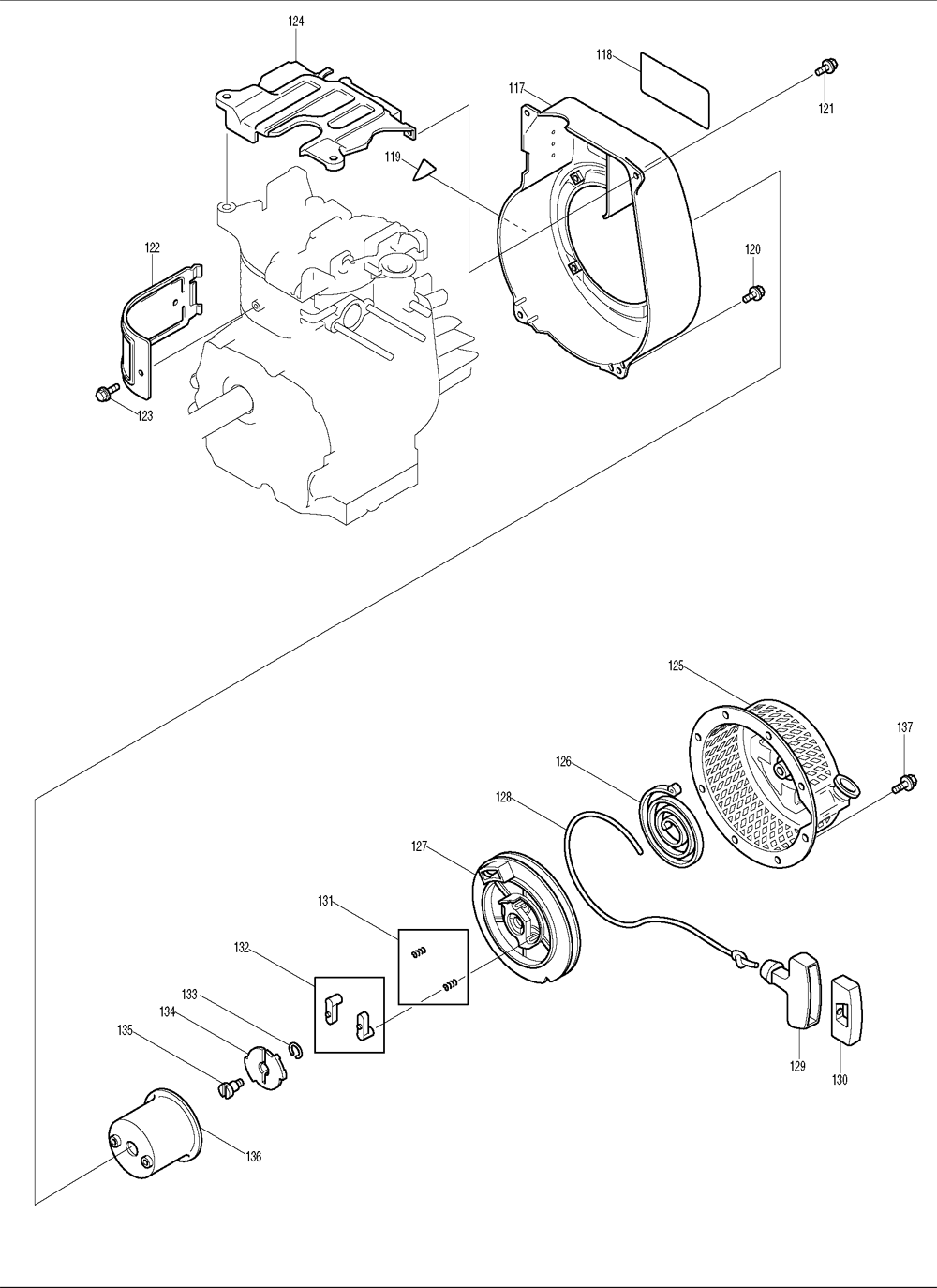

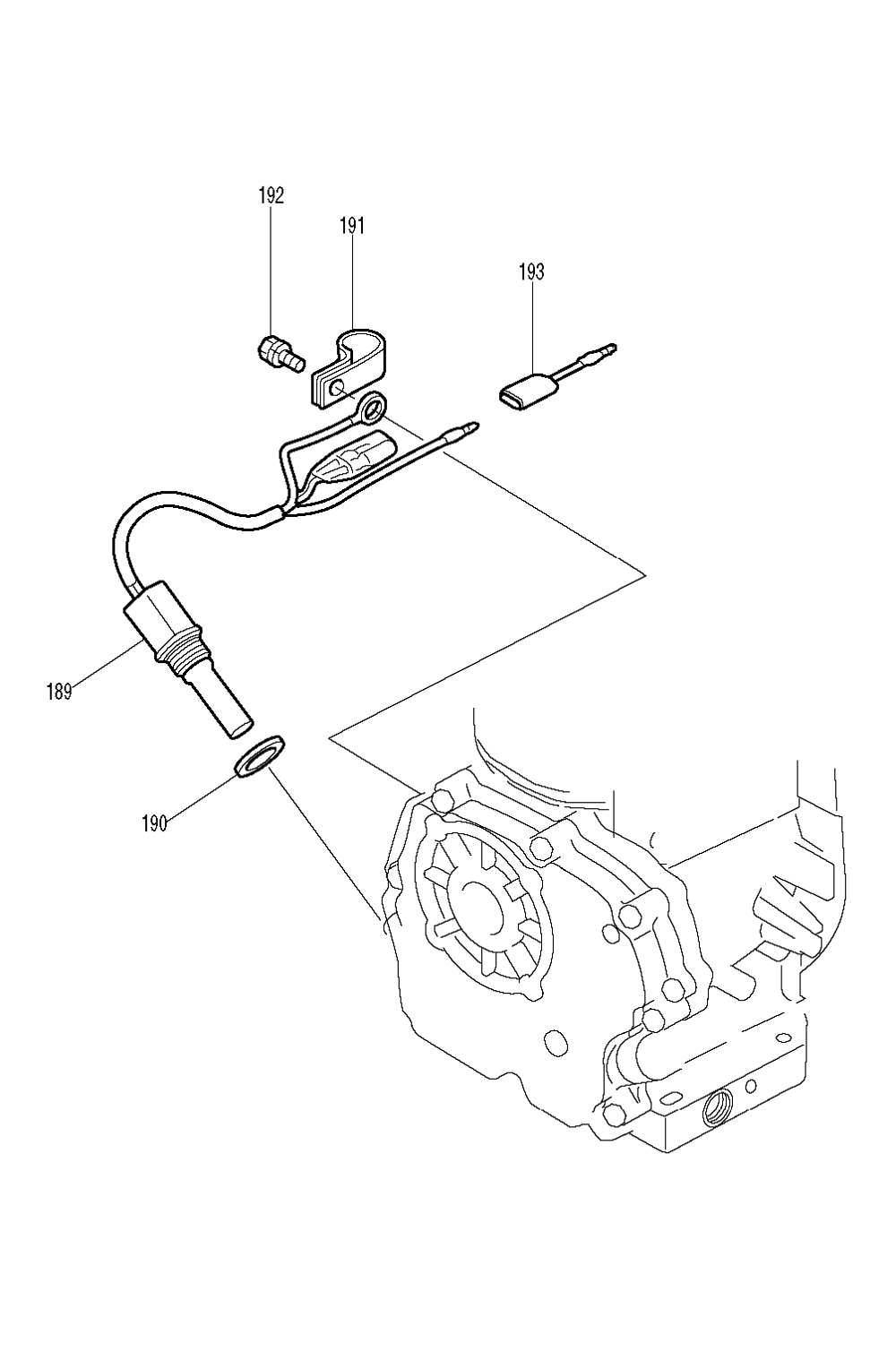

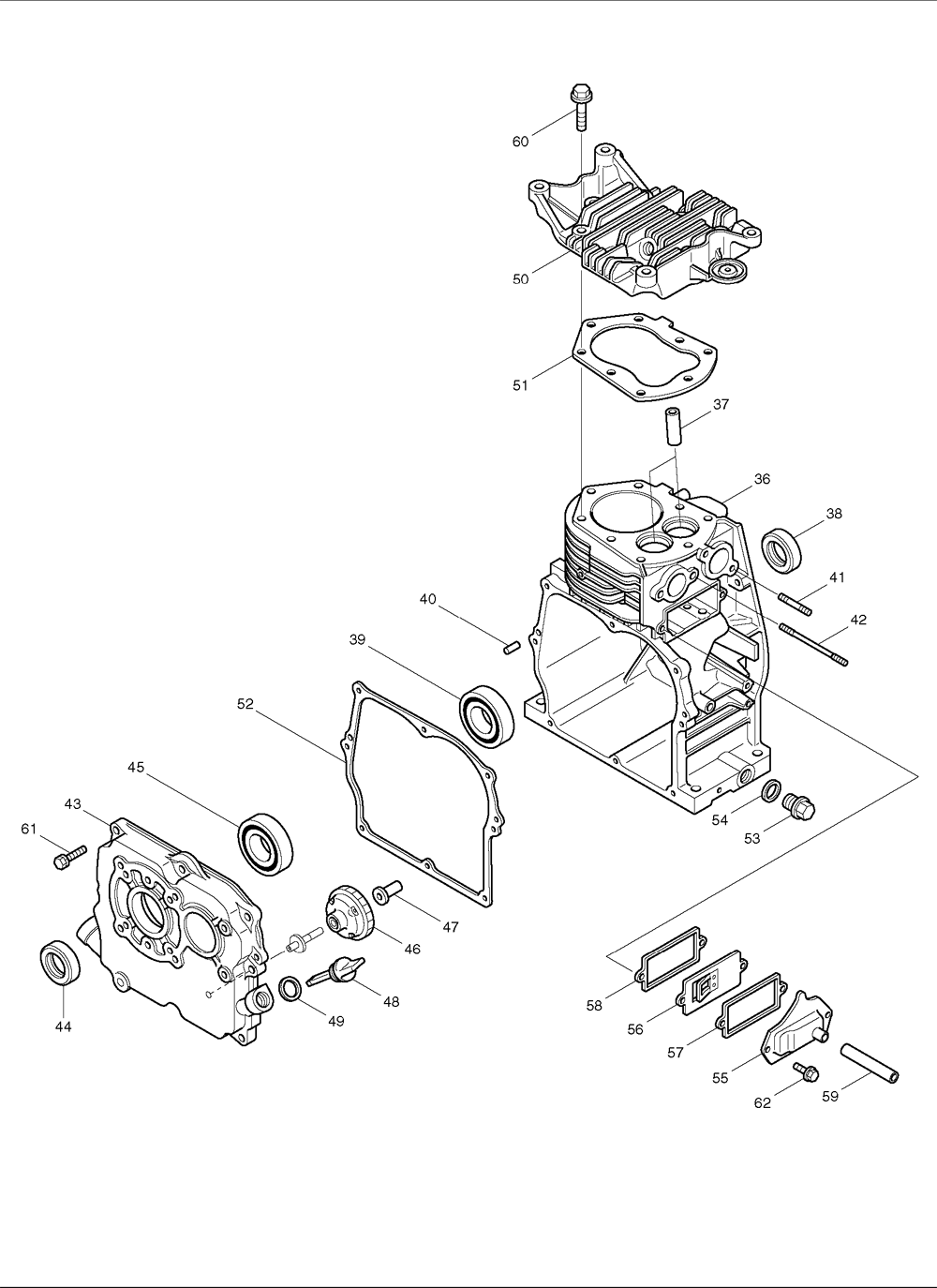

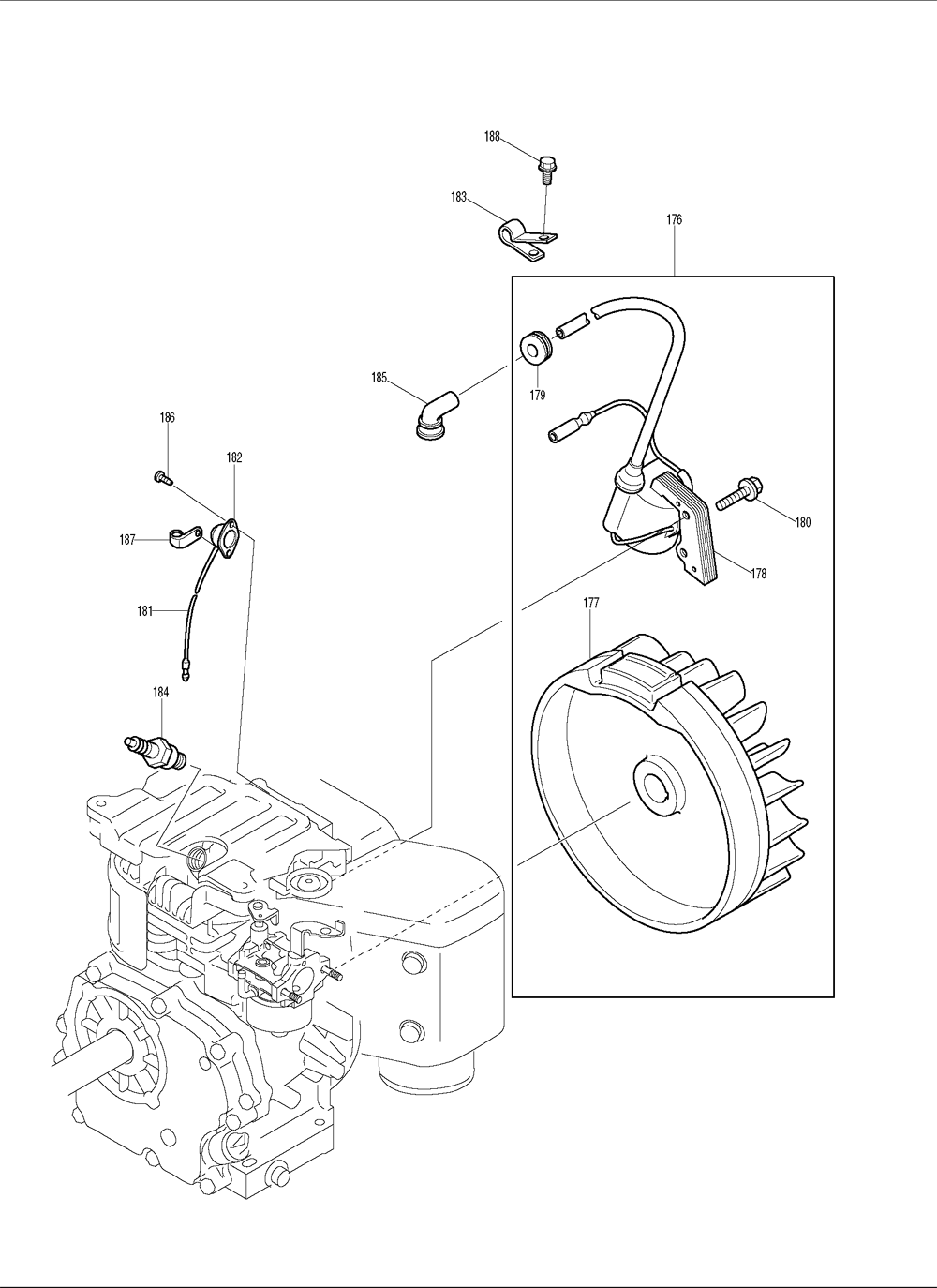

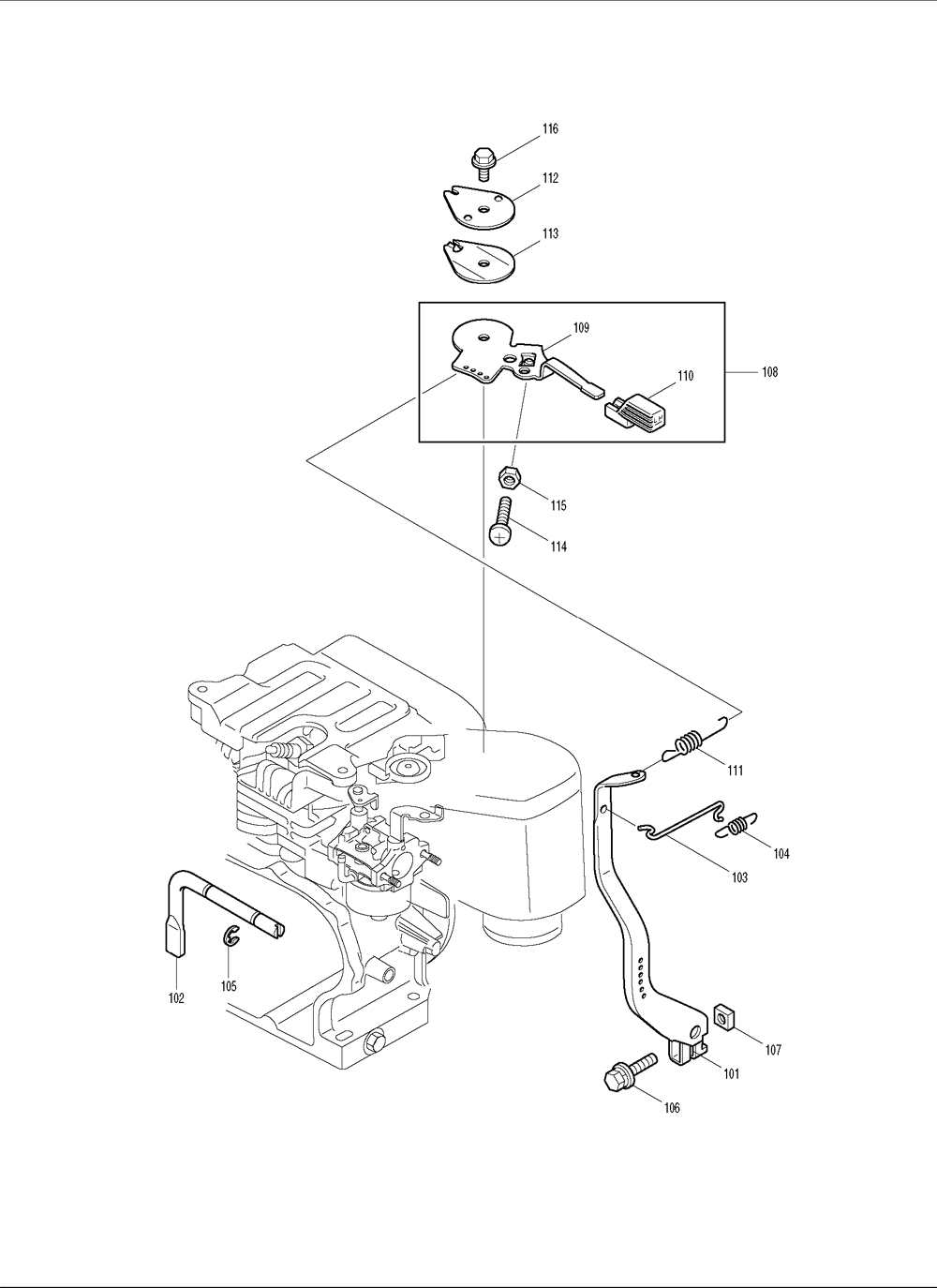

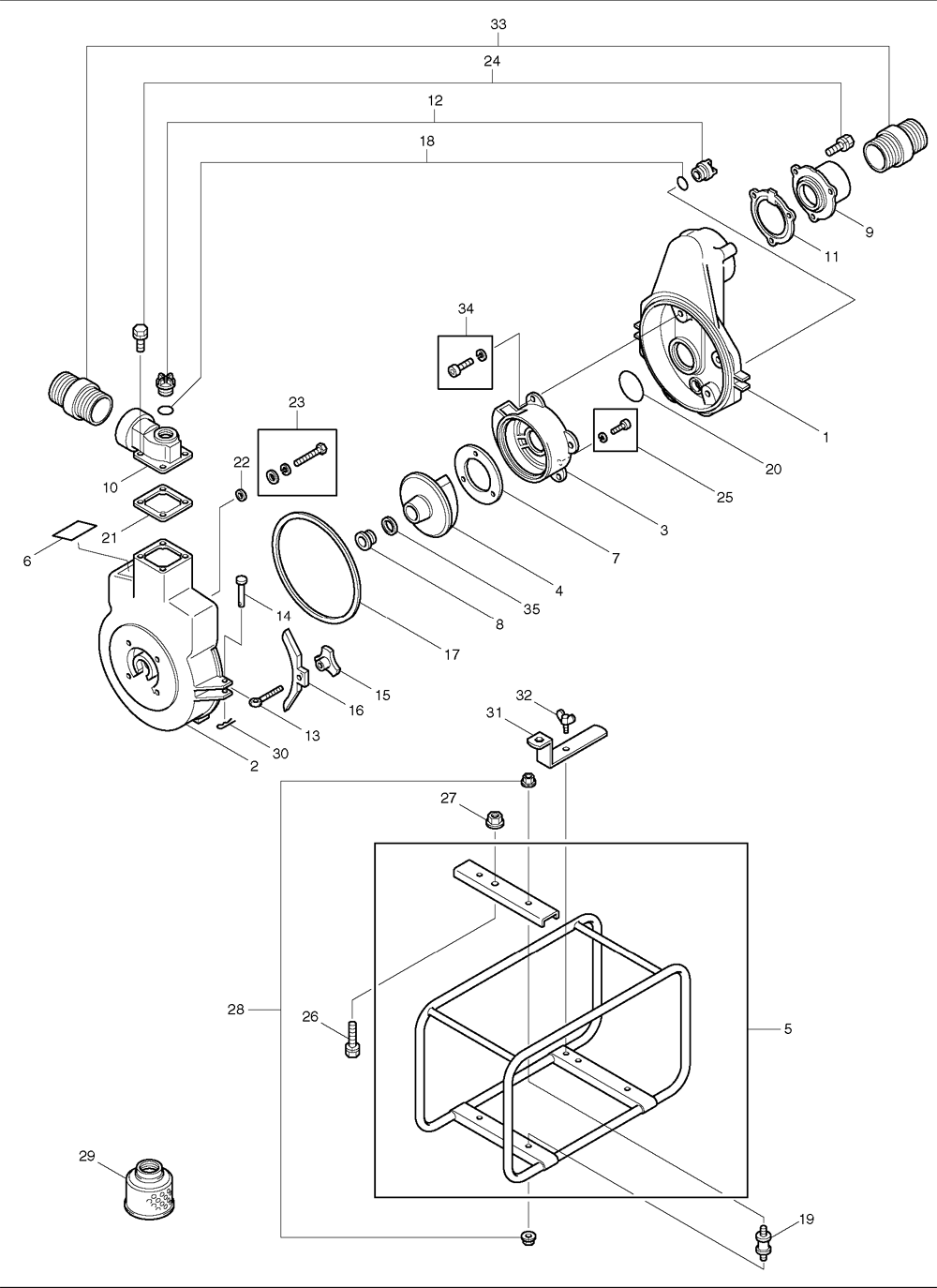

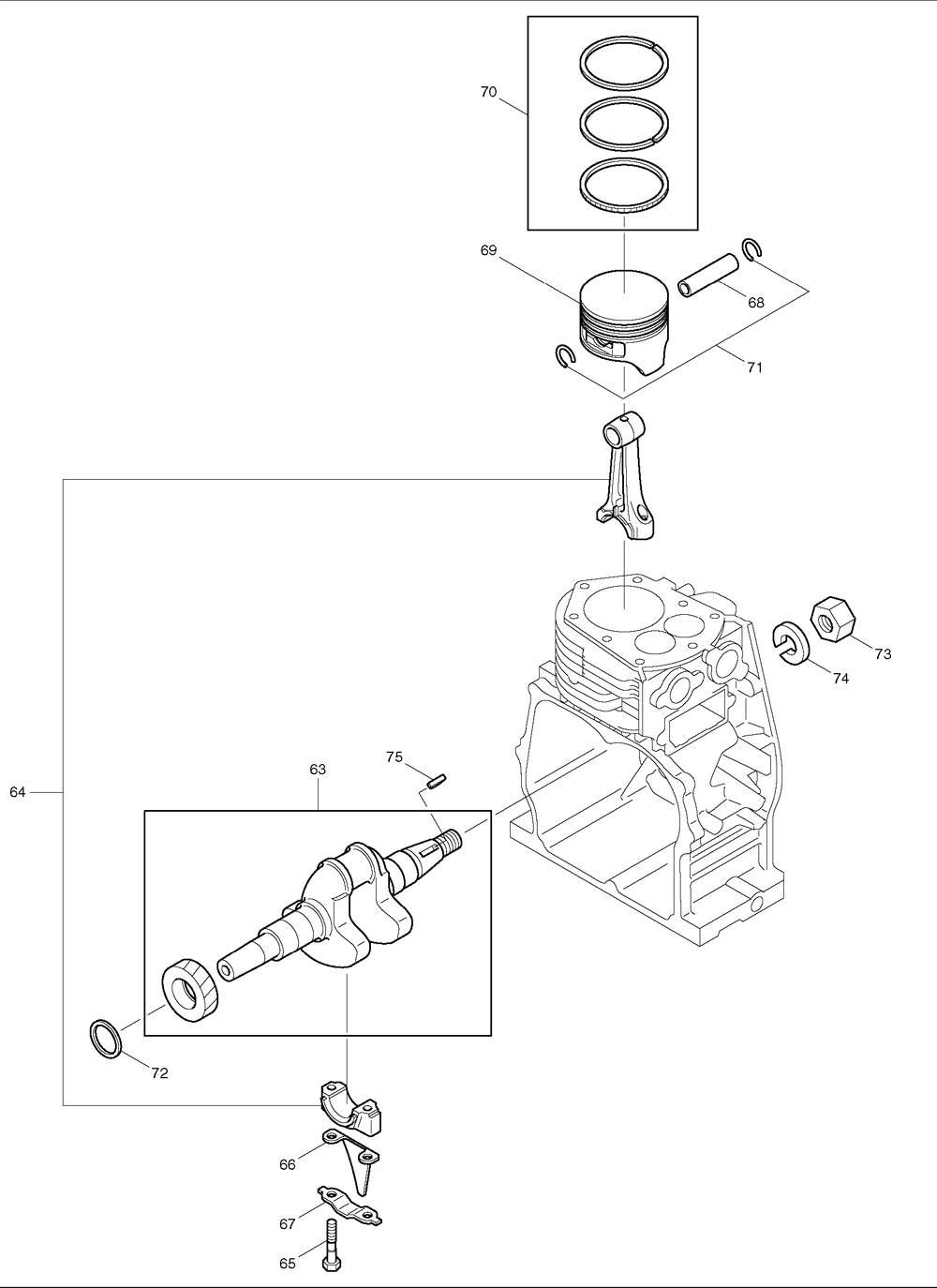

Makita EW200TR Water Pump Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 481-00000-62 CASING, EW200TR $331.26
108 227-43301-00 "SPEED CONTROL ASS""Y, EW200R" $12.19
2 480-05210-02 CASING COVER, EW200TR $226.79
4 480-05210-04 IMPELLER, EW200TR $278.49
5 481-00001-20 FRAME, EW200TR $146.38
6 482-00091-03 LABEL, PUMP NAME, EW200TR $5.06
7 481-00000-64 LINER, EW200TR $37.63
8 480-05210-08 MECHANICAL SEAL, EW200TR $65.00
9 481-00000-65 SUCTION FLANGE (NPT),EW200TR $26.72
10 481-00000-66 DELIVERY FLANGE, EW200TR $38.45
11 481-00000-67 CHECK VALVE, EW200TR $13.62
12 480-05010-21 PLUG, EW210R $4.93
13 480-05210-13 COVER BOLT, EW200TR $11.42
14 480-05210-14 RIVET, EW200TR $4.93
15 480-05210-15 KNOB, EW200TR $16.04
16 480-05210-16 CASING COVER HOLDER, EW200TR $27.26
17 480-05210-17 PACKING, CASING, EW200TR $12.19
18 480-05010-22 PACKING, PLUG, EW210R $2.40
19 480-05210-19 CUSHION RUBBER, EW200TR $14.61
20 480-05210-20 O RING, EW200TR $4.93
21 480-05010-20 PACKING, EW210RR $4.93
22 480-05010-06 SEAL PACKING, EW310TR $3.50
23 480-05010-05 BOLT M8X48, EW210R $1.85
24 480-05010-14 BOLT & WASHER ASSEMBLY, EW210R $1.85
25 480-05210-29 SOCKET BOLT (M6X16),EW200TR $1.85
26 480-05010-23 BOLT & WASHER ASSEMBLY, EW210R $1.85
27 480-05010-24 FLANGE NUT (M8), EW210R $1.96
28 480-10010-24 NUT & WASHER ASS'Y M8, EW300TR $1.96
30 480-05210-34 SPRING PIN, EW200TR $10.43
31 480-05210-35 SUPPORT, EW400TR $12.96
32 480-05210-36 WING BOLT M6X15, EW400TR $3.50
33 481-00000-80 NIPPLE,EW200TR $29.58
34 480-05210-29 SOCKET BOLT (M6X16),EW200TR $1.85
35 480-08010-37 SHIM, EW200TR, EW300R $3.50
35 480-08010-38 SHIM EW200TR, EW300R $3.50
36 227-10101-21 CRANKCASE, COMPLETE, G2400R $341.35
37 227-14202-03 VALVE GUIDE, OVERSIZE, G2400R $9.77
38 044-02501-50 OIL SEAL 25X38X7MM, G2400R $6.69
39 060-02500-10 BALL BEARING, G2800R $11.42
40 031-00600-20 DOWEL PIN, G2800R $1.08
41 010-50802-50 STUD G2410R $1.85
42 010-50601-20 STUD, G2400R $1.85
43 227-11001-21 MAIN BEARING COVER, EW200R, EW300R $92.50
44 044-02501-60 OIL SEAL 25X41.24X7MM, G2800R $8.12
45 060-02500-10 BALL BEARING, G2800R $11.42
46 227-45003-01 GOVERNOR GEAR COMPLETE, G2800R $18.46
47 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
48 282-63601-H1 OIL GAUGE, G2800R $5.70
49 021-31600-10 GASKET, G2400R,T1 $0.90
50 227-13001-13 CYLINDER HEAD, EW200TR, EW300R $55.00
51 282-15001-01 GASKET CPL. FOR CYL., EW200TR $8.01
52 227-16001-03 GASKET, BEARING COVER, G2400R $3.50
53 040-11400-30 PLUG, G2800R $3.50
54 021-11400-20 GASKET, G2800R $1.08
55 227-14301-01 TAPPET COVER, COMPLETE, G2400R $8.12
56 227-14401-01 BREATHER PLATE, COMPLETE, G2400R $12.96
57 282-16006-03 GASKET FOR TAPE COVER, G1300R $3.28
58 282-16007-23 GASKET FOR BREATHER PLATE, G1300R $3.17
59 085-10800-00 RUBBER PIPE, G2800R $11.42
60 011-00800-10 FLANGE BOLT, G2400R $3.50
61 013-00600-40 BOLT & WASHER ASSY, G2800R $1.63
62 011-00600-20 FLANGE BOLT, G6100R $2.40
63 227-20301-51 CRANKSHAFT, EW300R $176.35
64 227-22501-00 CONNECTING ROD ASS'Y, G2400R $60.80
65 227-23001-03 CONNECTING ROD BOLT, G2400R $4.93
66 227-23101-03 OIL SCRAPER, G2400R $4.93
67 227-23201-03 ROD LOCK WASHER, G2400R $3.72
68 214-23301-13 PISTON PIN, G2400R $8.12
69 282-23401-03 PISTON (STD), EW200TR $26.27
69 282-23403-03 PISTON ORVER SIZE .5MM, EW200TR $36.41
69 282-23412-H3 PISTON OVER SIZE .25MM, EW200TR $22.64
69 282-23411-H3 PISTON (STD), EW200TR $26.27
70 227-23511-07 PISTON RING SET(STD) G2400R $28.25
70 227-23502-07 PISTON RING SET, G2400R $29.58
70 227-23503-07 PISTON RING SET, G2400R $29.58
71 056-51400-10 CLIP, G2400R . $1.34
72 023-02501-10 SPACER, (T=0.6), G2800R $3.50
72 023-02501-20 SPACER (T=0.8), G2800R $3.50
72 023-02501-30 SPACER, (T=1.0), G2800R $3.50
73 002-18140-00 NUT, 14MM, G2800R $3.61
74 003-20140-00 SPRING WASHER, 14MM, G2800R $1.63
75 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
76 227-31701-03 CAMSHAFT, EW300R, EW200TR $81.60
77 227-33301-03 TAPPET, VALVE, G2400R $12.19
78 227-33601-03 VALVE SPRING, G2400R $3.61
79 227-33701-03 SPRING RETAINER, G2400R $2.29
80 282-33401-03 INTAKE VALVE, G2400R $11.09
81 227-33501-13 EXHAUST VALVE, G2400R $19.34
82 227-30107-01 MUFFLER, COMPL. EW300R $72.30
83 227-34201-11 MUFFLER COVER, EW200TR, EW300R $27.26
84 282-35201-01 GASKET CPL. FOR EXHAUST, G2400R $4.93
85 002-19080-00 NUT, G2400R $4.16
86 011-00600-10 FLANGE BOLT, G6100R $2.40
89 106-32738-08 LABEL, CLEANER, G2400R $4.84
90 227-32610-07 CLEANER ELEMENT SET, G2800R $27.26
91 227-36003-13 GASKET, AIR CLEANER G2400R $1.41
92 227-32901-13 INSULATOR, G2400R $4.93
93 282-35901-03 GASKET, G1100 $1.41
94 227-35904-03 INSULATOR GASKET 2, G2400R $2.29
95 227-36501-01 LOCK WASHER, AIR CLEANER, G2400R $3.72
96 001-10061-20 BOLT & WASHER, G3510R $1.63
97 003-20060-00 SPRING WASHER, G2800R $1.34
98 002-17060-00 NUT, G3511R $1.34
99 227-37601-11 SPARK ARRESTOR, EW200TR $14.61
100 015-00400-40 TAPPING SCREW, G2800R $0.82
101 227-42301-01 GOVERNOR LEVER,COMPLETE, G2400R $24.18
102 227-42201-03 GOVERNOR SHAFT, G2800R $9.77
103 227-42701-01 GOVERNOR ROD, G2400R $3.50
104 227-42801-03 ROD SPRING, G1100 $3.61
105 003-13060-00 CLIP, G2800R $1.34
106 001-14062-50 BOLT & WASHER, G2800R $1.34
107 018-60600-20 NUT, G2800R . $1.34
108 227-43301-00 "SPEED CONTROL ASS""Y, EW200R" $12.19
109 227-43301-01 SPEED CONTROL, G2410R $6.69
110 227-43601-03 KNOB, EW210R $6.69
111 227-42501-13 GOVERNOR SPRING, EW300R $5.26
112 227-43501-01 STOP PLATE, G2400R $4.93
114 004-31063-00 SCREW, EW210R $0.82
115 002-27060-00 NUT, EM4251 $1.34
116 011-00600-30 FLANGE BOLT, G2800R $1.85
117 227-51718-06 BLOWER HOUSING CP, EW300R $50.28
118 227-91528-03 LABEL, EW300R $5.06
119 073-20035-50 LABEL, STOP SWITCH (RECOIL) G3500R $4.84
120 011-00600-30 FLANGE BOLT, G2800R $1.85
121 011-00600-30 FLANGE BOLT, G2800R $1.85
122 227-52601-03 CYLINDER BAFFLE, G2400R $16.81
123 011-00600-10 FLANGE BOLT, G6100R $2.40
124 227-52701-03 HEAD COVER, EW200TR, EW300R $11.97
125 227-50811-10 RECOIL STARTER ASSY G2400R $93.90
126 215-50515-08 SPIRAL SPRING, G3511R $22.53
127 252-50121-08 REEL, G2410R $28.25
127 227-50123-08 REEL, G2400R $24.18
128 227-50110-18 STARTER ROPE, G2400R $8.12
129 227-50100-08 STARTER KNOB, G2400R $7.02
130 227-50150-08 STARTER KNOB CAP, G3510R $4.93
131 227-50135-08 RETURN SPRING, G2410R $5.26
132 161-50125-08 RATCHET, EW300TR $4.93
132 227-50126-08 RATCHET, G2400R $4.93
133 227-50131-08 FRICTION SPRING, G2800R $5.26
134 161-50150-08 RACHET GUIDE, G3511R $6.69
134 227-50140-08 RATCHET GUIDE, G2400R $4.71
135 227-50152-08 SET SCREW, G2800R $4.93
136 227-50149-18 STARTER PULLEY, G2410R $17.69
137 011-00600-10 FLANGE BOLT, G6100R $2.40
138 227-60271-01 FUEL TANK, EW200TR, EW300R $89.70
139 073-20015-70 LABEL(OIL CAUTION), EW200R $4.84
140 073-20041-30 LABEL/WARNING, EW200R $4.84
141 043-04300-60 FUEL TANK CAP, G5711R $16.70
142 064-13600-10 FUEL FILTER, G2400R $4.93
143 064-20064-00 FUEL STRAINER ASS'Y,EW200R $18.90
144 064-20064-20 SCREEN, EW200R, EW300TR $1.85
145 064-20064-10 RUBBER PACKING, G2800R $2.40
146 064-20042-10 CUP, EW200R, EW300TR $4.93
147 064-20064-30 NUT, EW200R $2.40
148 064-20064-40 RUBBER PACKING, EW200R, EW300TR . $1.08
149 002-38060-00 FLANGE NUT, G6101R $2.40
150 227-62640-01 FUEL PIPE COMPLETE,EW200TR,EW300R $4.93
151 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
152 056-11100-20 HOSE CLAMP, G2800R $1.41
153 227-62302-20 CARBURETOR, EW200TR, EW300R $55.80
154 214-62540-08 FLOAT CHAMBER PACKING, G2400R $4.93
155 226-62506-08 FLOAT ASSEMBLY, G1200R $29.78
156 214-62515-08 FLOAT PIN, G3510R $3.50
157 227-62558-08 FLOAT CHAMBER BODY, G1300R $29.58
158 214-62450-08 PACKING, G2400R $1.85
160 227-62400-08 MAIN JET, G2400R $11.42
162 226-62525-08 CHOKE VALVE, G2400R $6.69
163 226-62520-18 CHOKE LEVER, EW200R $31.11
164 226-62502-08 NEEDLE VALVE ASS'Y, G1300R $33.45
165 226-62550-08 RING, G2410R $3.50
166 226-62551-08 RING, G2400R $4.93
167 209-62353-08 STEEL BALL, G2400R $1.85
168 209-62446-08 SPRING, G2400R . $3.61
169 220-62535-08 THROTTLE VALVE, #170, EW210R $11.42
170 226-62532-08 THROT.SHAFT ASSEMBLY, EW2O0R $27.26
171 209-62445-08 SPRING, G2800R $3.61
172 209-62352-08 SCREW, G1300R $1.41
173 209-62420-08 PILOT JET, G2400R $11.42
174 150-62356-08 SCREW, G2400R . $1.41
175 227-62550-08 SEAL (GASKET), G2400R $3.50
176 227-70201-10 MAGNET ASS'Y $226.02
177 227-70120-08 FLYWHEEL, G2400R $130.28
179 226-70245-08 GROMMET, G2400R $3.61
180 011-00601-21 FLANGE BOLT, G2400R $2.40
181 207-73102-21 WIRE 2 COMP., G2410R $3.50
183 206-75501-01 CLAMP COMP., G2410R $3.50
184 065-01400-31 SPARK PLUG B6HS, EW310TR $4.93
185 065-50000-51 SPARK PLUG CAP, EW310TR $4.93
186 015-00400-10 TAPPING SCREW (4X8), G2400R $0.82
187 056-60300-10 CLAMP, G2400R . $3.61
188 011-00600-10 FLANGE BOLT, G6100R $2.40
189 KS8-11020-01 OIL LEVEL SENSOR, EW200R $110.68
190 021-31600-10 GASKET, G2400R,T1 $0.90
191 214-79003-01 CLAMP, EW210R $5.26
192 001-10081-60 BOLT & WASHER, G2800R $1.63
193 214-73122-01 WIRE 22, G2410R $3.50
