Makita EW100R Water Pump Parts

Makita EW100R Water Pump Parts Image

Makita EW100R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Tool Diagram    (Click image to Zoom in) View larger Image
Makita EW100R Water Pump Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.

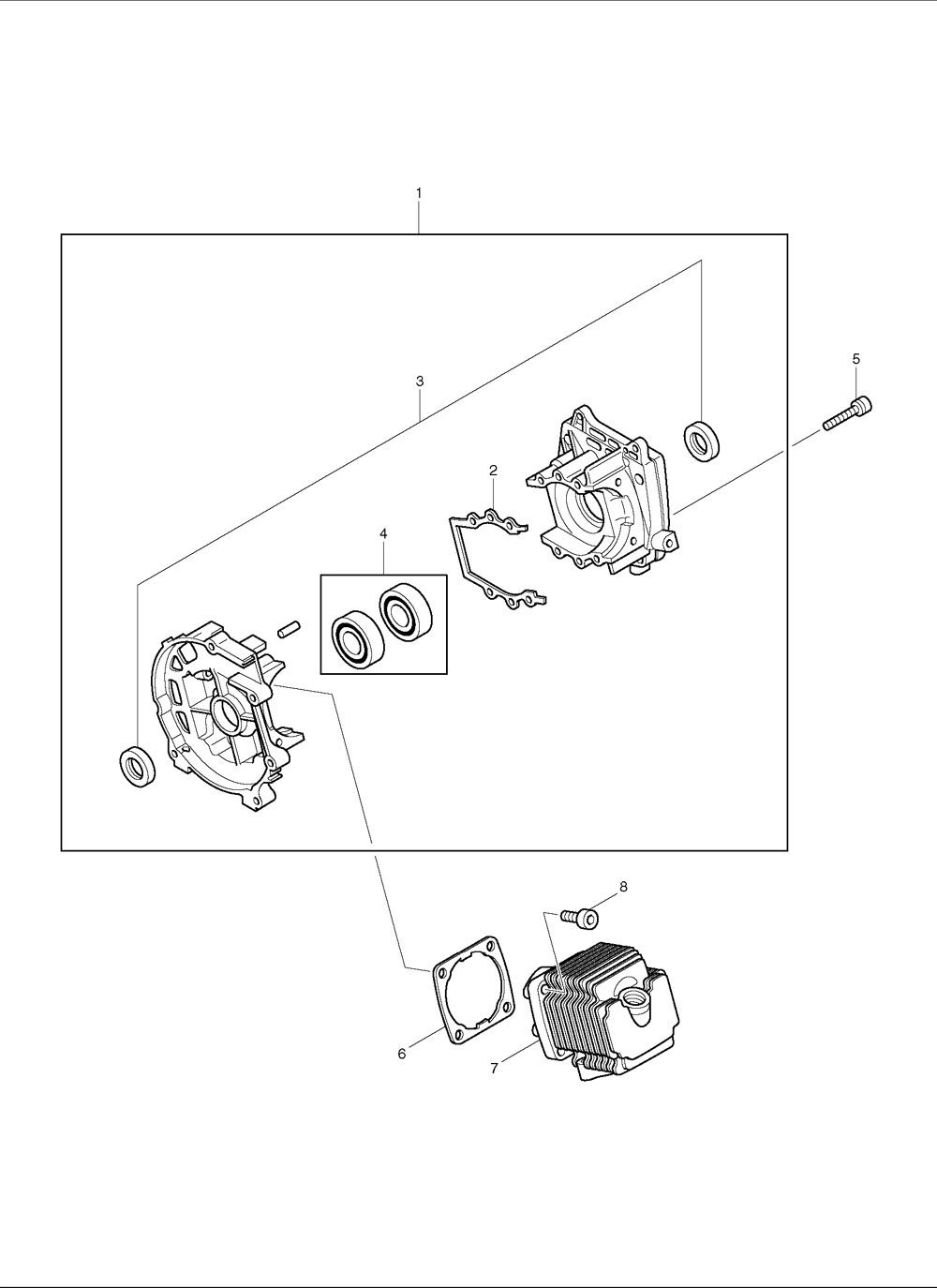

1 541-10050-00 CRANKCASE, EW110R $150.07
2 541-15012-00 GASKET (CRANKCASE), EW110R $3.50
3 044-01599-50 OIL SEAL, RBL500 $9.22
4 060-01598-80 BALL BEARING 6202C3, RBL500 $12.96
5 011-90599-40 SOCKET HEAD BOLT, EW110R $1.85
6 541-15005-01 CYLINDER GASKET, RBL500 $4.71
7 54115003004 CYLINDER, EW110R $121.55
8 011-90699-90 H.S.H BOLT M6X18, EW110R $1.41

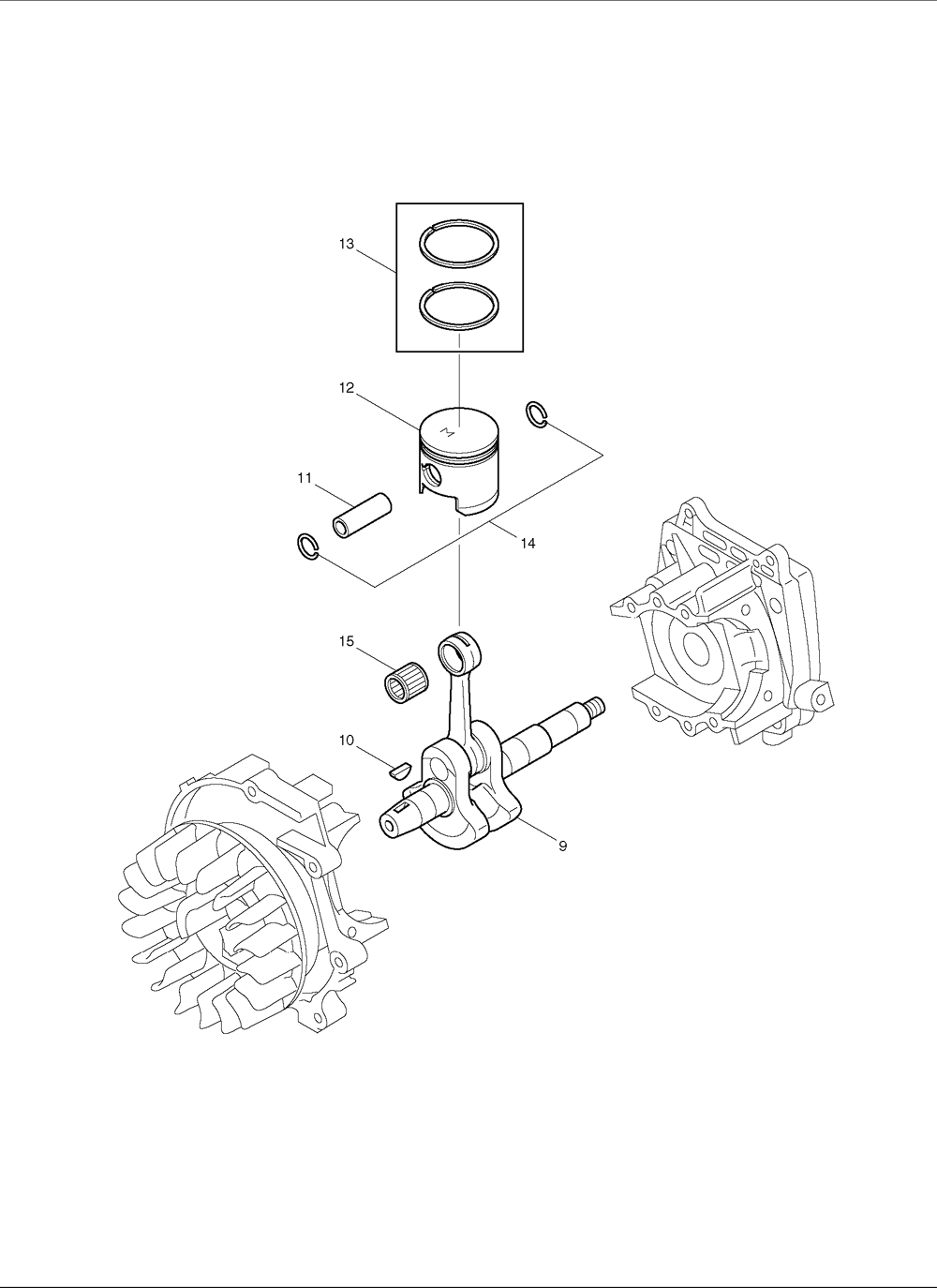

9 541-20070-00 CRANKSHAFT COMPLETE, EW110R $134.45
10 254040-2 WOODRUFF KEY 3, EM2650LH $2.40
11 541-25003-00 PISTON PIN, EW110R $4.93
12 541-25008-00 PISTON, EW110R $28.25
13 540-25006-00 PISTON RING, EW110R $8.12
14 056-50999-90 CLIP, EW110R $1.96
15 541-25013-00 NEEDLE BEARING, EW110R $8.12
16 541-30280-00 MUFFLER COMPLETE, EW110R $42.94
17 541-30310-00 SPARK ARRESTER COMPL., EW110R $26.72
18 540-35024-00 MUFFLER COVER, EW110R $9.77
19 530-35007-00 GASKET (MUFFLER), EW110R $2.51
20 011-90698-30 SOCKET HEAD BOLT, EW110R $2.73
21 003-10060-00 WASHER, G2410R $0.90
22 014-00599-62 SCREW, EM4251 $1.08
23 541-30070-00 LEAD VALVE ASSEMBLY, EW110R $34.06
24 541-35033-01 INSULATOR, EW110R $11.42
25 541-35012-00 PACKING, EW110R $1.85
26 541-35028-00 GASKET (LEAD VALVE, EW110R $1.85
27 004-37052-00 SCREW & WASHER, EW110R $1.34
29 004-35052-20 SCREW, EW110R $0.82

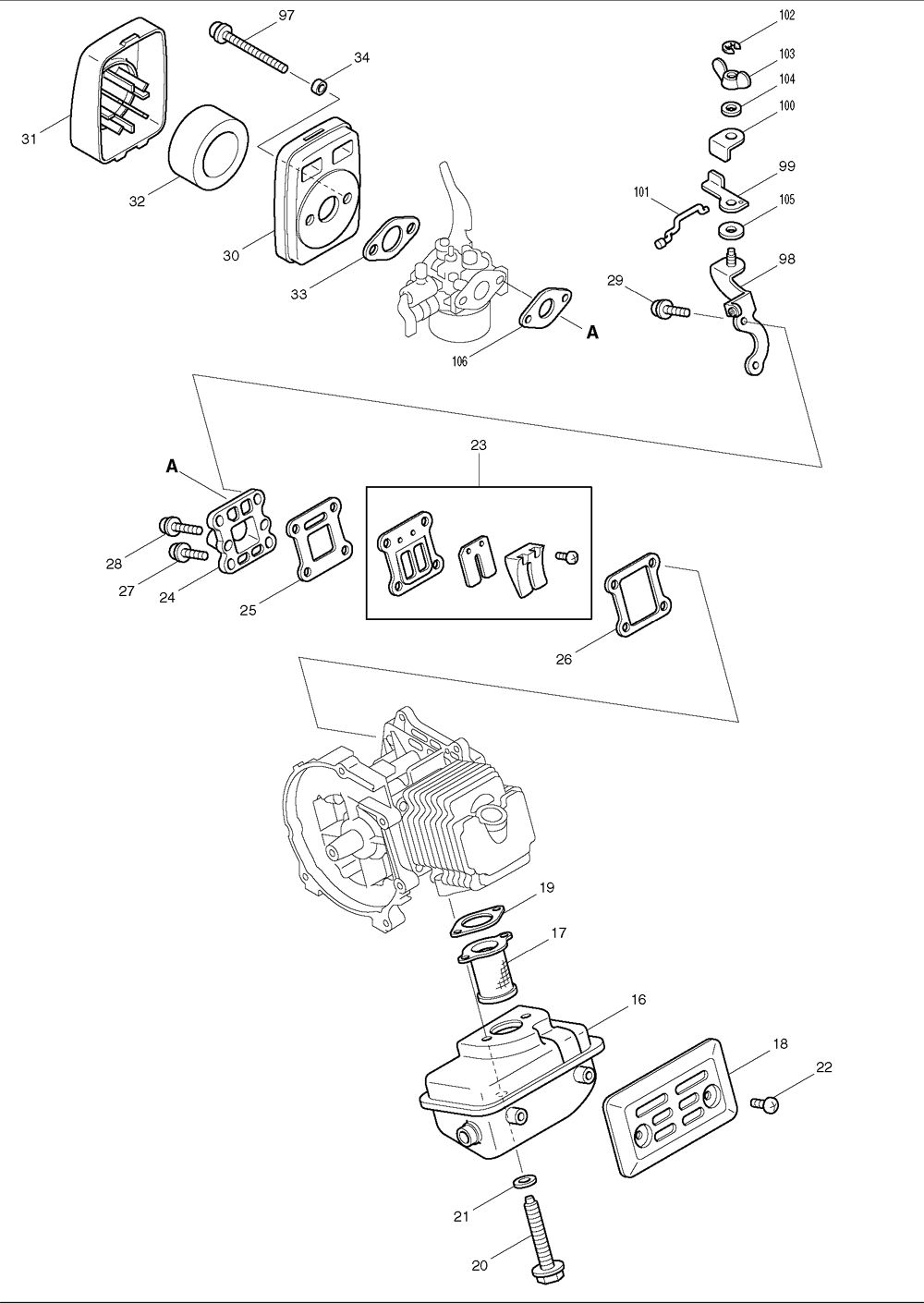

30 541-35034-00 CLEANER BODY, EW110R $4.93
31 541-35035-02 CLEANER COVER, EW110R $6.69
32 541-35009-00 ELEMENT, EW110R $3.50
33 541-35041-00 GASKET, EW110R $1.85
34 023-00698-20 SPACER, EW110R $1.85
36 011-90597-90 S.H.B.M5X22, EW110R $1.85
37 011-90596-60 S.H. BOLT M5X50, EH760 $3.50
38 003-10050-00 WASHER M5, EH760 $1.34
39 011-90595-90 SOCKET HEAD BOLT M5X40, EW110R $4.93
40 541-55046-00 CYLINDER COVER, EW110R $16.04
41 004-37051-40 SCREW & WASHER, EW110R $1.34
42 002-17050-00 NUT M5, EM4251 $1.34
43 004-37052-00 SCREW & WASHER, EW110R $1.34
44 541-55053-00 COVER, EW110R $16.04
45 621-85015-00 SCREW, EW110R $1.08

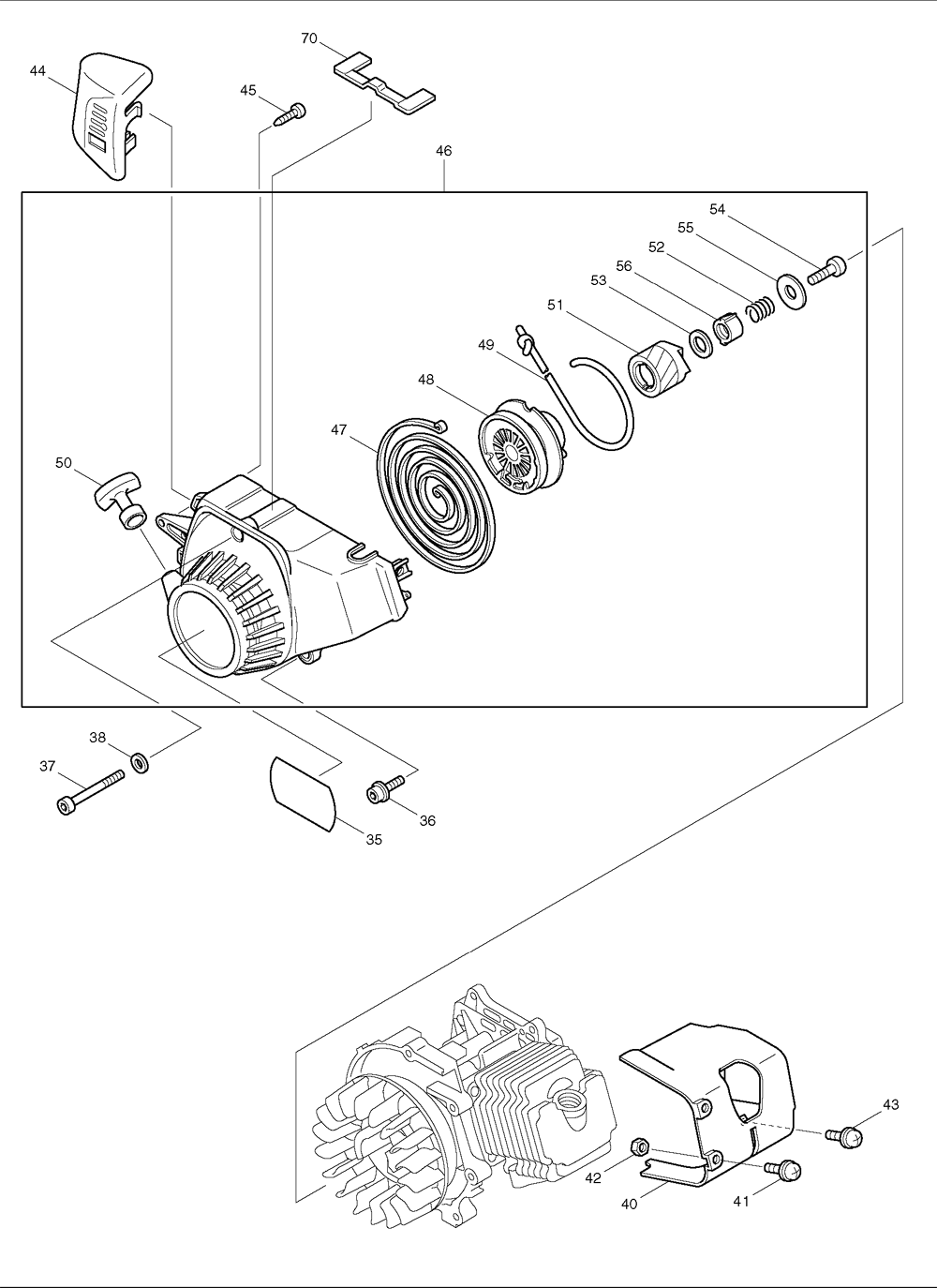

46 541-50380-00 RECOIL STARTER ASSY, EW110R $76.60
47 541-50010-30 SPIRAL SPRING, EW110R $11.42
48 541-50010-10 REEL, EW110R $8.12
49 541-50011-40 STARTER ROPE, RBC260 $6.69
50 530-50021-10 STARTER KNOB, BBX7600 $10.65
51 541-50010-20 RATCHET, EW110R $4.93
52 541-50010-50 FRICTION SPRING, EW110R $1.96
53 541-50012-20 THRUST WASHER, EW110R $1.85
54 524-50010-10 SET SCREW M5, EW110R $1.96
55 541-50010-60 WASHER, EW110R $1.63
56 541-50010-40 RATCHET GUIDE, EW110R $3.50
57 541-65012-01 FUEL TANK, EW110R $27.70
59 510-60130-01 FUEL TANK CAP ASSY, EW110R $6.69
60 064-12799-90 FILTER, EW100R $4.93
61 551-65005-01 PACKING, EW110R $1.85
62 541-60100-00 STRAINER, EW110R $14.61
63 541-65022-00 FILTER (STRAINER), EW110R $4.93
64 541-65021-00 BOLT, EW110R $4.93
65 690-45005-00 SEAL WASHER, EW110R $3.72
66 541-65002-00 FUEL HOSE, EW110R $4.93
67 056-11399-82 HOSE CLAMP, EW110R $1.41
68 541-65003-00 TANK BRACKET COMPL., EW110R $4.49
69 001-17051-40 BOLT ASSY, EW110R $1.41
70 541-65036-00 DAMPER, EW100R $4.93
71 541-65035-00 DAMPER, EW110R $4.93
72 541-65011-00 DAMPER, EW110R $4.93
73 023-00599-90 SPACER - RBC260 $1.48

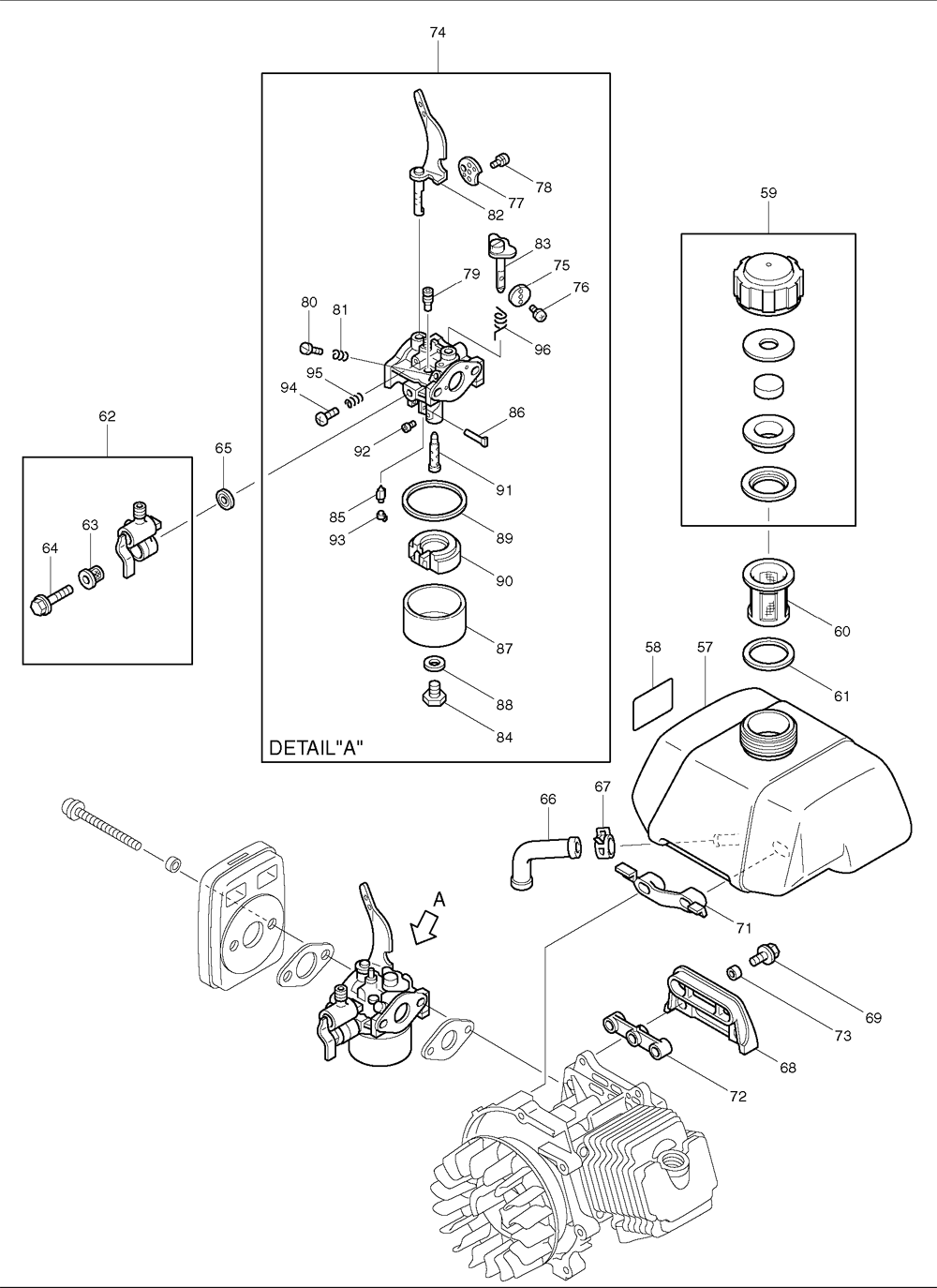

74 541-60020-00 CARBURETOR ASSY, EW100R $98.07
75 230-62537-08 THROTTLE VALVE, EW100R $6.69
77 230-62527-08 CHOKE VALVE, EW100R $4.93
79 209-62421-08 PILOT JET, EW100R $11.42
80 213-62390-08 ADJUSTER, EW100R $3.50
81 209-62445-08 SPRING, G2800R $3.61
82 541-60021-40 CHOKE SHAFT ASSEMBLY, EW110R $26.72
83 541-60021-30 THROTTLE SHAFT ASSEMBLY, EW100R $29.58
84 129-62351-08 BOLT, EW100R $8.12
85 541-60023-10 NEEDLE ASSY, EW110R $38.45
86 214-62515-08 FLOAT PIN, G3510R $3.50
87 230-62550-08 FLOAT CHAMBER BODY, EW100R $26.72
88 207-62345-08 PACKING, G3510R . $1.08
89 230-62540-08 PACKING, EW100R $3.50
91 541-60022-20 MAIN NOZZLE, EW110R $22.53
92 128-62400-08 MAIN JET, EW100R $12.96
93 230-62454-08 CLIP, EW100R $4.93
94 209-62352-08 SCREW, G1300R $1.41
95 209-62445-08 SPRING, G2800R $3.61
96 541-60020-40 SPRING, EW110R $6.69
97 004-37066-50 SCREW & WASHER, EW110R $1.63
98 541-40010-00 THROTTLE LEVER COMPLETE, EW110R $16.04
99 541-45001-00 THROTTLE LEVER, EW110R $3.50
100 541-45003-00 STOP PLATE, EW110R $3.50
101 541-40020-00 ROD COMPLETE, EW110R $3.50
102 129-45001-03 CLIP, EW110R $1.96
103 017-80600-10 WING NUT, EW110R $1.34
104 020-00700-10 WASHER, EH760 $1.63
105 021-70600-20 FRICTION WASHER, EW110R $3.72
106 541-65023-00 GASKET (CARBURETOR), EW110R $1.85

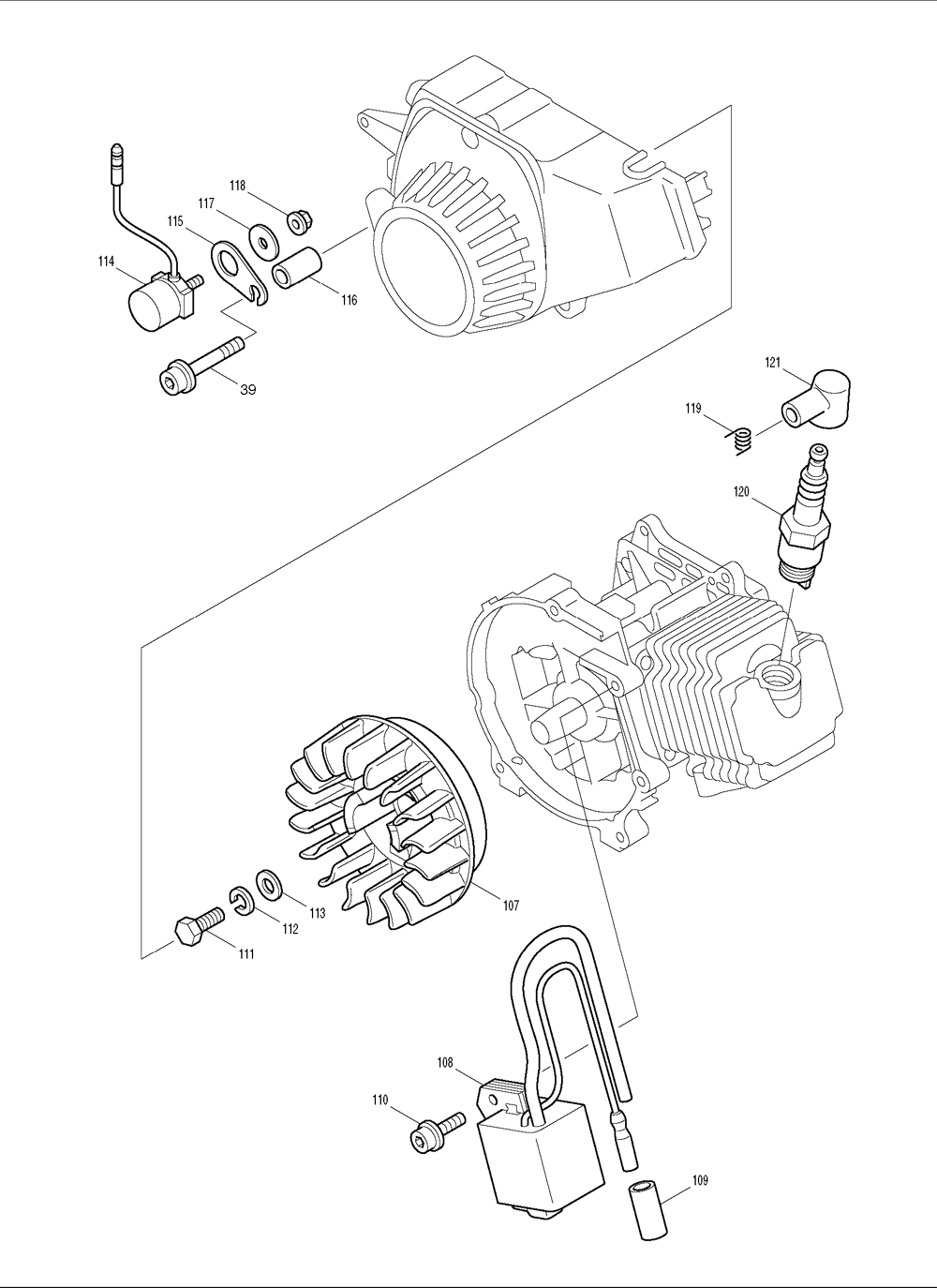

107 541-70230-10 FLYWHEEL, EW110R $107.97
108 541-70230-20 IGNITION COIL, EW110R $115.14
109 541-75003-00 TUBE, EW110R $3.50
110 011-90597-90 S.H.B.M5X22, EW110R $1.85
111 001-67061-60 BOLT, EW110R $1.85
112 003-20060-00 SPRING WASHER, G2800R $1.34
113 020-00699-20 WASHER M6, RBL500 $3.72
114 066-20098-10 STOP SWITCH, EW110R $9.77
115 540-75008-00 PLATE, EW110R $3.50
116 023-00697-80 SPACER, EW110R $4.93
117 003-12040-00 WASHER, EW110R $0.90
118 002-37040-00 FLANGE NUT, EW110R $1.34
119 065-40099-31 PLUG CAP SPRING,RBC221 $3.50
120 065-01497-10 SPARK PLUG BPM7A,RBC260 $6.69
121 065-50098-70 PLUG CAP, RBl500 $6.14

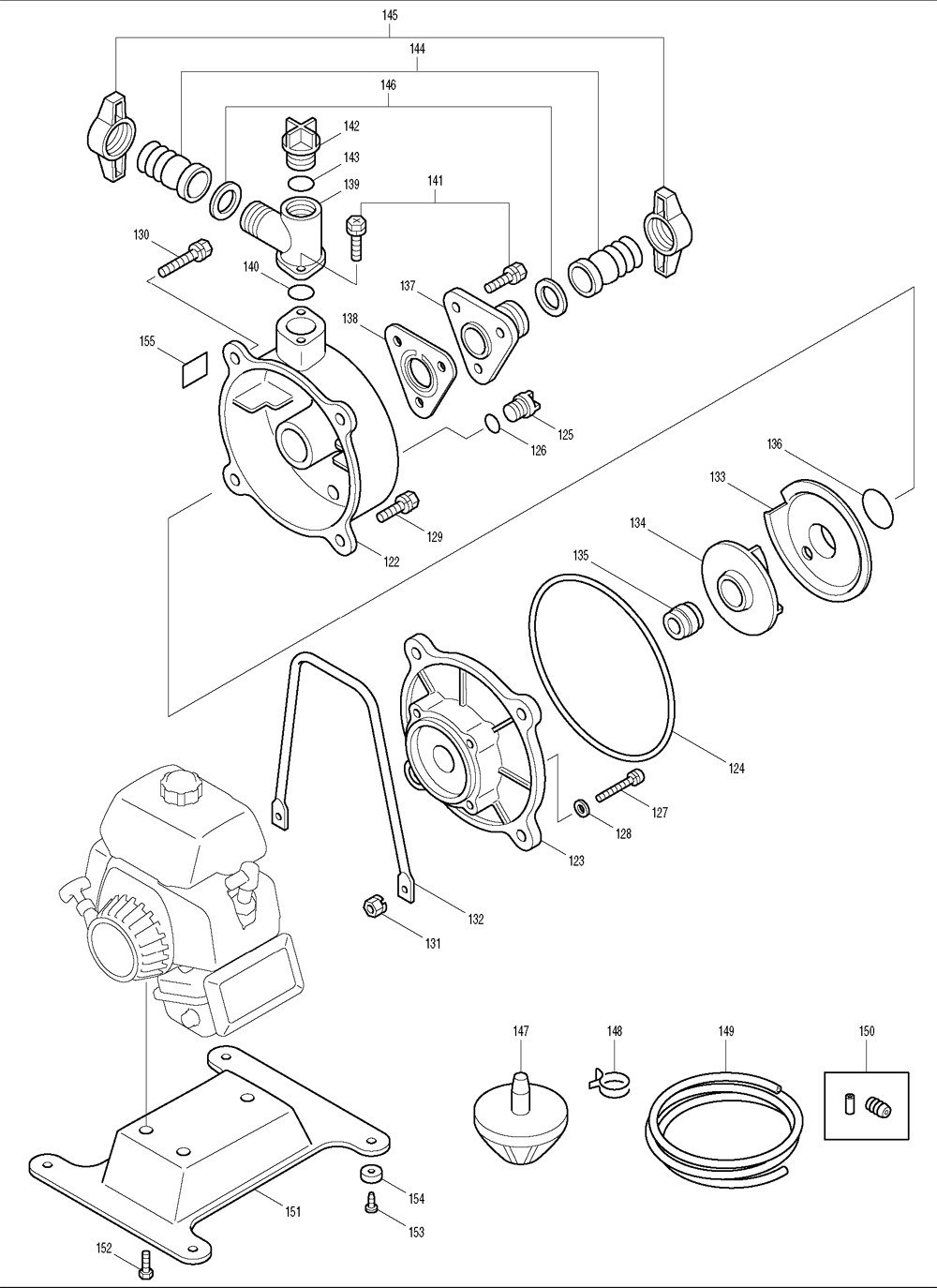

122 480-02510-01 CASING, EW110R $85.30
123 480-02510-04 CASING COVER, EW110R $66.60
124 480-02510-02 O RING, EW110R $11.42
125 480-05010-21 PLUG, EW210R $4.93
126 480-05010-22 PACKING, PLUG, EW210R $2.40
127 480-02510-05 S.H.BOLT M6X40, EW110R $1.85
128 480-02510-08 WASHER, EW110R $1.34
129 480-05010-14 BOLT & WASHER ASSEMBLY, EW210R $1.85
130 480-05010-23 BOLT & WASHER ASSEMBLY, EW210R $1.85
131 480-10010-24 NUT & WASHER ASS'Y M8, EW300TR $1.96
132 480-02510-35 HANDLE, EW110R $13.62
133 480-02510-11 INNER CASING, EW110R $45.79
134 480-02510-09 IMPELLER, EW110R $28.25
135 480-02510-10 MECHANICAL SEAL, EW110R $22.64
136 480-02510-12 O RING (INNER CASING) EW110R $8.12
137 480-02510-13 VALVE CASE, EW110R $8.12
138 480-02510-15 CHECK VALVE, EW110R $11.42
139 480-02510-19 DELIVERY BEND, EW110R $31.11
140 480-02510-20 O RING (DELIVERY BEND),EW110R $4.93
141 480-02510-14 BOLT & WASHER M6X20, EW110R $2.18
142 480-05010-21 PLUG, EW210R $4.93
143 480-05010-22 PACKING, PLUG, EW210R $2.40
144 481-00001-22 HOSE COUPLING (ABS), EW110R $4.71
145 481-00001-23 HOSE COUPLING HANDLE (ABS), EW110R $4.93
146 480-02510-17 PACKING, COUPLING, EW110R $1.85
151 480-02510-36 BASE, EW110R $33.45
152 480-02510-23 BOLT M5X20, EW110R $1.85
153 480-02510-38 TAPPING SCREW M5X14, EW110R $1.85
154 480-02510-31 BASE CUSHION, EW110R $3.50
