Makita EM4250CA Trimmer Parts

Makita EM4250CA Trimmer Parts Image

Makita EM4250CA Parts
8 Inch, 24.5cc Mini-4-Stroke Brushcutter (CA compliant)

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita EM4250CA
8 Inch, 24.5cc Mini-...
$394.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11
Page-12
Tool Diagram    (Click image to Zoom in) View larger Image
Makita EM4250CA Trimmer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 624-10030-00 SHAFT PIPE CPL.,EM4251 $132.12
34 624-95084-00 CAUTION LABEL, EM4250CA $4.60
2 324893-4 SHAFT, EM2650LH $6.80
3 6258060001 PROTECTOR ASS'Y RBC2510 $58.91
4 6258061001 PROTECTOR ASS'Y RBC2510 $41.24
5 625-80530-01 PROTECTOR CPL., RBC2510 $26.52
6 004-36054-00 P.H.SCREW M5X40, EM4251 $1.74
7 002-18050-00 NUT, EM4250 $1.34
8 625-40190-00 HANGER ASSY, EM4251 $12.96
9 004-36052-00 SCREW & WASHER ASS'Y, EM4251 $1.01
10 625-45000-00 GRIP, EM4250 $6.69
11 621-45016-00 HANDLE, EM4250 $13.62
12 621-45020-00 HANDLE, EM4250 $15.16

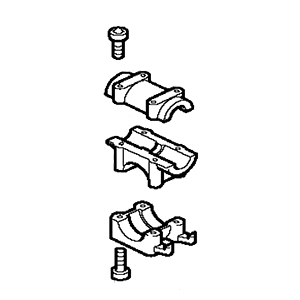

13 625-40070-01 HANDLE HOLDER ASS'Y,EM4250 $18.13
14 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41
15 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41

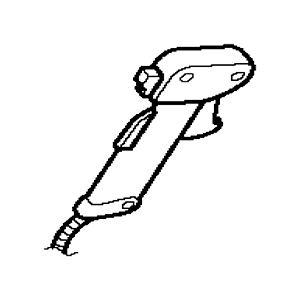

16 624-50020-00 CONTROL LEVER ASS'Y, EM4260 $84.50
18 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41
19 621-25003-00 BALL BEARING 609ZZ, EM4250 $24.18
20 961005-4 RETAINING RING S-9, 6832 $0.86
21 962103-7 RETAINING RING R-24, AN611 $1.08
22 060-00699-90 BALL BEARING 626ZZ, EM4251 $19.67
23 624-30080-02 CUTTER SHAFT SET, EM4251 $64.10
24 060-01099-10 BALL BEARING 6000DDU, EM4251 $13.62
25 003-14260-00 INNER SNAP RING, EM4251 $1.85
27 621-80030-01 CLAMP CPL. WASHER, EM4251 $13.62
28 625-85050-01 NUT, EM4250 $3.06
29 621-85002-00 GUARD, RBC230 $12.96
30 014-00593-90 SCREW ASSEMBLY, EM4251 $1.74
31 625-30110-12 OIL BOLT M6X9, EM4250 $4.93
32 004-31050-60 PAN HEAD SCREW, EM4251 $0.82
33 922218-2 H.S.H. BOLT M5X14 WITH WR, EM2650LH $0.64
34 624-95023-01 CAUTION LABEL, EM4250 $17.62
35 625-95147-00 CAUTION LABEL, RBC321 $4.75
36 625-80280-02 PROTECTOR CPL. EM4250 $39.06
38 001-17063-00 BOLT M6X30, EM4251 $1.74
39 015-00599-40 TAPPING SCREW, EM4251 $1.41
41 621-50220-30 LEVER , EM4250 $15.16
42 621-50230-60 LEVER, EM4251 $13.62
43 621-50230-50 ADJUST CPL.,EM4251 $15.82
44 624-50020-10 WIRE SET, EM4250 $61.40
45 624-50020-20 WIRE CPL., EM4250 $27.15
46 619-50060-50 SPRING, EM4251 $3.61
47 011-90599-80 S.H.BOLT M5X30, EM4250 $1.74
48 621-50220-40 NUT M5 , EM4250 $4.71
49 619-50060-60 T. SCREW M4X20, EM4251 $1.74
50 592-10050-04 CYLINDER BLOCK SET, EM4251 $118.05
51 592-15012-00 BALL, EM4251 $3.17
52 592-15005-02 CAMGEAR COVER, EM4251 $8.01
53 592-10040-01 ROCKER COVER CPL., EM4250 $12.19
54 592-15007-00 CAMGEAR COVER GASKET, EM4251 $4.93
55 592-15008-00 ROCKER COVER GASKET, EM4251 $4.71
56 592-15010-00 LEAD VALVE, EM4251 $4.71
57 592-15011-00 RETAINER PLATE, EM4251 $4.71
58 011-90499-80 S.H. BOLT M4X10, EM4251 $1.96
59 004-36051-60 SCREW ASS'Y M5X16(W,SW), EM4251 $1.41
60 011-90595-10 S.H. BOLT M5X14, EM4251 $1.96
61 011-90595-10 S.H. BOLT M5X14, EM4251 $1.96
62 004-36051-40 SCREW M5X14, RBC251 $1.41
63 624-15002-03 CLUTCH CASE, EM4251 $73.60
64 004-36051-60 SCREW ASS'Y M5X16(W,SW), EM4251 $1.41
65 592-65000-00 OIL CASE, EM4251 $12.74
66 592-65001-00 CASE GASKET, EM4251 $6.14
67 592-65002-00 OIL TUBE, EM4251 $6.14
68 592-65003-00 OIL WEIGHT, BHX2500 $3.17
69 592-65006-00 OIL GAUGE, EM4251 $4.71
70 021-30699-90 GASKET, RBC230 $1.08
71 011-90595-10 S.H. BOLT M5X14, EM4251 $1.96
71 004-36051-80 SCREW ASSEMBLY, RBC230 $1.41
72 065-01099-50 SPARK PLUG CMR6A, EM4251 $11.20
73 592-35038-00 WASHER, EM4251 $1.12
74 624-20030-00 CLUTCH DRUM CPL.,EM4251 $25.61
75 962151-6 RETAINING RING R-32, 9005B $1.48
76 060-01299-50 BALL BEARING 6201DD/6201 2RU,EM4250 $19.67
77 961052-5 RETAINING RING S-12, 9218PBL $0.86
78 450569-8 SPACER, EM2650LH $1.08
79 624-15004-01 PIPE DAMPER 1, EM4251 $4.71
80 624-15005-01 PIPE DAMPER 2, EM4251 $4.71
81 624-15006-01 PIPE BRACKET 1, EM4251 $7.68
82 624-15007-01 PIPE BRACKET 2, EM4251 $7.68
83 922211-6 HEX. SOCKET HAD BOLT M5X12, EM2650LH $0.64
84 922226-3 H. S. H. BOLT M5X18, HM0810B $1.96
85 521-90020-00 STAND SET, EM4251 $11.42
86 014-00594-80 SCREW M5X14, BBX2500 $1.41
87 592-20030-00 CRANKSHAFT ASS'Y, EM4251 $149.19
88 044-01299-60 OIL SEAL (L), EM4251 $7.68
89 044-01099-70 OIL SEAL (S), EM4251 $6.14
90 542-15005-00 CLIP, EM4251 $3.61
91 592-25009-00 PISTON, EM4251 $30.70
92 592-20040-00 PISTON RING SET, EM4251 $25.61
93 056-50899-70 CLIP, BBX2500 $1.96
94 257781-9 PISTON PIN, EM2650LH $1.30
95 424200-2 SPACER, EM2650LH $1.08
96 592-35000-01 CAM LIFTER, EM4251 $7.68
97 593-30030-00 CAM GEAR ASSEMBLY, EM4250 $36.41
98 592-35005-01 CAM GEAR SHAFT, EM4251 $3.28
99 592-35006-00 CAM LIFTER SHAFT, EM4251 $1.41
100 592-35007-00 PUSH ROD, EM4251 $1.74
101 593-30020-00 ROCKER ARM ASS'Y, BHX2500 $15.16
102 256200-2 PIN 5, 2704 $3.28
103 592-35012-00 VALVE SPRING, EM4251 $3.61
104 592-35013-00 SPRING RETAINER, EM4251 $3.61
105 592-35014-00 EXHAUST VALVE, EM4251 $15.16
106 592-35015-00 INTAKE VALVE, EM4251 $15.16
107 592-50010-02 STARTER COVER ASS'Y, EM4251 $36.21
108 451937-8 REEL, EM2650LH $3.50
109 266585-8 TAPPING SCREW 5X12, EM2650LH $1.30
110 232258-5 SPIRAL SPRING, EM2650LH $4.60
111 451938-6 COLLAR, EM2650LH $1.30
112 325923-4 SWING ARM, EM2650LH $1.08
113 592-50010-50 STARTER ROPE, EM4251 $4.71
114 424319-7 STARTER KNOB, EM2650LH $2.40
115 168483-1 PULLEY, EM2650LH $1.30
116 004-36042-50 SCREW ASS'Y M4X25, EM4251 $1.08
117 023-00499-40 SPACER, EM4251 $3.17
118 592-95008-00 TANK GUARD, EM4251 $22.64
119 004-36051-00 SCREW ASSEMBLY, EH620 $1.41
120 624-95086-00 MODEL LABEL, EM4250CA $3.50
121 592-60090-00 CARBURETOR, EM4250 $63.20
122 140437-0 PUMP BODY, EM2650LH $16.70
123 140438-8 AIR PURGE BODY, EM2650LH $9.00
124 346270-0 PRIMER PUMP COVER, EM2650LH $3.50
125 424314-7 PRIMER PUMP, EM2650LH $3.50
126 592-60080-10 METERING DIAPHRAGM, EM4251 $33.45
127 442154-1 METERING DIAPHRAGM GASKET, EM2650LH $3.50
128 168575-6 PUMP DIAPHRAGM, EM2650LH $4.60
129 442155-9 PUMP GASKET, EM2650LH $2.40
130 519-60020-20 JET, RBC201 $16.70
131 213538-8 O RING 2, EM2650LH $2.40
132 257964-1 STOP RING E-3, EM2650LH $2.40
133 325922-6 SWIVEL, EM2650LH $3.50
134 592-60020-10 THROTTLE VALVE ASS'Y, EM4250 $50.59
135 266581-6 PAN HEAD SCREW M3X8, EM2650LH $1.30
136 520-60081-10 PLUG, EM4250 $4.93
137 266582-4 TAPPING SCREW 3X24, EM2650LH $1.30
138 234183-6 CONICAL COMPRESSION SPRING 5-9, EM2650LH $2.40
139 413140-9 WASHER, EM2650LH $1.30
140 352010-6 INLET SCREEN, EM2650LH $2.40
142 002-17050-00 NUT M5, EM4251 $1.34
143 002-27060-00 NUT, EM4251 $1.34
144 002-27060-00 NUT, EM4251 $1.34
145 592-35018-01 INSULATOR GASKET, EM4251 $1.74
146 592-35040-00 CARBURETOR GASKET, EM4250 $6.14
147 592-35020-00 CARBURETOR INSULATOR, EM4251 $7.68
149 014-90699-72 ADJUST SCREW M6X16, EM4251 $4.71
150 524-60041-50 CAP, EM4251 $6.14
151 525-95003-00 CAP , EM4250 $3.17
152 592-15009-00 BREATHER PIPE, EM4251 $4.71
153 593-30010-00 CLEANER PLATE ASSY, EM4250 $32.13
154 593-30050-00 AIR CLEANER PLATE CPL, EM4250 $12.19
155 531-65007-01 CHECK VALVE, EM4251 $4.71
156 424316-3 CHECK VALVE, EM2650LH $3.50
157 592-35025-00 CHECK VALVE PLATE, EM4251 $3.17
158 593-35016-00 SEPARATOR PLATE,MS2514 $10.65
159 592-35022-00 CHOKE LEVER, EM4251 $1.74
160 593-35012-00 AIR CLEANER ELEMENT,EM4250 $4.71
161 024-01399-70 O RING P14, EM4251 $1.74
162 213540-1 O RING 15, EM2650LH $1.08
163 592-35023-01 CHOKE PLATE, EM4251 $3.17
164 592-35026-00 PLATE, EM4251 $3.17
165 021-30699-90 GASKET, RBC230 $1.08
166 593-35008-00 AIR CLEANER COVER,EM4250 $4.71
167 592-35030-01 PIPE, EM4251 $4.71
168 014-00594-80 SCREW M5X14, BBX2500 $1.41
169 592-35031-00 SCREW M5X68(W,SW SUS),EM4251 $3.17
170 345918-1 HOSE CLAMP, EM2650LH $0.64
171 592-30010-00 EXHAUST MUFFLER, EM4251 $25.61
173 592-35034-00 MUFFLER COVER, EM4251 $7.68
174 011-90595-20 SOCKET HEAD BOLT M5X40, BHX2500 $3.50
175 014-00599-62 SCREW, EM4251 $1.08
176 592-65024-00 FUEL TANK, EM4250CA $21.76
177 592-60030-00 TUBE, EM4251 $18.13
178 523-65039-00 FILTER, RBL500 $11.42
179 056-10599-90 HOSE CLAMP, EM4251 $1.41
180 592-60120-00 FUEL TANK CAP, EM4251 $9.22
181 525-60670-00 STRAP, RBL500 $7.68
182 810455-9 CAUTION PLATE, EM2650LH $1.30
183 503-65002-00 PLATE, EM4251 $3.50
184 503-65003-00 PLATE, EM4251 $3.50
185 519-65003-02 DAMPER, EH450 $4.71
186 592-70120-11 IGNITION COIL, BHX2500 $120.19
187 592-70010-21 FLYWHEEL EM4251 $77.70
188 592-75001-00 PLUG CAP, EM4251 $3.17
189 065-40099-31 PLUG CAP SPRING,RBC221 $3.50
190 592-70030-00 WIRE CPL.,EM4251 $4.71
191 525-70180-01 WIRE COMPLETE, EM4251 $4.93
192 525-75003-00 GROMMET, EM4251 $3.61
193 001-13061-60 BOLT ASS'Y, RBL500 $1.96
194 003-12060-00 WASHER, EM4251 $1.01
195 014-00499-20 SCREW M4X20, RST250 $1.41
196 592-85000-00 CLUTCH SHOE, EM4251 $22.64
197 592-85001-00 SPRING, EM4251 $4.71
198 592-85002-00 CLUTCH BOLT, EM4251 $3.17
199 267812-6 WASHER 6, EM2650LH $0.64
200 592-55008-00 CYLINDER COVER, EM4251 $26.52
201 004-36051-00 SCREW ASSEMBLY, EH620 $1.41
202 004-36041-60 SCREW M4X16(W,SW),EM4251 $1.08
203 592-75000-00 PLUG COVER, EM4251 $4.71
204 056-60599-80 CLAMP, EM4251 $3.50
205 592-95010-01 TRADE MARK LABEL, EM4250 $4.56
206 625-85082-00 PROTECTOR CLAMP, EM4250 $6.14
207 001-17063-00 BOLT M6X30, EM4251 $1.74
208 625-80280-02 PROTECTOR CPL. EM4250 $39.06
209 592-30080-11 SPARK ARRESTER, EM4251 $15.16
210 592-35039-00 PIPE, EM4250 $2.51
211 424201-0 CHECK VALVE, EM2650LH $2.40
212 011-90597-80 S.H. BOLT M5X12 W/W & SW, BHX2500 $1.85
213 592-35035-00 SEPARATOR GASKET, EM4251 $1.41
214 593-35009-00 AIR CLEANER ELEMENT,EM4250 $4.71
216 123143-2 BAND ASSEMBLY, EM4250 $87.30
