Makita EK7301 Electric Saw Parts

Makita EK7301 Electric Saw Parts Image

Makita EK7301 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita EK7301
14 Inch 73 CC Power ...
$899.00
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8

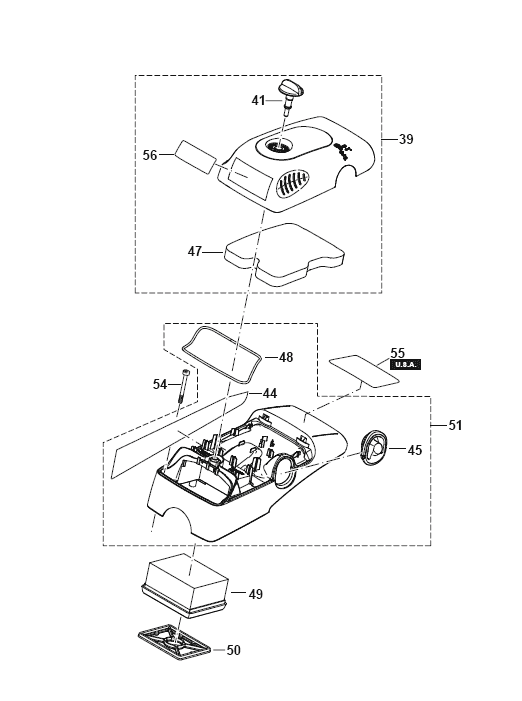

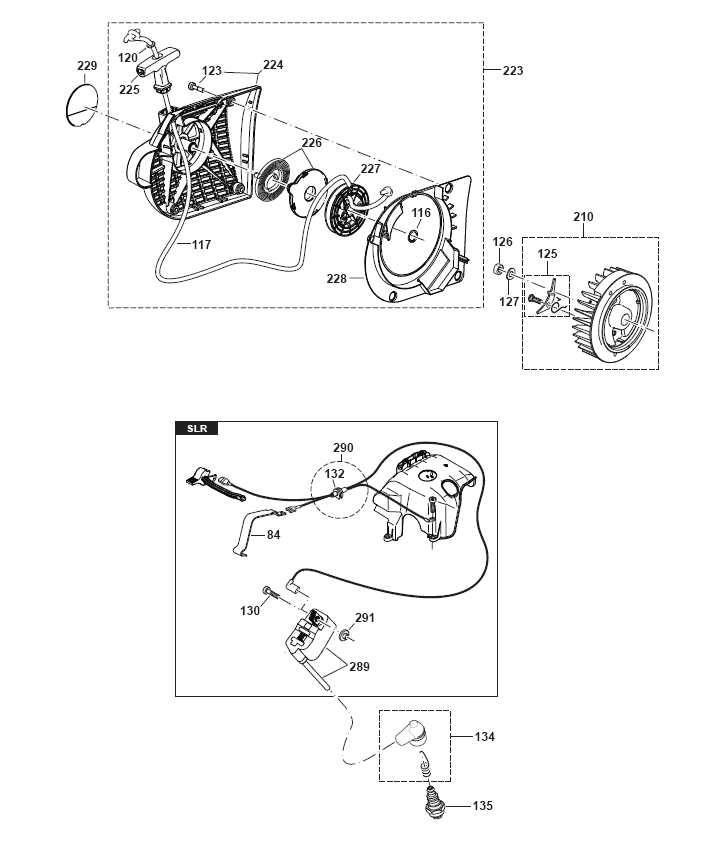

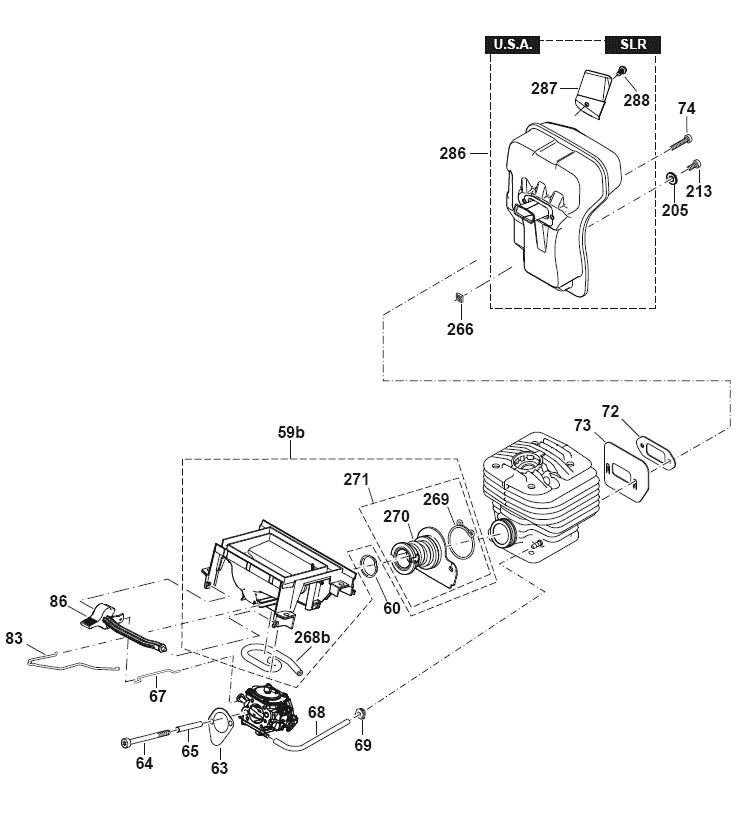

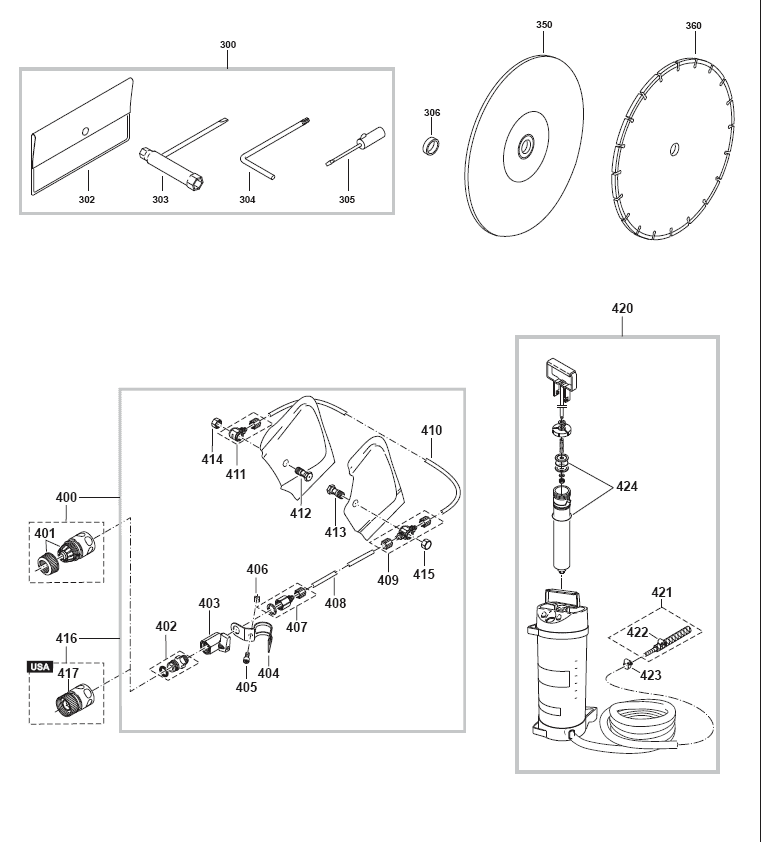

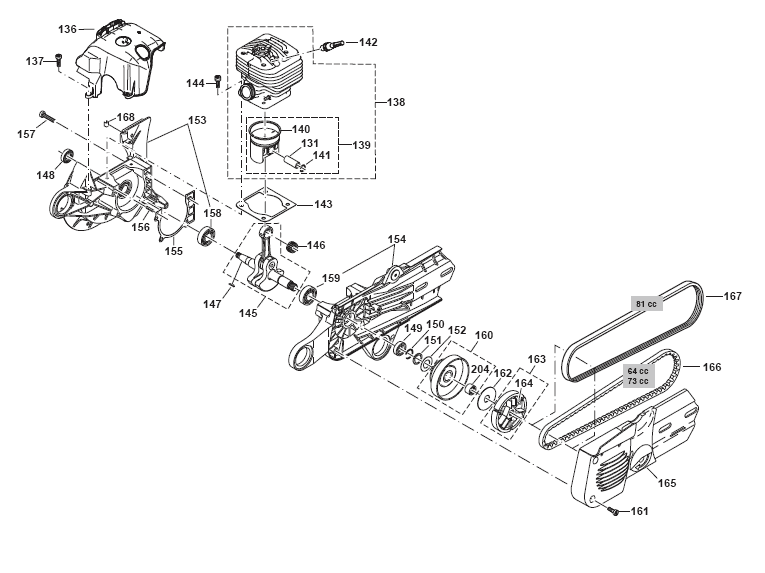

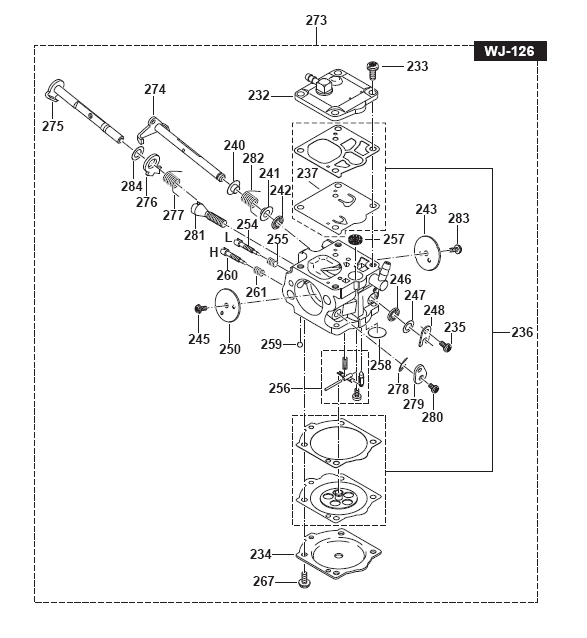

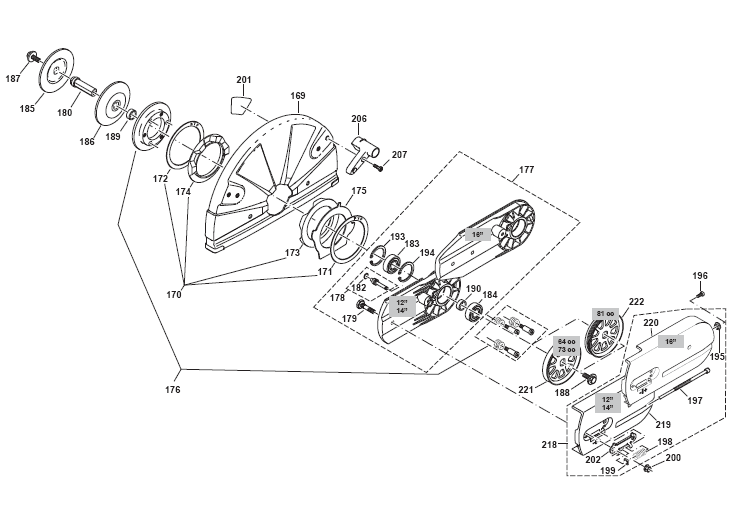

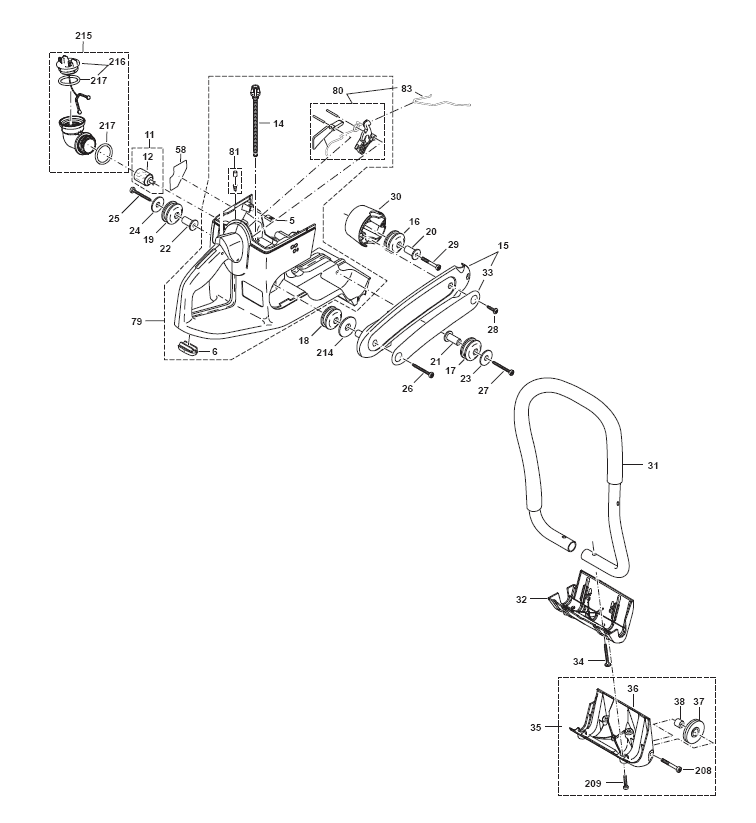

Tool Diagram    (Click image to Zoom in) View larger Image
Makita EK7301 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
5 394-114-100 SCREW PLUG, DPC7300 $3.50
6 394-114-070 RUBBER FOOT, DPC7300 $6.69
11 963-601-122 SUCTION HEAD CPL., DPC7321 $4.71
12 963-601-240 FELT, DCS340 $4.93
14 965-404-911 FUEL LINE, DPC6400 $6.14
16 965-403-535 RUBBER BUFFER, DPC7331 $9.22
17 965-403-535 RUBBER BUFFER, DPC7331 $9.22
18 965-403-535 RUBBER BUFFER, DPC7331 $9.22
19 965-403-535 RUBBER BUFFER, DPC7331 $9.22
20 394-114-281 AXLE, DPC7331 $3.50
21 394-114-281 AXLE, DPC7331 $3.50
22 394-114-281 AXLE, DPC7331 $3.50
23 900-005-078 WASHER 5.8, DPC7301 $1.34
24 900-005-078 WASHER 5.8, DPC7301 $1.34
25 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
26 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
27 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
28 913-455-204 SCREW M5.5X20, DCS6800I $1.85
29 908-305-405 FILLISTER H. SCREW, DPC9500 $3.17
30 395-310-020 POT, EK7301 $4.60
32 394-114-190 FOOT, DPC6410 $25.61
33 980-115-215 LABEL, EK7301 $4.60
34 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
35 394-114-271 FOOT CPL.,DPC7331 $44.57
37 394-114-230 ROLLER, DPC6410 $15.16
38 394-114-240 BUSHING,DPC6410 $3.50
39 395-118-121 COVER ASS'Y, EK7301 $25.50
41 395-118-010 CATCH BUTTON, DPC7331 $4.71
44 980-115-486 CAUTION LABEL, EK7301 $5.70
45 395-118-050 RUBBER PARTS, DPC7331 $3.61
47 395-173-080 PREFILTER, DPC7331 $10.43
48 395-118-021 PACKING RING, DPC8132 $2.40
49 395-173-010 AIR FILTER INSERT, DPC7331 $7.02
50 395-173-020 INNER FILTER, DPC7331 $7.02
54 908-605-505 SCREW M5X50, DPC7321 $1.74
55 980-115-560 LABEL, EK7301 $3.50
56 980-114-999 LABEL MIX, EK7301 $3.10
58 980-115-099 LABEL, EK7301 $4.60
59 395-171-072 CONNECTING SLEEVE CPL., DPC7331 $32.84
60 024-131-032 INSERT(SUCTION HOSE),DCS9000 $9.22
63 965-518-120 GASKET, DPC6200 $3.50
64 908-204-555 SCREW M4X55, DCS6421 $1.85
65 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
67 394-150-042 CHOKE SHAFT, DPC6400 $3.17
68 965-452-382 TUBE, DCS340 $12.54
69 965-401-016 RUBBER BUSH, DCS6800I $3.50
72 395-174-120 GASKET, EK7301 $2.40
73 395-174-110 COOLING PLATE, DPC7331 $4.56
74 908-405-205 SCREW M5X20, DPC6400 $1.85
79 395-114-600 TANK CPL. BLUE., DPC7331 $106.12
80 957-117-040 THROTTLE MECHANISM CPL., DPC7331 $18.35
81 170-175-010 AIR VALVE CPL., DPC7331 $5.92
83 395-117-010 THROTTLE LINKAGE, DPC7331 $2.51
83 395-117-010 THROTTLE LINKAGE, DPC7331 $2.51
84 395-146-011 CONTACT SPRING, DPC7331 $1.34
86 395-150-011 CHOKE SHAFT, DPC7331 $1.34
116 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
117 394-164-020 STARTER ROPE BLACK, DPC6410 $7.68
117 122-164-010 START ROPE 1000MM, DCS6800I $4.93
120 928-405-000 WASHER, DCS340 $1.85
123 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
125 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
126 920-208-024 HEXAGONAL NUT M8X1, DCS6401 $1.96
127 926-208-001 SPRING WASHER 8, DPC7000 $2.51
130 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
131 119-132-030 PISTON PIN, DCS6421 $19.67
132 965-401-016 RUBBER BUSH, DCS6800I $3.50
134 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
135 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
136 395-131-040 HOOD, DPC7331 $17.25
137 909-005-155 BOLT, EK7301 $1.30
138 395-130-100 CYLINDER / PISTON CPL., EK7301 $212.63
139 395-132-050 PISTON CPL., DPC7331 $109.03
140 394-132-020 PISTON RING 50, DPC7331 $19.67
141 119-132-060 SPRING RING, DCS6000I21 $1.96
142 395-118-071 DECOMPRESSION VALVE, DPC7331 $17.80
143 965-531-160 GASKET, DPC7331 $3.17
144 908-805-235 SCREW W/SPRING WASHER, DPC7331 $2.51
145 395-120-010 CRANKSHAFT CPL., EK7301 $180.62
147 939-630-370 KEY, DPC7000 $1.85
148 962-900-052 RADIAL RING, DCS431 $8.12
149 962-900-052 RADIAL RING, DCS431 $8.12
150 930-916-160 SPRING RING, DCS431 $1.96
151 394-245-010 STOP RING, PC6212 $4.71
152 394-182-020 GUIDE DISC, DPC7300 $3.50
153 395-111-110 CRANKCASE MAG SIDE, EK7301 $88.20
154 326-111-740 CRANKC. CLUTCH SIDE,DPC8112 $149.19
155 965-531-111 GASKET, DPC7331 $4.71
156 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
157 908-005-305 TORX SCREW 5X30, DCS340 $1.85
158 960-102-159 BALL BEARING, DCS6800I $19.34
159 960-102-159 BALL BEARING, DCS6800I $19.34
160 394-223-025 CLUTCH DRUM ASS'Y, DPC7300 $85.90
161 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
162 001-182-042 GUIDE DISC, DCS6401 $4.71
163 010-180-024 CLUTCH CPL., DPC6401 $54.60
164 024-184-021 TENSION SPRING, DC6401 $3.61
165 395-213-670 COVER, EK7301 $22.86
166 965-300-470 V-BELT, DPC7300 $29.58
168 965-402-870 RUBBER PLATE SET, DPC6400 $10.65
169 325-341-611 "12"" PROTECTION HOOD, DPC6410" $125.52
169 394-341-051 PROTECTION HOOD, DPC6411 $115.14
170 957-342-011 PROTECTING HOOD, DPC6200 $22.64
171 394-342-180 SLIDING DISC, DPC6410 $6.91
172 394-342-180 SLIDING DISC, DPC6410 $6.91
173 965-404-900 RUBBER RING EXT.,DPC6400 $7.68
174 965-404-920 RUBBER RING INT.,DPC6400 $7.68
175 394-342-160 IMPACT PLATE, DPC6410 $15.16
176 394-342-211 PRESSURE RING CPL., DPC8112 $40.39
177 394-211-740 CUTTING DEVICE BLACK, DPC6410 $211.17
178 394-342-190 BOLT CPL.,DPC6410 $6.91
179 394-211-091 SCREW, DPC8112 $4.93
180 394-228-101 20MM AXLE, DPC POWER CUTTERS $57.30
180 394-228-111 "1"" AXLE, DPC HD VERSION" $57.30
182 963-209-020 PACKING RING, DPC7331 $1.59
183 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
184 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
185 326-228-020 PRESSURE DISC, DPC8112 $19.08
186 326-228-020 PRESSURE DISC, DPC8112 $19.08
187 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
188 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
189 394-228-021 SPACER, DPC8112 $4.71
190 394-228-021 SPACER, DPC8112 $4.71
193 929-240-180 SNAP RING, DPC6400 $3.50
194 929-240-180 SNAP RING, DPC6400 $3.50
197 394-213-032 TENSIONING SCREW, DPC8112 $4.93
198 394-342-120 PRESSURE SPRING, DPC7300 $5.26
199 921-906-004 NUT M6, EHW120 $1.96
200 923-208-004 HEX NUT, DCS341 $4.16
201 980-114-975 SAFETY LABEL , EK7301 $3.83
202 394-213-021 METAL SHEET, DPC7331 $3.61
204 962-300-017 NEEDLE CAGE, DPC6410 $16.70
205 928-405-000 WASHER, DCS340 $1.85
206 326-341-300 GRIP, DPC7331 $7.68
207 908-605-165 SCREW M5X16, DPC7331 $1.74
208 908-006-355 FILLISTER H. SCREW, EK7301 $3.50
209 908-905-165 SCREW 5X16, EK7301 $1.74
210 394-141-090 FLYWHEEL, DPC7331 $123.10
213 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
214 900-005-076 WASHER, EK7301 $1.34
215 395-114-300 ANGULAR TANK CAP CPL., DPC7331 $11.53
216 181-114-202 TANK CAP CPL. FUEL $6.14
217 963-229-036 PACKING RING, DPC7331 $3.17
218 395-211-640 COVER CPL., DPC6410 $68.20
219 395-211-620 COVER BLUE, DPC7331 $29.78
221 394-221-050 V-BELT PULLEY, DPC7321 $39.47
223 395-160-600 STARTER ASS'Y BLUE, DPC7331 $63.00
224 395-160-630 STARTER CASE BLUE, DPC7331 $63.00
225 181-164-010 STARTER KNOB, DPC7331 $3.61
226 181-163-050 REWIND SPRING, DPC7331 $8.12
227 395-162-020 CABLE DRUM CPL., DPC7331 $19.45
228 395-118-170 AIR GUIDE PLATE, DPC7331 $2.51
229 980-115-514 LABEL (STARTER), EK7301 $2.40
232 394-151-160 PUMP COVER CPL.,DPC8112 $19.67
233 144-150-170 FILLISTER SCREW (96-543), EK7301 $1.48
234 395-151-120 DIAPHRAGM COVER, DPC7331 $18.35
235 378-151-220 SCREW, DPC8112 $3.17
236 957-151-180 SET DIAPHRAGM/GASKETS (WALBRO), DPC8112 $27.15
237 394-151-150 PUMP DIAPHRAGM, DPC8112 $7.68
240 394-151-315 BUSHING, DPC7321 $3.94
241 394-151-315 BUSHING, DPC7321 $3.94
242 394-151-330 PACKING RING, DPC8112 $6.14
243 394-151-320 THROTTLE SHUTTER, DPC8112 $4.71
245 394-151-660 SCREW, DPC7331 $3.61
246 394-151-330 PACKING RING, DPC8112 $6.14
247 394-151-400 DISC, DPC8112 $4.93
248 108-151-350 SAFETY WASHER, EK7301 $4.60
254 394-151-470 IDLE ADJUST. SCREW (L),DPC8112 $22.09
255 021-151-480 SPRING, EK7301 $5.26
257 021-151-180 SCREEN, EK7301 $4.93
258 394-151-040 COVER DISC, DPC8112 $3.17
259 394-151-510 LOCKING BALL, DPC8112 $4.93
260 001-151-450 MAIN ADJUSTM. SCREW, EK7301 $18.46
261 021-151-480 SPRING, EK7301 $5.26
266 038-111-060 SQUARE NUT M5, DCS6401 $1.96
267 378-151-220 SCREW, DPC8112 $3.17
268 395-171-024 TUBE, EK7301 $3.50
269 038-131-070 HOSE CLIP, EK7301 $2.40
270 394-131-200 SUCTION HOSE, EK7301 $15.60
271 394-131-210 SUCTION HOSE, DPC7331 $19.67
274 395-151-130 THROTTLE SHAFT, DPC7331 $7.02
275 395-151-170 CHOKE SHAFT, DPC7331 $7.02
276 395-151-110 THROTTLE LEVER, DPC7331 $3.61
277 395-151-190 TORSION SPRING, DPC7331 $2.51
278 119-151-350 SHAFT CLIP, DPC7331 $4.27
279 395-151-180 CHOKE LEVER, DPC7331 $2.51
280 394-151-660 SCREW, DPC7331 $3.61
281 395-151-140 IDLE STOP SCREW, DPC7331 $8.12
282 395-151-150 TORSION SPRING, DPC7331 $2.51
283 395-151-160 SCREW, DPC7331 $1.34
284 170-151-290 FLAT WASHER, DPC7331 $1.34
286 395-174-200 MUFFLER, EK7301 $47.12
287 395-174-140 SPARK ARRESTER SCREEN, EK7301 $2.40
288 913-242-100 ALLEN SCREW, EK7301 $1.08
289 395-143-010 IGNITION COIL, EK7301 $176.74
291 195-143-030 WASHER, EK7301 $1.30
303 941-719-140 UNIVERSAL WRENCH $13.88
304 940827000 WRENCH TORX DCS431 $7.99
305 944340001 CARBURETOR SCREWDRIVER DCS6800I $4.19
306 394-228-121 "ADAPTER RING, DPC7331, 20mm to 1""" $10.65
402 964-802-282 HOSE CONNECTOR, DT2000 $6.14
403 964-802-291 SHUT OFF COCK, DT2000 $16.04
405 909-006-145 SCREW, EK7301 $1.30
406 921-906-004 NUT M6, EHW120 $1.96
407 964-802-410 CONNECTING PIECE, DT2000 $8.91
408 964-802-322 HOSE, DT2000 $4.71
409 964-802-332 CONNECTING PIECE, DT2000 $7.46
410 964-802-322 HOSE, DT2000 $4.71
410 964-802-322 HOSE, DT2000 $4.71
411 964-802-340 CONNECTING PIECE, DT2000 $6.14
412 964-802-352 NOZZLE (HOLLOW SCREW), DT2000 $4.60
413 964-802-352 NOZZLE (HOLLOW SCREW), DT2000 $4.60
414 964-802-362 CAP NUT, DT2000 $3.06
415 964-802-362 CAP NUT, DT2000 $3.06
416 394-365-630 WATER ATTACHMENT KIT $98.05
417 964-802-400 COUPLING SLEEVE STOP, DPC6410 $11.97
420 957-802-600 PRESSURE TANK, EK7301 $385.29
421 394-365-180 CONNECTING REDUCER, DT2000 $12.74
422 964-802-250 CLAMP, DT2000 $4.71
423 964-802-250 CLAMP, DT2000 $4.71
424 957-963-200 GASKET SET, DPC8112 $15.16
