Makita EH490V Trimmer Parts

Makita EH490V Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

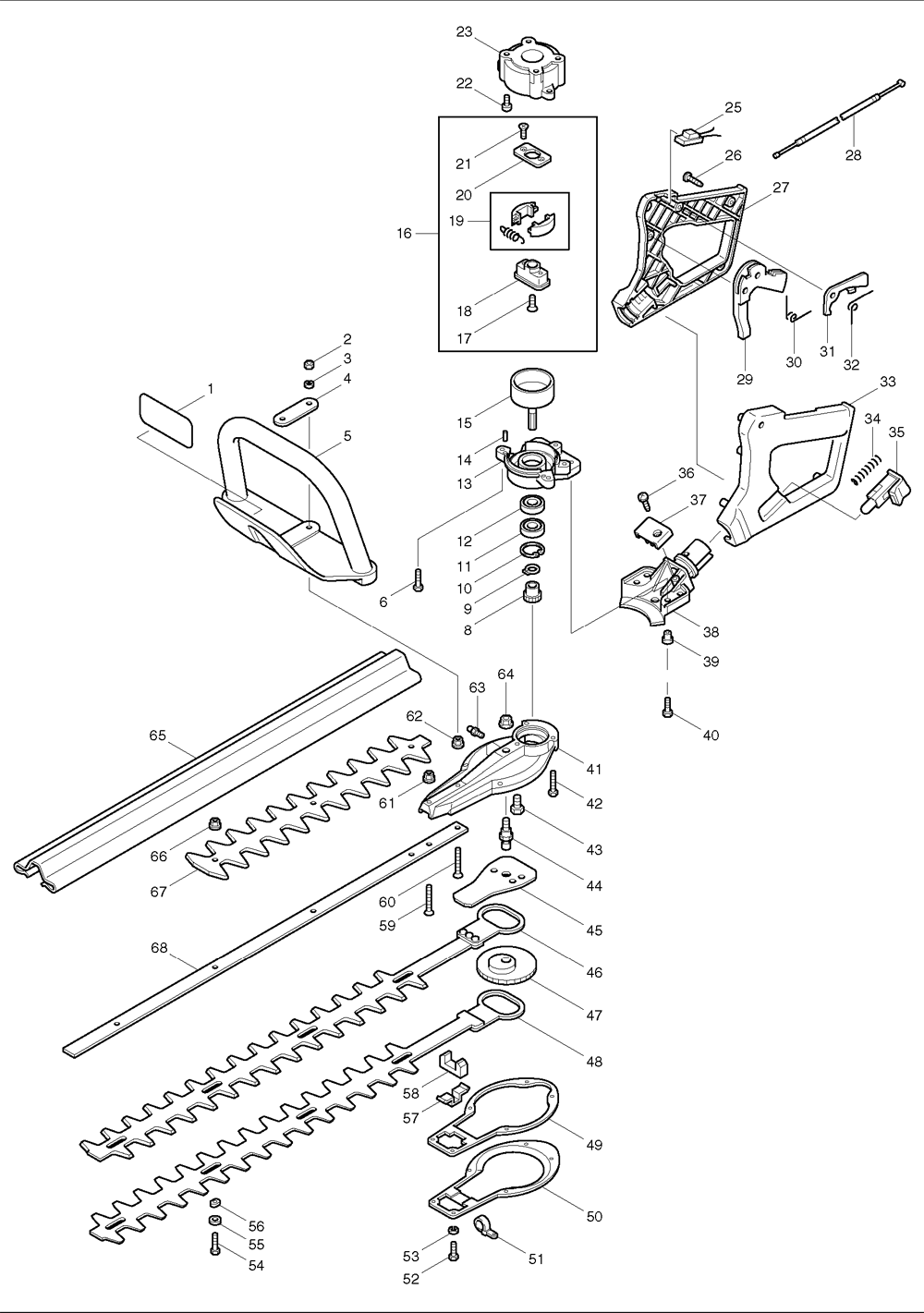

Page-1

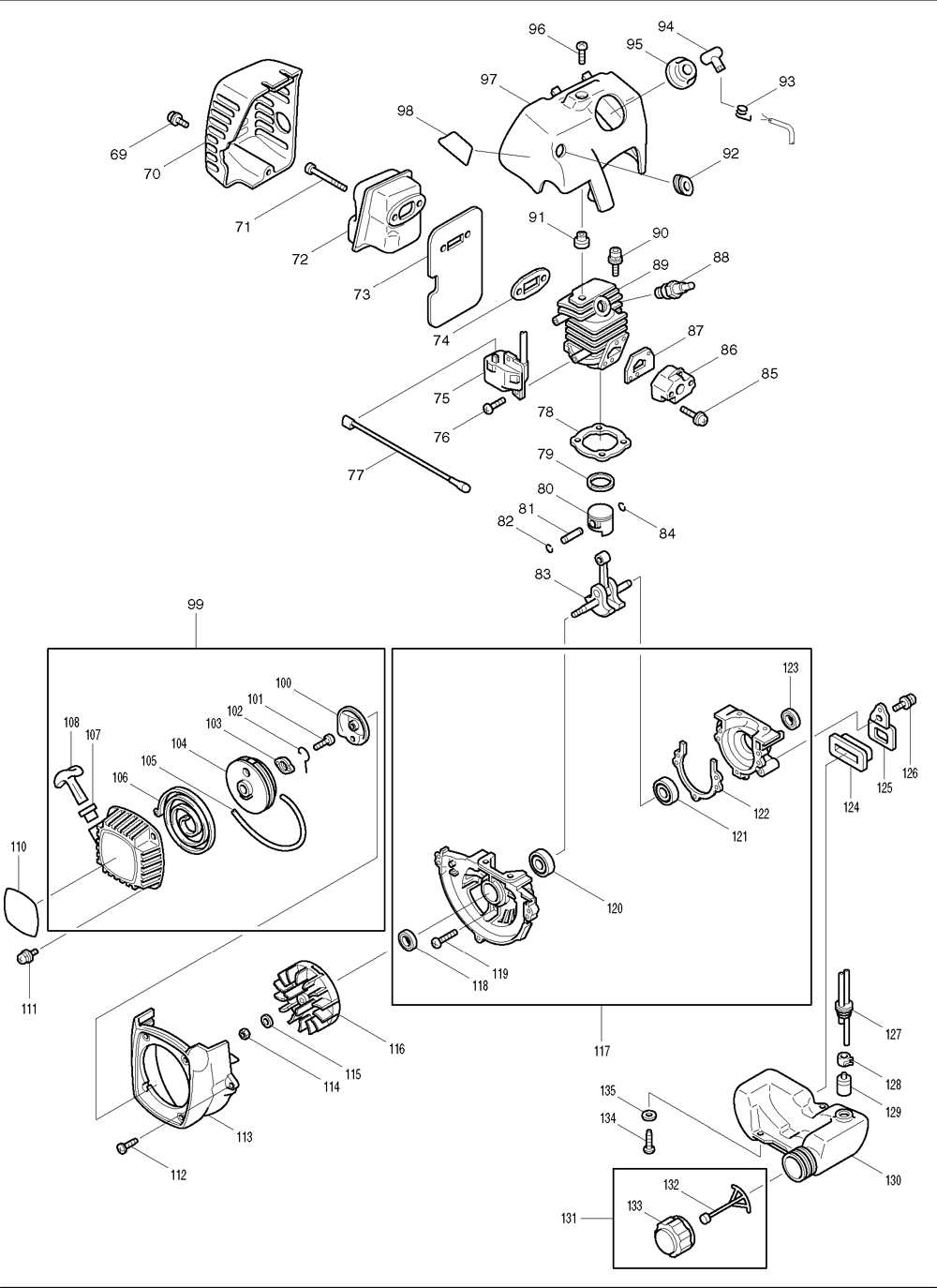

Page-2

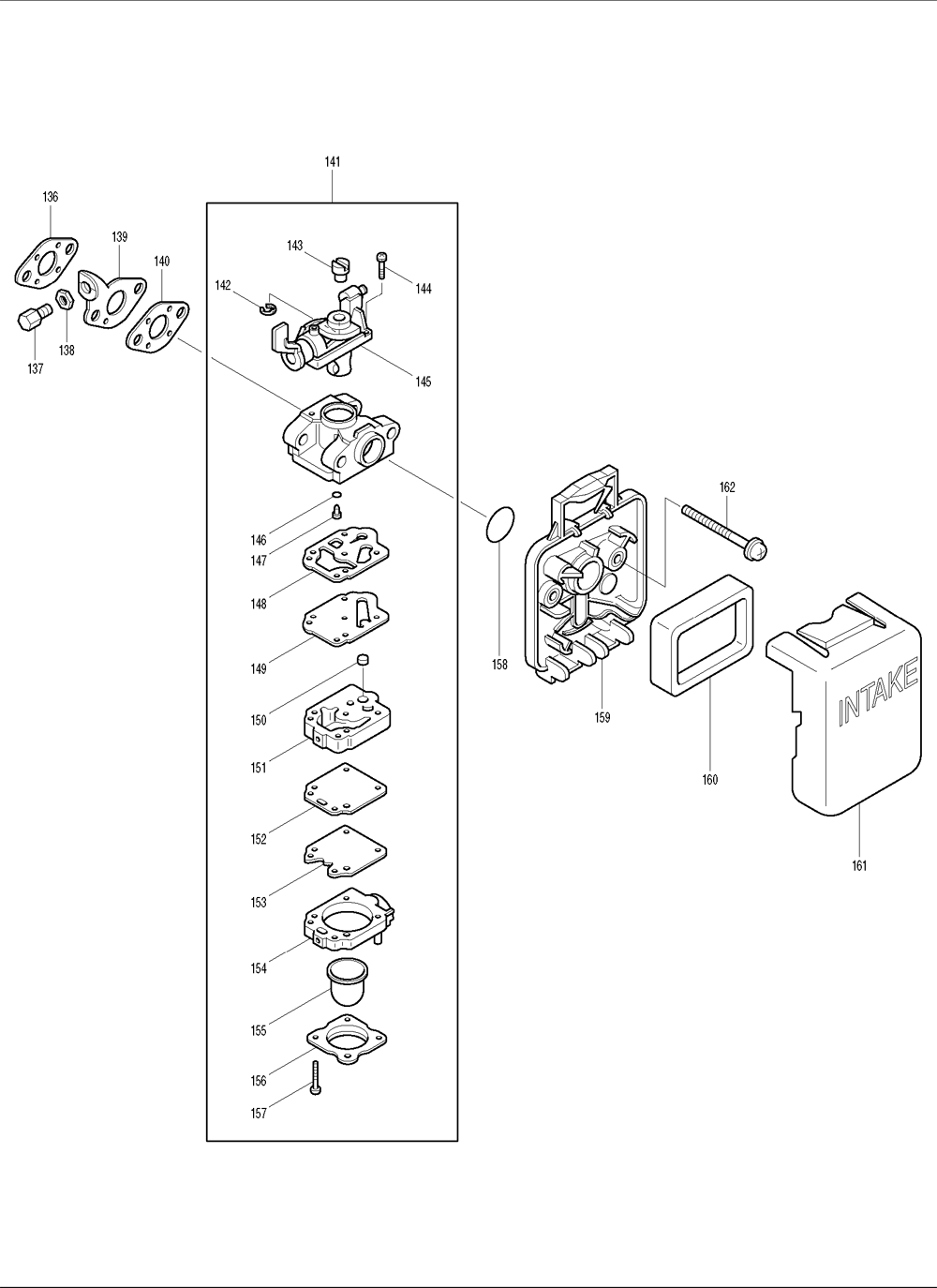

Page-3

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	030-05160-0N	NYLON NUT, EH490V	$1.96
3	032-05000-0N	SPRING WASHER 5, EH490V	$1.34
4	303-33110-0N	FRONT HANDLE PLATE,EH490V	$3.17
5	303-33010-0N	FRONT HANDLE, EH490V	$21.10
6	065-05200-0N	TORX SCREW M5X20, EH490V	$1.74
8	303-35530-0N	GEAR, EH490V	$25.17
9	045-00120-2N	SNAP RING S-12, EH490V	$1.08
10	045-00280-0N	SNAP RING R-28, EH490V	$1.74
11	035-60010-3N	BALL BEARING 6001LL, EH490V	$22.64
12	035-60010-3N	BALL BEARING 6001LL, EH490V	$22.64
13	370-35510-0N	FLANGE, EH490V	$54.60
14	048-04120-0N	PIN, EH490V	$1.74
15	303-55520-0N	CLUTCH DRUM, EH490V	$55.90
16	370-54000-0N	CLUTCH ASS'Y, EH490V	$91.30
17	005-06180-0N	F.H. SCREW M6X18, EH490V	$1.08
18	370-54010-0N	CLUTCH GUIDE, EH490V	$27.94
19	305-07700-0N	CLUTCH SHOE W/SPR.,EH490V	$33.45
20	305-04041-1N	CLUTCH PLATE, EH490V	$6.14
21	005-04120-0N	F.H. SCREW M4X12, EH490V	$1.08
22	002-05120-0N	SCREW M5X12, EH490V	$1.08
23	303-35010-0N	ENGINE BASE, EH490V	$55.90
25	099-83260-0N	STOP SWITCH, EH490V	$29.37
26	303-34130-0N	T. SCREW 4.5X16, EH490V	$1.08
27	303-34022-1N	REAR HANDLE (B), EH490V	$19.67
28	099-86100-0N	THROTTLE WIRE, EH490V	$10.65
29	303-34032-0N	THROTTLE LEVER, EH490V	$4.71
30	303-34050-0N	THROTTLE LEVER SPRING,EH490V	$1.96
31	303-34060-0N	LOCK LEVER, EH490V	$3.17
32	303-34070-0N	LOCK LEVER SPRING, EH490V	$1.96
33	303-34012-1N	REAR HANDLE (A), EH490V	$25.61
34	303-34090-0N	LOCK PIN SPRING, EH490V	$3.61
35	303-34081-1N	LOCK PIN, EH490V	$4.71
36	303-34130-0N	T. SCREW 4.5X16, EH490V	$1.08
37	303-34120-0N	HOLDER, THROT. WIRE, EH490V	$3.17
38	371-24100-00	REAR HANDLE HOLDER, EH490V	$16.70
40	065-06180-0N	TORX SCREW M6X18, EH490V	$1.74
41	303-51010-0N	CASE, EH490V	$47.32
42	065-05250-0N	TORX SCREW M5X25, EH490V	$1.74
43	065-05150-0N	TORX SCREW M5X15, EH490V	$1.41
44	303-51070-0N	CRANK SHAFT, EH490V	$22.64
45	303-51110-0N	CRANK PLATE, EH490V	$6.14
47	303-51080-0N	CRANK GEAR, EH490V	$89.70
49	303-51300-0N	GASKET, EH490V	$12.19
50	303-51020-0N	CASE COVER, EH490V	$21.10
51	099-86150-0N	CLAMP, EH490V	$3.17
52	065-04120-0N	TORX BOLT M4X12, EH490V	$1.41
53	032-04000-0N	SPRING WASHER 4, EH490V	$1.34
54	065-05200-0N	TORX SCREW M5X20, EH490V	$1.74
55	306-02040-0N	BLADE BOLT WASHER, EH490V	$3.72
56	303-52090-0N	GUIDE BLOCK, EH490V	$4.71
57	303-51120-0N	PLATE, EH490V	$6.14
59	068-05350-0N	BOLT M5X35, EH490V	$1.74
60	068-05350-0N	BOLT M5X35, EH490V	$1.74
61	030-05140-0N	NUT,FLANGE M5, EH490V	$1.34
62	030-05140-0N	NUT,FLANGE M5, EH490V	$1.34
63	029-06040-0N	NIPPLE, EH490V	$4.71
64	030-08140-0N	NUT, FLANGE M8, EH490V	$1.96
66	030-05110-0N	NYLON NUT M5, EH490V	$1.96
68	303-52010-0N	CUTTER GUIDE, EH490V	$37.63
69	014-00595-50	SCREW M5X14, EH450	$1.96
70	519-35002-01	MUFFLER COVER, EH450	$10.65
71	011-90596-00	S.H. BOLT M5X45, RBE250	$3.61
72	519-30020-02	EXHAUST MUFFLER, EH450	$26.72
73	519-35003-01	MUFFLER INSULATOR, EH450	$3.83
73	519-35003-02	MUFFLER INSULATOR, HT2045D	$4.71
74	501-35002-00	GASKET (MUFFLER), RBC201	$3.17
75	519-70030-21	COIL, EH450	$118.93
76	014-00499-20	SCREW M4X20, RST250	$1.41
77	525-70180-01	WIRE COMPLETE, EM4251	$4.93
78	519-15003-01	CYLINDER GASKET, RBC201	$4.71
79	519-25006-00	PISTON RING, RBC201	$6.14
80	519-25008-00	PISTON, RBC201	$29.37
81	519-25005-00	PISTON PIN, RBC201	$4.93
82	056-50899-70	CLIP, BBX2500	$1.96
83	519-20030-02	CRANK SHAFT CPLT., EH620	$143.57
83	519-20030-04	CRANKSHAFT CPL.,HT2162E	$109.13
84	056-50899-70	CLIP, BBX2500	$1.96
85	014-00594-00	SCREW ASSEMBLY, EH450	$1.96
86	521-30010-00	INSULATOR COMPLETE, EH450	$6.91
87	523-35039-02	INSULATOR GASKET, RST250	$3.50
88	065-01497-50	SPARK PLUG BM4A, EH 450	$10.65
89	519-15006-01	CYLINDER, EH450	$108.36
90	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
91	550-35030-01	SPACER, EH561	$3.61
92	525-75003-00	GROMMET, EM4251	$3.61
93	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
94	065-50098-70	PLUG CAP, RBl500	$6.14
95	519-75000-02	PLUG CAP COVER, EH450	$5.26
96	014-00594-90	SCREW, EH561	$1.19
97	519-55007-01	CYLINDER COVER, EH450	$14.61
98	627-95057-00	"TRADE MARK LABEL ""MAKITA"", RBC2510"	$6.01
99	519-50030-03	REWIND STARTER, EH450	$34.88
100	168483-1	PULLEY, EM2650LH	$1.30
101	266585-8	TAPPING SCREW 5X12, EM2650LH	$1.30
102	325923-4	SWING ARM, EM2650LH	$1.08
103	451938-6	COLLAR, EM2650LH	$1.30
104	519-50020-30	REEL, RBC201	$7.68
105	525-50160-20	STARTER ROPE, RBC201	$11.09
106	519-50020-50	SPIRAL SPRING, RBC201	$13.62
107	424359-5	DAMPER, EM2650LH	$1.30
108	424319-7	STARTER KNOB, EM2650LH	$2.40
111	004-37041-20	SCREW ASSEMBLY, EH450	$1.41
112	015-00599-80	TAPPING SCREW M5X20, RBC201	$1.08
113	519-55008-00	BLOWER HOUSING, EH450	$15.16
114	017-30899-90	LOCK NUT, EH450	$1.96
115	003-10080-00	WASHER, G3501R	$0.90
116	519-70030-14	FLYWHEEL, EH620	$76.30
117	519-10060-00	CRANK CASE ASS'Y, EH450	$125.52
118	044-01099-80	OIL SEAL, RBC201	$6.69
119	014-00595-20	SCREW M5X25, RBL250	$1.48
120	060-01099-80	BALL BEARING 6000, RBC261	$12.96
121	060-01099-80	BALL BEARING 6000, RBC261	$12.96
122	519-15004-00	CRANKCASE GASKET, RBC201	$3.50
123	044-01099-80	OIL SEAL, RBC201	$6.69
124	519-65003-02	DAMPER, EH450	$4.71
125	519-65002-01	FUEL TANK PLATE, EH450	$7.68
126	004-36051-00	SCREW ASSEMBLY, EH620	$1.41
127	085-11499-50	TUBE, EH450	$9.55
128	056-10599-90	HOSE CLAMP, EM4251	$1.41
129	523-65039-00	FILTER, RBL500	$11.42
130	519-60110-00	FUEL TANK COMPLETE, EH450	$35.59
131	525-60590-00	FUEL TANK CAP CPL., RBC2510	$13.62
132	525-60670-00	STRAP, RBL500	$7.68
133	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
134	615-15007-00	TAPPING SCREW, EH450	$0.86
135	003-10050-00	WASHER M5, EH760	$1.34
137	531-60200-20	SCREW CABLE ADJ., RBC321	$10.65
138	002-27060-00	NUT, EM4251	$1.34
139	525-65001-00	CABLE BRACKET, EH561	$5.26
141	519-60120-00	CARBURETOR, EH450	$128.92
142	257964-1	STOP RING E-3, EM2650LH	$2.40
143	325922-6	SWIVEL, EM2650LH	$3.50
144	266581-6	PAN HEAD SCREW M3X8, EM2650LH	$1.30
145	519-60060-10	THROTTLE VALVE ASS'Y,EH490V	$65.50
146	213538-8	O RING 2, EM2650LH	$2.40
147	525-60240-20	JET, EH450	$12.19
148	524-60010-30	PUMP GASKET, RBC230	$6.14
149	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
150	352010-6	INLET SCREEN, EM2650LH	$2.40
151	523-60461-30	PUMP BODY ASSEMBLY, RBC230	$67.00
152	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
153	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
154	523-60460-60	AIR PURGE BODY ASS'Y, RST200	$23.63
155	424314-7	PRIMER PUMP, EM2650LH	$3.50
156	346270-0	PRIMER PUMP COVER, EM2650LH	$3.50
157	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
158	523-60610-00	O RING, RBC201	$3.17
159	525-30040-10	AIR CLEANER HOUSING, EH561	$19.34
160	520-30040-10	AIR FILTER, EH760	$6.69
161	520-30040-30	AIR CLEANER COVER, EH760	$12.96
162	004-33056-00	SCREW ASS'Y M5X60, EH450	$1.85
163	525-65012-00	GASKET, EH561	$1.96
