Makita DPC9501 Electric Saw Parts

Makita DPC9501 Electric Saw Parts Image

Makita DPC9501 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Tool Diagram    (Click image to Zoom in) View larger Image

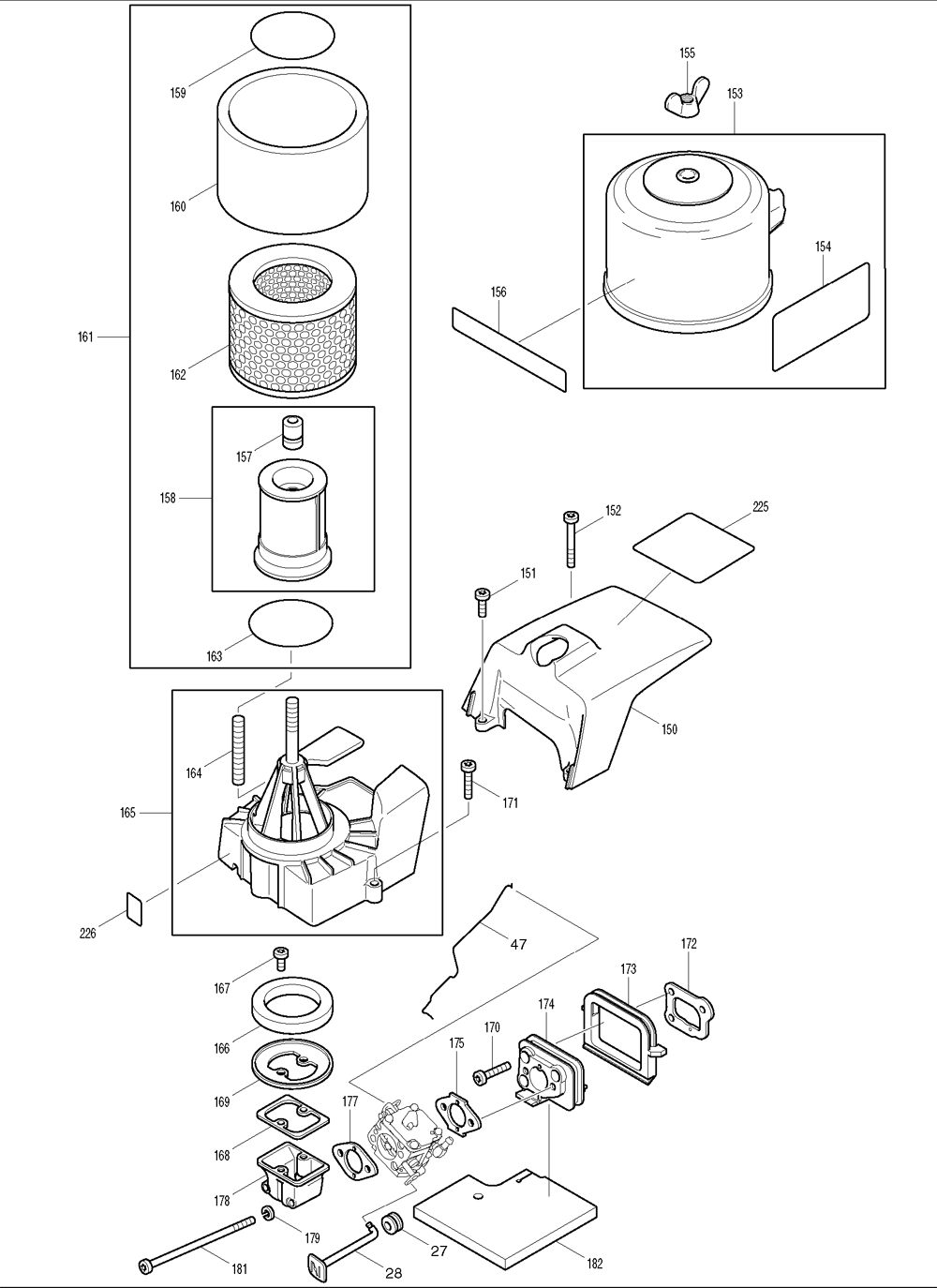

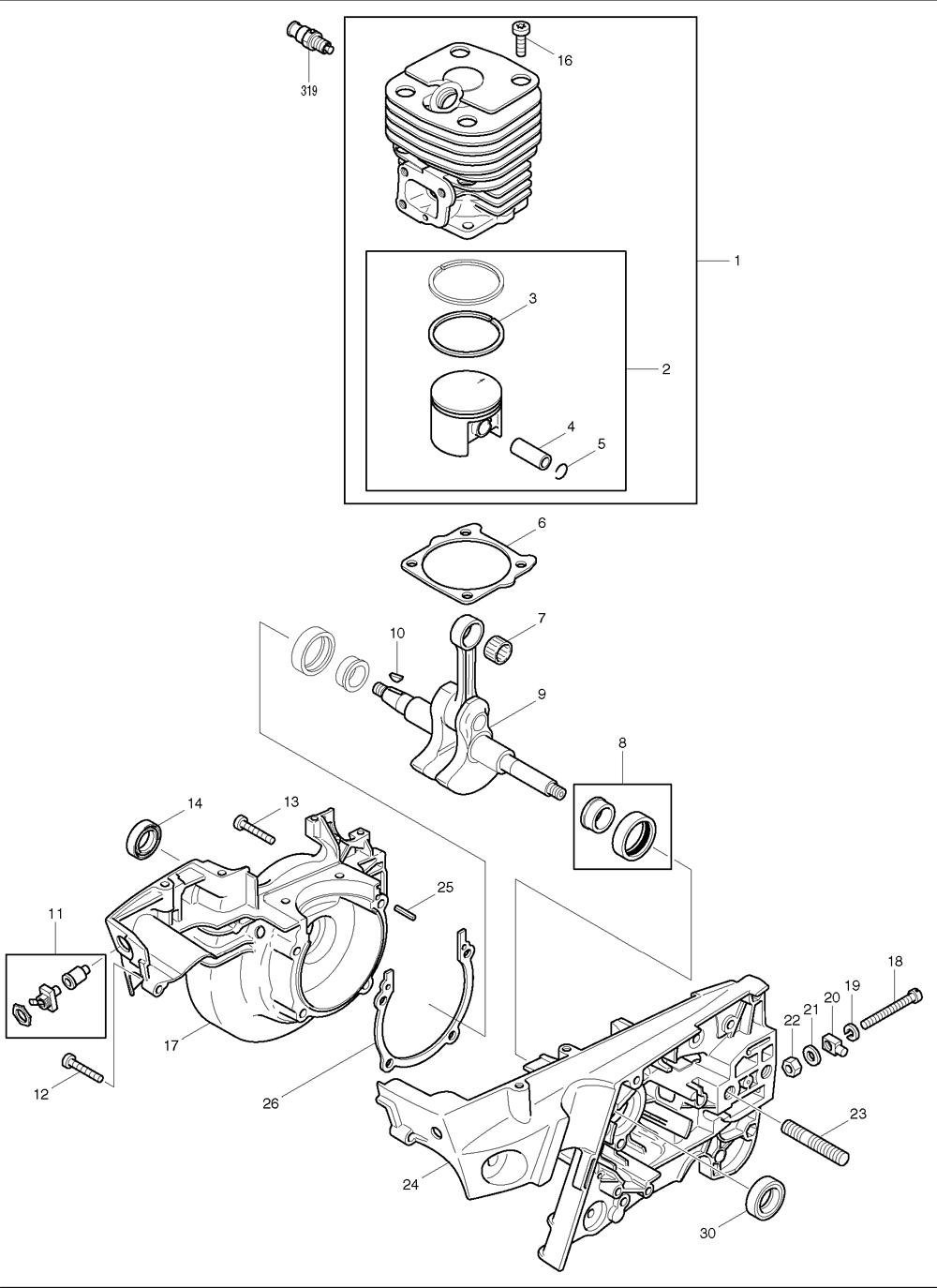

Makita DPC9501 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 031-130-150 CYLINDER AND PISTON,CPL, DPC9501 $313.02
3 031-132-050 PISTON RING, DPC9500 $20.88
4 031-132-020 PISTON PIN, DPC9500,T1 $21.10
5 119-132-060 SPRING RING, DCS6000I21 $1.96
6 965-521-023 GASKET, DPC7000 $3.50
8 960-602-173 ROLLER BEARING, DPC9500 $57.30
9 031-120-001 CRANKSHAFT, DPC9500 $233.78

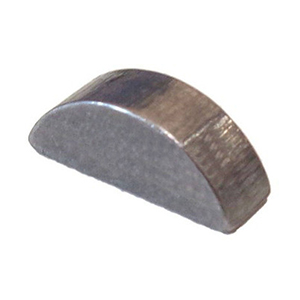

10 939-630-370 KEY, DPC7000 $1.85
11 957-605-112 SHORT C.SWITCH ASSY, DCS431 $12.19

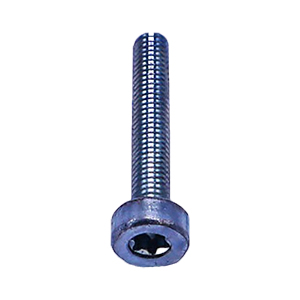

12 908-005-305 TORX SCREW 5X30, DCS340 $1.85
13 908-005-305 TORX SCREW 5X30, DCS340 $1.85
14 962-900-054 RADIAL RING, DPC7000 $9.22
16 908-006-205 F.H.SCREW, DCS460 $1.85
17 031-111-630 CRANKCASE, MAG.SIDE, DPC7001 $107.97
18 965-551-051 F.H. SCREW M6X70,DPC7000 $3.50
19 926-206-000 SPRING WASHER 6, DCS6800I $1.96
20 123-213-010 SQ.NUT W/PIVOT, DPC7000 $4.93
21 924-306-400 DISC, DCS6000I21 $1.41
22 922-606-000 HEX NUT M6, DCS6000I21 $1.96
23 905-810-354 GUDGEON M10X35, DPC7000 $3.50
24 031-111-650 CRANKCASE, DPC9500 . $145.70
25 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
26 965-518-013 GASKET, DPC7000 $3.50
27 965-401-011 RUBBER BUSH, DCS340 $3.50
28 031-150-730 CHOKE SHAFT, DPC9500 $3.50
30 962-900-051 RADIAL RING, DPC7000 $9.77

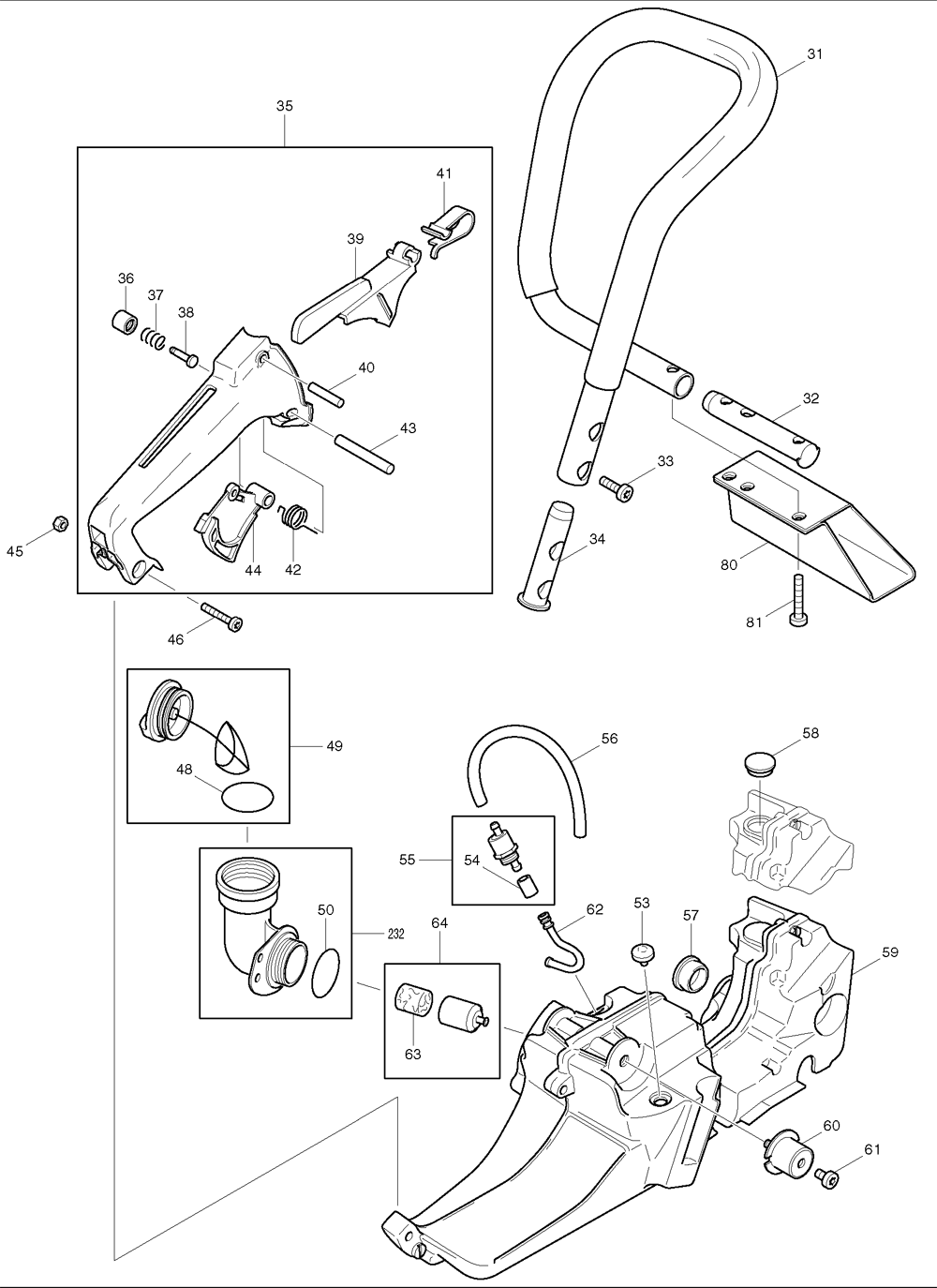

31 123-310-011 TUBULAR HANDLE, DPC7001 $65.00
32 144-310-072 STRENGTH.PIECE, DPC7000 $11.42
33 908-006-205 F.H.SCREW, DCS460 $1.85
34 122-310-051 STRENGTH.PIECE, DPC7000 $10.65
35 119-117-300 GRIP ASSY, DPC7000 $76.60
36 965-451-750 BUTTON, DCS6000I21 $1.85
37 965-551-160 PRESSURE SPRING, DCS6000I21 $1.96
38 965-551-150 STOP PIN, DCS6000I21 $4.60
39 119-117-031 CATCH LEVER, DCS6800I $9.22
40 935-940-240 CYL.PIN 4M 6X24, DCS6000I21 $1.74
41 119-117-052 SPRING, DCS6800I $4.71
42 119-117-041 SPRING, DCS6000I21 $1.96
43 935-950-400 CYL.PIN 5M 6X40, DCS6000I21 $3.17
44 119-117-021 THROTTLE LEVER, DPC7000 $4.93
45 920-205-000 HEX NUT M5, DCS340 $1.96
46 908-005-305 TORX SCREW 5X30, DCS340 $1.85
47 122-117-054 THROTTLE LINKAGE, DPC7000 $6.14
48 963-232-045 PACKING RING 32X4.5, DCS431 $3.17
49 965-451-901 FUEL TANK PLUG AY, DCS540 REPLACES 965-450-301 $8.12
50 963-232-045 PACKING RING 32X4.5, DCS431 $3.17
53 965-402-360 RUBBER BUFFER, DPC7000 $3.17
54 965-452-490 TUBE HOSE $19.45
55 965-451-191 AIR VALVE CPL.,DPC7000 $6.69
56 965-452-480 FUEL LINE, DPC9500 $12.19
57 965-451-560 STOPPER, DPC7000 $3.50
58 965-451-710 STOPPER, DPC7000 $1.74
59 123-114-600 TANK CPL.,DPC7000 $162.38
60 965-403-131 RUBBER BUFFER, DPC7000 $9.77
61 908-006-105 FILLISTER H. SCREW, DPC9500 . $1.85
62 965-450-200 SUCTION LINE, DCS9500 . $9.22
63 963-601-240 FELT, DCS340 $4.93

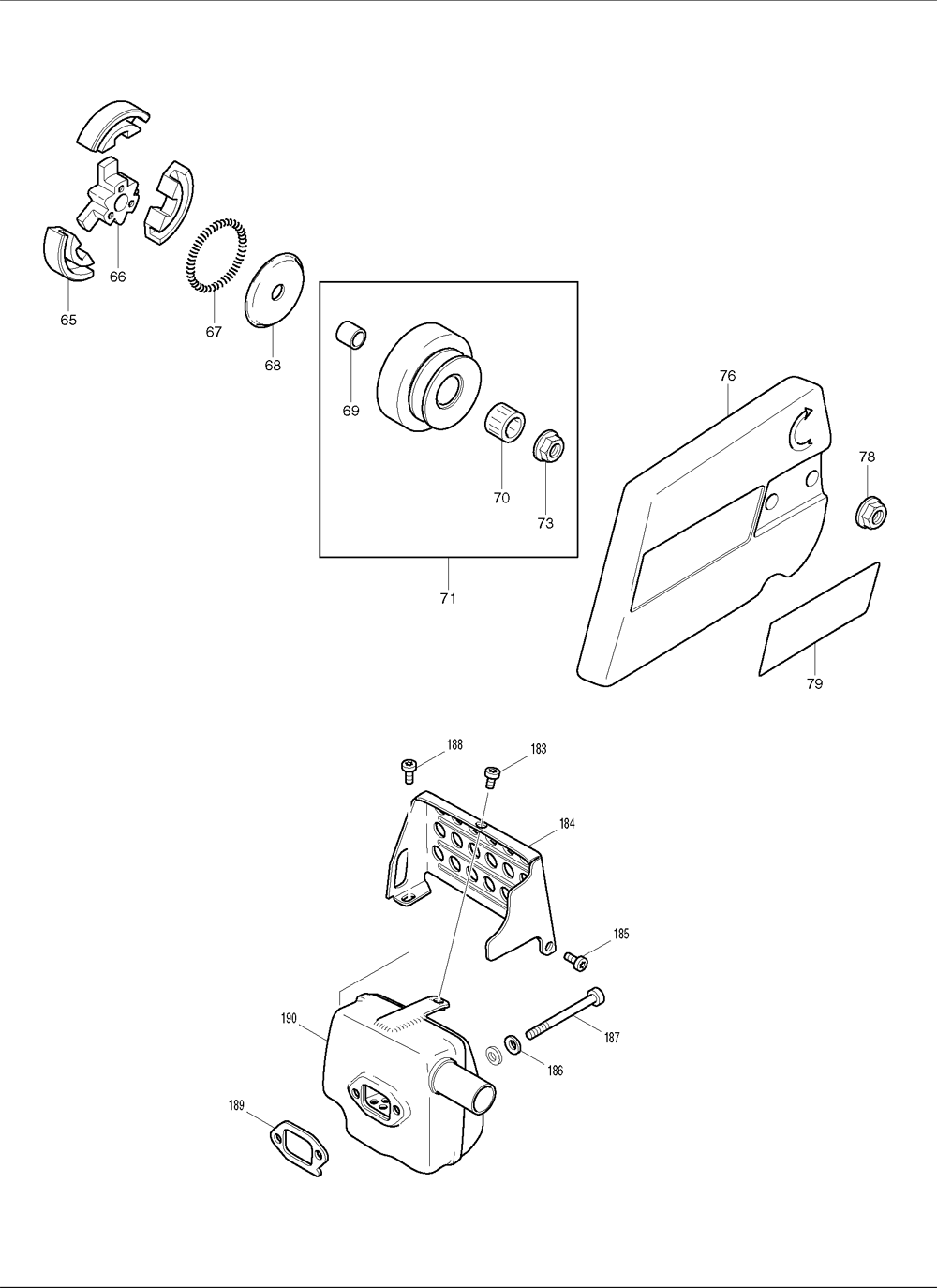

65 123-181-010 CLUTCH SHOE, DPC7000(3/SET) $26.72
66 122-182-011 CLUTCH HUB, DPC7000 $27.03
67 122-184-011 CLUTCH SPRING, DPC7000 $5.26
68 122-182-030 GUIDE DISC, DPC7000 $6.69
69 962-200-006 INNER RING, DPC7001 $12.19
70 962-300-017 NEEDLE CAGE, DPC6410 $16.70
71 957-223-309 CLUTCH DRUM W/PULL,DPC7000 $98.20
73 923-210-003 HEXAGONAL NUT, LEFT, DPC7001 $3.61
76 398-213-600 SPROCKET GUARD, DPC7000 $57.80
78 923-210-002 HEX NUT W/SHOULDER,DPC7000 $3.61
79 980-114-310 LAEL, DPC9501 $5.92
80 392-320-100 FOOT, DPC9500 $18.13
81 908-006-355 FILLISTER H. SCREW, EK7301 $3.50
82 957-604-240 SPARK PLUG CAP, DPC7000 $9.77
83 965-604-230 CONTACT SPRING, DPC7000 $3.17
84 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14

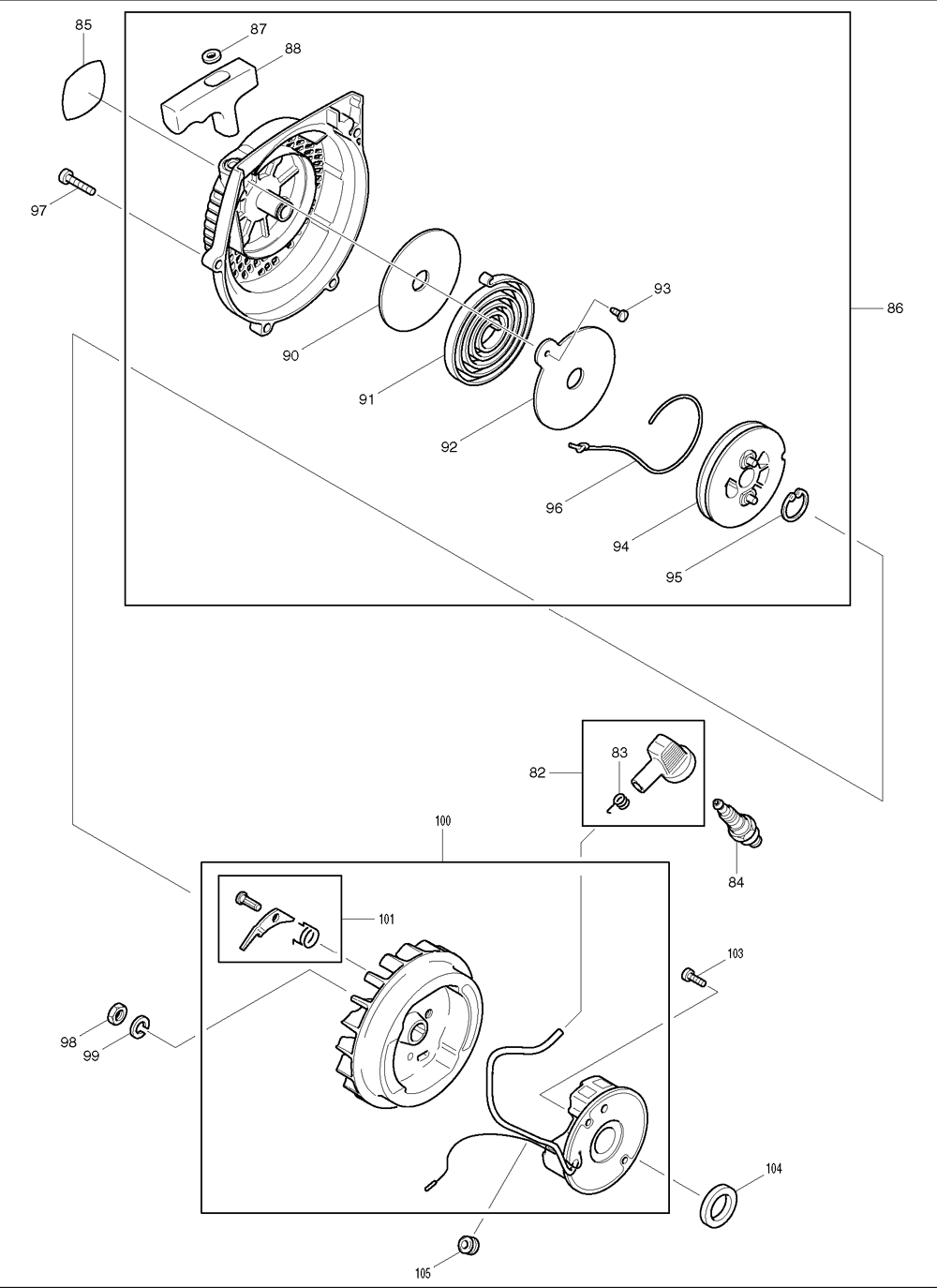

85 980-114-094 LABEL, DCS6000I-21 $3.10
86 031-112-600 FAN HOUSING ASSY,DPC7000 $98.20
87 928-405-000 WASHER, DCS340 $1.85
88 965-402-262 STARTER GRIP, DCS6800I $6.69
90 900-004-363 SPACER, DCS6000I21 $3.50
91 123-163-013 REWIND SPRING, DCS6000I21 $15.16
92 123-163-020 SPRING COVER, DCS6000I21 $1.96
93 907-204-102 THREAD FORMING SCREW, DCS6000I21 $3.50
95 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
96 122-164-010 START ROPE 1000MM, DCS6800I $4.93
97 908-005-255 F.H. SCREW, DPC9500 $1.85
98 920-308-024 HEX NUT M8X1, DCS34 $1.96
99 926-208-001 SPRING WASHER 8, DPC7000 $2.51
100 010-140-010 IGNITION ASSEMBLY, DPC7001 $222.52
101 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
103 908-004-125 FILLISTER H. SCREW, DPC9500 $1.85
104 900-003-050 FELT RING, DPC7000 $1.85
105 965-401-015 RUBBER BUSHING, DPC7001 $3.50

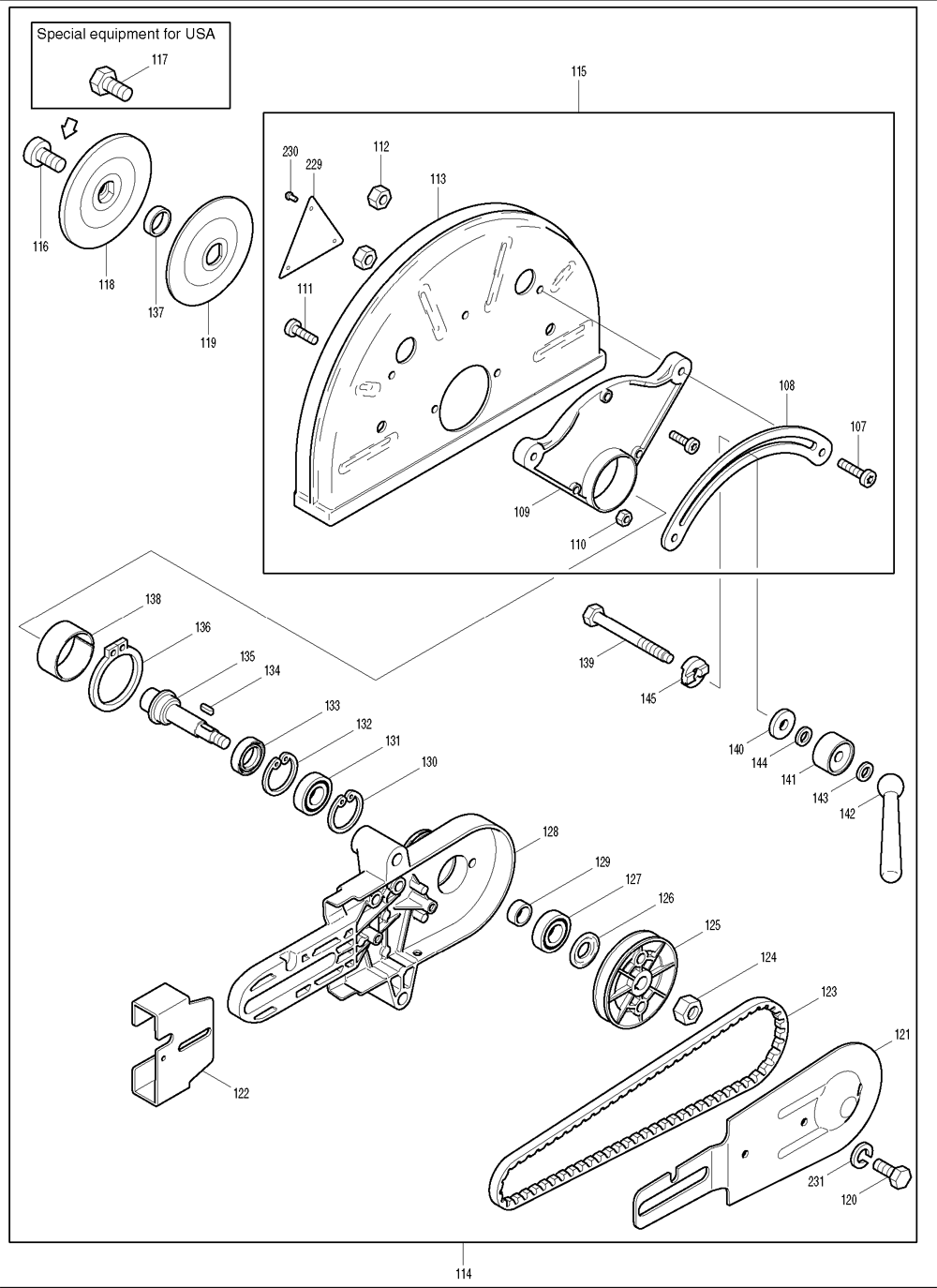

107 908-006-255 FILLISTER H. SCREW, DPC9500 . $1.85
108 392-341-040 CLAMP, DPC9500 $41.41
109 395-341-600 SWIVEL SEGMENT, DPC9500 $32.64
110 920-406-000 HEXAGONAL NUT M6, DPC7000 $1.96
111 908-006-205 F.H.SCREW, DCS460 $1.85
112 920-406-000 HEXAGONAL NUT M6, DPC7000 $1.96
113 392-341-610 PROTECTION HOOD, DPC9500 $146.96
114 392-000-600 CUTTING REVICE ASS'Y, DPC9501 $288.97
115 392-341-620 PROTECTION HOOD, DPC9500 . $194.59
117 900-910-204 HEX SCREW 10X20, DPC7000 $6.69
118 392-228-340 PRESSURE DISC, DPC9500 $25.61
119 392-228-350 PRESSURE DISC, DPC9500 . $15.16
120 900-208-202 HEX SCREW DPC 9500 $1.85
121 392-410-600 GUARD PLATE, DPC9500 $22.53
122 392-211-610 HAND GUARD, DPC9500 $16.04
123 965-300-440 V-BELT (SMALL), DPC9501 $16.04
124 920-410-000 HEXAGONAL NUT, DPC9500 $1.96
125 392-221-011 V-BELT PULLEY, DPC9500 $48.75
126 963-815-320 PACKING RING, DPC7000 $6.69
127 960-102-155 BALL BEARING, DPC7000 $25.61
128 392-211-600 GEAR HOUSING, DPC9500 $142.11
129 900-005-009 DISTANCE RING, DPC7000 $8.12
130 929-235-150 SNAP RING 35X1.5, DPC7000 $1.85
131 960-102-155 BALL BEARING, DPC7000 $25.61
132 929-235-150 SNAP RING 35X1.5, DPC7000 $1.85
133 962-900-036 RADIAL RING, DPC7000 $22.53
134 939-144-140 KEY 4X4X14, DPC7000 $3.17
135 398-228-013 SPINDLE, DPC7000 $32.64
136 929-145-175 SNAP RING 45X1.75,DPC7000 $3.50
137 392-228-050 "ADAPTOR 20MM TO 7/8"", DPC7000" $5.92
138 398-211-090 BUSHING, DPC7000 $4.93
139 392-341-070 HEX SCREW , DPC9500 $16.04
140 392-341-031 WASHER, DPC9500 $14.61
141 392-341-090 SPRING HOUSING, DPC9500 $20.88
142 985-000-870 CLAMP LEVER, DPC9501 $13.62
143 925-300-000 WASHER, DPC9500 . . $3.72
144 925-300-000 WASHER, DPC9500 . . $3.72
145 392-341-050 WASHER, DPC9500 . $21.10
150 392-118-150 HOOD (PLASTICS), DPC7001 $34.06
151 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
152 908-305-405 FILLISTER H. SCREW, DPC9500 $3.17
153 392-118-050 FILTER COVER, DPC9500 $29.58
154 980-113-480 LABEL (309/343 BELTS), DPC9500 $3.10
155 921-708-000 WING NUT M8, DPC7000 $6.69
156 980-114-237 LABEL (SAFETY), DCS430 $1.80
157 965-401-025 RUBBER BUSH, DPC7000 $3.50
158 001-173-021 INNER FILTER CPL., DPC7000 $9.77
159 963-257-070 PACKING RING, DPC7000 $8.12
160 001-173-000 PRE-FILTER,DPC7000 $5.15
161 122-173-140A AIR FILTER, DPC7000 $10.65
162 122-173-140 FILTER (842), DCP7000 $16.04
163 963-257-070 PACKING RING, DPC7000 $8.12
164 905-808-555 GUDGEON, DPC7000 $4.93
165 123-118-052 HOOD, DPC7000,T2 $63.70
166 965-402-960 GASKET, DPC7000 $4.93
167 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
168 965-516-090 GASKET, DPC7000 $1.85
169 144-171-040 CONNECTING PLATE, DPC7000 $6.69
170 908-405-255 SCREW M5X25, DCS340 $3.50
171 908-005-255 F.H. SCREW, DPC9500 $1.85
172 965-518-111 GASKET, DPC9500 $3.50
173 133-131-041 GASKET, DPC9500 $6.69
174 133-131-051 INTERMEDIATE FLANGE,DPC9500 $19.67
175 965-518-031 GASKET, DPC9500 $1.85
176 122-151-620 CARBURETOR, DPC7000 $111.56

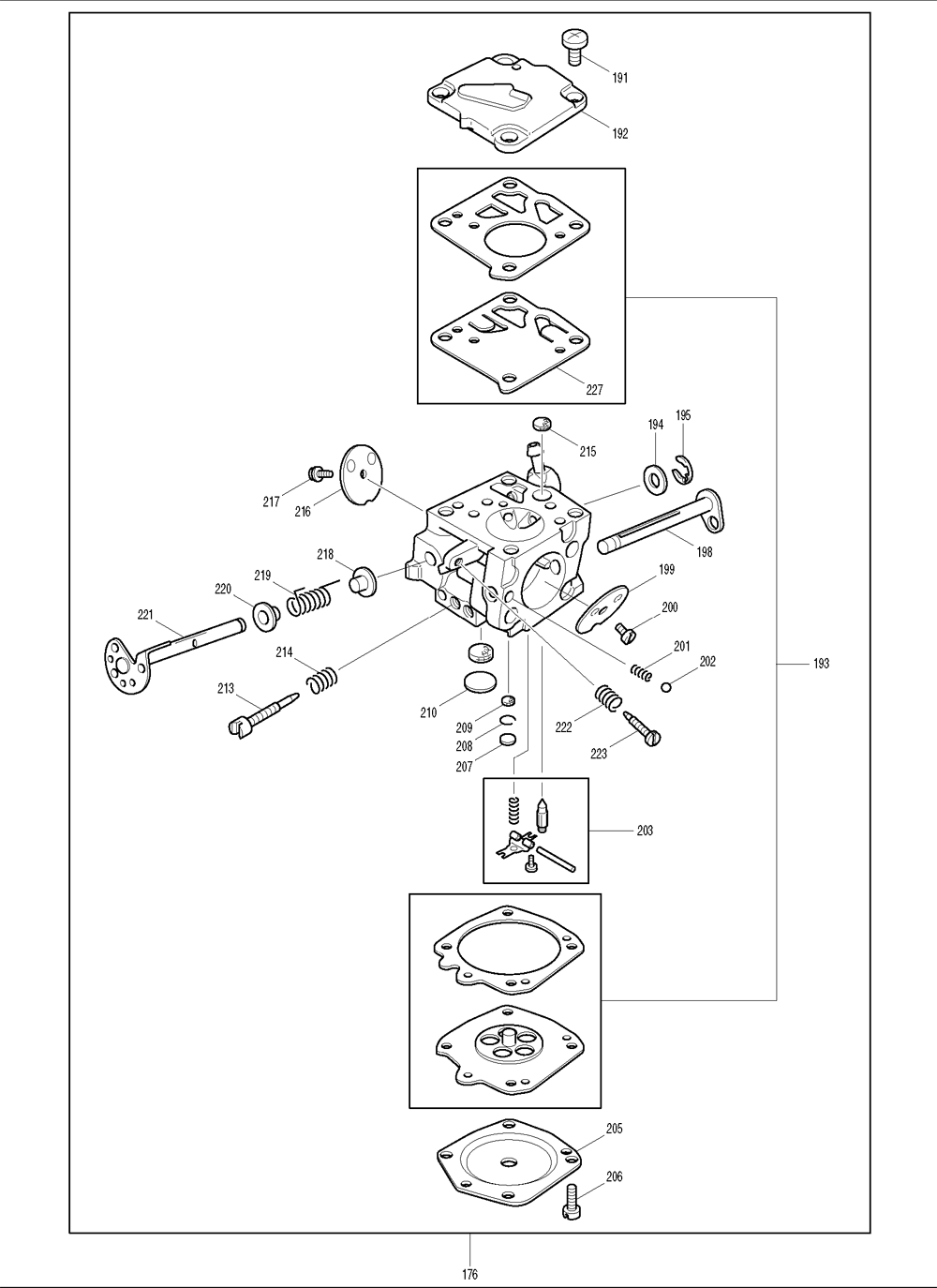

177 965-518-120 GASKET, DPC6200 $3.50
178 144-171-030 CONNECTING SLEEVE, DPC7000 $20.88
179 926-105-001 SPRING RING 5, DPC7000 $1.96
181 908-205-805 FILLISTER HEAD SCREW M5X80, DPC7001 $3.50
182 965-402-851 COVER FOAM PLATE, DPC7000 $4.93
183 908-005-095 SCREW M5X9, DCS5200I $1.85
184 398-174-600 HEAT SHIELD, DPC7000 $19.34
185 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
186 928-406-000 DISC, DPC9500 $3.17
187 908-006-655 FILLISTER H. SCREW, DPC9500 .. $2.51
188 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
189 965-518-052 GASKET, DPC7001 $3.50
190 123-174-159 MUFFLER, DPC7000 $79.50
191 113-150-170 SCREW ,DCS6800I $3.50
192 113-150-160 PUMP COVER, DPC7000 $16.04
193 957-150-100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 $12.19
194 122-151-400 DISC, DCS6000I21 . $3.50
195 100-150-350 SAFETY WASHER, DCS6000I21 $5.26
198 031-150-020 CHOKE SHAFT, DPC9500 $19.34
199 113-150-261 CHOKE SHUTTER, DPC7000 $4.93
200 113-150-370 SCREW W/WASHER, DPC7000 $3.72
201 101-150-080 LOCKING SPRING, DPC7000 $5.26
202 113-150-380 LOCKING BALL, DPC7000 $3.50
203 957-150-010 CTRL. PARTS, CARB., DPC7000 $9.77
205 122-151-121 DIAPHRAGM COVER, DPC7000 $11.42
206 001-150-140 SCREW, DPC7001 $4.93
207 113-150-030 COVER DISC, DCS6000I21 $3.50
208 107-150-240 SPRING RING, DCS6000I21 $3.17
209 107-150-230 SCREEN FOR NOZZLE, DCS6000I21 $3.50
210 113-150-040 COVER DISC, DPC7311 $3.50
213 122-151-470 IDLE ADJ.SCREW(L), DCS6000I21 $22.53
214 144-151-480 SPRING(L), DCS6000I21 $5.26
215 020-150-180 SCREEN, DCS6000I21 $4.71
216 144-151-320 THROTTLE SHUTTER, DPC7000 $8.12
217 113-150-370 SCREW W/WASHER, DPC7000 $3.72
218 144-151-315 BUSHING, DCS6000I21 $4.93
219 144-151-310 SPRING, DPC7000 $4.71
220 144-151-315 BUSHING, DCS6000I21 $4.93
221 122-151-302 THROTTLE SHAFT, DPC7000 $27.15
222 113-150-240 IDLE STOP SCREW, DPC7000 $3.50
223 113-150-230 SPRING, DPC7000 $3.61
225 980-114-341 LABEL, 343 $3.72
226 980-113-841 LABEL, DCS430 $1.65
227 113-150-150 PUMP DIAPHRAGM (237-144), DPC7311 $4.93
229 980-113-942 LABEL, DPC9501 $4.60
230 938-232-483 RIVET, DPC7001 $1.74
231 926-208-001 SPRING WASHER 8, DPC7000 $2.51
319 001-131-150 DECOMPRESSION VALVE, DCS431 $23.96
