Makita DPC7331 Electric Saw Parts

Makita DPC7331 Electric Saw Parts Image

Makita DPC7331 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DPC7331
14 Inch 73cc. Power ...
$902.99
Page-1
Page-2
Page-3
Page-4

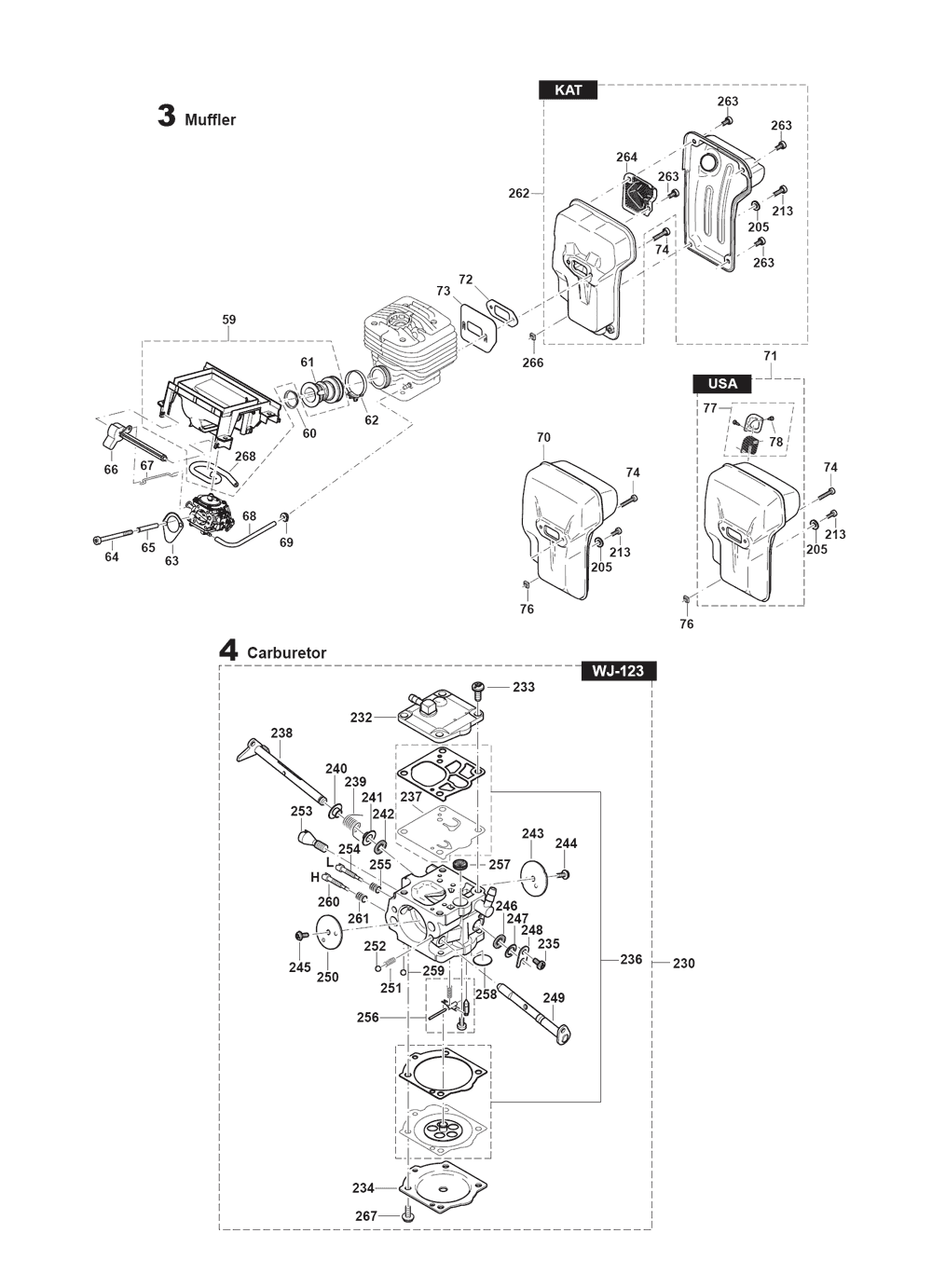

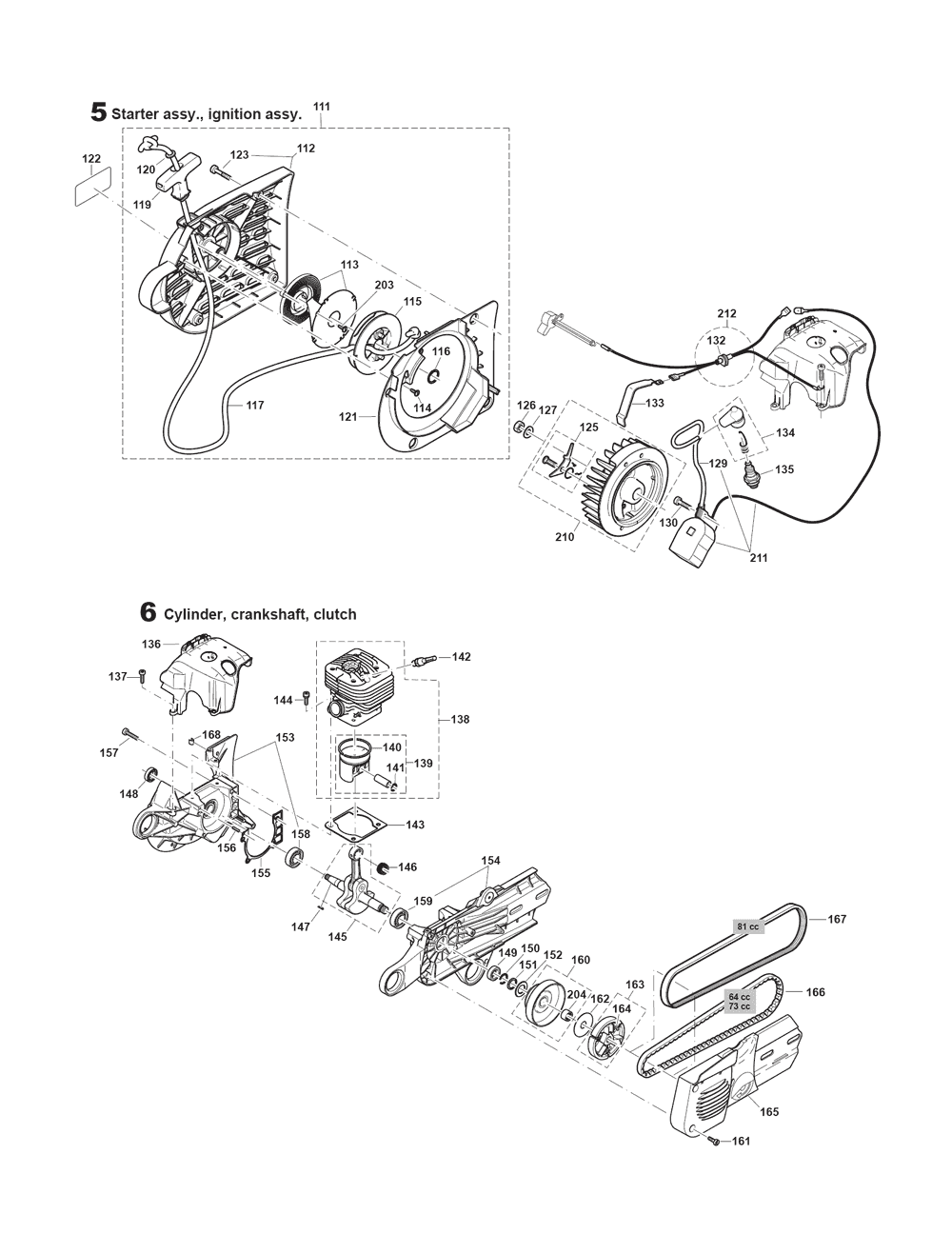

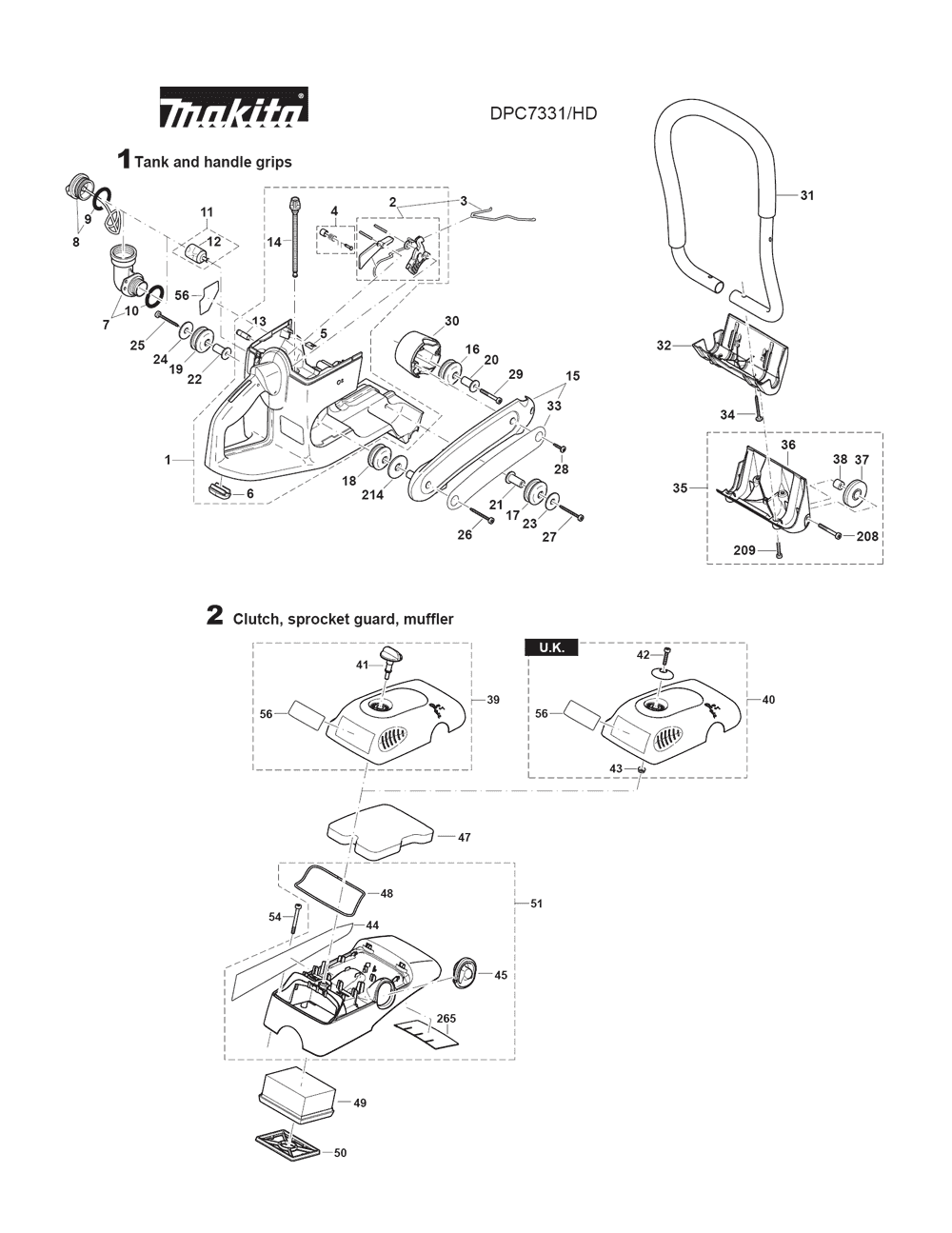

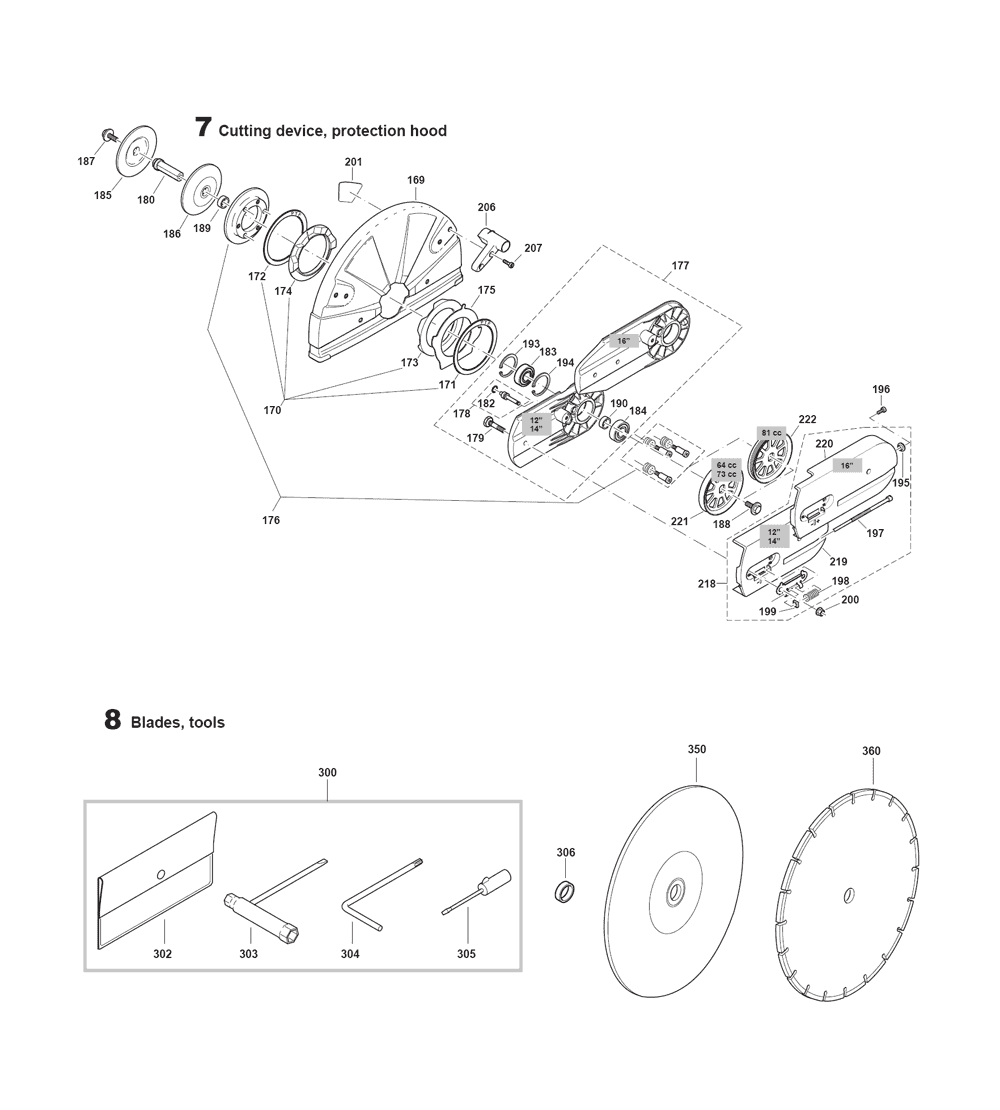

Tool Diagram    (Click image to Zoom in) View larger Image
Makita DPC7331 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 394-114-605 TANK CPL., DPC6410 $111.07
2 957-117-020 THROTTLE MECHANISM CPL., DPC7300 $22.53
3 394-117-011 THROTTLE LINKAGE, DPC6400 $6.69
4 957-117-030 HALF-THROTTLE LOCK, CPL.,DPC7300 $4.93
5 394-114-100 SCREW PLUG, DPC7300 $3.50
6 394-114-070 RUBBER FOOT, DPC7300 $6.69
7 010-114-081 ANGULAR UNION ASSY. $17.87
8 010-114-091 FUEL TANK CAP CPL.,DPC6400 $7.68
9 963-230-031 O-RING, DPC6400, RED $3.17
10 963-230-031 O-RING, DPC6400, RED $3.17
12 963-601-240 FELT, DCS340 $4.93
13 010-175-050 AIR VALVE CPL., DPC6201 $16.04
14 965-404-911 FUEL LINE, DPC6400 $6.14
15 394-114-661 BRACKET (MAKITA), DPC8112 $20.55
16 965-403-535 RUBBER BUFFER, DPC7331 $9.22
17 965-403-535 RUBBER BUFFER, DPC7331 $9.22
18 965-403-535 RUBBER BUFFER, DPC7331 $9.22
19 965-403-535 RUBBER BUFFER, DPC7331 $9.22
23 900-005-078 WASHER 5.8, DPC7301 $1.34
24 900-005-078 WASHER 5.8, DPC7301 $1.34
25 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
26 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
27 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
28 913-455-204 SCREW M5.5X20, DCS6800I $1.85
29 908-305-405 FILLISTER H. SCREW, DPC9500 $3.17
32 394-114-190 FOOT, DPC6410 $25.61
33 980-115-215 LABEL, EK7301 $4.60
34 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
37 394-114-230 ROLLER, DPC6410 $15.16
38 394-114-240 BUSHING,DPC6410 $3.50
56 980-115-099 LABEL, EK7301 $4.60
208 908-006-355 FILLISTER H. SCREW, EK7301 $3.50
209 908-905-165 SCREW 5X16, EK7301 $1.74
214 900-005-076 WASHER, EK7301 $1.34
39 395-118-610 COVER ASS'Y, DPC7331 $28.56
41 395-118-010 CATCH BUTTON, DPC7331 $4.71
44 980-115-486 CAUTION LABEL, EK7301 $5.70
45 395-118-050 RUBBER PARTS, DPC7331 $3.61
47 395-173-080 PREFILTER, DPC7331 $10.43
49 395-173-010 AIR FILTER INSERT, DPC7331 $7.02
50 395-173-020 INNER FILTER, DPC7331 $7.02
54 908-605-505 SCREW M5X50, DPC7321 $1.74
2 980-114-999 LABEL MIX, EK7301 $3.10
60 024-131-032 INSERT(SUCTION HOSE),DCS9000 $9.22
62 965-603-050 HOSE CLIP, DPC6410 $7.02
63 965-518-120 GASKET, DPC6200 $3.50
64 908-204-555 SCREW M4X55, DCS6421 $1.85
65 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
66 394-150-030 CHOKE SHAFT, DPC7300 $6.69
67 394-150-042 CHOKE SHAFT, DPC6400 $3.17
69 965-401-016 RUBBER BUSH, DCS6800I $3.50
72 965-531-131 GASKET, DPC8112 $4.71
74 908-405-205 SCREW M5X20, DPC6400 $1.85
76 038-111-060 SQUARE NUT M5, DCS6401 $1.96
77 394-174-142 SPARK ARRESTOR SCREEN,DPC8112 $12.19
78 915-035-120 TAPPING SCREW, M3.5X12, DPC7331 $1.34
205 928-405-000 WASHER, DCS340 $1.85
213 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
268 395-171-022 TUBE L=155MM, DPC7331 $3.61
230 395-151-050 CARBURETOR, DPC7331 $120.09
232 394-151-160 PUMP COVER CPL.,DPC8112 $19.67
233 144-150-170 FILLISTER SCREW (96-543), EK7301 $1.48
234 395-151-120 DIAPHRAGM COVER, DPC7331 $18.35
235 378-151-220 SCREW, DPC8112 $3.17
236 957-151-180 SET DIAPHRAGM/GASKETS (WALBRO), DPC8112 $27.15
237 394-151-150 PUMP DIAPHRAGM, DPC8112 $7.68
238 394-151-300 +THROTTLE SHAFT, DPC8112 $27.74
239 394-151-310 SPRING, DPC8112 $7.68
240 394-151-315 BUSHING, DPC7321 $3.94
241 394-151-315 BUSHING, DPC7321 $3.94
242 394-151-330 PACKING RING, DPC8112 $6.14
243 394-151-320 THROTTLE SHUTTER, DPC8112 $4.71
244 394-151-650 SCREW, DPC8112 $3.28
245 394-151-660 SCREW, DPC7331 $3.61
246 394-151-330 PACKING RING, DPC8112 $6.14
247 394-151-400 DISC, DPC8112 $4.93
248 108-151-350 SAFETY WASHER, EK7301 $4.60
249 394-151-250 SHAFT, DPC8112 $22.09
251 118-151-160 FRICTION SPRING,DPC7331 $4.60
252 118-151-170 FRICTION BALL, DPC7331 $3.17
253 394-151-570 IDLE STOP SCREW (S),DPC8112 $8.01
254 394-151-470 IDLE ADJUST. SCREW (L),DPC8112 $22.09
255 021-151-480 SPRING, EK7301 $5.26
257 021-151-180 SCREEN, EK7301 $4.93
258 394-151-040 COVER DISC, DPC8112 $3.17
259 394-151-510 LOCKING BALL, DPC8112 $4.93
260 001-151-450 MAIN ADJUSTM. SCREW, EK7301 $18.46
261 021-151-480 SPRING, EK7301 $5.26
267 378-151-220 SCREW, DPC8112 $3.17
112 394-112-621 FAN HOUSING (GRAY), DPC7301 $39.06
113 394-163-020 REWIND SPRING, DPC6400 $10.65
114 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
115 394-162-040 CABLE DRUM, DPC7321 $20.11
116 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
117 394-164-020 STARTER ROPE BLACK, DPC6410 $7.68
119 001-161-020 STARTER GRIP, DPC6410 $6.14
120 928-405-000 WASHER, DCS340 $1.85
121 394-112-141 AIR GUIDE PLATE, DPC7301 $4.71
122 980-115-214 MAKITA LABEL, DPC6410 $3.50
123 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
125 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
126 920-208-024 HEXAGONAL NUT M8X1, DCS6401 $1.96
127 926-208-001 SPRING WASHER 8, DPC7000 $2.51
129 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
130 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
132 965-401-016 RUBBER BUSH, DCS6800I $3.50
133 394-146-013 CONTACT SPRING, DPC8112 $4.71
134 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
135 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
203 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
210 394-141-090 FLYWHEEL, DPC7331 $123.10
211 394-143-030 IGNITION COIL, DPC6411 $146.38
212 965-605-510 CABLE W/PLUGS, DPC6411 $9.22
136 395-131-040 HOOD, DPC7331 $17.25
137 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
140 394-132-020 PISTON RING 50, DPC7331 $19.67
141 119-132-060 SPRING RING, DCS6000I21 $1.96
143 965-531-160 GASKET, DPC7331 $3.17
144 908-805-235 SCREW W/SPRING WASHER, DPC7331 $2.51
145 394-120-011 CRANKSHAFT, DPC7311 $234.55
147 939-630-370 KEY, DPC7000 $1.85
148 962-900-052 RADIAL RING, DCS431 $8.12
149 962-900-052 RADIAL RING, DCS431 $8.12
150 930-916-160 SPRING RING, DCS431 $1.96
151 394-245-010 STOP RING, PC6212 $4.71
152 394-182-020 GUIDE DISC, DPC7300 $3.50
153 326-111-731 CRANKCASE (MAG.SIDE), DPC7321 $99.90
154 326-111-740 CRANKC. CLUTCH SIDE,DPC8112 $149.19
155 965-531-111 GASKET, DPC7331 $4.71
156 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
157 908-005-305 TORX SCREW 5X30, DCS340 $1.85
158 960-102-159 BALL BEARING, DCS6800I $19.34
159 960-102-159 BALL BEARING, DCS6800I $19.34
161 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
162 001-182-042 GUIDE DISC, DCS6401 $4.71
164 024-184-021 TENSION SPRING, DC6401 $3.61
166 965-300-470 V-BELT, DPC7300 $29.58
168 965-402-870 RUBBER PLATE SET, DPC6400 $10.65
204 962-300-017 NEEDLE CAGE, DPC6410 $16.70
169 394-341-051 PROTECTION HOOD, DPC6411 $115.14
170 957-342-011 PROTECTING HOOD, DPC6200 $22.64
171 394-342-180 SLIDING DISC, DPC6410 $6.91
172 394-342-180 SLIDING DISC, DPC6410 $6.91
173 965-404-900 RUBBER RING EXT.,DPC6400 $7.68
174 965-404-920 RUBBER RING INT.,DPC6400 $7.68
175 394-342-160 IMPACT PLATE, DPC6410 $15.16
176 394-342-211 PRESSURE RING CPL., DPC8112 $40.39
177 394-211-740 CUTTING DEVICE BLACK, DPC6410 $211.17
178 394-342-190 BOLT CPL.,DPC6410 $6.91
179 394-211-091 SCREW, DPC8112 $4.93
180 394-228-101 20MM AXLE, DPC POWER CUTTERS $57.30
182 963-209-020 PACKING RING, DPC7331 $1.59
183 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
184 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
187 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
188 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
189 394-228-021 SPACER, DPC8112 $4.71
190 394-228-021 SPACER, DPC8112 $4.71
193 929-240-180 SNAP RING, DPC6400 $3.50
194 929-240-180 SNAP RING, DPC6400 $3.50
197 394-213-032 TENSIONING SCREW, DPC8112 $4.93
198 394-342-120 PRESSURE SPRING, DPC7300 $5.26
199 921-906-004 NUT M6, EHW120 $1.96
200 923-208-004 HEX NUT, DCS341 $4.16
201 980-114-974 SAFETY LABEL, EK7301 $4.56
201 980-114-975 SAFETY LABEL , EK7301 $3.83
202 394-213-021 METAL SHEET, DPC7331 $3.61
206 326-341-300 GRIP, DPC7331 $7.68
207 908-605-165 SCREW M5X16, DPC7331 $1.74
221 394-221-050 V-BELT PULLEY, DPC7321 $39.47
303 941-719-140 UNIVERSAL WRENCH $13.88
304 940827000 WRENCH TORX DCS431 $7.99
305 944340001 CARBURETOR SCREWDRIVER DCS6800I $4.19
350 965-210-222 "BLADE, STONE, 14"" EHC-140" $154.86
