Makita DPC7300 Electric Saw Parts

Makita DPC7300 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

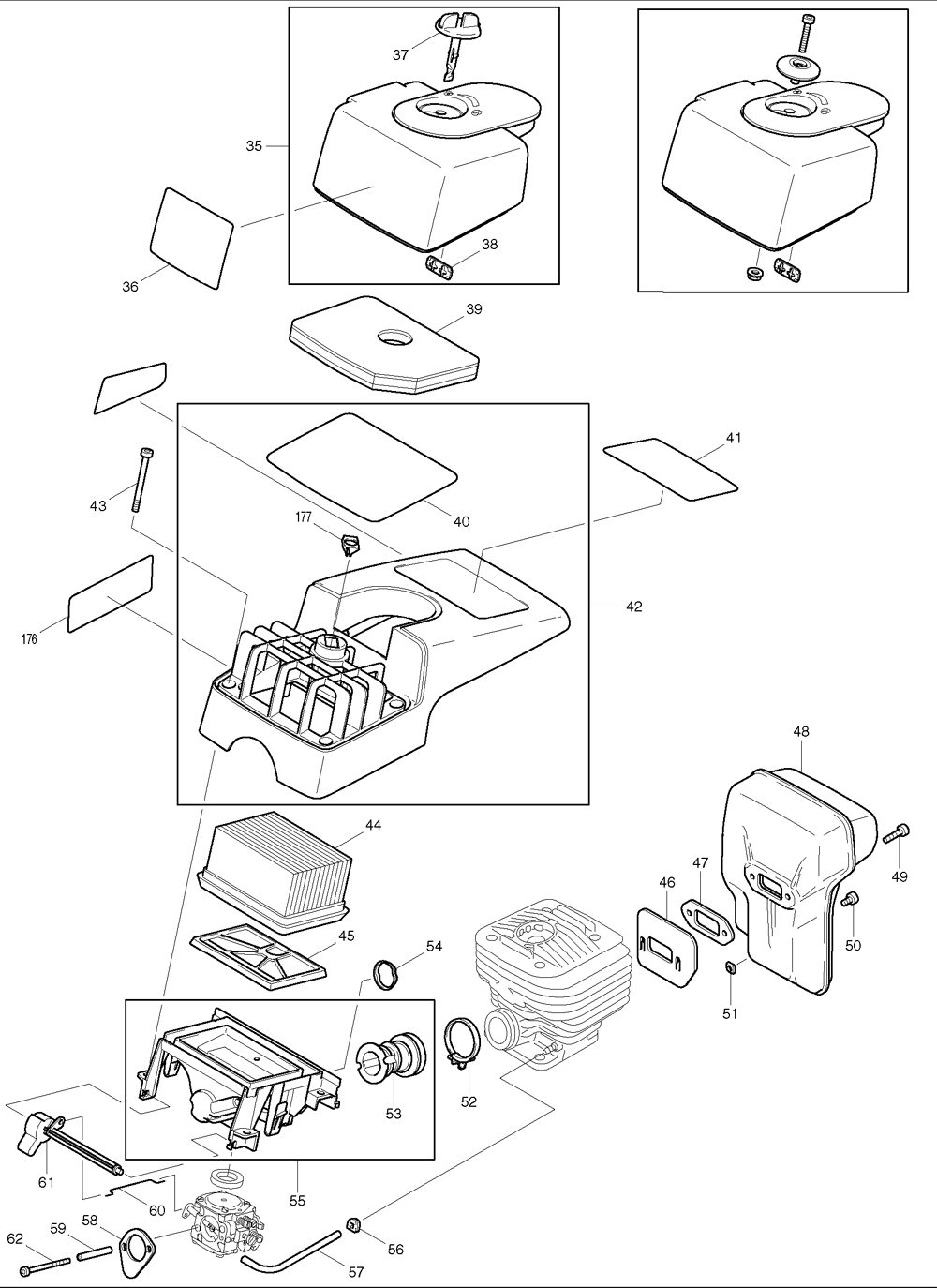

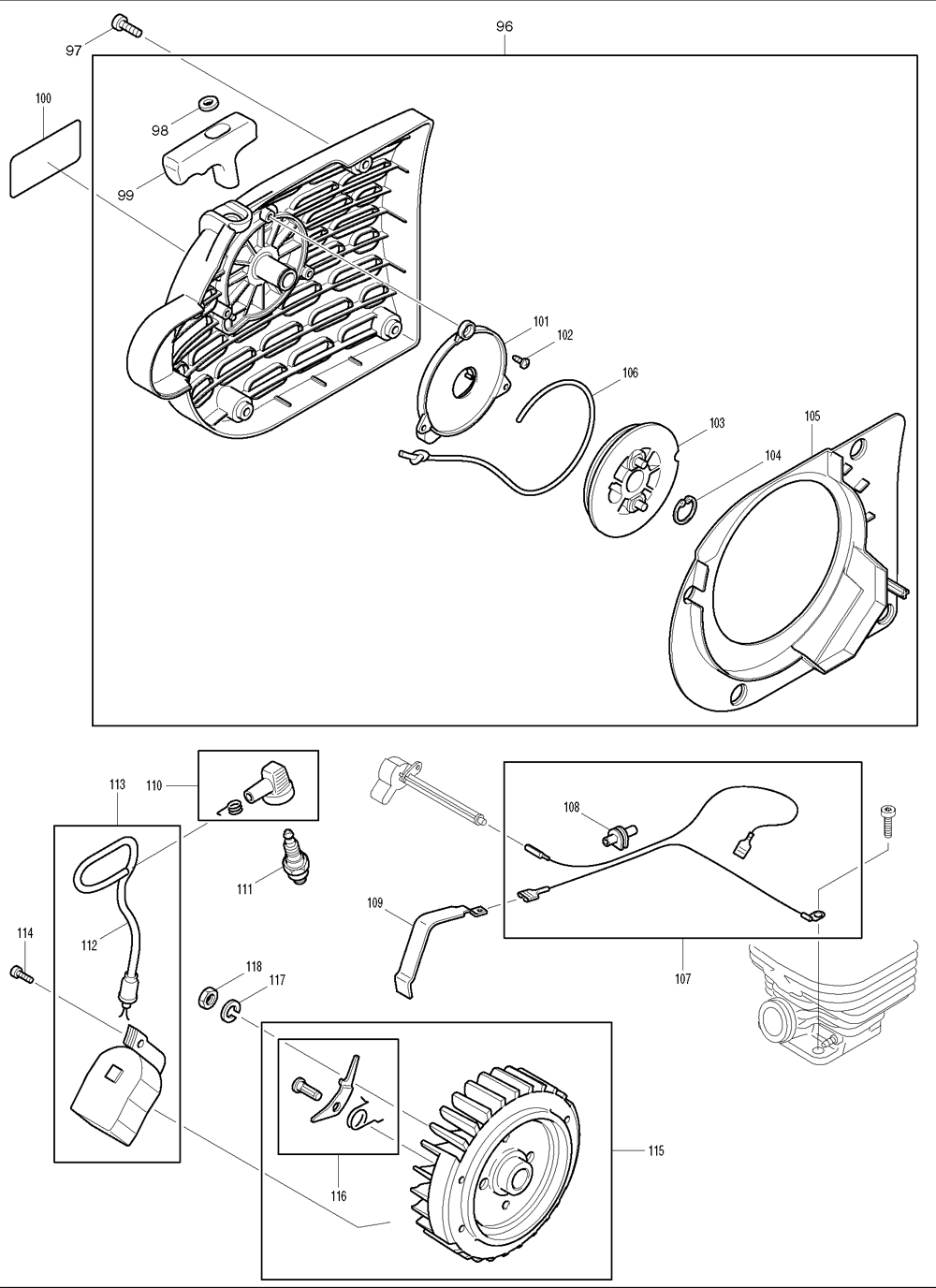

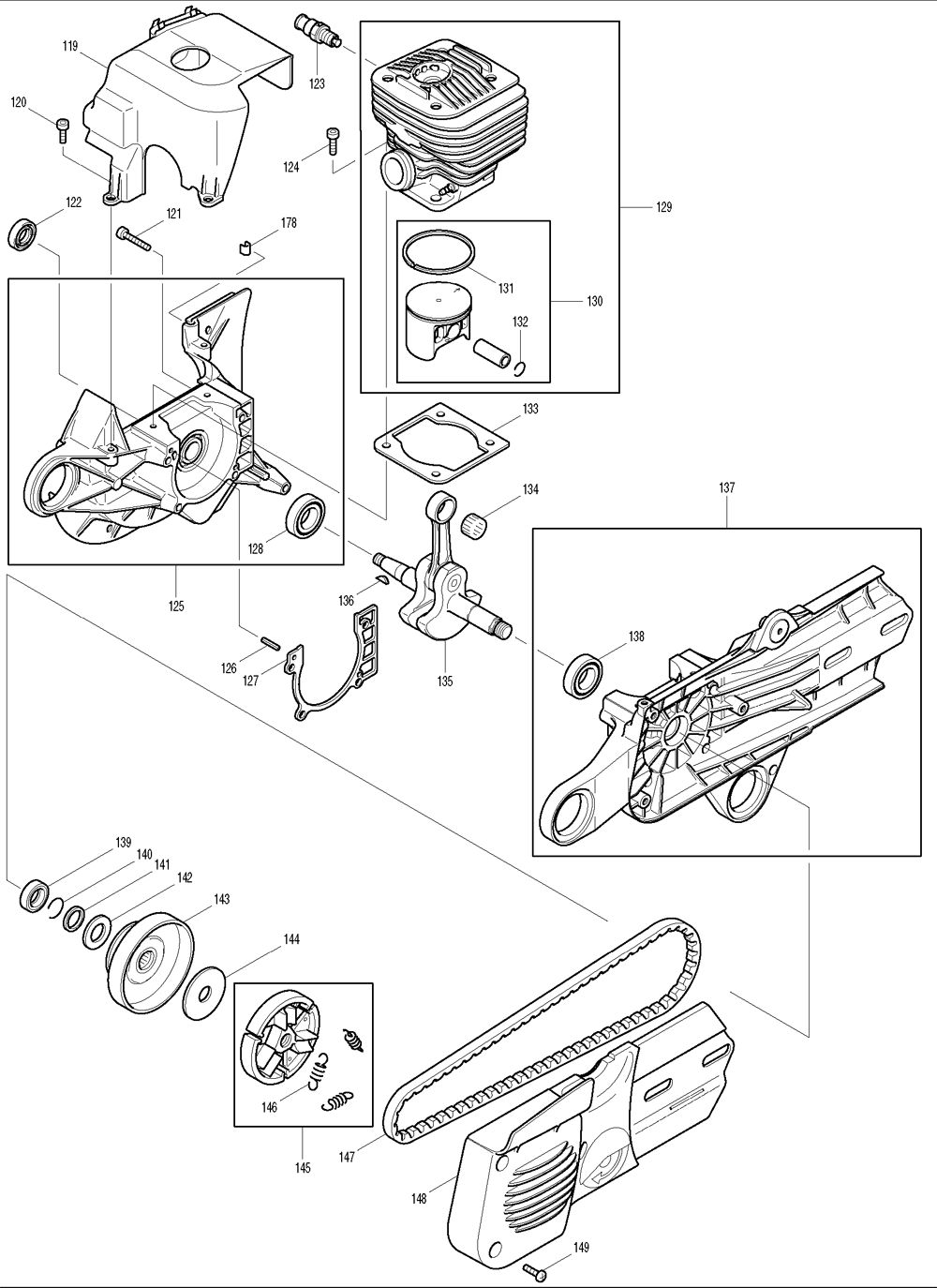

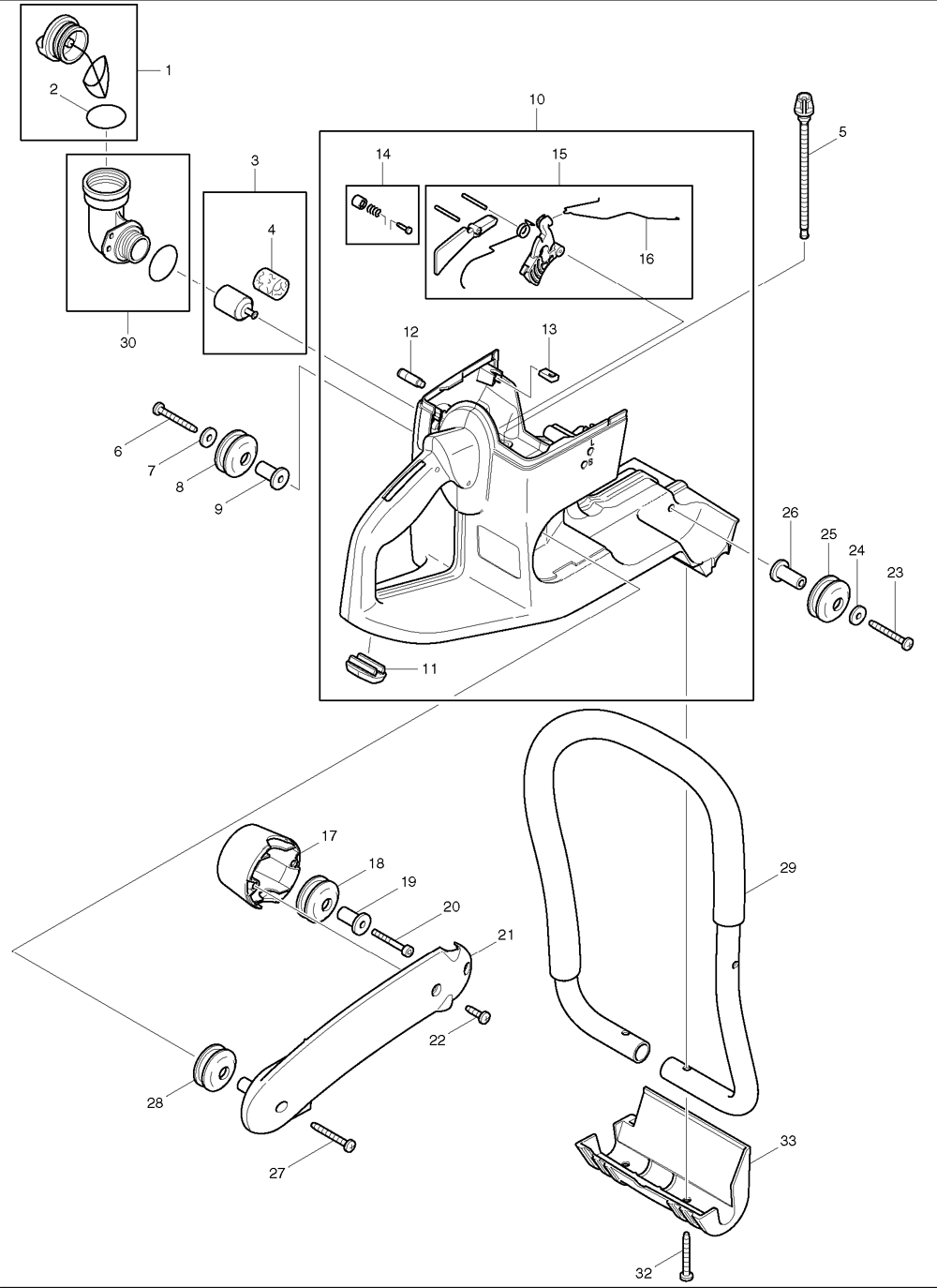

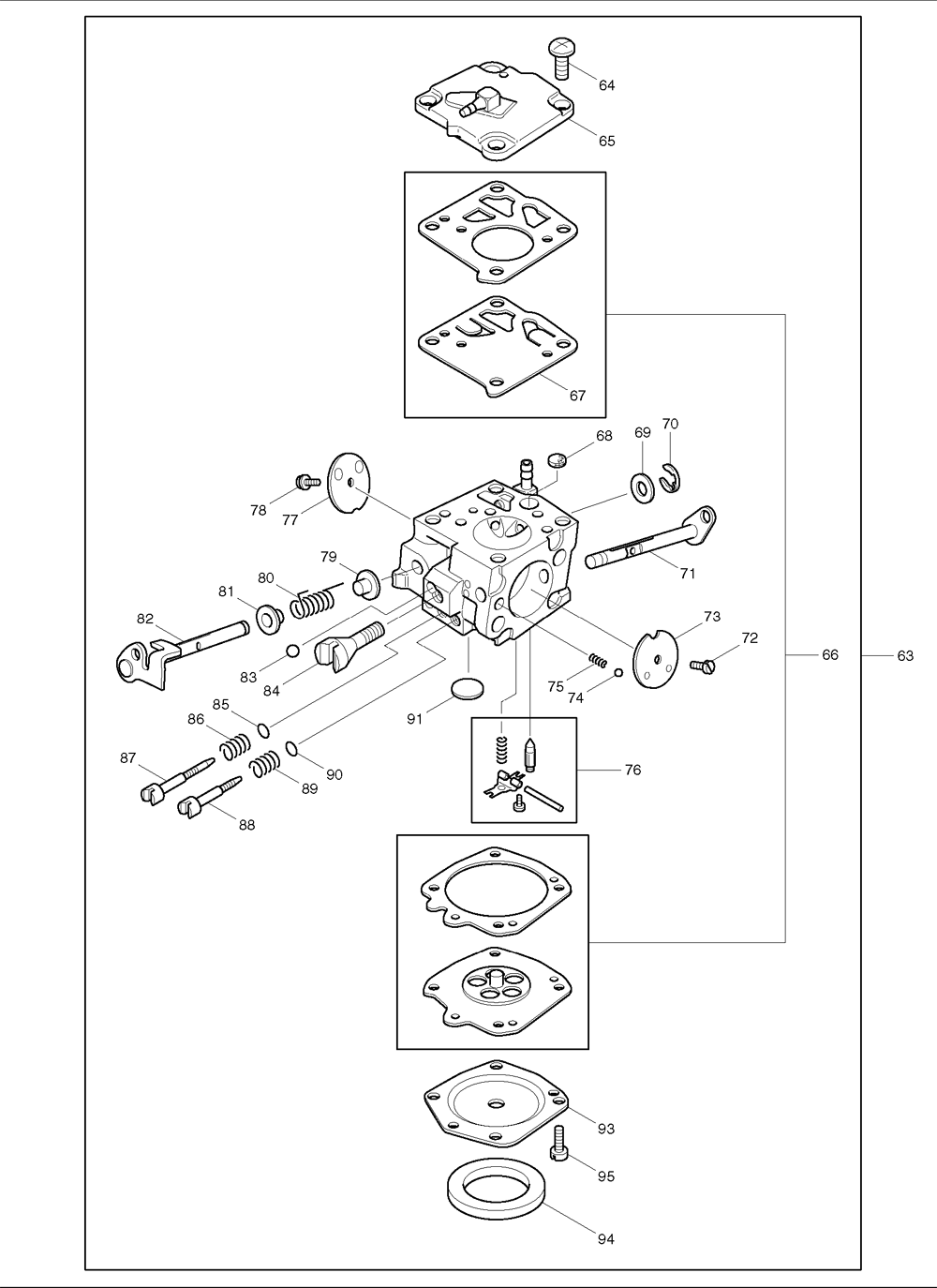

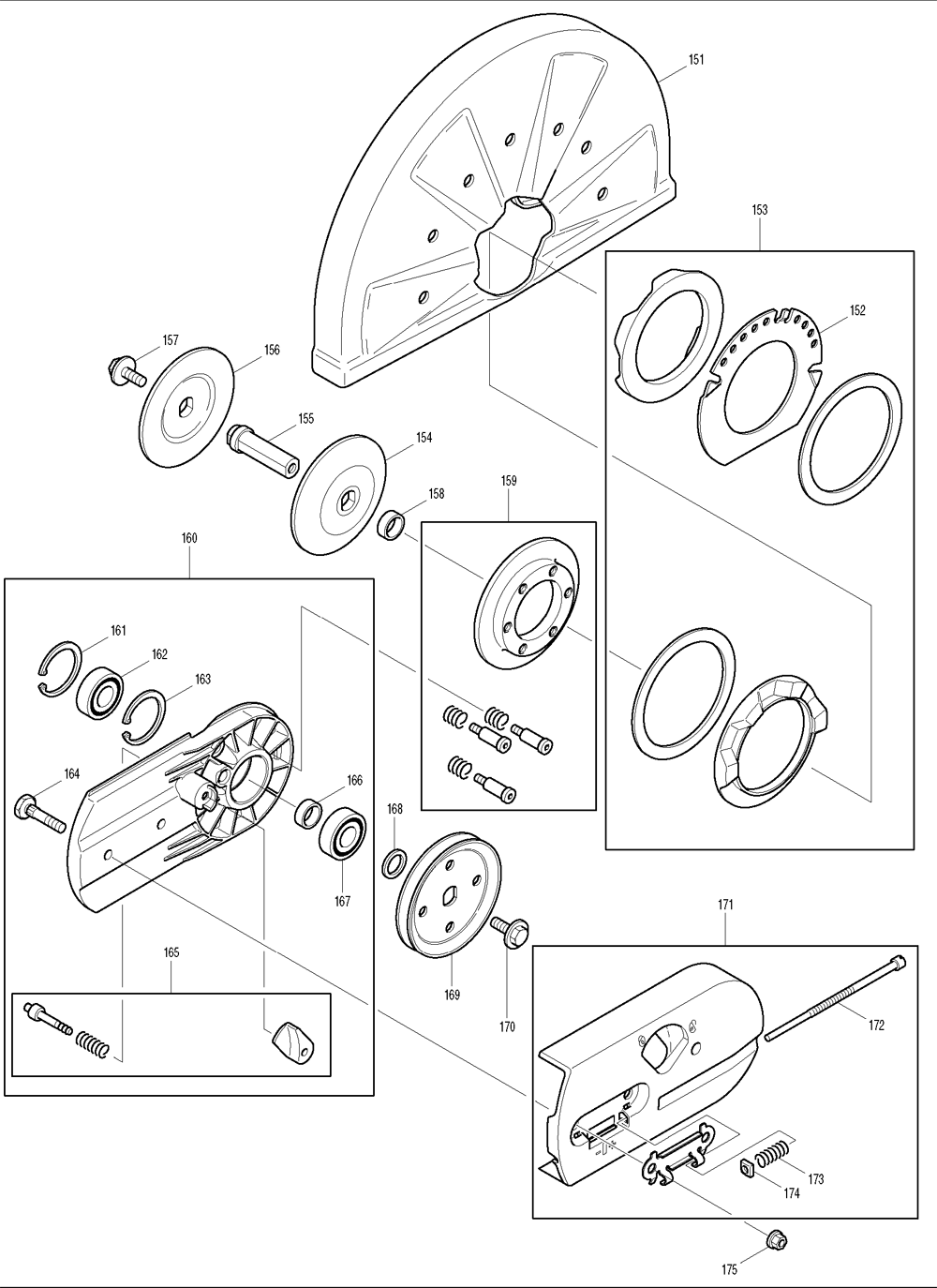

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	010-114-091	FUEL TANK CAP CPL.,DPC6400	$7.68
9	394-114-281	AXLE, DPC7331	$3.50
2	963-230-031	O-RING, DPC6400, RED	$3.17
42	394-118-041	HOOD CPL.,GREY, DPC6400	$30.70
129	394-130-015	CYLINDER/PISTON CPL.,DPC7301/7311/7321	$235.23
4	963-601-240	FELT, DCS340	$4.93
00	394-146-013	CONTACT SPRING, DPC8112	$4.71
5	965-404-911	FUEL LINE, DPC6400	$6.14
60	394-150-042	CHOKE SHAFT, DPC6400	$3.17
6	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
115	394-140-010	FLYWHEEL / COIL ASS'Y, DPC7300	$118.93
7	900-005-078	WASHER 5.8, DPC7301	$1.34
55	394-171-051	CONNECTING SLEEVE CPL., DPC6200	$36.21
8	965-403-535	RUBBER BUFFER, DPC7331	$9.22
00	394-171-030	FLANGE CPL., DPC7300	$6.69
143	394-223-025	CLUTCH DRUM ASS'Y, DPC7300	$85.90
143	394-223-025	CLUTCH DRUM ASS'Y, DPC7300	$85.90
11	394-114-070	RUBBER FOOT, DPC7300	$6.69
152	394-342-011	LOCKING PLATE, DPC6200	$14.61
12	010-175-050	AIR VALVE CPL., DPC6201	$16.04
13	394-114-100	SCREW PLUG, DPC7300	$3.50
14	957-117-030	HALF-THROTTLE LOCK, CPL.,DPC7300	$4.93
147	965-300-470	V-BELT, DPC7300	$29.58
15	957-117-020	THROTTLE MECHANISM CPL., DPC7300	$22.53
5	965-404-911	FUEL LINE, DPC6400	$6.14
153	957-342-011	PROTECTING HOOD, DPC6200	$22.64
16	394-117-011	THROTTLE LINKAGE, DPC6400	$6.69
157	994-280-250	HEX SCREW M8X25, DPC7300	$6.69
17	394-114-051	POT, DPC6200	$10.65
107	965-605-433	CABLE WITH PLUG, DPC6401	$9.22
18	965-403-535	RUBBER BUFFER, DPC7331	$9.22
107	965-605-433	CABLE WITH PLUG, DPC6401	$9.22
20	908-305-405	FILLISTER H. SCREW, DPC9500	$3.17
22	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
23	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
24	900-005-078	WASHER 5.8, DPC7301	$1.34
25	965-403-535	RUBBER BUFFER, DPC7331	$9.22
27	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
28	965-403-535	RUBBER BUFFER, DPC7331	$9.22
32	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
33	394-114-190	FOOT, DPC6410	$25.61
35	394-118-070	FILTER COVER ASSY, DPC7300	$28.25
36	980-114-611	LABEL, DPC7300	$6.01
37	394-118-010	BAYONET, DPC6400	$4.93
38	394-118-060	INSERT, DPC7300	$3.50
39	394-173-030	PREFILTER, DPC7300	$6.69
40	394-118-020	PACKING RING, DPC7300	$4.71
41	980-114-610	LABEL, DPC7300	$4.60
42	394-118-041	HOOD CPL.,GREY, DPC6400	$30.70
43	908-505-555	TORX SCREW 5X55, EHW120	$3.50
44	394-173-010	AIR FILTER, DPC7311	$9.22
45	394-173-020	INNER FILTER, DPC7311	$6.14
46	395-174-110	COOLING PLATE, DPC7331	$4.56
47	965-531-131	GASKET, DPC8112	$4.71
49	908-405-205	SCREW M5X20, DPC6400	$1.85
50	908-005-095	SCREW M5X9, DCS5200I	$1.85
51	921-905-004	SQUARE NUT M5, DPC7300	$1.96
52	965-603-050	HOSE CLIP, DPC6410	$7.02
54	024-131-032	INSERT(SUCTION HOSE),DCS9000	$9.22
55	394-171-051	CONNECTING SLEEVE CPL., DPC6200	$36.21
56	965-401-016	RUBBER BUSH, DCS6800I	$3.50
57	965-452-382	TUBE, DCS340	$12.54
58	965-518-120	GASKET, DPC6200	$3.50
59	970-502-050	"INSULATING HOSE,DCS431 3.94"""	$4.93
60	394-150-042	CHOKE SHAFT, DPC6400	$3.17
61	394-150-030	CHOKE SHAFT, DPC7300	$6.69
62	908-204-555	SCREW M4X55, DCS6421	$1.85
64	394-150-170	FILLISTER HEAD SCREW, DPC7300	$4.93
65	394-150-160	PUMP COVER CPL., DPC7300	$19.67
66	957-150-100	DIAPHRAGM & GASKET (TILLOTSON), DPC7311	$12.19
67	113-150-150	PUMP DIAPHRAGM (237-144), DPC7311	$4.93
68	394-150-180	SCREEN, DPC7300	$4.93
69	122-151-400	DISC, DCS6000I21 .	$3.50
70	100-150-350	SAFETY WASHER, DCS6000I21	$5.26
71	394-150-250	CHOKE SHAFT, DPC7300	$21.10
72	001-150-650	SCREW, DCS520I	$4.27
73	113-150-261	CHOKE SHUTTER, DPC7000	$4.93
74	113-150-380	LOCKING BALL, DPC7000	$3.50
75	101-150-080	LOCKING SPRING, DPC7000	$5.26
76	957-150-160	SET OF CONTROL PARTS (TILLOTSON), DPC7311	$22.64
77	144-151-320	THROTTLE SHUTTER, DPC7000	$8.12
78	001-150-650	SCREW, DCS520I	$4.27
79	144-151-315	BUSHING, DCS6000I21	$4.93
80	394-150-310	SPRING, DPC7300	$6.47
81	144-151-315	BUSHING, DCS6000I21	$4.93
82	394-150-300	THROTTLE SHAFT, DPC7300	$26.16
83	001-150-510	FRICTION BALL, DCS6800I	$3.50
84	394-150-570	IDLE STOP SCREW, DPC7300	$8.01
85	394-150-500	PACKING RING, DPC7300	$4.93
86	144-151-480	SPRING(L), DCS6000I21	$5.26
87	394-150-470	IDLE ADJUSTMENT SCREW, DPC7300	$21.10
88	394-150-510	MAIN ADJUSTMENT SCREW, DPC7300	$21.10
89	144-151-480	SPRING(L), DCS6000I21	$5.26
90	394-150-500	PACKING RING, DPC7300	$4.93
91	113-150-040	COVER DISC, DPC7311	$3.50
93	394-150-120	DIAPHRAGM COVER, DPC7300	$8.12
94	965-402-970	GASKET, DPC7300	$1.85
95	001-150-520	SCREW, DCS6800I	$4.71
97	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
98	928-405-000	WASHER, DCS340	$1.85
99	965-402-262	STARTER GRIP, DCS6800I	$6.69
100	980-114-217	LABEL, DPC6400	$3.10
101	020-163-031	REWIND SPRING CPL, DCS9000	$10.65
102	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
103	024-162-084	CABLE DRUM, DCS9000	$23.43
104	929-314-100	SNAP RING, 14 X 1, DCS6000I21	$1.85
105	394-112-020	AIR GUIDE PLATE, DPC7300	$4.93
106	108-164-020	STARTER ROPE 980MM,DCS431	$6.14
107	965-605-433	CABLE WITH PLUG, DPC6401	$9.22
108	965-401-016	RUBBER BUSH, DCS6800I	$3.50
110	957-604-240	SPARK PLUG CAP, DPC7000	$9.77
111	965-603-021	SPARK PLUG,WSR5F DPC6200	$6.14
112	970-310-200	IGNITION CABLE(150 MM), DCS6401	$8.12
114	908-605-205	F.H. SCREW M5X20, DCS9000	$1.85
115	394-141-030	FLYWHEEL ASS'Y, DPC7300	$132.12
116	031-166-010	STARTER RATCHET, DCS6000I21	$12.96
117	920-308-024	HEX NUT M8X1, DCS34	$1.96
118	926-208-001	SPRING WASHER 8, DPC7000	$2.51
120	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
121	908-005-305	TORX SCREW 5X30, DCS340	$1.85
122	962-900-052	RADIAL RING, DCS431	$8.12
123	001-131-150	DECOMPRESSION VALVE, DCS431	$23.96
124	908-005-205	SCREW M5X20, DCS460	$1.85
126	936-430-160	SPIRAL PIN 3X16, DCS460	$1.85
127	965-531-111	GASKET, DPC7331	$4.71
128	960-102-159	BALL BEARING, DCS6800I	$19.34
129	394-130-015	CYLINDER/PISTON CPL.,DPC7301/7311/7321	$235.23
131	394-132-020	PISTON RING 50, DPC7331	$19.67
132	119-132-060	SPRING RING, DCS6000I21	$1.96
133	965-531-121	GASKET, DCS6401	$3.17
135	394-120-011	CRANKSHAFT, DPC7311	$234.55
136	939-630-370	KEY, DPC7000	$1.85
138	960-102-159	BALL BEARING, DCS6800I	$19.34
139	962-900-052	RADIAL RING, DCS431	$8.12
140	930-916-160	SPRING RING, DCS431	$1.96
142	394-182-020	GUIDE DISC, DPC7300	$3.50
146	024-184-021	TENSION SPRING, DC6401	$3.61
147	965-300-470	V-BELT, DPC7300	$29.58
148	394-213-010	COVER (GREY), DPC7300	$18.24
149	908-605-145	F.H. SCREW M5X14, DCS9000	$1.85
152	394-342-011	LOCKING PLATE, DPC6200	$14.61
153	957-342-011	PROTECTING HOOD, DPC6200	$22.64
155	394-228-101	20MM AXLE, DPC POWER CUTTERS	$57.30
157	994-280-250	HEX SCREW M8X25, DPC7300	$6.69
158	394-228-021	SPACER, DPC8112	$4.71
159	394-342-211	PRESSURE RING CPL., DPC8112	$40.39
160	394-211-730	CUTTING DEVICE ASS'Y DPC7300	$212.82
161	929-240-180	SNAP RING, DPC6400	$3.50
162	960-102-176	BALL BEARING 6203 LLU, DPC6400	$19.67
163	929-240-180	SNAP RING, DPC6400	$3.50
164	394-211-090	SCREW, DPC7300	$4.93
165	957-211-020	BOLT CPL., DPC7300	$10.65
166	394-228-021	SPACER, DPC8112	$4.71
167	960-102-176	BALL BEARING 6203 LLU, DPC6400	$19.67
168	900-006-179	DISC, DPC7300	$1.85
169	394-221-050	V-BELT PULLEY, DPC7321	$39.47
170	994-280-250	HEX SCREW M8X25, DPC7300	$6.69
172	394-213-031	TENSIONING SCREW, DPC6400	$4.71
173	394-342-120	PRESSURE SPRING, DPC7300	$5.26
174	921-906-004	NUT M6, EHW120	$1.96
175	923-208-004	HEX NUT, DCS341	$4.16
176	965-402-870	RUBBER PLATE SET, DPC6400	$10.65
177	980-114-762	LABEL MIX, DPC6400	$3.10
178	394-118-050	BAYONET LOCK, DPC6400	$1.74
