Makita DPC6410 Electric Saw Parts

Makita DPC6410 Electric Saw Parts Image

Makita DPC6410 Parts
12 Inch Gasoline Power Cutter

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DPC6410
12 Inch Gasoline Pow...
$801.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6

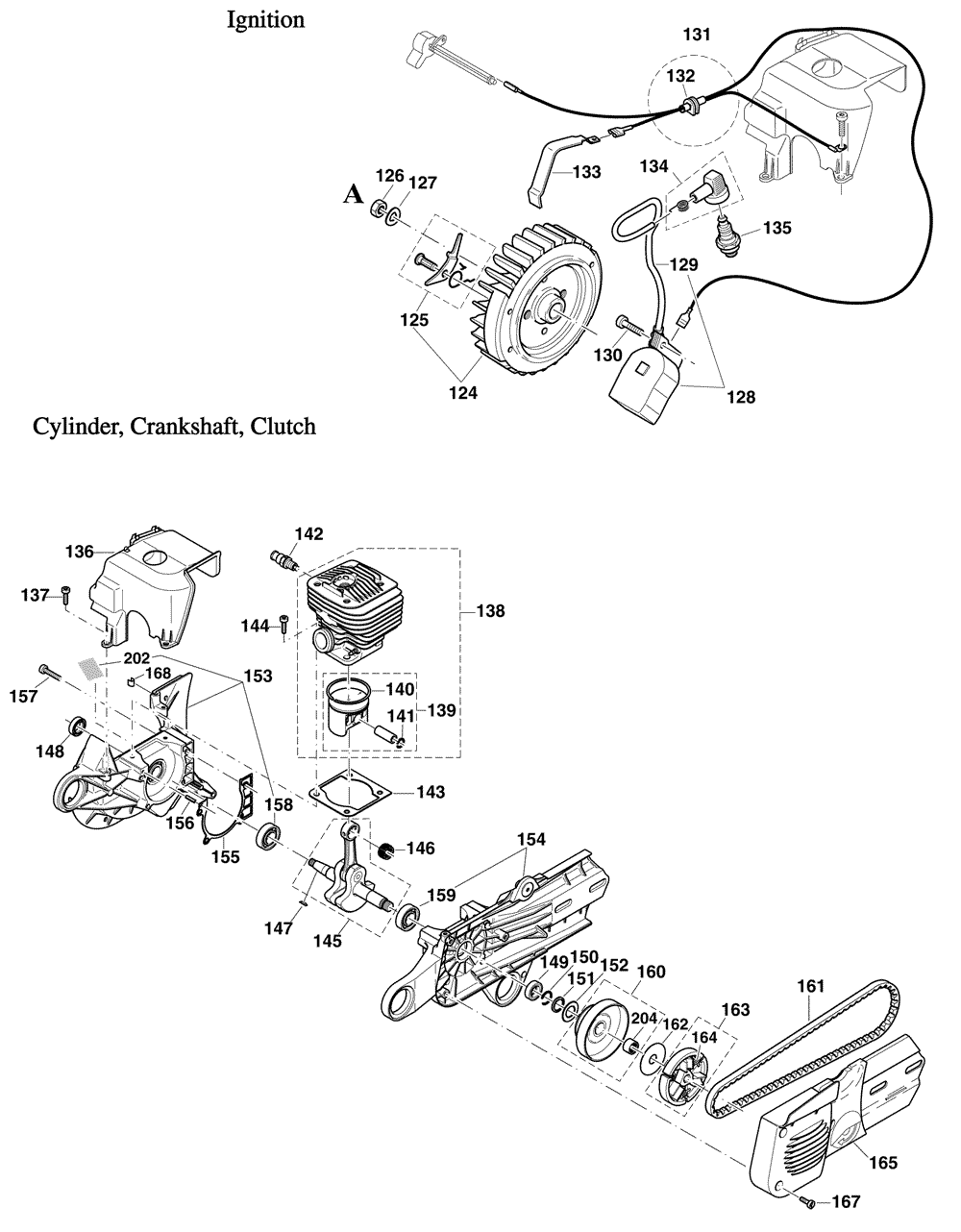

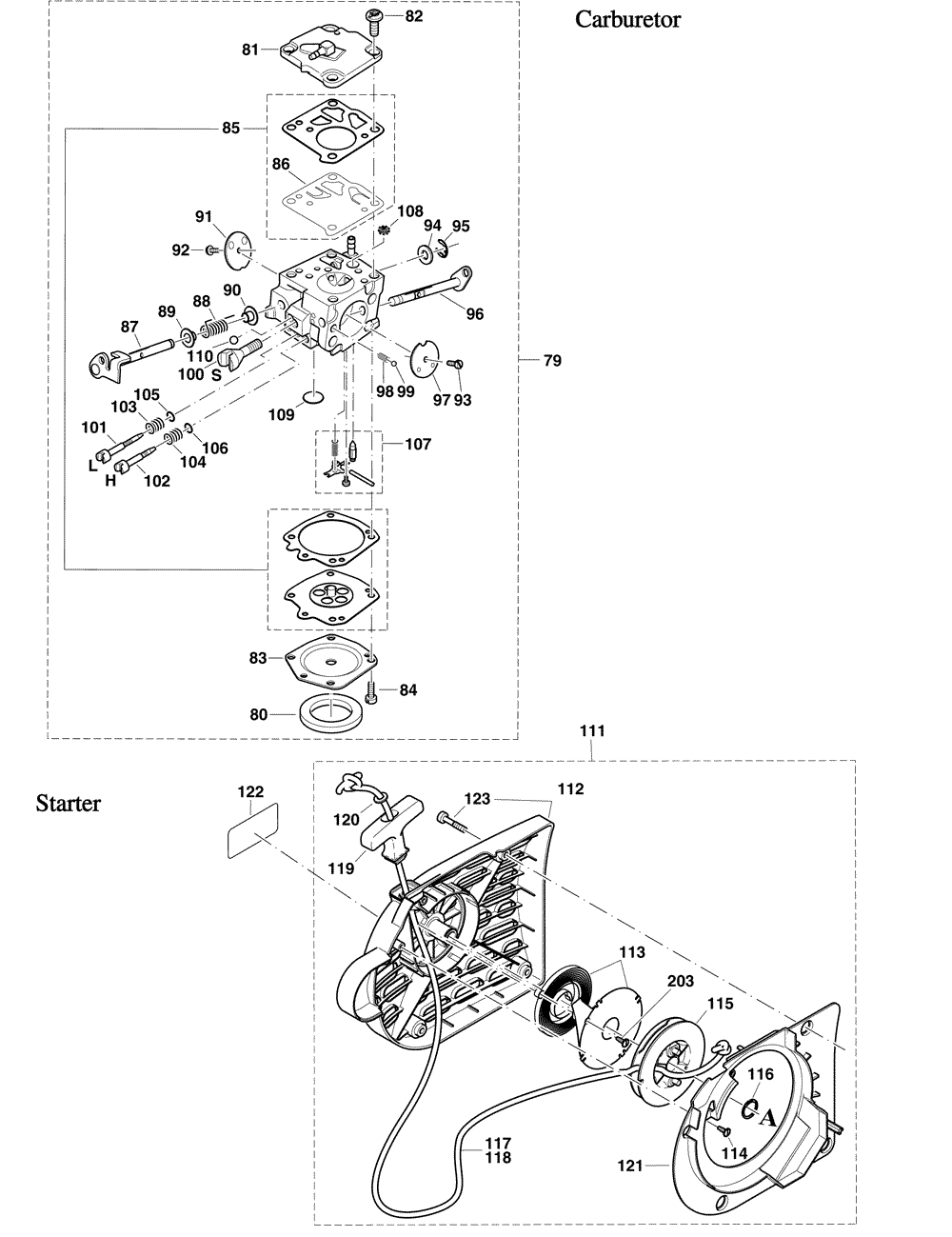

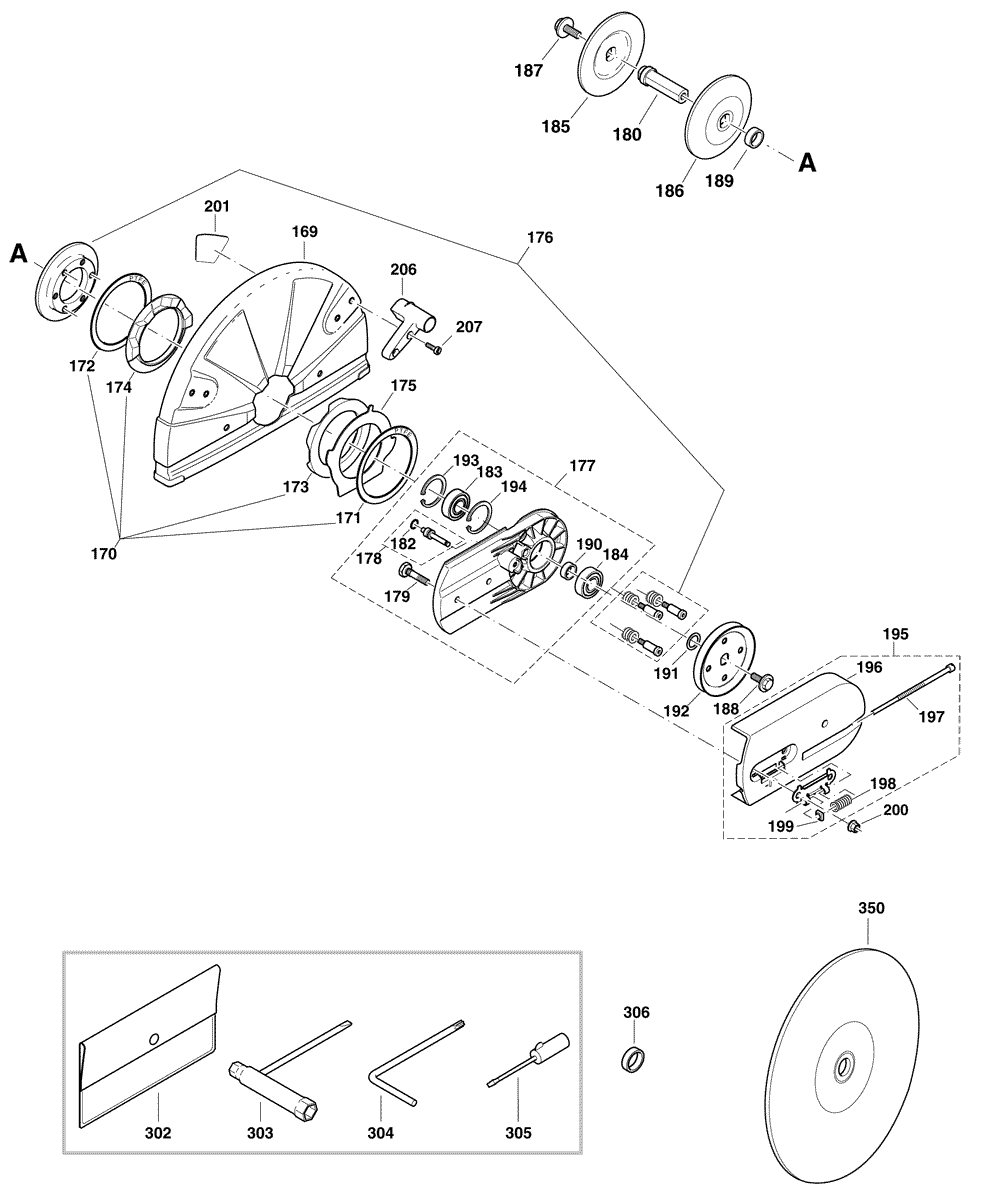

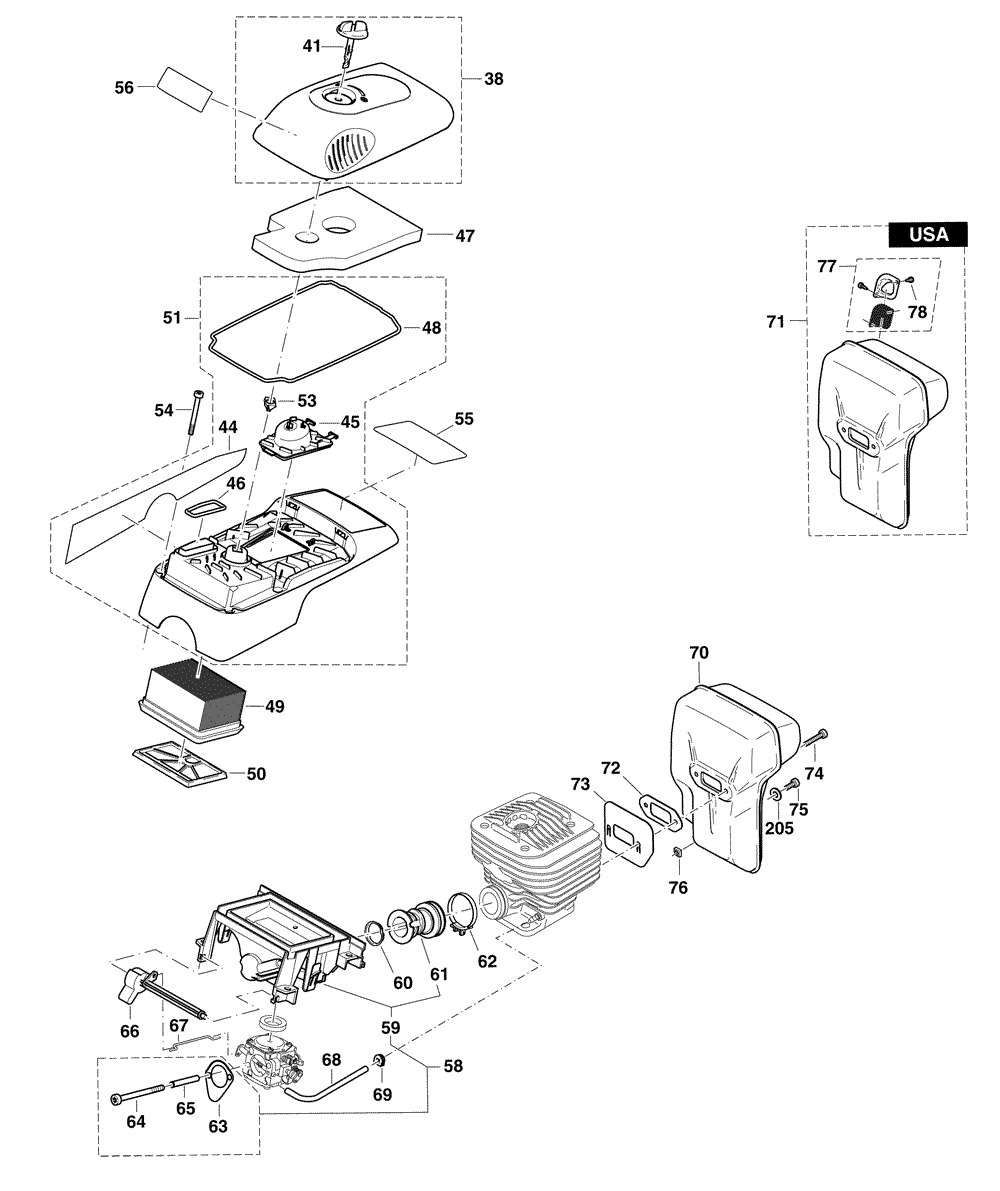

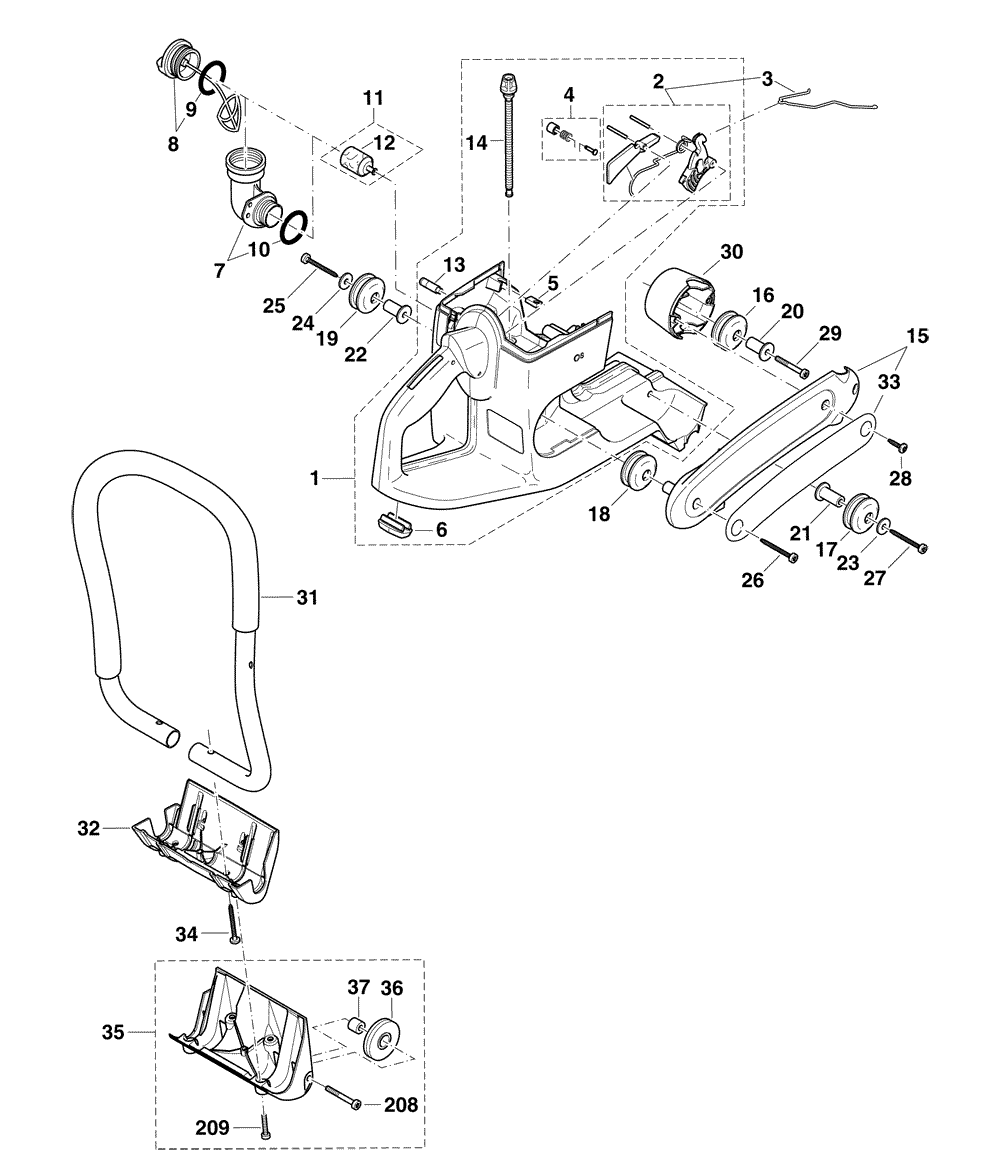

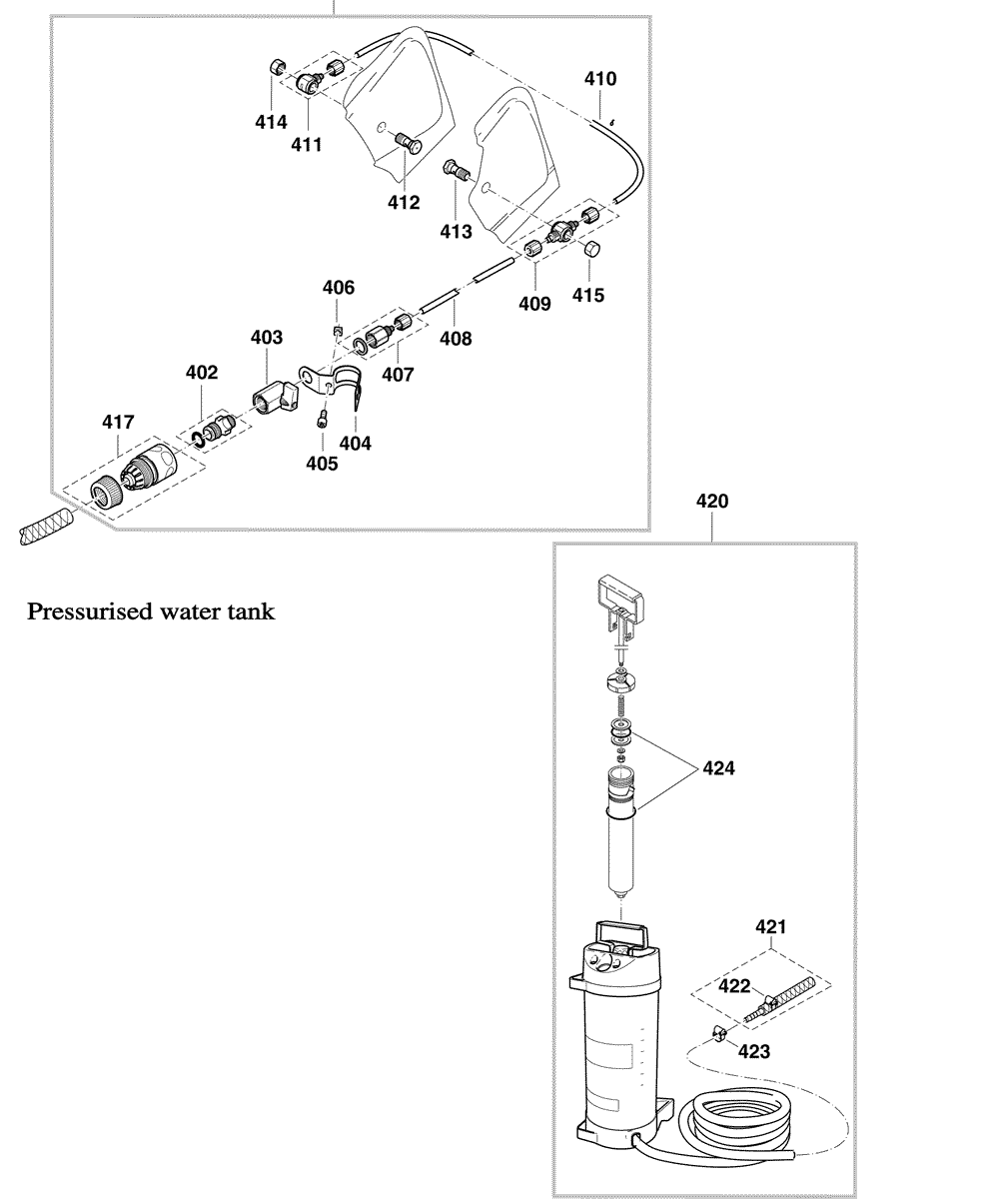

Tool Diagram    (Click image to Zoom in) View larger Image
Makita DPC6410 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 394-174-500 MUFFLER, DPC6410 $87.20
2 957-117-020 THROTTLE MECHANISM CPL., DPC7300 $22.53
00 394-174-500 MUFFLER, DPC6410 $87.20
3 394-117-011 THROTTLE LINKAGE, DPC6400 $6.69
4 957-117-030 HALF-THROTTLE LOCK, CPL.,DPC7300 $4.93
00 394-114-605 TANK CPL., DPC6410 $111.07
5 394-114-100 SCREW PLUG, DPC7300 $3.50
00 394-114-605 TANK CPL., DPC6410 $111.07
6 394-114-070 RUBBER FOOT, DPC7300 $6.69
00 326-111-731 CRANKCASE (MAG.SIDE), DPC7321 $99.90
7 010-114-081 ANGULAR UNION ASSY. $17.87
00 326-111-740 CRANKC. CLUTCH SIDE,DPC8112 $149.19
8 010-114-091 FUEL TANK CAP CPL.,DPC6400 $7.68
51 326-118-082 HOOD BLACK, DPC6410 $43.14
9 963-230-031 O-RING, DPC6400, RED $3.17
00 900-005-077 WASHER, DPC6410 $1.34
10 963-230-031 O-RING, DPC6400, RED $3.17
00 908-905-125 SCREW, DPC6410 $1.74
00 908-905-125 SCREW, DPC6410 $1.74
12 963-601-240 FELT, DCS340 $4.93
13 010-175-050 AIR VALVE CPL., DPC6201 $16.04
14 965-404-911 FUEL LINE, DPC6400 $6.14
16 965-403-535 RUBBER BUFFER, DPC7331 $9.22
17 965-403-535 RUBBER BUFFER, DPC7331 $9.22
18 965-403-535 RUBBER BUFFER, DPC7331 $9.22
19 965-403-535 RUBBER BUFFER, DPC7331 $9.22
23 900-005-078 WASHER 5.8, DPC7301 $1.34
24 900-005-078 WASHER 5.8, DPC7301 $1.34
25 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
26 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
27 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
28 913-455-204 SCREW M5.5X20, DCS6800I $1.85
29 908-305-405 FILLISTER H. SCREW, DPC9500 $3.17
30 394-114-051 POT, DPC6200 $10.65
32 394-114-190 FOOT, DPC6410 $25.61
34 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
35 394-114-271 FOOT CPL.,DPC7331 $44.57
36 394-114-230 ROLLER, DPC6410 $15.16
37 394-114-240 BUSHING,DPC6410 $3.50
38 326-118-611 FILTER COVER GREY, DPC6410 $32.13
41 394-118-010 BAYONET, DPC6400 $4.93
44 980-114-971 LABEL, DPC6410 $5.48
45 326-118-070 SPARK PLUG COVER, DPC6410 $6.14
46 326-118-050 PACKING RING, DPC6410 $3.17
47 326-173-080 PRE-FILTER, DPC7311 $6.91
48 326-118-020 PACKING RING, DPC6410 $4.71
49 394-173-010 AIR FILTER, DPC7311 $9.22
50 394-173-020 INNER FILTER, DPC7311 $6.14
53 394-118-050 BAYONET LOCK, DPC6400 $1.74
54 908-605-505 SCREW M5X50, DPC7321 $1.74
55 980-114-967 LABEL, DPC6410 $5.48
55 980-114-968 LABEL, DPC6411 $6.01
56 980-114-999 LABEL MIX, EK7301 $3.10
58 957-171-394 MOD.SET CONNECT. SLEEVE, DPC6400 $44.57
59 394-171-051 CONNECTING SLEEVE CPL., DPC6200 $36.21
60 024-131-032 INSERT(SUCTION HOSE),DCS9000 $9.22
61 394-131-210 SUCTION HOSE, DPC7331 $19.67
62 965-603-050 HOSE CLIP, DPC6410 $7.02
63 965-518-120 GASKET, DPC6200 $3.50
64 908-204-555 SCREW M4X55, DCS6421 $1.85
65 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
66 394-150-030 CHOKE SHAFT, DPC7300 $6.69
67 394-150-042 CHOKE SHAFT, DPC6400 $3.17
68 965-452-382 TUBE, DCS340 $12.54
69 965-401-016 RUBBER BUSH, DCS6800I $3.50
72 965-531-131 GASKET, DPC8112 $4.71
73 395-174-110 COOLING PLATE, DPC7331 $4.56
74 908-405-205 SCREW M5X20, DPC6400 $1.85
75 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
76 921-905-004 SQUARE NUT M5, DPC7300 $1.96
77 394-174-142 SPARK ARRESTOR SCREEN,DPC8112 $12.19
78 915-035-140 SCREW, DPC6410 $1.74
80 965-402-970 GASKET, DPC7300 $1.85
81 394-150-160 PUMP COVER CPL., DPC7300 $19.67
82 394-150-170 FILLISTER HEAD SCREW, DPC7300 $4.93
83 394-150-120 DIAPHRAGM COVER, DPC7300 $8.12
84 001-150-520 SCREW, DCS6800I $4.71
85 957-150-100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 $12.19
86 113-150-150 PUMP DIAPHRAGM (237-144), DPC7311 $4.93
87 394-150-300 THROTTLE SHAFT, DPC7300 $26.16
88 394-150-310 SPRING, DPC7300 $6.47
89 144-151-315 BUSHING, DCS6000I21 $4.93
90 144-151-315 BUSHING, DCS6000I21 $4.93
91 144-151-320 THROTTLE SHUTTER, DPC7000 $8.12
92 001-150-650 SCREW, DCS520I $4.27
93 001-150-650 SCREW, DCS520I $4.27
94 122-151-400 DISC, DCS6000I21 . $3.50
95 100-150-350 SAFETY WASHER, DCS6000I21 $5.26
96 394-150-250 CHOKE SHAFT, DPC7300 $21.10
97 113-150-261 CHOKE SHUTTER, DPC7000 $4.93
98 101-150-080 LOCKING SPRING, DPC7000 $5.26
99 113-150-380 LOCKING BALL, DPC7000 $3.50
100 394-150-570 IDLE STOP SCREW, DPC7300 $8.01
101 394-150-470 IDLE ADJUSTMENT SCREW, DPC7300 $21.10
102 394-150-510 MAIN ADJUSTMENT SCREW, DPC7300 $21.10
103 144-151-480 SPRING(L), DCS6000I21 $5.26
104 144-151-480 SPRING(L), DCS6000I21 $5.26
105 394-150-500 PACKING RING, DPC7300 $4.93
106 394-150-500 PACKING RING, DPC7300 $4.93
107 957-150-160 SET OF CONTROL PARTS (TILLOTSON), DPC7311 $22.64
108 394-150-180 SCREEN, DPC7300 $4.93
109 113-150-040 COVER DISC, DPC7311 $3.50
110 001-150-510 FRICTION BALL, DCS6800I $3.50
112 394-112-621 FAN HOUSING (GRAY), DPC7301 $39.06
113 394-163-020 REWIND SPRING, DPC6400 $10.65
114 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
115 394-162-040 CABLE DRUM, DPC7321 $20.11
116 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
117 122-164-010 START ROPE 1000MM, DCS6800I $4.93
117 394-164-020 STARTER ROPE BLACK, DPC6410 $7.68
118 122-164-010 START ROPE 1000MM, DCS6800I $4.93
119 001-161-020 STARTER GRIP, DPC6410 $6.14
120 928-405-000 WASHER, DCS340 $1.85
121 394-112-141 AIR GUIDE PLATE, DPC7301 $4.71
122 980-115-214 MAKITA LABEL, DPC6410 $3.50
123 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
124 394-141-030 FLYWHEEL ASS'Y, DPC7300 $132.12
125 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
126 920-208-024 HEXAGONAL NUT M8X1, DCS6401 $1.96
127 926-208-001 SPRING WASHER 8, DPC7000 $2.51
129 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
130 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
131 965-605-433 CABLE WITH PLUG, DPC6401 $9.22
132 965-401-016 RUBBER BUSH, DCS6800I $3.50
134 957-604-240 SPARK PLUG CAP, DPC7000 $9.77
135 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
136 394-131-042 HOOD, DPC7321 $15.82
137 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
140 325-132-050 PISTON RING, DPC6410 $19.67
141 119-132-060 SPRING RING, DCS6000I21 $1.96
142 001-131-150 DECOMPRESSION VALVE, DCS431 $23.96
143 965-531-160 GASKET, DPC7331 $3.17
144 908-005-205 SCREW M5X20, DCS460 $1.85
145 394-120-011 CRANKSHAFT, DPC7311 $234.55
147 939-630-370 KEY, DPC7000 $1.85
148 962-900-052 RADIAL RING, DCS431 $8.12
149 962-900-052 RADIAL RING, DCS431 $8.12
150 930-916-160 SPRING RING, DCS431 $1.96
152 394-182-020 GUIDE DISC, DPC7300 $3.50
155 965-531-111 GASKET, DPC7331 $4.71
156 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
157 908-005-305 TORX SCREW 5X30, DCS340 $1.85
158 960-102-159 BALL BEARING, DCS6800I $19.34
159 960-102-159 BALL BEARING, DCS6800I $19.34
161 965-300-470 V-BELT, DPC7300 $29.58
162 001-182-042 GUIDE DISC, DCS6401 $4.71
164 024-184-021 TENSION SPRING, DC6401 $3.61
167 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
168 965-402-870 RUBBER PLATE SET, DPC6400 $10.65
169 325-341-611 "12"" PROTECTION HOOD, DPC6410" $125.52
169 394-341-051 PROTECTION HOOD, DPC6411 $115.14
170 957-342-011 PROTECTING HOOD, DPC6200 $22.64
171 394-342-180 SLIDING DISC, DPC6410 $6.91
172 394-342-180 SLIDING DISC, DPC6410 $6.91
173 965-404-900 RUBBER RING EXT.,DPC6400 $7.68
174 965-404-920 RUBBER RING INT.,DPC6400 $7.68
175 394-342-160 IMPACT PLATE, DPC6410 $15.16
176 394-342-211 PRESSURE RING CPL., DPC8112 $40.39
177 394-211-740 CUTTING DEVICE BLACK, DPC6410 $211.17
178 394-342-190 BOLT CPL.,DPC6410 $6.91
179 394-211-090 SCREW, DPC7300 $4.93
180 394-228-101 20MM AXLE, DPC POWER CUTTERS $57.30
180 394-228-111 "1"" AXLE, DPC HD VERSION" $57.30
182 963-209-020 PACKING RING, DPC7331 $1.59
183 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
184 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
187 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
188 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
189 394-228-021 SPACER, DPC8112 $4.71
190 394-228-021 SPACER, DPC8112 $4.71
191 900-006-179 DISC, DPC7300 $1.85
192 394-221-050 V-BELT PULLEY, DPC7321 $39.47
193 929-240-180 SNAP RING, DPC6400 $3.50
194 929-240-180 SNAP RING, DPC6400 $3.50
195 395-211-640 COVER CPL., DPC6410 $68.20
197 394-213-031 TENSIONING SCREW, DPC6400 $4.71
198 394-342-120 PRESSURE SPRING, DPC7300 $5.26
199 921-906-004 NUT M6, EHW120 $1.96
200 923-208-004 HEX NUT, DCS341 $4.16
201 980-114-972 SAFETY LABEL, DPC6410 $4.56
201 980-114-974 SAFETY LABEL, EK7301 $4.56
202 980-600-130 INSULATING SHEET, DPC6400 $1.74
203 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
204 962-300-017 NEEDLE CAGE, DPC6410 $16.70
205 928-405-000 WASHER, DCS340 $1.85
206 326-341-300 GRIP, DPC7331 $7.68
207 908-605-165 SCREW M5X16, DPC7331 $1.74
208 908-006-355 FILLISTER H. SCREW, EK7301 $3.50
209 908-905-165 SCREW 5X16, EK7301 $1.74
303 941-719-140 UNIVERSAL WRENCH $13.88
304 940827000 WRENCH TORX DCS431 $7.99
305 944340001 CARBURETOR SCREWDRIVER DCS6800I $4.19
306 394-228-121 "ADAPTER RING, DPC7331, 20mm to 1""" $10.65
350 965-210-222 "BLADE, STONE, 14"" EHC-140" $154.86
350 965-210-611 '12'' ABRASIVE WHEEL DPC6410' $96.15
402 964-802-282 HOSE CONNECTOR, DT2000 $6.14
403 964-802-291 SHUT OFF COCK, DT2000 $16.04
404 394-365-163 CLAMP $7.68
405 908-006-105 FILLISTER H. SCREW, DPC9500 . $1.85
406 921-906-004 NUT M6, EHW120 $1.96
409 964-802-332 CONNECTING PIECE, DT2000 $7.46
411 964-802-340 CONNECTING PIECE, DT2000 $6.14
412 964-802-352 NOZZLE (HOLLOW SCREW), DT2000 $4.60
413 964-802-352 NOZZLE (HOLLOW SCREW), DT2000 $4.60
414 964-802-362 CAP NUT, DT2000 $3.06
415 964-802-362 CAP NUT, DT2000 $3.06
416 394-365-630 WATER ATTACHMENT KIT $98.05
417 964-802-400 COUPLING SLEEVE STOP, DPC6410 $11.97
420 957-802-600 PRESSURE TANK, EK7301 $385.29
421 394-365-180 CONNECTING REDUCER, DT2000 $12.74
422 964-802-250 CLAMP, DT2000 $4.71
423 964-802-250 CLAMP, DT2000 $4.71
424 957-963-200 GASKET SET, DPC8112 $15.16
