Makita DP3003 Electric Drill Parts

Makita DP3003 Electric Drill Parts Image

Makita DP3003 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

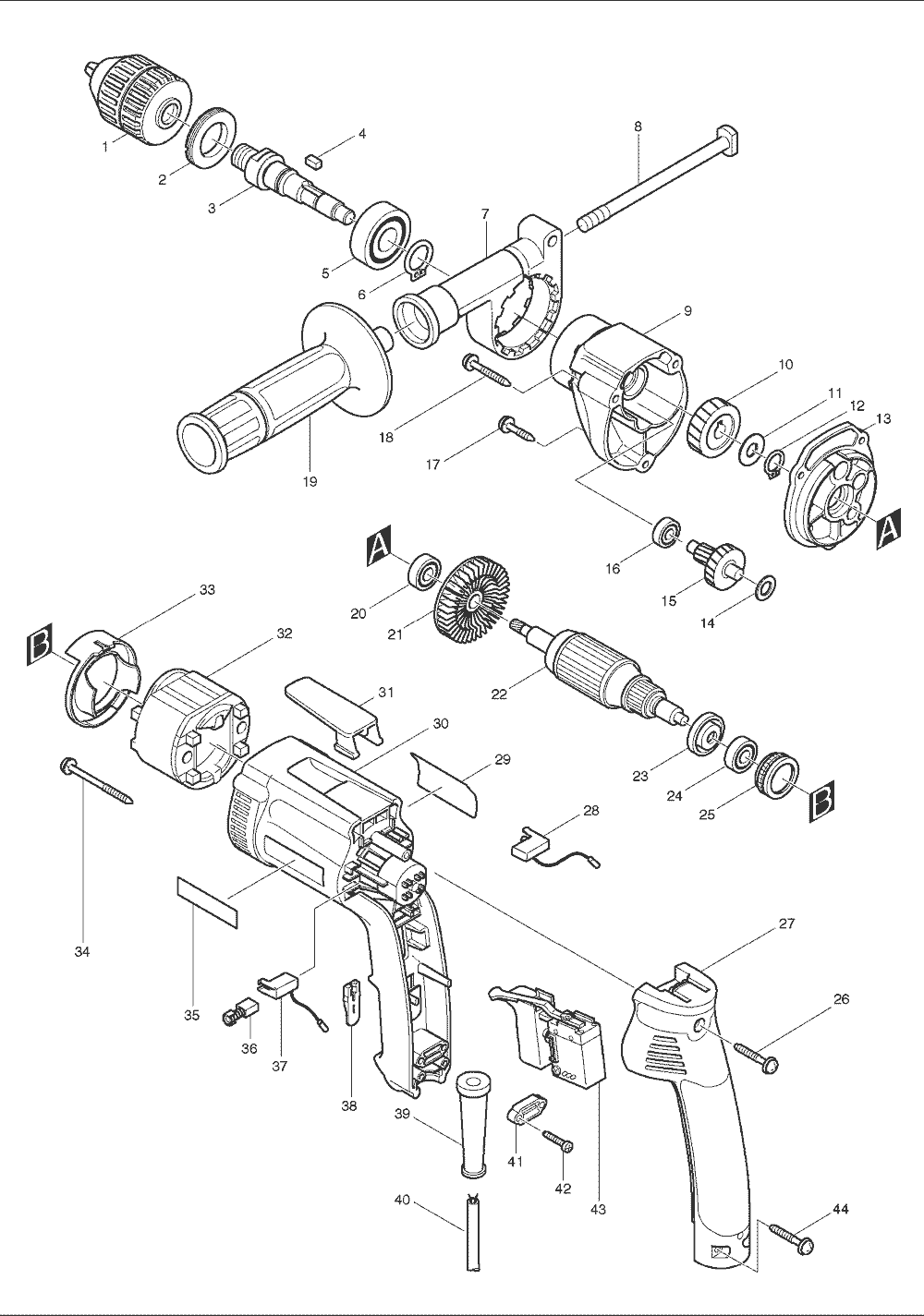

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	285807-7	BEARING RETAINER 22-36, 5008FA	$3.06
3	324040-7	SPINDLE, DP3003	$14.61
4	254202-2	KEY 4, 9924DB	$1.26
5	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
6	961055-9	RETAINING RING S-15, 5007F	$1.19
7	317401-8	GRIP BASE, DP4000	$11.97
8	266261-4	BOLT M8X130, DP3003	$3.28
9	317398-1	GEAR HOUSING, DP3003	$20.77
10	226530-5	HELICAL GEAR 32, DP3003	$11.64
11	253180-3	F. WASHER 10, 6906	$1.63
12	961006-2	RETAINING RING S-10, N9501B	$0.86
13	152640-1	GEAR HOUSING COVER CPL.,DP3003	$19.34
14	267217-0	FLAT WASHER 6, DP3003	$1.63
15	226140-8	GEAR COMPLETE 7-34, DP3003	$20.77
16	211016-2	B. BEARING 626LLB, 6300LR	$10.98
17	266050-7	P.T. SCREW 4X30, 4304	$1.19
18	266069-6	T. SCREW FLANGE PT4X45 HR2410	$1.74
19	152521-9	GRIP 36 CPL., DP4002	$4.49
20	211031-6	BALL BEARING 608LLB, 9227C	$10.98
21	241873-4	FAN 55, 6922NB	$7.02
22	517361-6	ARMATURE ASS'Y 115V,DP3003	$70.10
23	681636-0	INSULATION WASHER, GA4030	$3.72
24	211021-9	BALL BEARING 607LLB, LS1013	$8.78
25	421479-6	RUBBER RING 19, JN1601	$4.49
27	152641-9	HANDLE COVER CPL., DP3003	$21.10
28	643953-6	BRUSH HOLDER, 6823N,6826N	$3.06
29	852497-7	NAME PLATE, DP3003	$1.12
30	183270-7	MOTOR HOUSING SET, DP4000,DP4002	$19.78
31	417625-7	HOOK, 6827	$2.84
32	633471-2	FIELD 115V, DP3003	$14.94
33	417357-6	BAFFLE PLATE, DP3003	$2.84
35	819063-3	MAKITA LABEL, DA3010F	$0.96
36	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
37	643952-8	BRUSH HOLDER, 6823/6823TP	$3.06
38	417358-4	SLIDE LEVER, DP3003	$1.26
39	682559-5	CORD GUARD 8, 6824	$2.51
39	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
40	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
40	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
41	687063-9	STRAIN RELIEF, 4323K	$1.26
42	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
43	651991-4	SWITCH, DP4002	$37.53
45	442135-5	GASKET, DP3002	$2.84
2001	134903-7	GRIP 36 ASS'Y, DP3003	$11.97
