Makita DF010D Impact Wrench & Driver Parts

Makita DF010D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

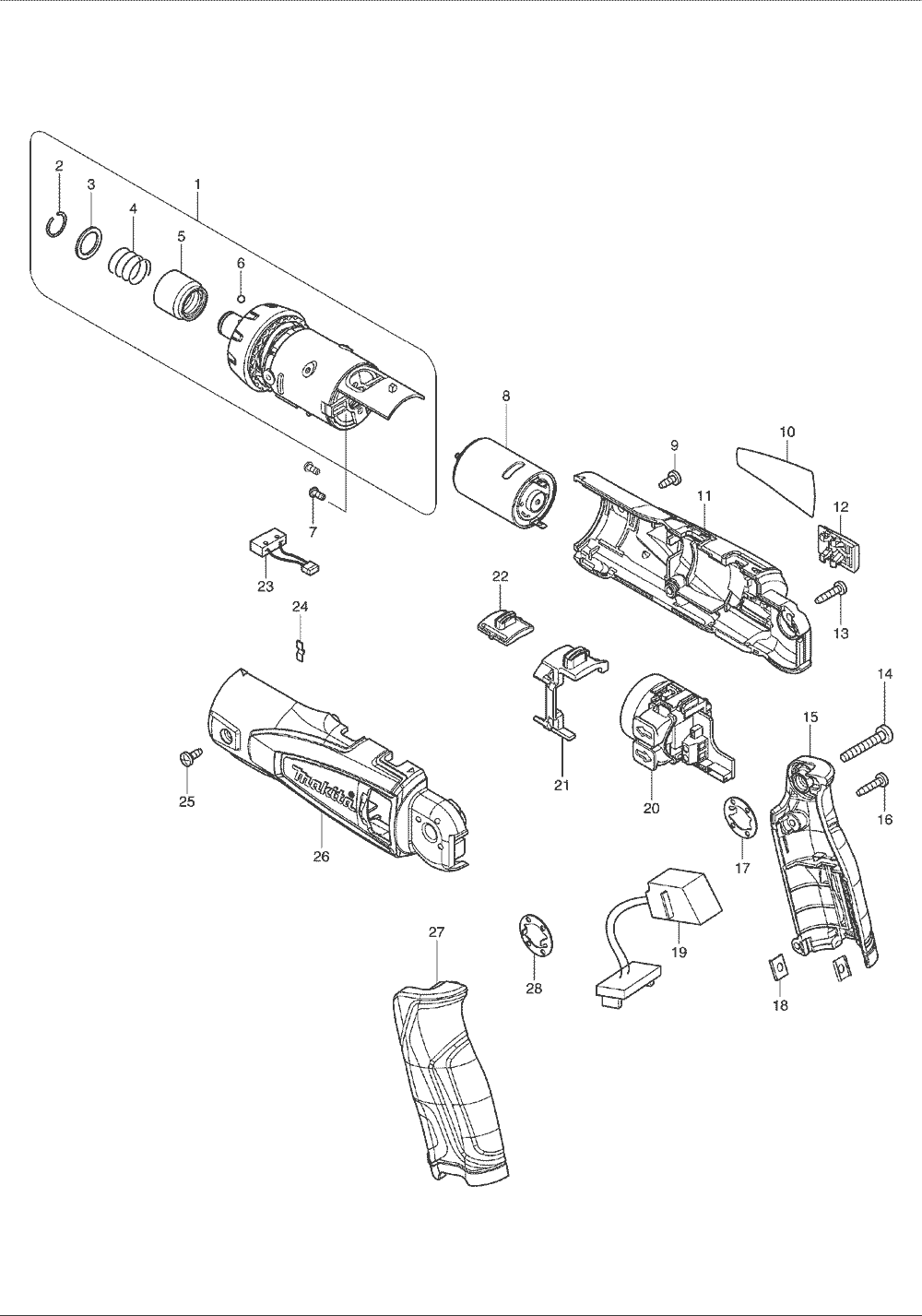

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	125464-8	GEAR ASSEMBLY, DF010DSE	$25.17
2	231965-7	RING SPRING 10, DF030DW	$0.86
3	267143-3	FLAT WASHER 11, BTD060Z	$1.63
4	233005-7	COMP.SPRING 13,6903VDW	$1.48
5	324919-2	BIT SLEEVE, DF030DW	$2.73
6	216019-1	STEEL BALL 3, BTD060Z	$0.53
7	265172-0	P.H. SCREW 2.6X6, TD020	$0.53
8	629854-2	DC MOTOR, DF010DSE	$5.92
9	265954-0	TAPPING SCREW BIND PT3X8, GA4030	$0.53
10	865100-1	DF010D NAME PLATE	$1.08
11	188508-5	MOTOR HOUSING SET, DF010DSE	$4.71
12	450590-7	SLIDE PLATE, DF010DSE	$0.66
13	266404-8	T. SCREW 3X14, TD020	$0.53
14	266374-1	TAPPING SCREW 4X25, GA7021	$0.53
15	188509-3	HANDLE SET, DF010DSE	$3.61
16	266404-8	T. SCREW 3X14, TD020	$0.53
17	267803-7	LOCK WASHER, TD020	$2.18
18	345749-8	SET PLATE, TD020	$0.49
19	631811-8	CONTROLLER, DF010DSE	$22.86
20	638605-2	SWITCH UNIT, DF010DSE	$12.63
21	450553-3	CHANGE LEVER, DF010DSE	$0.90
22	125465-6	SPEED CHANGE LEVER ASS'Y, DF010DSE	$1.34
23	638609-4	SWITCH UNIT, DF010DSE	$5.92
24	232242-0	LEAF SPRING, DF010DSE	$0.44
25	265954-0	TAPPING SCREW BIND PT3X8, GA4030	$0.53
26	188508-5	MOTOR HOUSING SET, DF010DSE	$4.71
27	188509-3	HANDLE SET, DF010DSE	$3.61
28	267803-7	LOCK WASHER, TD020	$2.18
5001	810414-3	CAUTION LABEL, DF010DSE	$0.42
