Makita DCS9000 Electric Saw Parts

Makita DCS9000 Electric Saw Parts Image

Makita DCS9000 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Tool Diagram    (Click image to Zoom in) View larger Image

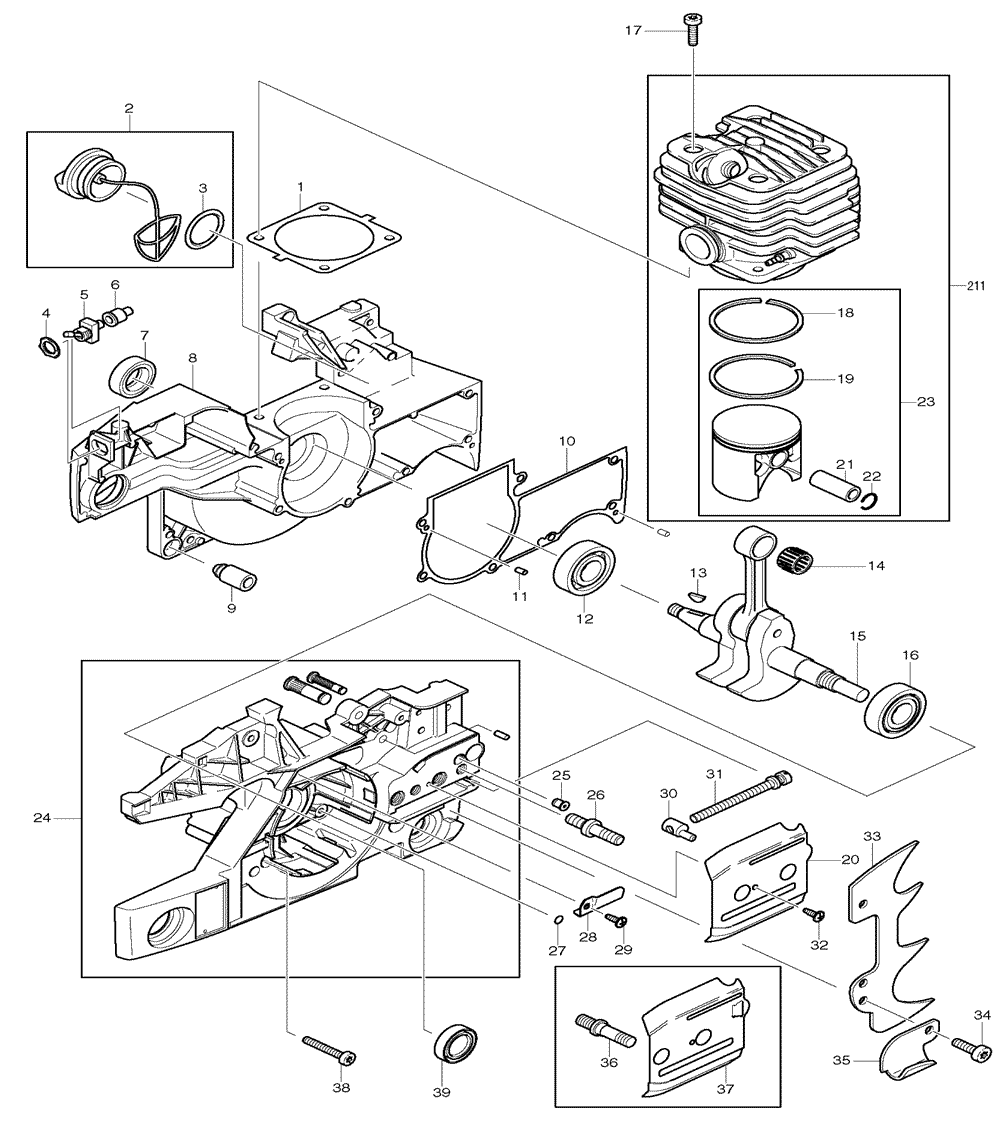

Makita DCS9000 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
78 024-162-084 CABLE DRUM, DCS9000 $23.43
1 965-525-060 GASKET, DCS9000 $3.50
113 010-180-110 CLUTCH ASSEMBLY, DCS9010 $50.60
2 010-114-050 OIL TANK PLUG, COMP., DCS9000 $6.69
3 963-228-030 GASKET, DCS9000 $3.50
89 957-143-010 IGNITION COIL W/FLYWHEEL, DCS9000 $180.91
21 031-132-020 PISTON PIN, DPC9500,T1 $21.10
4 965-605-120 NUT, DCS9000 $3.17
124 965-404-761 RUBBER PLATE, DCS9010 $4.93
5 965-605-401 SHORT CIRCUIT SWITCH, DCS9000 $10.65
44 913-455-304 SCREW M5.5X30, DCS6000I21 $1.85
6 965-605-131 RUBBER BUSH, DCS9000 $1.96
7 962-900-054 RADIAL RING, DPC7000 $9.22
8 024-111-621 CRANKCASE, MAG. SIDE, DCS9000 $126.78
9 965-403-370 RUBBER BUFFER, DCS6800I $3.50
10 965-525-070 GASKET, DCS9000 $4.93
11 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
12 960-102-179 BALL BEARING 6203C4, DCS9000 $19.34
13 939-630-370 KEY, DPC7000 $1.85
14 962-210-028 NEEDLE CAGE, DCS9000 . $21.76
15 024-120-024 CRANKSHAFT $213.70
16 960-102-179 BALL BEARING 6203C4, DCS9000 $19.34
17 908-005-205 SCREW M5X20, DCS460 $1.85
18 133-132-050 PISTON RING, DCS9000 $19.34
19 133-132-050 PISTON RING, DCS9000 $19.34
20 024-111-071 GUIDE PLATE, DCS9010 $5.59
21 031-132-020 PISTON PIN, DPC9500,T1 $21.10
22 119-132-060 SPRING RING, DCS6000I21 $1.96
23 024-132-020 PISTON COMP., DCS9000 $126.78
24 024-111-640 CRANKCASE,CLUTCH SIDE, DCS9010 $187.51
25 010-245-010 VENT VALVE, DCS431 $6.69
26 024-232-030 BOLT, DCS9010 $7.68
27 963-204-015 PACKING RING (4X1.5), DCS6800I $1.74
28 024-111-100 SAFETY PLATE, DCS9000 $4.93
29 915-735-100 SCREW, DCS9010 $1.59
30 001-213-170 NUT W/PIVOT, DCS9000 $9.77
31 001-213-160 TENSIONING SCREW, DCS9000 $11.42
32 915-735-100 SCREW, DCS9010 $1.59
33 024-250-030 SPIKE BAR, DCS9000 $22.09
34 908-006-145 SCREW M6X14, DCS6800I $1.85
35 024-111-050 CHAIN CATCH, DCS9000 $4.93
36 024-232-040 BOLT, DCS9000 $8.12
37 024-111-031 GUIDE PLATE, DCS9000 $6.14
38 908-005-305 TORX SCREW 5X30, DCS340 $1.85
39 962-900-054 RADIAL RING, DPC7000 $9.22

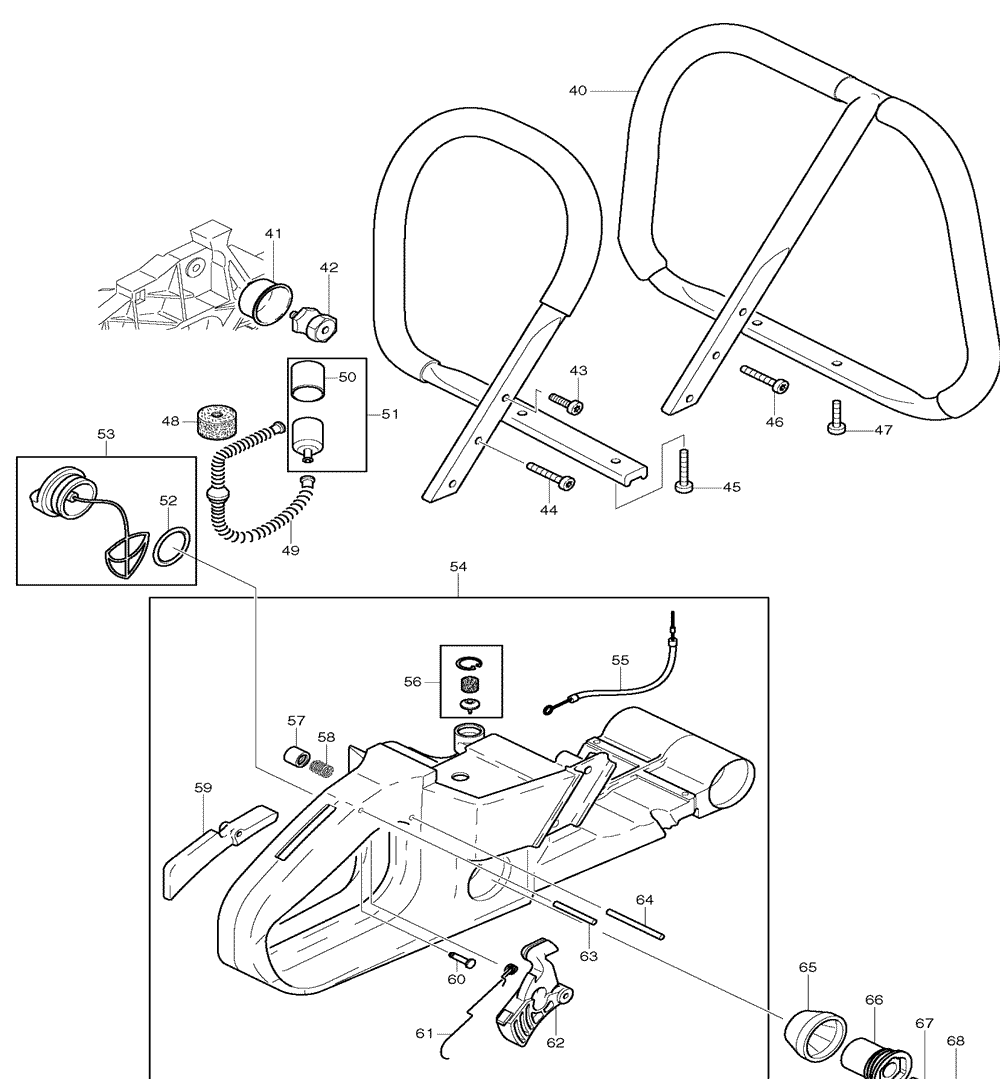

40 024-310-100 FULL WRAP HANDLE DCS9000FW $89.70
41 965-551-250 POT, DCS430 $6.14
42 965-403-430 RUBBER BUFFER, DCS520I $9.77
43 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
44 913-455-304 SCREW M5.5X30, DCS6000I21 $1.85
45 913-455-304 SCREW M5.5X30, DCS6000I21 $1.85
46 913-455-304 SCREW M5.5X30, DCS6000I21 $1.85
47 913-455-204 SCREW M5.5X20, DCS6800I $1.85
49 965-404-700 FUEL LINE, DCS9000 $6.69
50 963-601-240 FELT, DCS340 $4.93
52 963-232-045 PACKING RING 32X4.5, DCS431 $3.17
53 965-451-901 FUEL TANK PLUG AY, DCS540 REPLACES 965-450-301 $8.12
54 024-114-612 TANK ASS'Y, FUEL,DCS9010 $117.57
55 965-725-041 BOWDEN CABLE COMP. DCS9000 $11.97
56 957-114-010 VENT VALVE ASS'Y, DCS6000I21 $3.50
57 965-451-750 BUTTON, DCS6000I21 $1.85
58 965-551-160 PRESSURE SPRING, DCS6000I21 $1.96
59 024-117-020 CATCH LEVER, DCS9000 $4.60
60 965-551-150 STOP PIN, DCS6000I21 $4.60
61 024-117-031 SPRING, DCS9000 $4.60
62 024-117-010 THROTTLE LEVER, DCS9000 $5.59
63 935-930-280 CYLINDRICAL PIN, DCS9000 $1.85
64 935-930-450 CYLINDRICAL PIN, DCS9000 . $3.17
65 965-404-720 BUSH, DCS9000 $3.50
66 965-403-462 RUBBER BUFFER, DCS9000 $9.22
67 913-455-204 SCREW M5.5X20, DCS6800I $1.85
68 965-404-740 PLUG, DCS9000 $1.85
69 908-005-165 HEAD SCREW M5X16, DCS340 $1.85

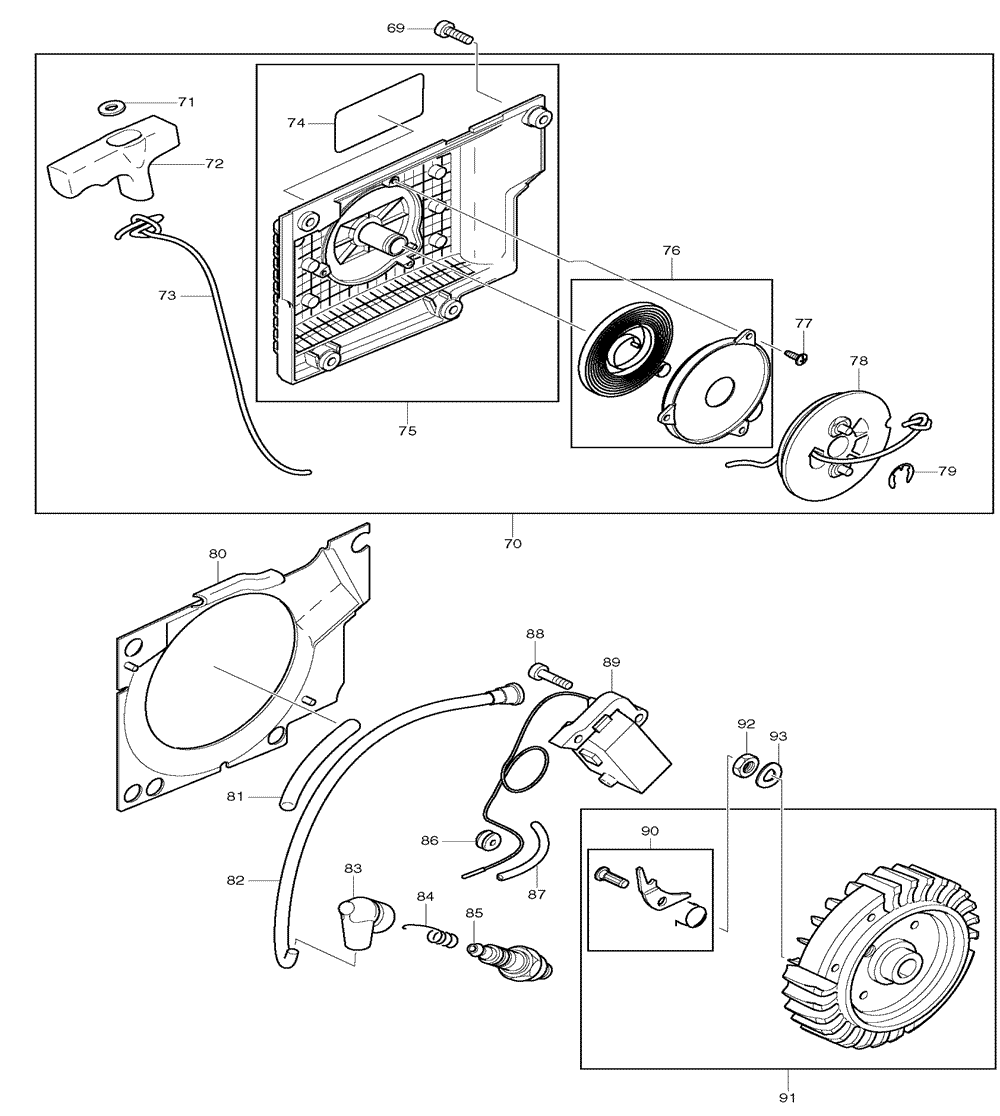

70 024-112-630 STARTER ASSEMBLY, DCS9000 $73.80
71 928-405-000 WASHER, DCS340 $1.85
72 965-402-262 STARTER GRIP, DCS6800I $6.69
73 122-164-010 START ROPE 1000MM, DCS6800I $4.93
74 980-114-217 LABEL, DPC6400 $3.10
75 024-112-680 FAN HOUSING, DCS9000 $56.50
76 020-163-031 REWIND SPRING CPL, DCS9000 $10.65
77 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
78 024-162-084 CABLE DRUM, DCS9000 $23.43
79 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
80 024-112-021 AIR DUCT, DCS9000 $6.14
81 970-502-110 INSULATING HOSE (43 MM), DCS340 $8.12
82 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
83 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
84 965-604-180 SPRING, DCS431 $3.61
85 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
86 965-401-011 RUBBER BUSH, DCS340 $3.50
87 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
88 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
89 957-143-010 IGNITION COIL W/FLYWHEEL, DCS9000 $180.91
90 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
91 024-141-200 FLYWHEEL ASSEMBLY, DCS9000 $135.90
92 920-308-024 HEX NUT M8X1, DCS34 $1.96
93 926-208-001 SPRING WASHER 8, DPC7000 $2.51

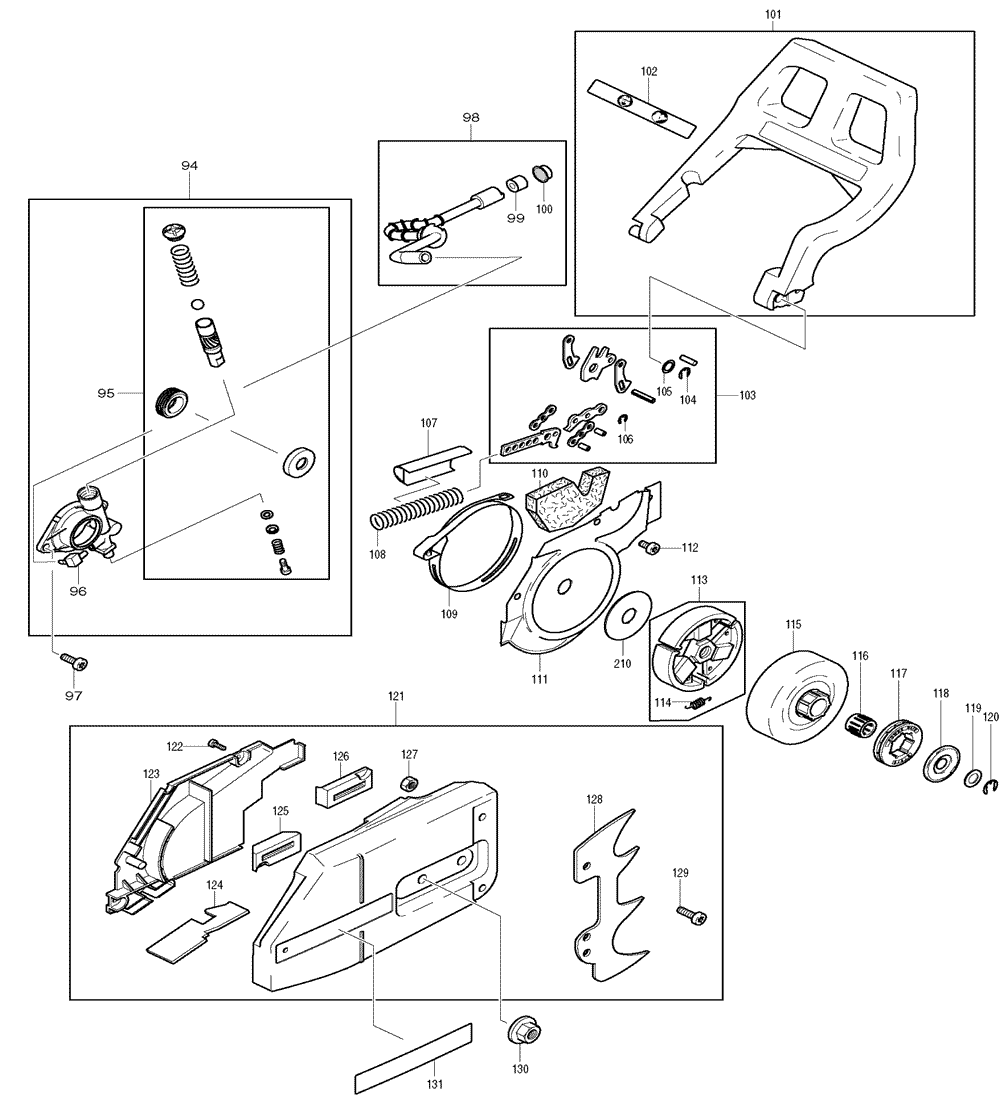

94 024-245-100 OIL PUMP ASS'Y, DCS9000 $57.80
95 957-245-360 REPAIR KIT, DCS9000 $28.25
96 963-608-100 ANGULAR NIPPLE, DCS9000 $3.50
97 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
98 024-245-200 OIL SUCTION LINE, DCS9000 $15.16
99 900-005-066 DISTANCE RING, DCS9000 $3.61
100 963-601-100 SCREEN, DCS9000 . $4.93
101 024-213-180 HAND PROTECTION, DCS9000 $34.06
102 980-114-237 LABEL (SAFETY), DCS430 $1.80
103 010-213-021 BRAKING MECHANISM, DCS6800I $45.79
104 927-306-000 SAFETY WASHER , DCS34 $1.63
105 900-004-364 SPACER, DCS9010 $1.59
106 927-304-000 SAFETY WASHER , DCS431 $1.63
107 024-111-061 SPRING GUIDING HEAD, DCS9000 $4.60
108 024-213-321 PRESSURE SPRING, DCS6800I $5.26
109 024-213-351 BRAKE SPRING, DCS9000 $19.23
110 965-404-800 COVER,FOAM PLATE, DCS6800I $3.50
111 024-213-101 PLATE, DCS9000 $12.96
112 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
113 010-180-110 CLUTCH ASSEMBLY, DCS9010 $50.60
114 024-184-021 TENSION SPRING, DC6401 $3.61
115 024-223-041 CLUTCH DRUM, DCS9000 $19.34
116 962-210-024 NEEDLE CAGE, DCS9000 $11.42
117 119-224-070 RIM SPROCKET 3/8, DCS6800I $9.77
119 021-224-011 DISC, DCS340 $2.73
120 927-308-000 SAFETY WASHER, DCS9000 . $1.63
121 024-213-690 SPROCKET GUARD CPL., DCS9010 $70.90
122 915-735-100 SCREW, DCS9010 $1.59
123 024-213-221 CHIP GUIDE, DCS9000 $6.14
124 965-404-761 RUBBER PLATE, DCS9010 $4.93
125 024-213-240 CHAIN GUIDE, DCS9000 $3.50
126 024-213-240 CHAIN GUIDE, DCS9000 $3.50
127 922-606-000 HEX NUT M6, DCS6000I21 $1.96
128 024-250-030 SPIKE BAR, DCS9000 $22.09
129 908-006-145 SCREW M6X14, DCS6800I $1.85
130 923-208-004 HEX NUT, DCS341 $4.16
131 980-114-183 LABEL, DCS9000 $2.40
132 024-173-200 NUT, DCS9000 $5.26

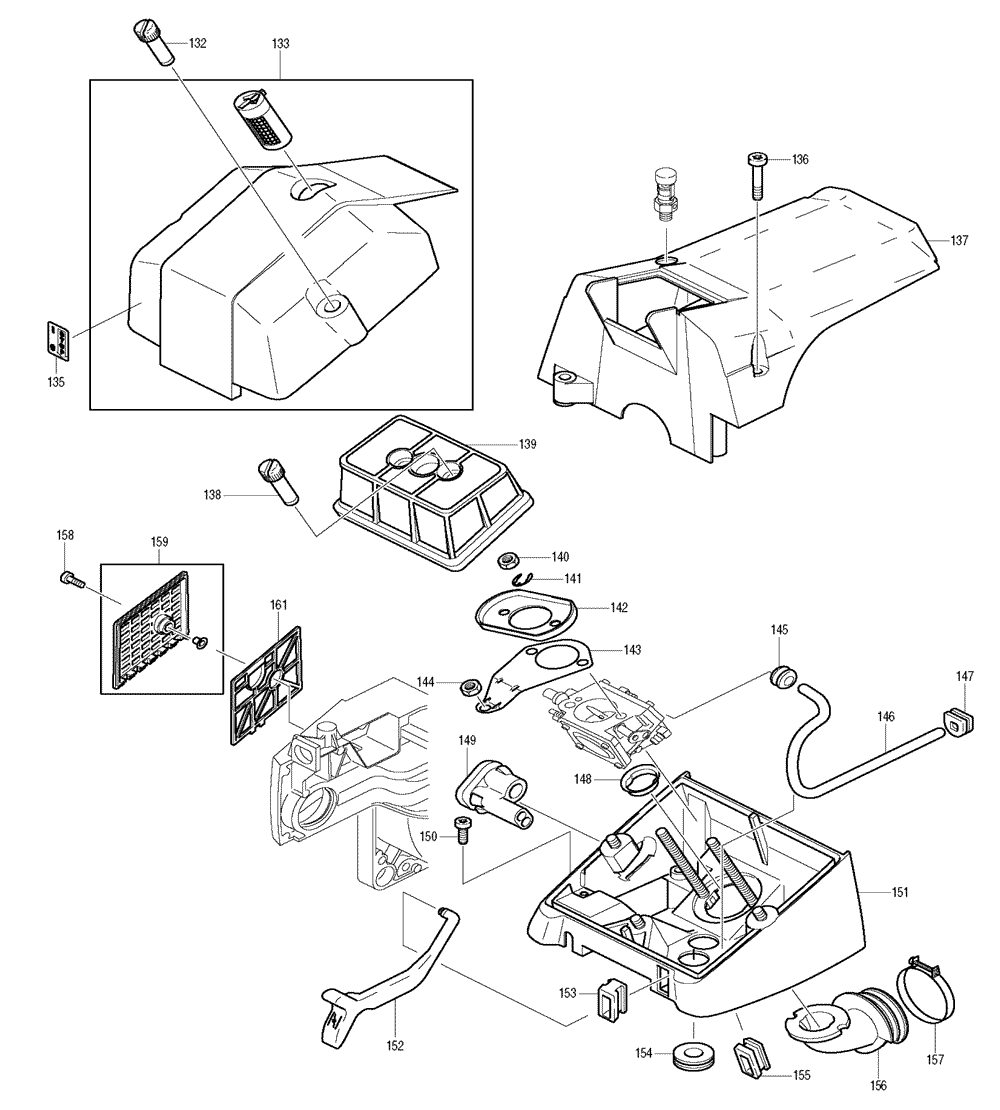

133 024-118-111 COVER ASSEMBLY, DCS9000 $19.67
135 980-113-841 LABEL, DCS430 $1.65
136 908-305-255 TORX SCREW T-27, DCS6000I21 $1.85
137 024-118-121 HOOD, DCS9000 $25.17
138 024-173-200 NUT, DCS9000 $5.26
139 024-173-230 AIR FILTER COMP., DCS90000 $27.26
140 920-205-000 HEX NUT M5, DCS340 $1.96
141 928-105-000 SAFETY WASHER 5, DPC7000 $1.59
142 024-173-161 AIR FILTER HOLDER, DCS9000 $4.93
143 024-150-170 SHEET METAL HOLDER, DCS9000 $4.93
144 920-205-000 HEX NUT M5, DCS340 $1.96
145 965-401-011 RUBBER BUSH, DCS340 $3.50
147 965-401-016 RUBBER BUSH, DCS6800I $3.50
148 024-131-032 INSERT(SUCTION HOSE),DCS9000 $9.22
149 024-118-160 ADJUSTING GUIDE, PS9010 $3.61
150 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
151 024-118-032 BOTTOM, DCS9010 $29.17
152 024-150-020 CHOKE SHAFT, DCS9000 $4.93
153 965-401-021 RUBBER BUSH, DCS9000 $3.17
154 965-401-024 RUBBER BUSH, DCS5200I $3.50
155 965-401-021 RUBBER BUSH, DCS9000 $3.17
156 024-131-022 HOSE, DCS9000 $19.01
157 965-603-050 HOSE CLIP, DPC6410 $7.02
158 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
159 024-173-610 COVER FOR PRE-FILTER, DCS9000 $17.69
161 024-173-081 PRE-FILTER, DCS9000 $4.93
162 024-174-040 DEFLECTOR PLATE, DCS9000 $7.68

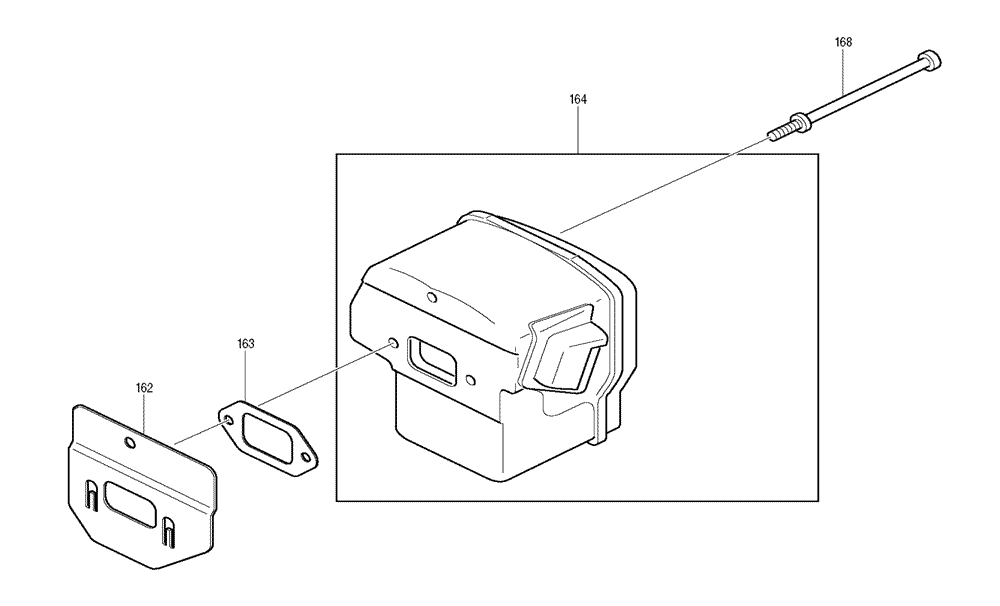

163 965-525-101 GASKET, DCS9000 $3.50
164 024-174-011 EURO MUFFLER $71.20
165 024-174-160 SCREEN, DCS9000 . $6.69
166 024-174-170 DEFLECTOR PLATE, DCS9000 $6.14
167 650-008-668 SCREW 4.2 X 9.5 , DCS9010 $1.74
168 024-174-020 SPECIAL SCREW, DCS9000 $4.93

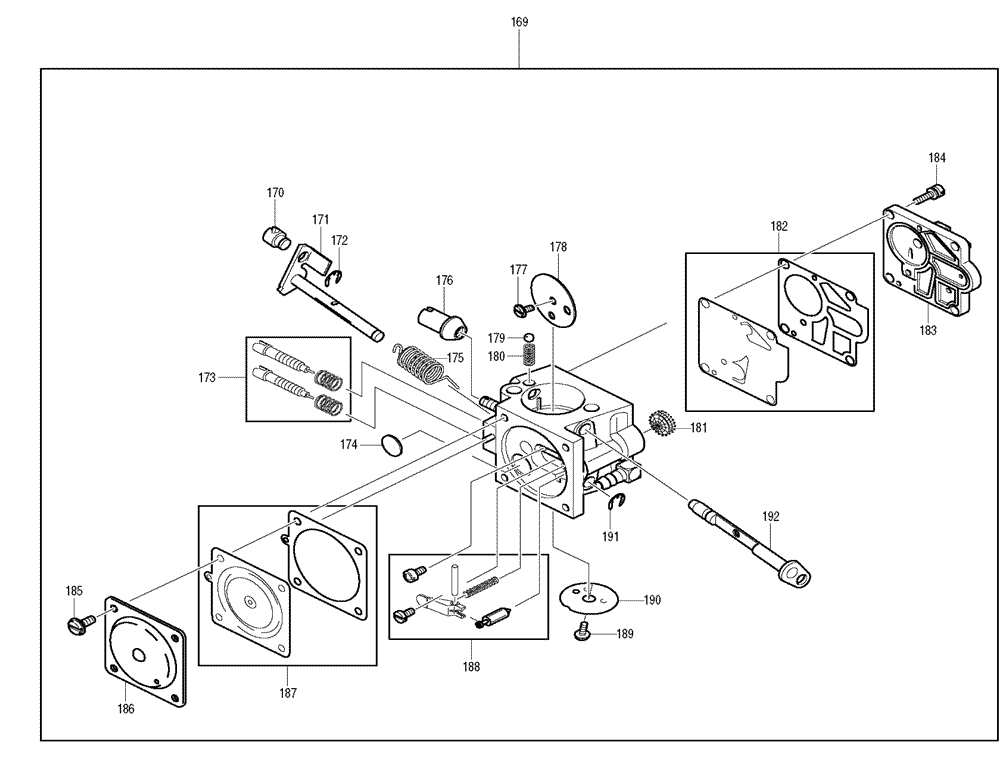

170 024-152-500 BOWDEN CABLE HOLDER, DCS9000 $14.61
171 024-152-300 THROTTLE SHAFT, DCS9000 $28.25
172 114-152-350 SAFETY WASHER, DCS9000 $3.72
173 024-152-920 ADJUST. SCREW W/SPRING, DCS9000 $23.96
174 024-152-040 COVER DISC, DCS9000 $3.50
175 024-152-310 SPRING, DCS9000 . $5.26
176 024-152-240 ADJUST. NUT, DCS9000 $12.96
177 114-152-370 SCREW, DCS9000 $3.50
178 024-152-320 THROTTLE SHUTTER, DCS9000 $4.93
179 114-152-380 BALL, DCS9000 $3.50
180 114-152-080 SPRING, DCS9000 . $4.71
181 024-152-180 SCREEN, DCS9000 $4.93
182 024-152-910 PUMP DIAPHRAGM W/GASKET, DCS9000 $13.62
183 024-152-160 PUMP COVER, DCS9000 $26.72
184 114-152-170 SCREW, DCS9000 . $3.50
185 024-152-140 SCREW, DCS9000 . $3.50
186 024-152-120 DIAPHRAGM COVER,DCS9000 $6.69
187 024-152-930 CONTROL DIAPH., DCS9000 (W/GASKET) $25.61
188 024-152-900 CONTROL PARTS SET, DCS9000 $23.96
189 114-152-370 SCREW, DCS9000 $3.50
190 024-152-320 THROTTLE SHUTTER, DCS9000 $4.93
191 114-152-350 SAFETY WASHER, DCS9000 $3.72
192 024-152-250 CHOKE SHAFT, DCS9000 . $36.92
211 024-130-300 CYLINDER & PISTON ASS'Y.,DCS9000 $243.48
