Makita DCS7301 Electric Saw Parts

Makita DCS7301 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

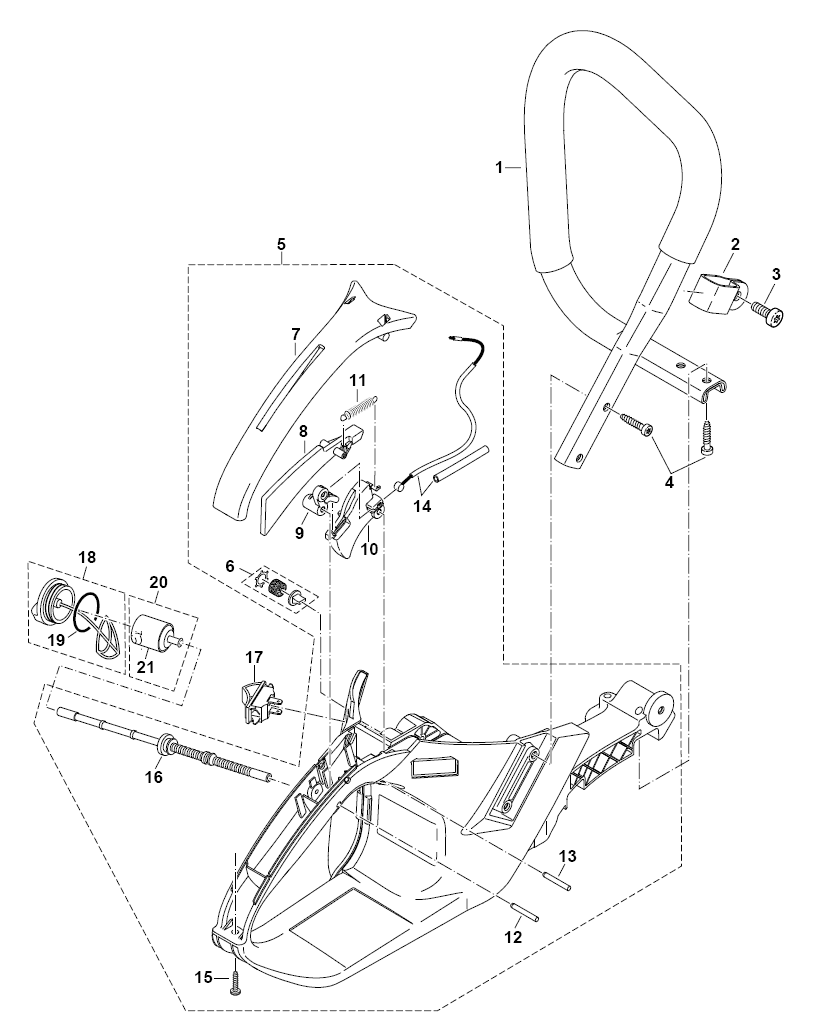

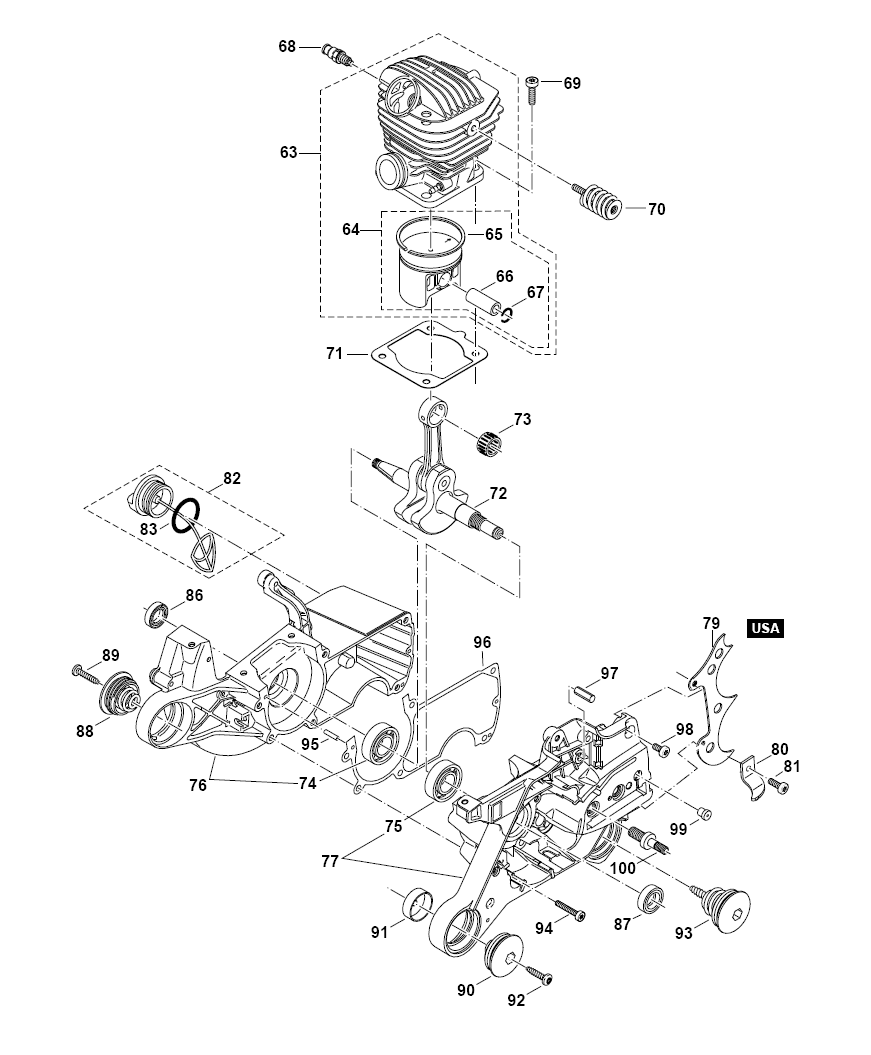

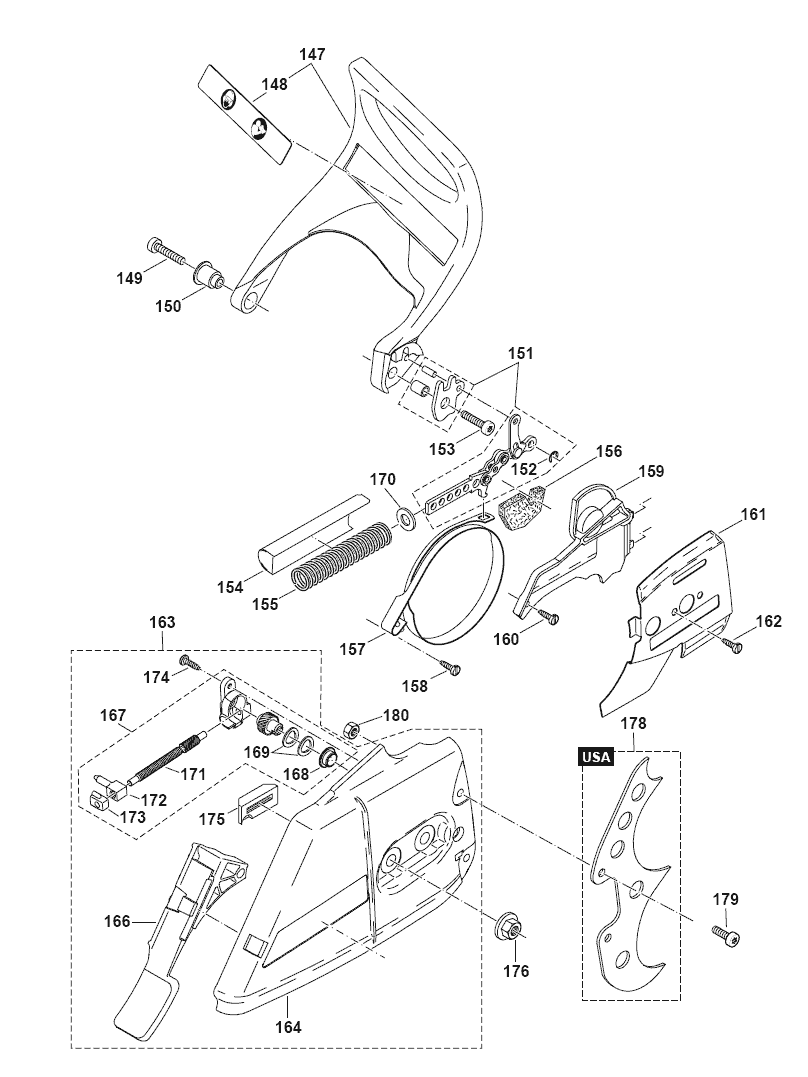

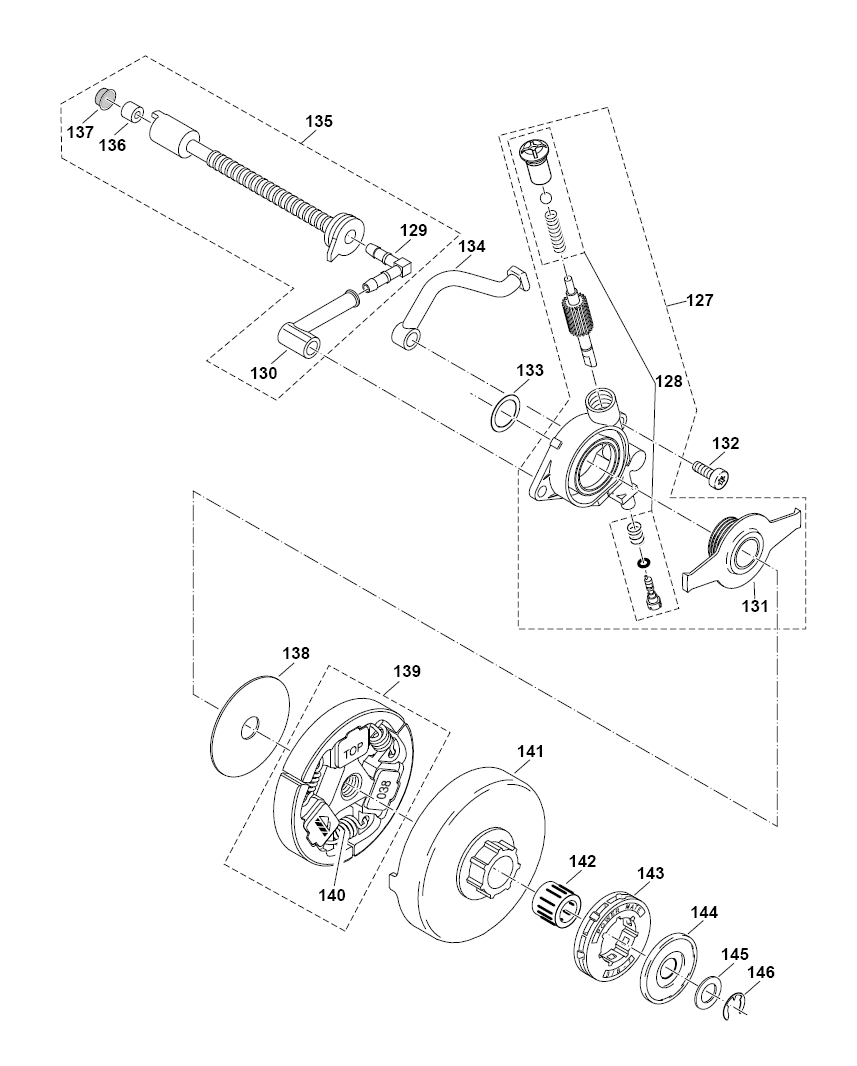

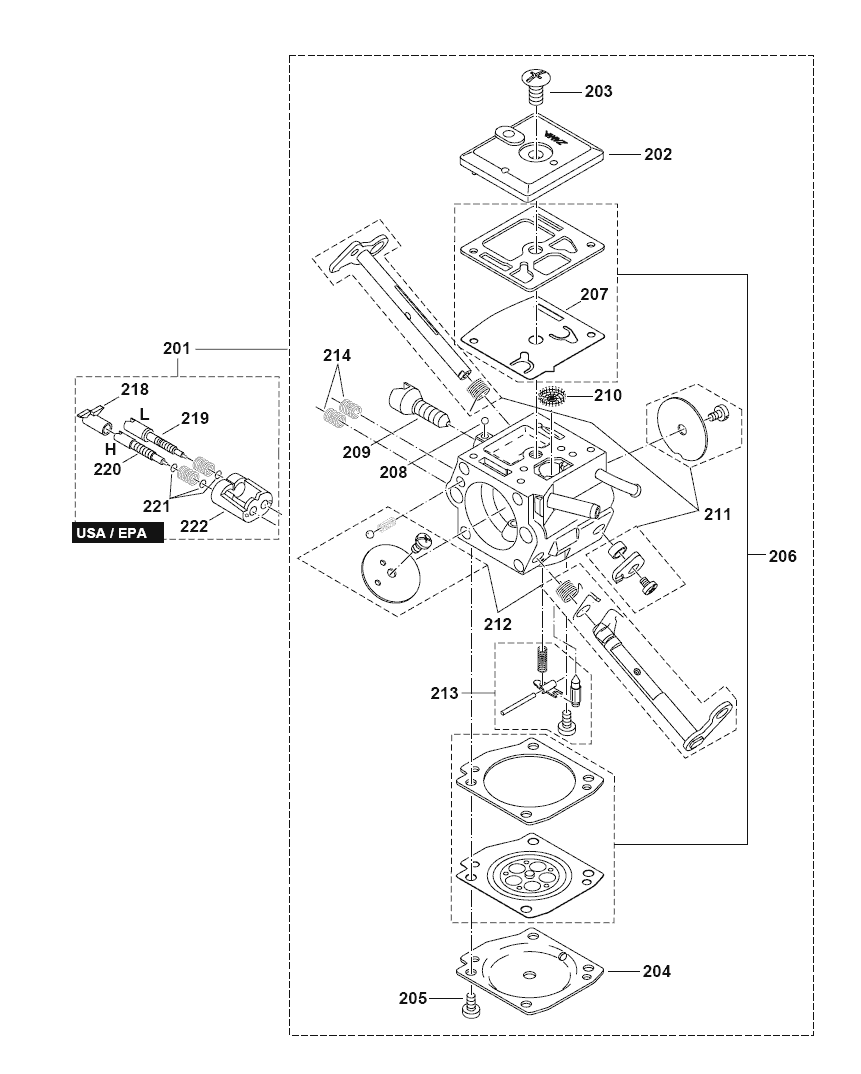

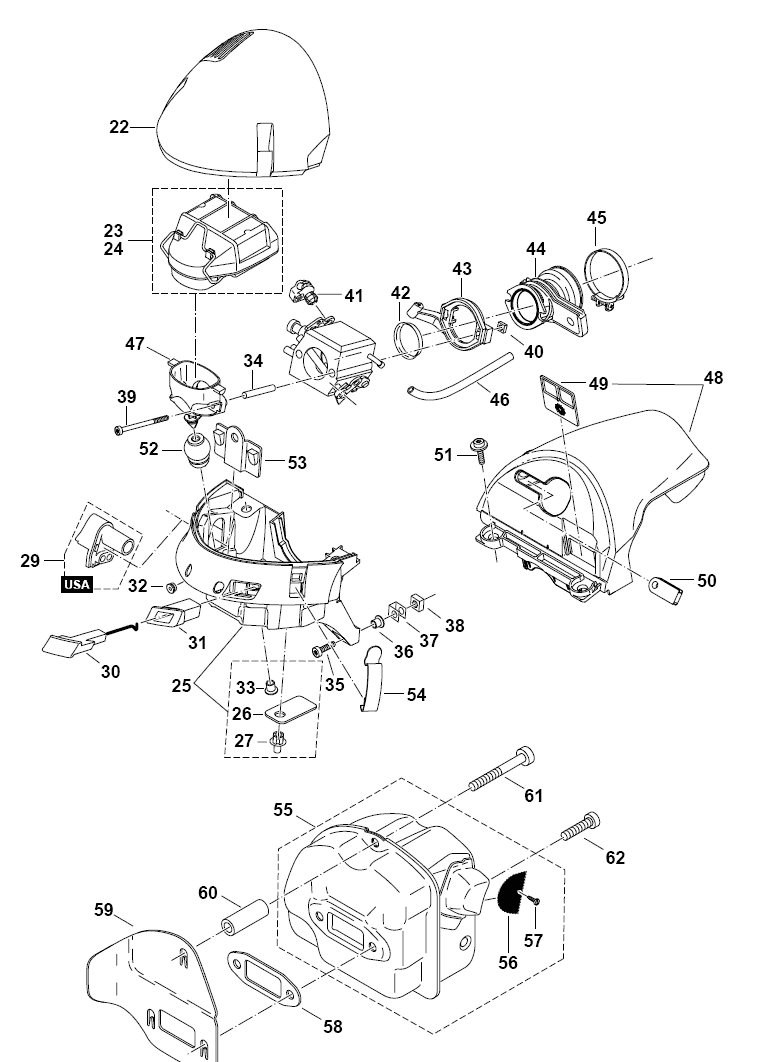

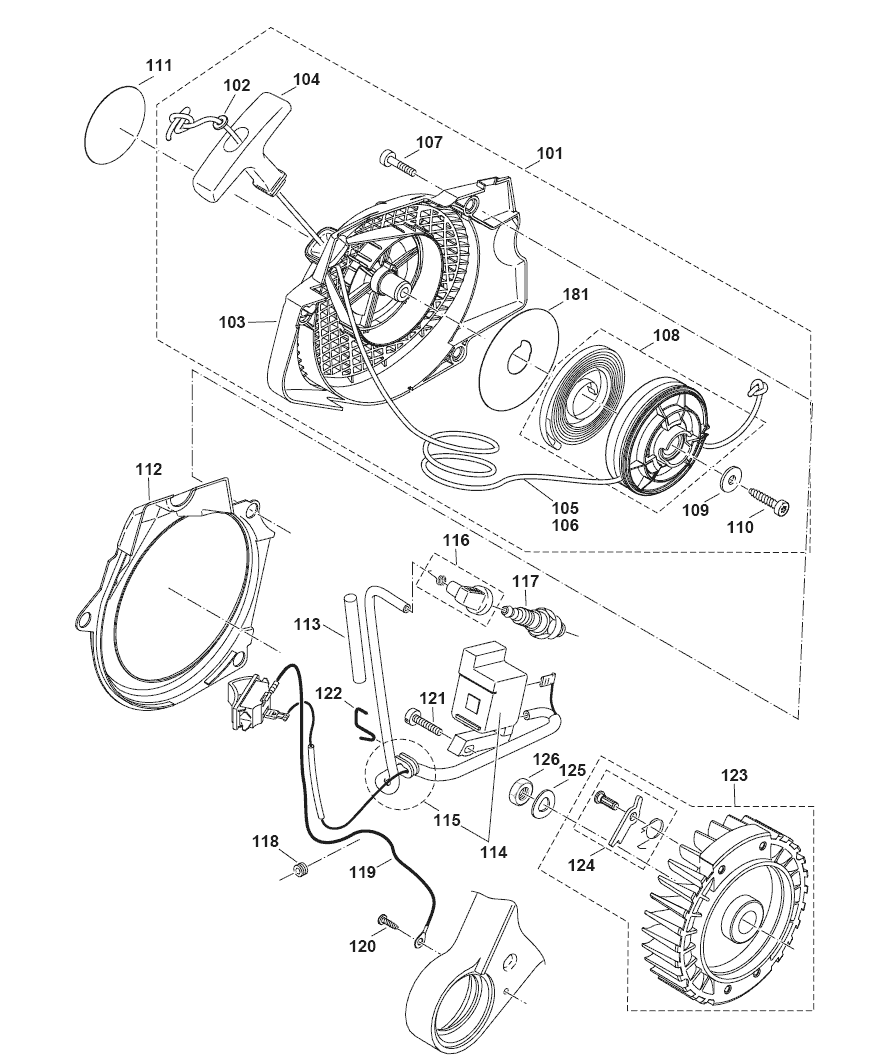

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	038-310-020	TUBULAR HANDLE ASSY., DCS6401	$64.10
3	908-006-145	SCREW M6X14, DCS6800I	$1.85
4	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
8	038-117-020	CATCH LEVER, DCS6401	$4.71
9	038-117-030	ROCKER, DCS6401	$3.17
10	038-117-010	THROTTLE LEVER, DCS6401	$4.71
11	038-117-050	SPRING, DCS6401	$3.61
12	935-930-240	CYLINDRAL PIN 3X24, DCS460	$3.17
13	935-930-280	CYLINDRICAL PIN, DCS9000	$1.85
15	913-340-204	SCREW 4X20, DCS6401	$1.30
18	010-114-050	OIL TANK PLUG, COMP., DCS9000	$6.69
19	963-228-030	GASKET, DCS9000	$3.50
21	963-601-240	FELT, DCS340	$4.93
26	038-118-110	RUBBER FLAP, DCS460	$2.95
27	938-650-062	RIVET, DCS460	$1.59
31	038-155-020	CHOKE GUIDE, DCS6401	$3.17
32	965-401-020	RUBBER BUSH, DCS6401	$3.17
33	001-118-100	BUSHING, DCS6401	$3.17
34	038-155-060	SPACER L=30MM, DCS6401	$4.71
35	908-005-205	SCREW M5X20, DCS460	$1.85
36	001-118-100	BUSHING, DCS6401	$3.17
37	038-111-050	CLIP, DCS6401	$3.61
38	038-111-060	SQUARE NUT M5, DCS6401	$1.96
39	908-204-555	SCREW M4X55, DCS6421	$1.85
40	921-804-004	SQUARE NUT M4, DCS6401	$1.96
43	038-171-041	FLANGE, DCS6401	$3.17
45	965-603-050	HOSE CLIP, DPC6410	$7.02
48	038-118-690	HOOD CPL.,GREY, DCS6401	$26.52
49	038-118-140	INSERT, DCS6401	$4.71
50	038-118-130	CABLE GUIDE, DCS6401	$3.17
51	917-105-205	SCREW M5X20, DCS6401	$3.17
52	038-171-030	HOLDER, DCS6401	$4.27
53	038-118-100	PLUG, DCS6401	$3.17
54	038-118-071	STEEL CLIP, DCS6401	$4.71
55	038-174-200	MUFFLER, DCS6401	$83.10
56	038-174-040	SPARK ARRESTER SCREEN, DCS6401	$10.65
60	038-174-030	CONNECTING LINK, DCS6401	$4.71
61	908-305-405	FILLISTER H. SCREW, DPC9500	$3.17
62	908-405-205	SCREW M5X20, DPC6400	$1.85
65	394-132-020	PISTON RING 50, DPC7331	$19.67
66	119-132-030	PISTON PIN, DCS6421	$19.67
67	119-132-060	SPRING RING, DCS6000I21	$1.96
68	001-131-150	DECOMPRESSION VALVE, DCS431	$23.96
69	908-005-205	SCREW M5X20, DCS460	$1.85
71	965-531-121	GASKET, DCS6401	$3.17
74	960-102-159	BALL BEARING, DCS6800I	$19.34
75	960-102-179	BALL BEARING 6203C4, DCS9000	$19.34
81	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
82	010-114-050	OIL TANK PLUG, COMP., DCS9000	$6.69
83	963-228-030	GASKET, DCS9000	$3.50
86	962-900-052	RADIAL RING, DCS431	$8.12
87	962-900-061	RADIAL RING 17X28X5/4, DCS6401	$9.22
88	038-114-130	BUFFER, DCS6401	$13.62
89	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
90	038-114-130	BUFFER, DCS6401	$13.62
92	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
94	908-005-305	TORX SCREW 5X30, DCS340	$1.85
95	936-430-160	SPIRAL PIN 3X16, DCS460	$1.85
96	038-111-042	GASKET, DCS6401	$4.71
97	934-660-250	SLOTTED PIN, DCS9000	$1.85
98	908-005-125	F.H. SCREW M5X12, DCS431	$1.85
99	010-245-030	VENT VALVE, DCS6401	$6.14
102	928-405-000	WASHER, DCS340	$1.85
103	038-112-630	FAN HOUSING,BLUE, DCS6401	$37.63
105	108-164-020	STARTER ROPE 980MM,DCS431	$6.14
106	985-000-155	STARTER ROPE 100 METER,DCS34	$81.00
107	908-605-205	F.H. SCREW M5X20, DCS9000	$1.85
109	924-605-510	WASHER 5.5X18X1.6, DCS6401	$0.90
110	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
111	980-114-836	LABEL, DCS7301	$4.56
112	038-112-020	AIR DUCT, DCS6401	$6.14
113	970-502-110	INSULATING HOSE (43 MM), DCS340	$8.12
115	038-143-030	CABLE HARNESS, DCS6401	$13.62
116	957-604-240	SPARK PLUG CAP, DPC7000	$9.77
117	965-603-021	SPARK PLUG,WSR5F DPC6200	$6.14
118	965-401-011	RUBBER BUSH, DCS340	$3.50
119	970-311-540	EARTH CABLE, DCS6421	$4.71
120	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
121	908-304-205	F.H.SCREW DCS6800I	$1.85
122	038-111-110	CLIP, DCS6401	$1.96
124	108-166-051	S.RATCHET ASSY., DCS6401	$20.88
125	926-208-001	SPRING WASHER 8, DPC7000	$2.51
126	920-208-024	HEXAGONAL NUT M8X1, DCS6401	$1.96
128	030-245-070	REPAIR KIT, DCS6000I21	$13.62
129	001-245-140	ANGULAR NIPPLE, DCS6401	$4.93
130	038-245-110	OIL LINE, DCS6401	$4.71
132	908-005-125	F.H. SCREW M5X12, DCS431	$1.85
135	038-245-020	SUCTION LINE, OIL CPL., DCS6401	$21.10
136	900-005-066	DISTANCE RING, DCS9000	$3.61
137	963-601-100	SCREEN, DCS9000 .	$4.93
140	024-184-021	TENSION SPRING, DC6401	$3.61
142	962-210-024	NEEDLE CAGE, DCS9000	$11.42
143	119-224-070	RIM SPROCKET 3/8, DCS6800I	$9.77
146	927-408-000	RETAINING CLIP, DCS6401	$1.96
148	980-114-237	LABEL (SAFETY), DCS430	$1.80
149	908-405-205	SCREW M5X20, DPC6400	$1.85
150	038-213-160	BUSHING, DCS6401	$6.14
151	957-213-030	BRAKING MECHANISM, DCS6401	$44.57
152	927-304-000	SAFETY WASHER , DCS431	$1.63
153	908-005-206	SCREW 5X20, DCS6401	$3.17
155	038-213-130	SPRING, DCS6401	$4.71
156	038-213-200	FOAM SPONGE, DCS6401	$3.17
157	038-213-010	BRAKE BAND, DCS6401	$15.16
158	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
159	038-213-040	PLATE, DCS6401	$6.14
160	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
161	038-111-030	GUIDE PLATE, DCS6401	$4.71
162	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
164	038-213-635	SPROCKET GUARD, DCS6401	$64.10
166	038-213-190	CHIP GUIDE, DCS6401	$7.68
168	038-213-080	BUSHING, DCS6401	$1.74
169	038-213-210	SPRING WASHER, DCS6401	$2.51
173	038-213-070	TENSIONING SCREW BEARING, DCS6401	$3.17
174	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
175	024-213-240	CHAIN GUIDE, DCS9000	$3.50
176	923-208-004	HEX NUT, DCS341	$4.16
179	908-005-125	F.H. SCREW M5X12, DCS431	$1.85
180	920-405-000	HEXAGONAL NUT M5 (MP 50), DCS6401	$1.96
181	038-162-050	SPACER, DCS6401	$3.28
202	038-153-030	PUMP COVER, DCS6401	$17.91
203	038-153-360	SCREW, DCS6401	$2.95
204	038-153-040	DIAPHRAGM COVER, DCS6401	$9.22
205	001-153-020	SCREW, DCS460	$3.17
207	038-153-070	PUMP DIAPHRAGM, DCS6401	$7.68
208	038-153-210	FRICTION BALL, DCS460	$4.27
209	038-153-220	IDLE STOP SCREW, DCS6401	$9.22
213	957-153-070	CONTROL PARTS, DCS6401	$29.37
214	038-153-260	SPRING, DCS6401	$4.27
218	038-153-310	LIMITER CAP-RED, DCS460	$9.77
219	038-153-290	IDLE ADJUSTMENT SCREW-L, DCS6401	$21.10
220	038-153-300	MAIN ADJUSTMENT SCREW-H, DCS6401	$20.55
221	038-153-250	WASHER, DCS6401	$4.27
222	038-153-320	ADJUSTING GUIDE, DCS460	$11.09
