Makita DCS431 Electric Saw Parts

Makita DCS431 Electric Saw Parts Image

Makita DCS431 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Tool Diagram    (Click image to Zoom in) View larger Image

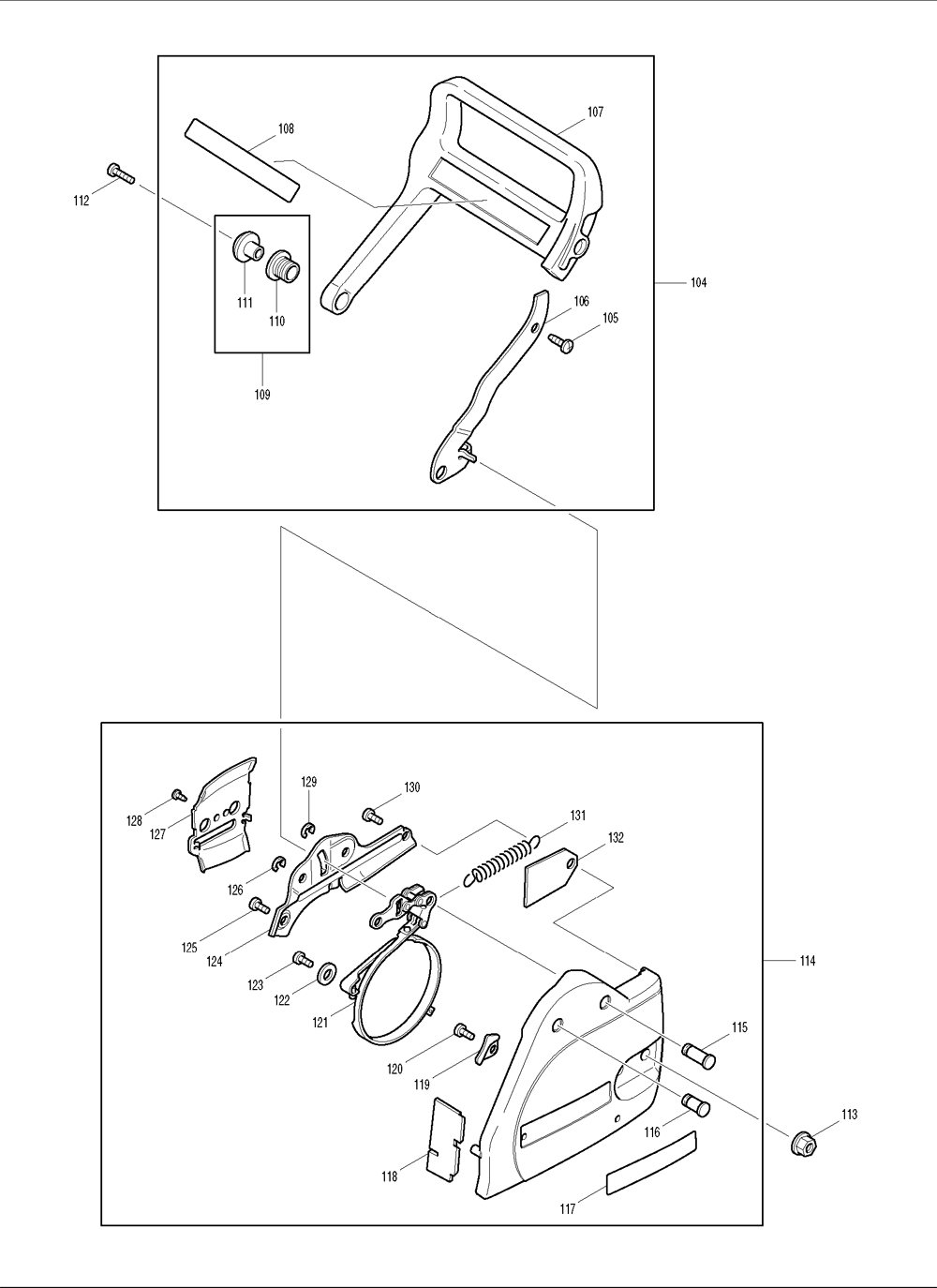

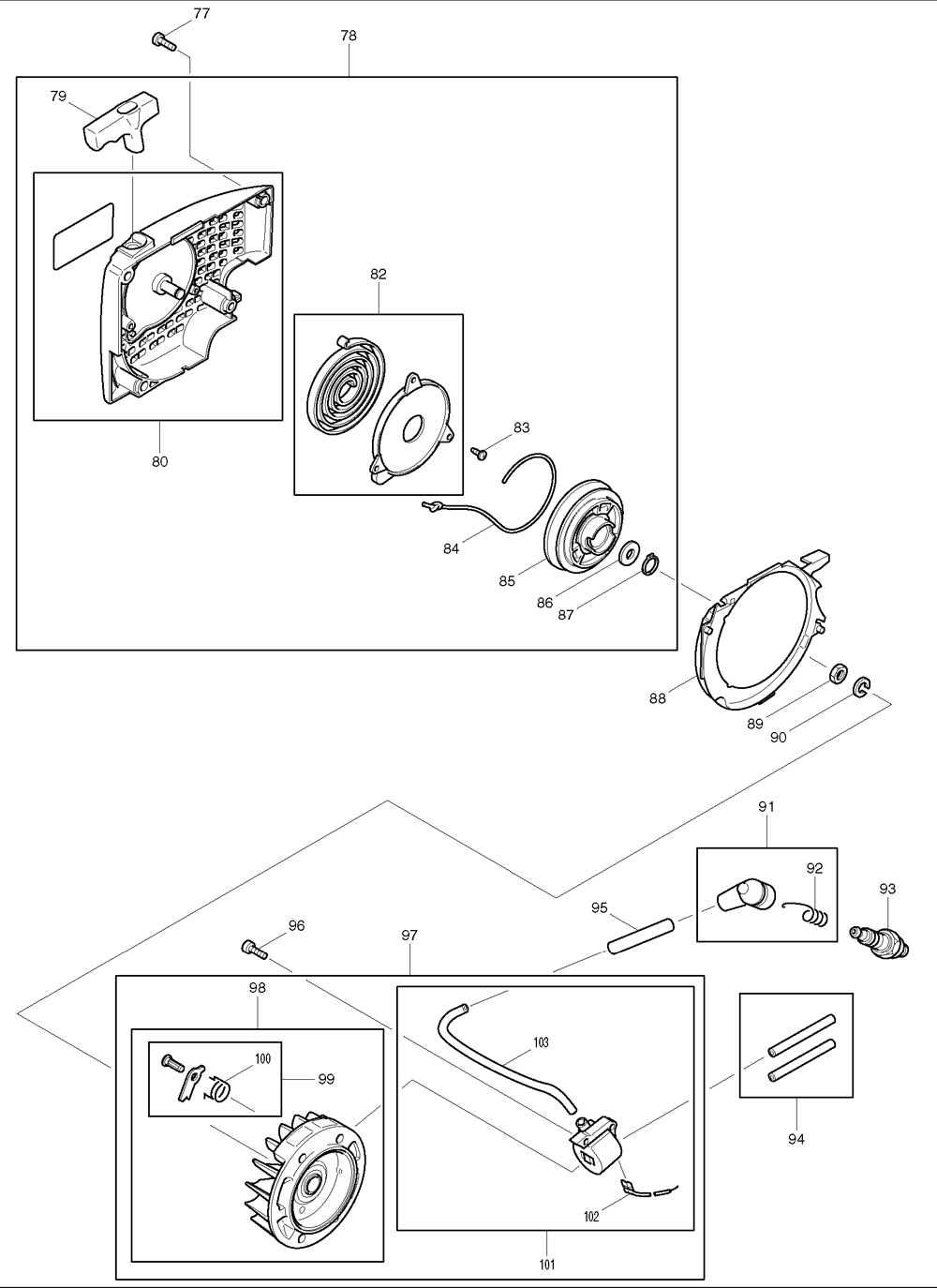

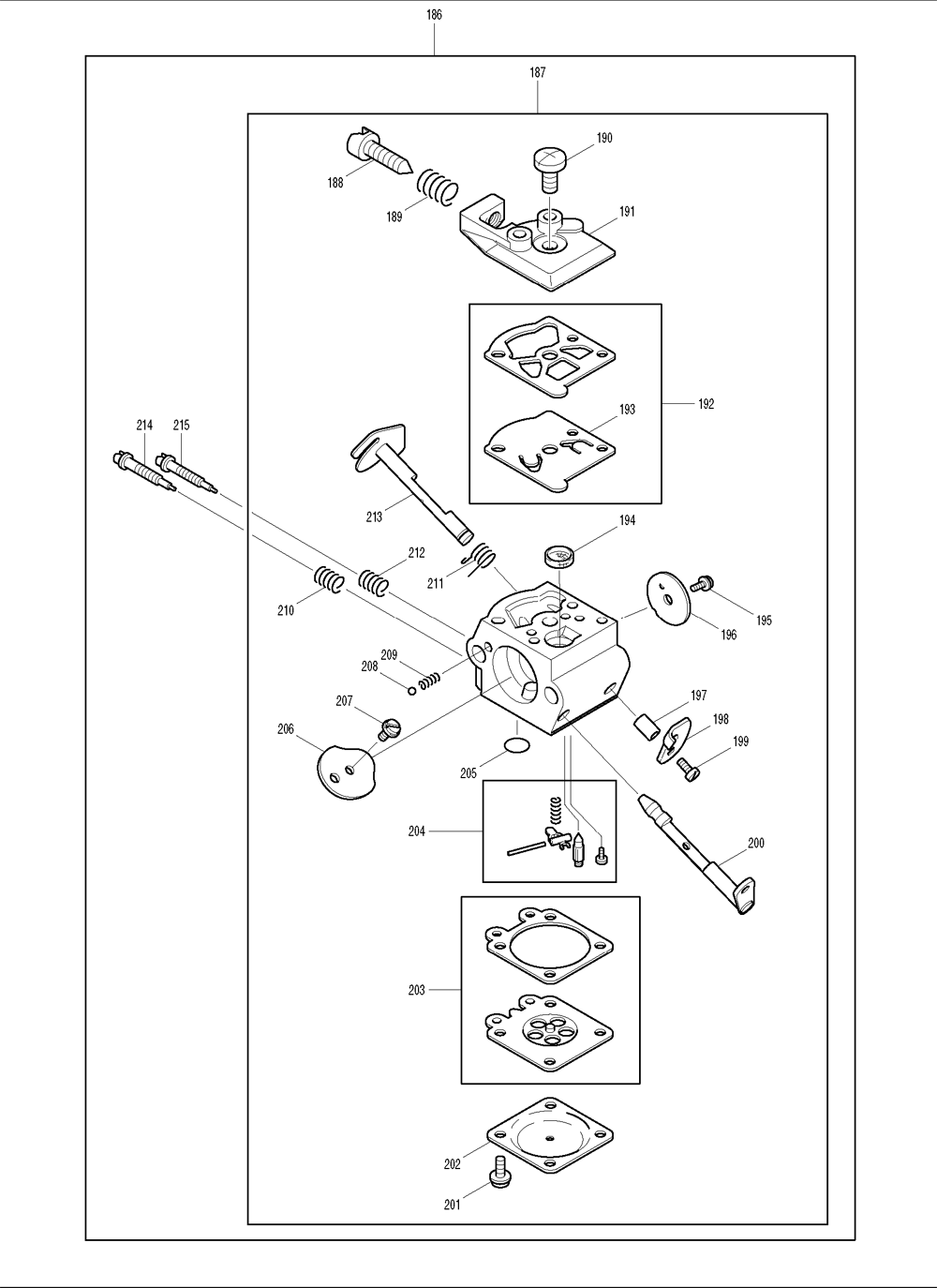

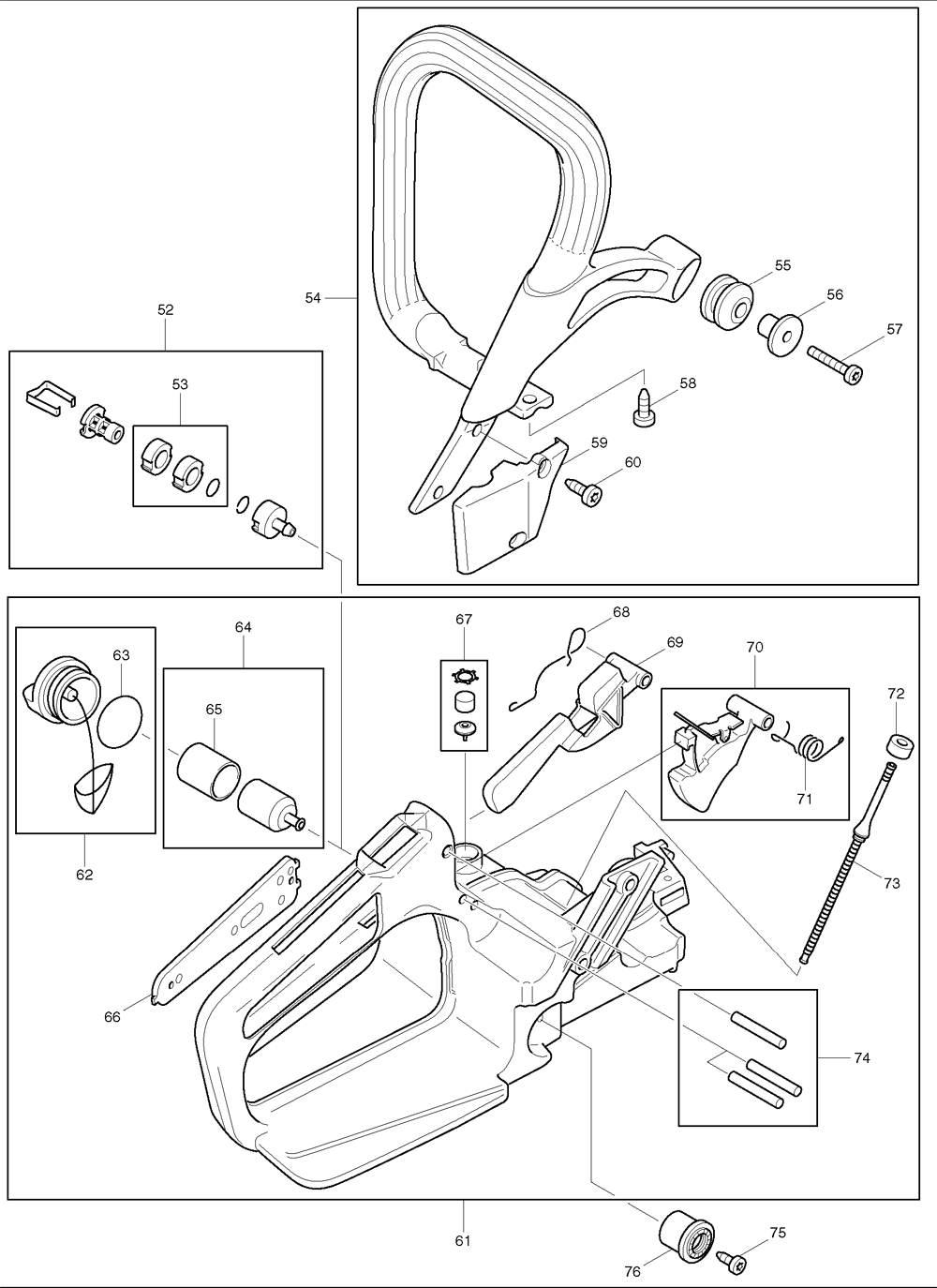

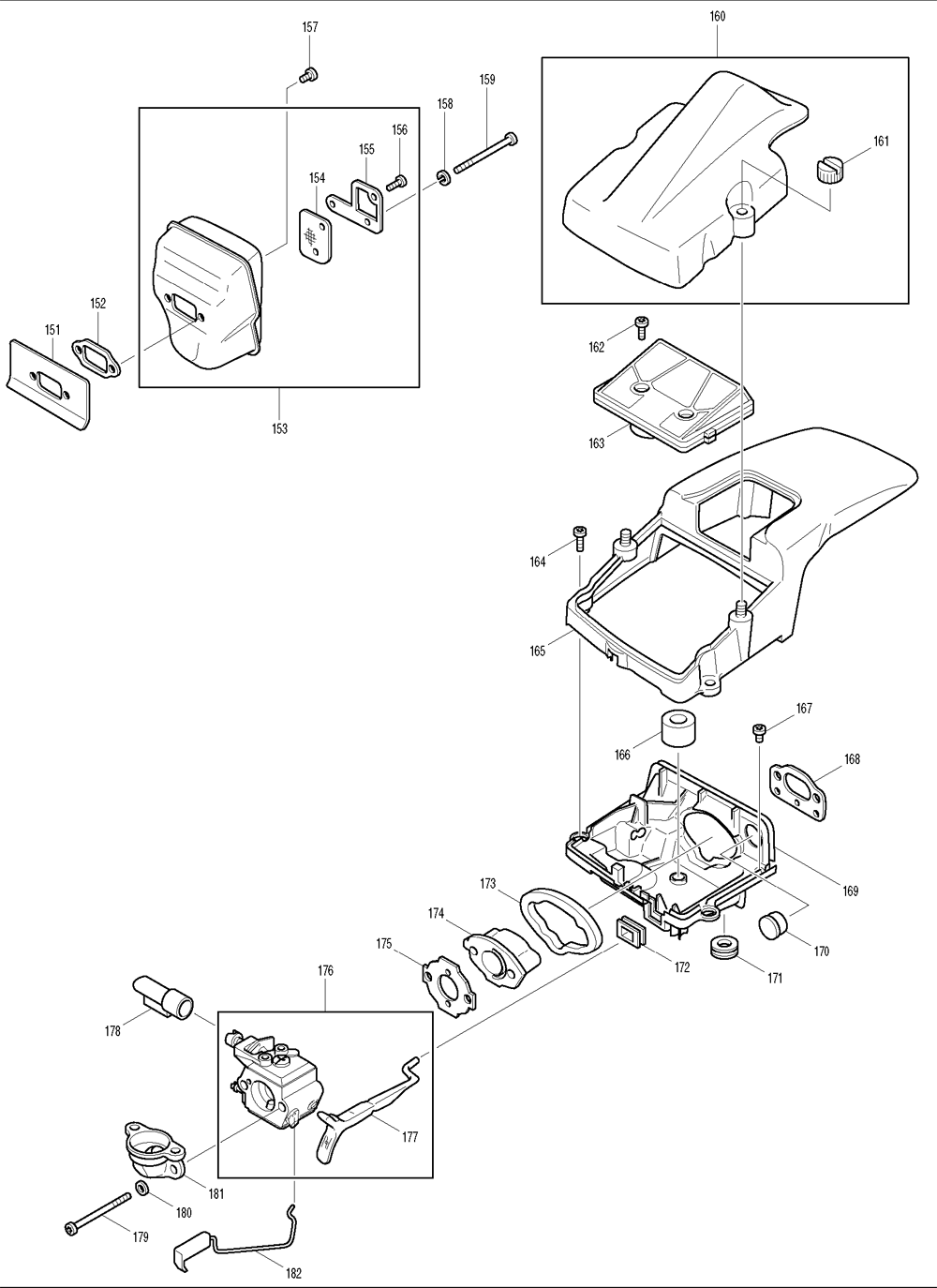

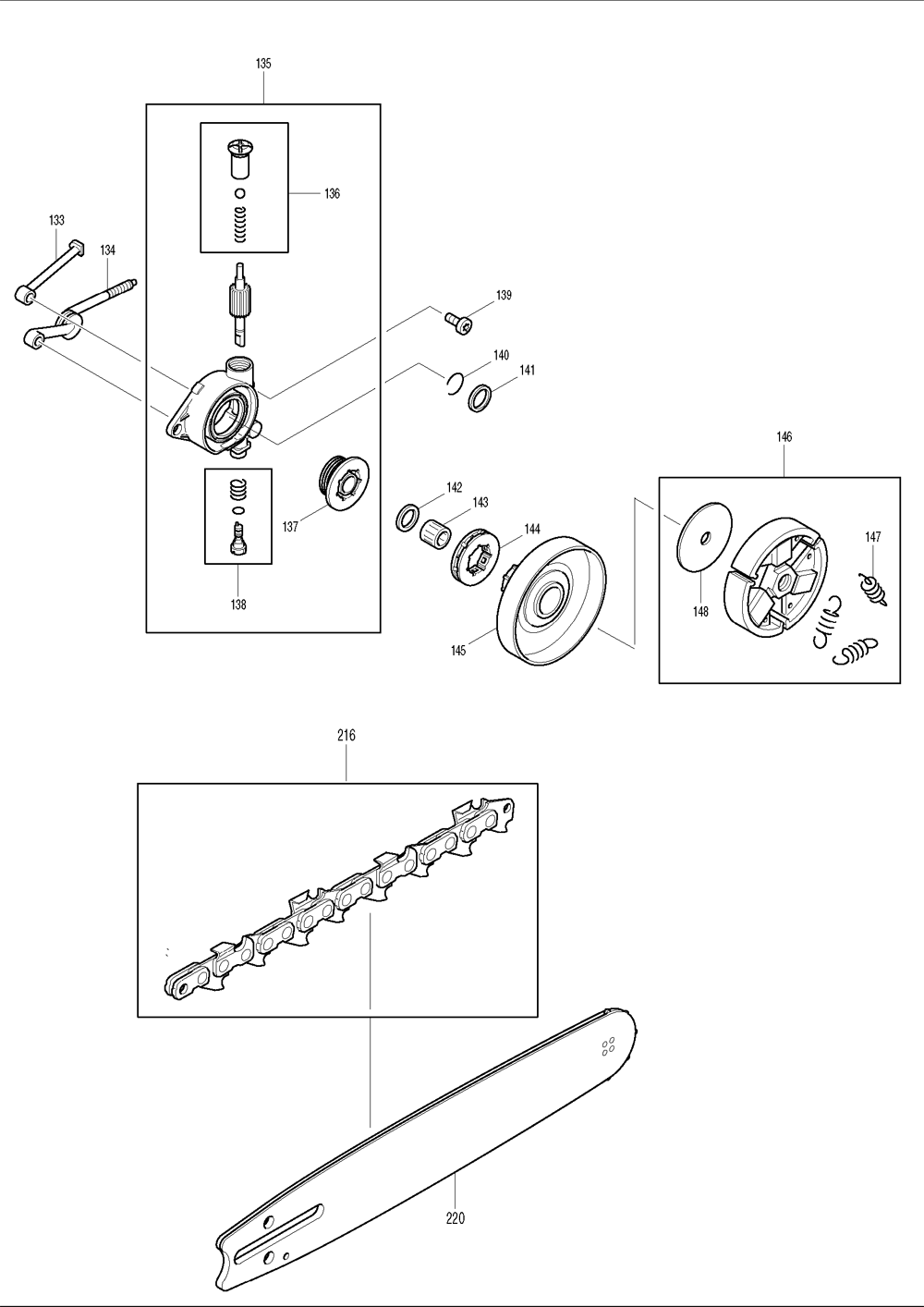

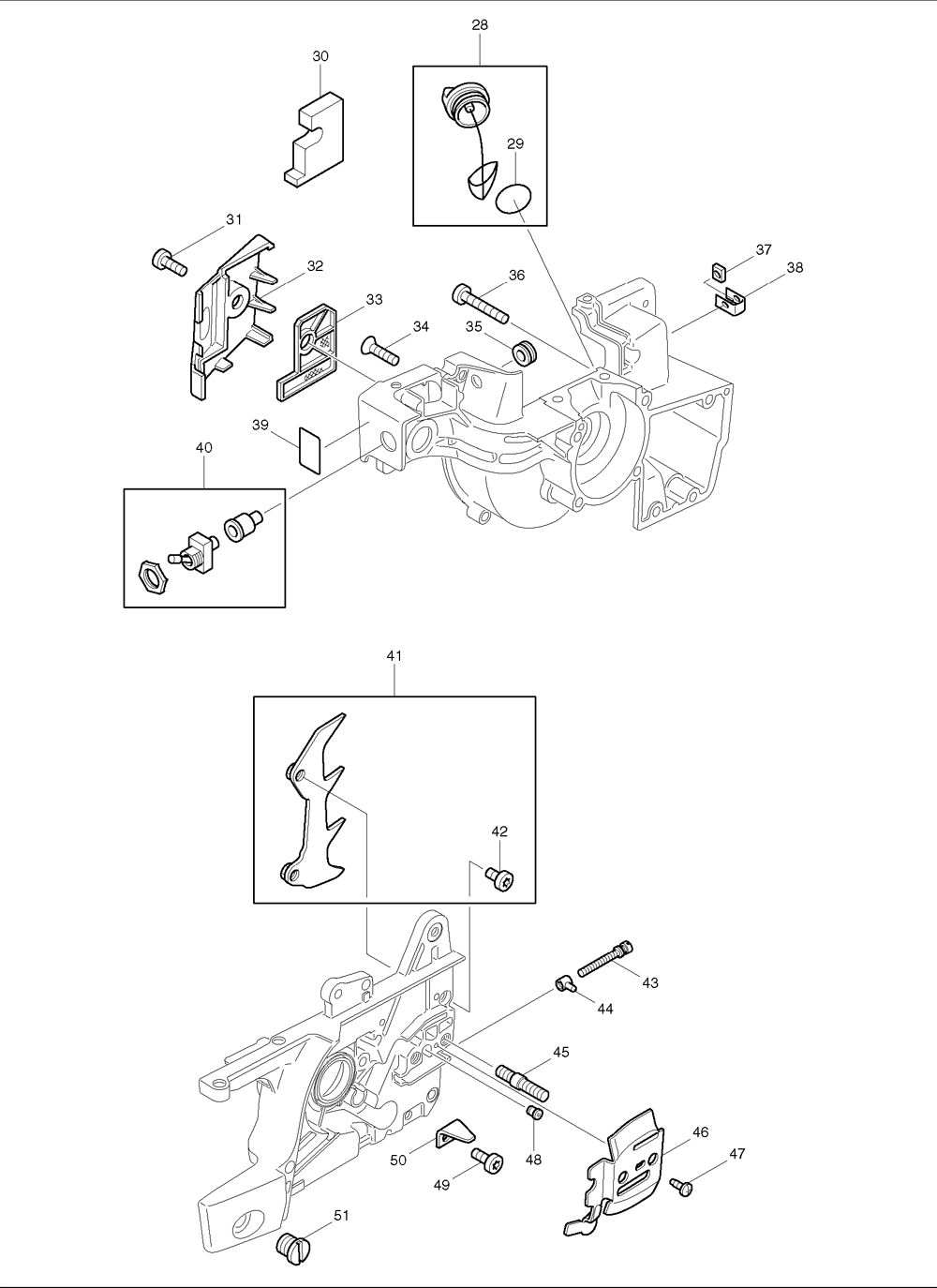

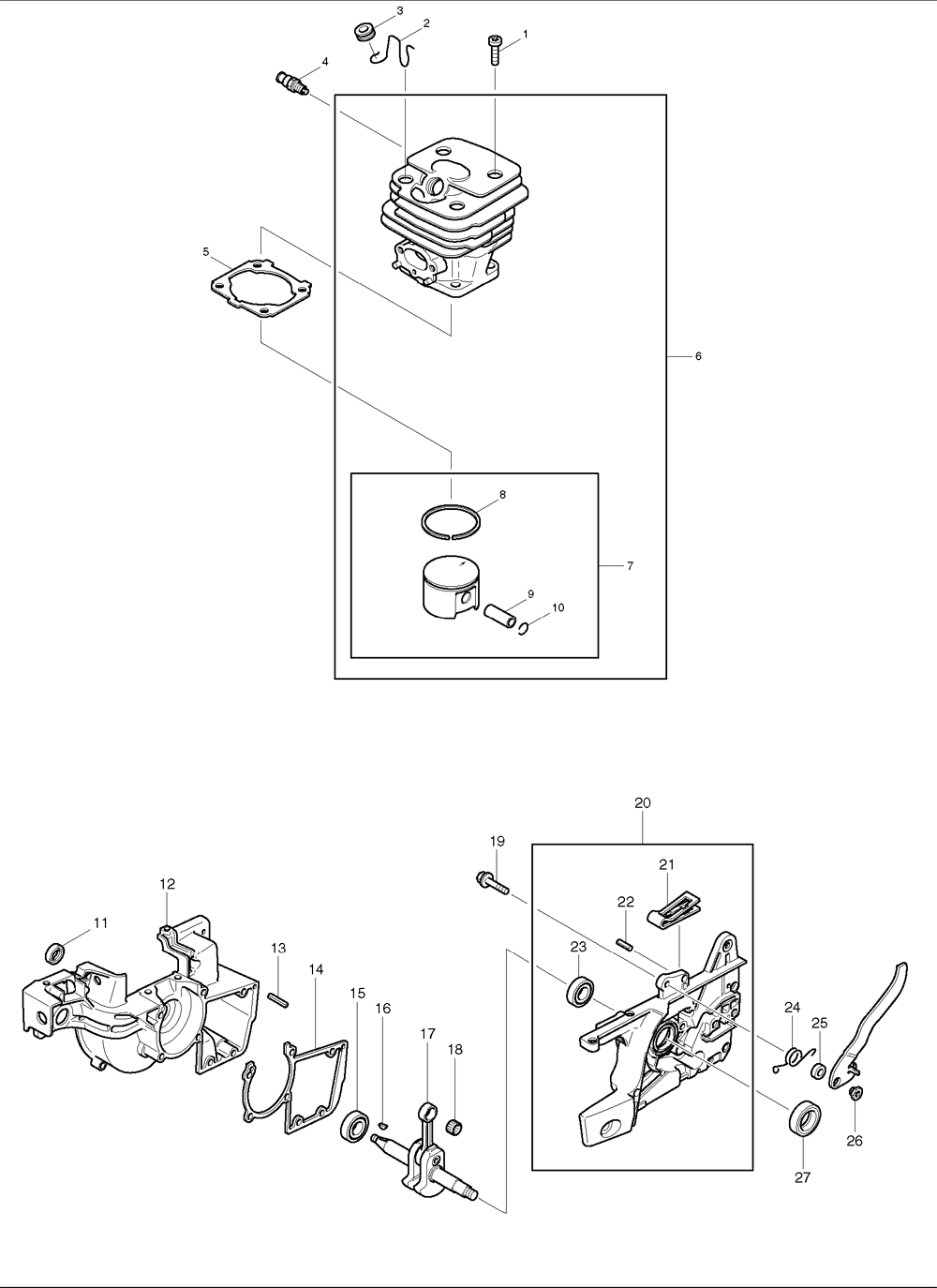

Makita DCS431 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
93,87 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
1 908-005-205 SCREW M5X20, DCS460 $1.85
2 001-142-012 CRAMP, DCS431 $3.50
14 965-525-002 GASKET, DCS540 $4.71
3 965-401-011 RUBBER BUSH, DCS340 $3.50
5 965-525-042 GASKET, DCS540 $3.50
4 001-131-150 DECOMPRESSION VALVE, DCS431 $23.96
127 027-111-041 GUIDE PLATE, DCS540 $4.71
5 965-525-042 GASKET, DCS540 $3.50
00 020-173-300 AIR FILTER CPL.,DCS431 $21.10
146 957-180-030 CLUTCH ASS'Y, DCS520 $31.11
6 032-130-250 CYL.& PISTIN ASSY, DCS431 $191.87
7 032-132-011 PISTON ASSY, DCS431 $93.90
8 021-132-230 PISTON RING, DCS430 $8.12
9 001-132-010 PISTON PIN, DCS520 $16.70
10 020-132-050 SPRING RING, DCS431 $1.96

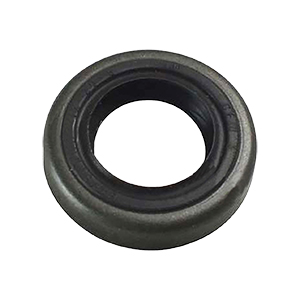

11 962-900-050 RADIAL RING, DCS431 $6.69
12 027-111-642 CRANKCASE MAG. SIDE BLUE, DCS540 $89.90
13 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
14 965-525-002 GASKET, DCS540 $4.71
15 960-102-129 BALL BEARING, DCS431 $17.69
16 939-620-371 KEY , DCS431 $1.85
17 027-120-010 CRANKSHAFT, DCS431 $180.62
18 962-211-030 NEEDLE CAGE, DCS431 $11.42
19 027-213-520 HEX SCREW 5X20, DCS431 $1.85
20 027-111-692 CRANKCASE CPL. (CL SIDE), DCS540 $91.30
22 934-950-160 CLAMPING SLEEVE, DCS540 $1.59
23 960-102-159 BALL BEARING, DCS6800I $19.34
24 027-213-270 SPRING, DCS520I $3.61
25 027-213-510 RING, DCS520I $3.50
26 027-213-500 SHOULDER NUT, DCS431 $8.12
27 962-900-052 RADIAL RING, DCS431 $8.12
28 010-114-032 OIL TANK PLUG, DCS431 $6.47
29 963-100-051 GASKET, DCS431 $1.74
30 020-112-160 SNOW FILTER DCS431 T1 $2.51
31 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
32 020-173-611 PREFILTER COVER, DCS431 $4.93
33 020-173-011 PREFILTER, DCS431 $4.93
34 908-105-204 C.SCREW M5X20, DCS431 $1.96
35 965-401-011 RUBBER BUSH, DCS340 $3.50
36 908-005-305 TORX SCREW 5X30, DCS340 $1.85
37 921-905-004 SQUARE NUT M5, DPC7300 $1.96
38 020-111-070 CRAMP,DCS520I $3.50
39 980-113-841 LABEL, DCS430 $1.65
40 957-605-112 SHORT C.SWITCH ASSY, DCS431 $12.19
41 020-250-020 SPIKE BAR-OUTSIDE,DCS431 $12.96
42 908-005-095 SCREW M5X9, DCS5200I $1.85
43 389-213-080 STRAINING SCREW, DCS340 $3.50
44 001-213-020 NUT WITH PIVOT, DCS431 $4.71
45 905-808-305 GUDGEON 8X30, DCS431 $3.50
46 020-111-172 GUIDE PLATE,DCS431 $4.93
47 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
48 010-245-010 VENT VALVE, DCS431 $6.69
49 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
50 020-111-082 CHAIN CATCH,DCS431 $3.50
51 001-111-011 SCREW M12X1, DCS431 $3.50
53 010-114-020 FILTER SET FOR SUCTION HEAD,DCS510 $23.96
54 957-310-027 HANDLE ASSY, DCS431 $53.60
53 010-114-020 FILTER SET FOR SUCTION HEAD,DCS510 $23.96
54 957-310-027 HANDLE ASSY, DCS431 $53.60
55 965-403-491 RUBBER BUFFER, DCS341 $7.68
56 021-114-051 FIXING BUSH, DCS431 $1.74
57 908-005-305 TORX SCREW 5X30, DCS340 $1.85
56 021-114-051 FIXING BUSH, DCS431 $1.74
57 908-005-305 TORX SCREW 5X30, DCS340 $1.85
58 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
58 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
59 020-310-600 COVER,FILTER, DCS431 $4.93
60 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
59 020-310-600 COVER,FILTER, DCS431 $4.93
60 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
61 020-114-640 TANK ASSY,DCS431 $81.00
62 965-451-901 FUEL TANK PLUG AY, DCS540 REPLACES 965-450-301 $8.12
61 020-114-640 TANK ASSY,DCS431 $81.00
63 963-232-045 PACKING RING 32X4.5, DCS431 $3.17
62 965-451-901 FUEL TANK PLUG AY, DCS540 REPLACES 965-450-301 $8.12
63 963-232-045 PACKING RING 32X4.5, DCS431 $3.17
65 963-601-240 FELT, DCS340 $4.93
65 963-601-240 FELT, DCS340 $4.93
66 020-117-301 CATCH LEVER, DCS5200I $4.93
67 957-114-010 VENT VALVE ASS'Y, DCS6000I21 $3.50
66 020-117-301 CATCH LEVER, DCS5200I $4.93
67 957-114-010 VENT VALVE ASS'Y, DCS6000I21 $3.50
68 020-117-160 BEND SPRING, DCS431 $5.26
69 020-117-301 CATCH LEVER, DCS5200I $4.93
68 020-117-160 BEND SPRING, DCS431 $5.26
69 020-117-301 CATCH LEVER, DCS5200I $4.93
70 020-117-290 LEVER & LINKAGE,DCS431 $17.69
70 020-117-290 LEVER & LINKAGE,DCS431 $17.69
71 020-117-273 SPRING, DCS431 $1.96
71 020-117-273 SPRING, DCS431 $1.96
73 965-404-460 FUEL LINE, DCS520 $7.68
73 965-404-460 FUEL LINE, DCS520 $7.68
74 935-932-320 CYLINDRICAL PIN, DCS431 $3.50
74 935-932-320 CYLINDRICAL PIN, DCS431 $3.50
75 913-447-134 TAPPING SCREW , DCS431 $1.85
75 913-447-134 TAPPING SCREW , DCS431 $1.85
77 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
76 965-403-281 RUBBER BUFFER, DCS431 $9.22
77 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
78 026-160-640 STARTER ASS'Y, DCS431 $65.00
79 965-402-262 STARTER GRIP, DCS6800I $6.69
78 026-160-640 STARTER ASS'Y, DCS431 $65.00
79 965-402-262 STARTER GRIP, DCS6800I $6.69
80 020-112-630 FAN HOUSING CPL.,DCS520 $22.53
82 020-163-031 REWIND SPRING CPL, DCS9000 $10.65
80 020-112-630 FAN HOUSING CPL.,DCS520 $22.53
83 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
84 985-000-155 STARTER ROPE 100 METER,DCS34 $81.00
82 020-163-031 REWIND SPRING CPL, DCS9000 $10.65
83 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
85 027-162-070 CABLE DRUM, DCS5200I $16.04
84 985-000-155 STARTER ROPE 100 METER,DCS34 $81.00
86 924-108-400 DISC (WASHER), DCS431 $1.85
85 027-162-070 CABLE DRUM, DCS5200I $16.04
87 929-108-080 SNAP RING 8X.8, DCS431 $1.74
86 924-108-400 DISC (WASHER), DCS431 $1.85
88 020-112-010 AIR DUCT, DCS431 $6.14
89 920-308-024 HEX NUT M8X1, DCS34 $1.96
87 929-108-080 SNAP RING 8X.8, DCS431 $1.74
88 020-112-010 AIR DUCT, DCS431 $6.14
89 920-308-024 HEX NUT M8X1, DCS34 $1.96
91 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
90 926-208-001 SPRING WASHER 8, DPC7000 $2.51
92 965-604-180 SPRING, DCS431 $3.61
93 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
91 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
94 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
92 965-604-180 SPRING, DCS431 $3.61
95 970-502-110 INSULATING HOSE (43 MM), DCS340 $8.12
93 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
96 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
94 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
95 970-502-110 INSULATING HOSE (43 MM), DCS340 $8.12
96 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
99 108-166-051 S.RATCHET ASSY., DCS6401 $20.88
97 027-140-001 IGNITION ASS'Y, DCS520 $131.15
100 122-166-020 SPRING, DCS5200I . $1.96
98 027-141-021 FLYWHEEL ASS'Y, DCS431 $103.02
99 108-166-051 S.RATCHET ASSY., DCS6401 $20.88
102 001-147-000 SHORT-CIRCUIT CABLE, DCS5200I $9.77
100 122-166-020 SPRING, DCS5200I . $1.96
103 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
101 020-143-031 IGNITION COIL COMPLETE, DCS431 $84.50
102 001-147-000 SHORT-CIRCUIT CABLE, DCS5200I $9.77
104 027-213-452 HAND GUARD, DCS431 $41.41
103 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
105 905-005-184 SELF CUTTING SCREW M5.5X18,DCS431 $1.85
104 027-213-452 HAND GUARD, DCS431 $41.41
106 027-213-221 DISENGAGING LEVER,DCS431 $11.42
105 905-005-184 SELF CUTTING SCREW M5.5X18,DCS431 $1.85
107 027-213-462 HAND GUARD, DCS431 $24.18
108 980-114-237 LABEL (SAFETY), DCS430 $1.80
106 027-213-221 DISENGAGING LEVER,DCS431 $11.42
107 027-213-462 HAND GUARD, DCS431 $24.18
109 027-213-430 BUSHING SET, DCS431 $14.61
108 980-114-237 LABEL (SAFETY), DCS430 $1.80
110 027-213-150 RUBBER BUSH, DCS431 $3.50
109 027-213-430 BUSHING SET, DCS431 $14.61
111 027-213-161 BUSH, DCS520I $6.69
112 908-005-205 SCREW M5X20, DCS460 $1.85
110 027-213-150 RUBBER BUSH, DCS431 $3.50
113 923-208-004 HEX NUT, DCS341 $4.16
111 027-213-161 BUSH, DCS520I $6.69
112 908-005-205 SCREW M5X20, DCS460 $1.85
113 923-208-004 HEX NUT, DCS341 $4.16
115 027-213-130 SHAFT FOR LEVER, DCS431 $4.93
114 027-213-652 CHAIN BRAKE ASS'Y, DCS540 $66.80
116 027-213-140 SHAFT FOR LEVER, DCS520I $4.93
115 027-213-130 SHAFT FOR LEVER, DCS431 $4.93
117 980-114-389 LABEL, DCS431 $2.40
116 027-213-140 SHAFT FOR LEVER, DCS520I $4.93
118 027-213-280 PROTECTION COVER, DCS520 $3.17
119 027-213-350 BRAKE BAND HOLDER, DCS540 $3.50
117 980-114-389 LABEL, DCS431 $2.40
118 027-213-280 PROTECTION COVER, DCS520 $3.17
120 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
119 027-213-350 BRAKE BAND HOLDER, DCS540 $3.50
121 027-213-050 SPRING W/LEVER,DCS431 $27.26
120 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
122 924-500-049 WASHER 5.2 X 12 X 1,DCS430 $2.18
123 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
121 027-213-050 SPRING W/LEVER,DCS431 $27.26
122 924-500-049 WASHER 5.2 X 12 X 1,DCS430 $2.18
124 027-213-111 COVER PLATE, DCS431 $6.14
123 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
125 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
126 927-304-000 SAFETY WASHER , DCS431 $1.63
124 027-213-111 COVER PLATE, DCS431 $6.14
125 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
127 027-111-041 GUIDE PLATE, DCS540 $4.71
128 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
126 927-304-000 SAFETY WASHER , DCS431 $1.63
129 927-304-000 SAFETY WASHER , DCS431 $1.63
127 027-111-041 GUIDE PLATE, DCS540 $4.71
128 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
130 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
129 927-304-000 SAFETY WASHER , DCS431 $1.63
131 027-213-120 SPRING, DCS431 $3.61
130 913-205-125 TAPPING SCREW M5X12,DCS5200I $1.74
131 027-213-120 SPRING, DCS431 $3.61
133 020-245-020 PRESSURE LINE, DCS430 $4.93
134 020-245-020 PRESSURE LINE, DCS430 $4.93
133 020-245-020 PRESSURE LINE, DCS430 $4.93
136 030-245-070 REPAIR KIT, DCS6000I21 $13.62
134 020-245-020 PRESSURE LINE, DCS430 $4.93
135 027-245-161 OIL PUMP CPL., DCS431 $52.10
137 027-245-010 PUMP DRIVE, DCS431 $11.42
136 030-245-070 REPAIR KIT, DCS6000I21 $13.62
138 030-245-070 REPAIR KIT, DCS6000I21 $13.62
139 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
137 027-245-010 PUMP DRIVE, DCS431 $11.42
140 930-916-160 SPRING RING, DCS431 $1.96
138 030-245-070 REPAIR KIT, DCS6000I21 $13.62
139 908-005-125 F.H. SCREW M5X12, DCS431 $1.85
140 930-916-160 SPRING RING, DCS431 $1.96
143 962-210-025 NEEDLE CAGE, DCS431 $9.77
142 027-245-021 STOP DISC, DCS520 $3.50
144 020-224-070 "RIM SPROCKET .325"",DCS431" $9.77
143 962-210-025 NEEDLE CAGE, DCS431 $9.77
144 020-224-070 "RIM SPROCKET .325"",DCS431" $9.77
146 957-180-030 CLUTCH ASS'Y, DCS520 $31.11
147 024-184-021 TENSION SPRING, DC6401 $3.61
145 027-223-101 CLUTCH DRUM, DCS520 $18.13
146 957-180-030 CLUTCH ASS'Y, DCS520 $31.11
147 024-184-021 TENSION SPRING, DC6401 $3.61
153 020-174-202 MUFFLER ASSY, DCS520 $48.75
154 020-174-110 SCREEN, DCS431 $4.93
155 020-174-121 DEFLECTOR PLATE, DCS431 $10.65
156 915-042-130 SCREW, DCS520I $1.74
157 908-005-095 SCREW M5X9, DCS5200I $1.85
158 928-405-000 WASHER, DCS340 $1.85
153 020-174-202 MUFFLER ASSY, DCS520 $48.75
159 908-205-625 TORX SCREW 5X62, DCS431 $3.50
154 020-174-110 SCREEN, DCS431 $4.93
160 020-118-121 FILTER COVER,DCS431 $14.61
161 001-118-062 NUT M5,DCS340 $5.26
155 020-174-121 DEFLECTOR PLATE, DCS431 $10.65
162 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
156 915-042-130 SCREW, DCS520I $1.74
157 908-005-095 SCREW M5X9, DCS5200I $1.85
163 020-173-202 AIR FILTER ASSY, DCS540 $21.10
164 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
158 928-405-000 WASHER, DCS340 $1.85
159 908-205-625 TORX SCREW 5X62, DCS431 $3.50
165 027-118-250 HOOD, DCS431 $35.59
160 020-118-121 FILTER COVER,DCS431 $14.61
166 965-404-780 GASKET, DCS431 $3.50
167 908-005-095 SCREW M5X9, DCS5200I $1.85
161 001-118-062 NUT M5,DCS340 $5.26
162 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
168 965-525-032 GASKET, DCS5200I $3.50
163 020-173-202 AIR FILTER ASSY, DCS540 $21.10
169 027-118-040 BOTTOM, DCS540 $15.16
164 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
170 965-404-230 PLUG, DCS431 $1.85
171 965-401-024 RUBBER BUSH, DCS5200I $3.50
165 027-118-250 HOOD, DCS431 $35.59
166 965-404-780 GASKET, DCS431 $3.50
172 965-404-410 RUBBER BUSH, DCS431 $3.50
167 908-005-095 SCREW M5X9, DCS5200I $1.85
173 965-404-341 GASKET, DCS520I $1.85
168 965-525-032 GASKET, DCS5200I $3.50
174 020-131-041 INTERMED. FLANGE, DCS431 $4.93
169 027-118-040 BOTTOM, DCS540 $15.16
170 965-404-230 PLUG, DCS431 $1.85
171 965-401-024 RUBBER BUSH, DCS5200I $3.50
177 027-150-830 CHOKE LEVER, DCS431 $4.93
172 965-404-410 RUBBER BUSH, DCS431 $3.50
178 020-118-030 GUIDE PIECE, DCS431 $3.17
173 965-404-341 GASKET, DCS520I $1.85
179 908-205-658 TORX BOLT 5X65, DCS431 $3.50
180 924-105-300 WASHER 5.3, DCS431 $2.18
174 020-131-041 INTERMED. FLANGE, DCS431 $4.93
175 965-524-023 GASKET, DCS430 $4.71
181 020-171-100 CONNECTING MUFF,DCS431 $8.12
176 027-151-021 CARBURETOR, DCS540 $112.33
182 020-117-281 THROTTLE LINKAGE ASSY. DCS431 $12.19
177 027-150-830 CHOKE LEVER, DCS431 $4.93
186 027-151-010 CARBURETOR WT-76, DCS431 $55.00
178 020-118-030 GUIDE PIECE, DCS431 $3.17
179 908-205-658 TORX BOLT 5X65, DCS431 $3.50
188 001-151-240 IDLE SCREW, DCS520I $5.26
180 924-105-300 WASHER 5.3, DCS431 $2.18
189 021-151-230 PRESSURE SPRING, DCS340 $5.26
190 118-151-190 SCREW, DCS340 $3.17
181 020-171-100 CONNECTING MUFF,DCS431 $8.12
182 020-117-281 THROTTLE LINKAGE ASSY. DCS431 $12.19
191 001-151-165 PUMP COVER 21-495, DCS431 $5.26
192 021-151-540 GASKET SET, DCS340 $8.12
193 021-151-150 PUMP DIAPHRAGM 95-89, DCS431 $4.71
194 021-151-180 SCREEN, EK7301 $4.93
195 118-151-060 SCREW, DCS340 $3.50
186 027-151-010 CARBURETOR WT-76, DCS431 $55.00
187 027-151-021 CARBURETOR, DCS540 $112.33
196 021-151-320 THROTTLE SHUTTER, DCS431 $5.59
188 001-151-240 IDLE SCREW, DCS520I $5.26
197 001-151-580 SLEEVE, DCS431 $4.27
189 021-151-230 PRESSURE SPRING, DCS340 $5.26
198 001-151-590 LEVER $4.60
190 118-151-190 SCREW, DCS340 $3.17
199 118-151-060 SCREW, DCS340 $3.50
191 001-151-165 PUMP COVER 21-495, DCS431 $5.26
200 001-151-600 CHOKE SHAFT, DCS431 $13.62
201 118-151-020 SCREW, DCS340 $3.17
192 021-151-540 GASKET SET, DCS340 $8.12
193 021-151-150 PUMP DIAPHRAGM 95-89, DCS431 $4.71
202 021-151-120 DIAPHRAGM COVER, DCS340 $11.09
203 021-151-540 GASKET SET, DCS340 $8.12
194 021-151-180 SCREEN, EK7301 $4.93
195 118-151-060 SCREW, DCS340 $3.50
204 957-150-040 CTRL.PARTS(CARB.),DCS340 $14.61
196 021-151-320 THROTTLE SHUTTER, DCS431 $5.59
205 144-150-030 COVER DISC, DCS431 $3.50
197 001-151-580 SLEEVE, DCS431 $4.27
206 001-151-260 CHOKE SHUTTER,DCS340 $4.60
207 118-151-060 SCREW, DCS340 $3.50
198 001-151-590 LEVER $4.60
199 118-151-060 SCREW, DCS340 $3.50
208 118-151-170 FRICTION BALL, DPC7331 $3.17
209 118-151-160 FRICTION SPRING,DPC7331 $4.60
200 001-151-600 CHOKE SHAFT, DCS431 $13.62
201 118-151-020 SCREW, DCS340 $3.17
210 021-151-530 SPRING, DCS340 $5.26
202 021-151-120 DIAPHRAGM COVER, DCS340 $11.09
211 001-151-310 SPRING, DCS340 $2.07
203 021-151-540 GASKET SET, DCS340 $8.12
212 021-151-480 SPRING, EK7301 $5.26
204 957-150-040 CTRL.PARTS(CARB.),DCS340 $14.61
213 001-151-301 THROTTLE SHAFT, DCS431 $16.04
205 144-150-030 COVER DISC, DCS431 $3.50
214 001-151-510 MAIN ADJ. SCREW, DCS431 $12.19
206 001-151-260 CHOKE SHUTTER,DCS340 $4.60
215 001-151-470 IDLE ADJ. SCREW, DCS431 $9.22
207 118-151-060 SCREW, DCS340 $3.50
208 118-151-170 FRICTION BALL, DPC7331 $3.17
219 411-406-700 SPROCKET TIP $25.17
209 118-151-160 FRICTION SPRING,DPC7331 $4.60
210 021-151-530 SPRING, DCS340 $5.26
223 952020650 CHAIN PROTECT COVER DCS510 $10.08
211 001-151-310 SPRING, DCS340 $2.07
212 021-151-480 SPRING, EK7301 $5.26
213 001-151-301 THROTTLE SHAFT, DCS431 $16.04
214 001-151-510 MAIN ADJ. SCREW, DCS431 $12.19
215 001-151-470 IDLE ADJ. SCREW, DCS431 $9.22
219 411-406-700 SPROCKET TIP $25.17
223 952020650 CHAIN PROTECT COVER DCS510 $10.08
