Makita DC7112 Battery and charger parts

Makita DC7112 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

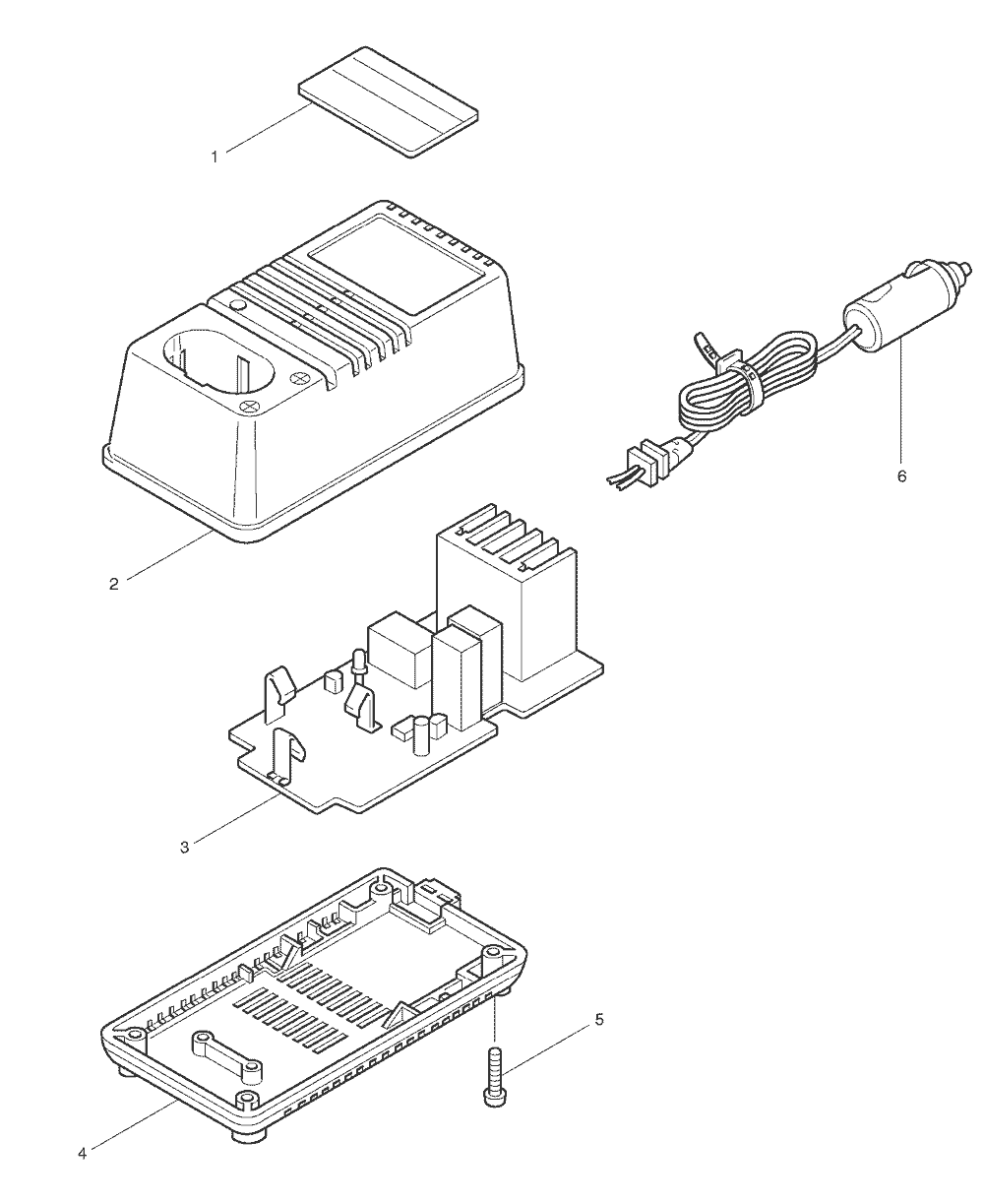

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	856795-1	NAME PLATE, DC7112	$3.67
2	182573-6	CHARGER CASE SET, DC7112	$18.90
3	631119-0	CIRCUIT BOARD, DC7112	$61.70
4	182573-6	CHARGER CASE SET, DC7112	$18.90
5	265874-8	TAPPING SCREW 4X20, 6501	$0.86
6	667958-2	POWER SUPPLY CORD, DC7112	$27.23
