Makita DC18SE Battery and charger parts

Makita DC18SE Parts

Download Schematic

Time to buy a new tool?

Makita DC18SE

18V Lithium-Ion Opti...

$175.99

Free Shipping

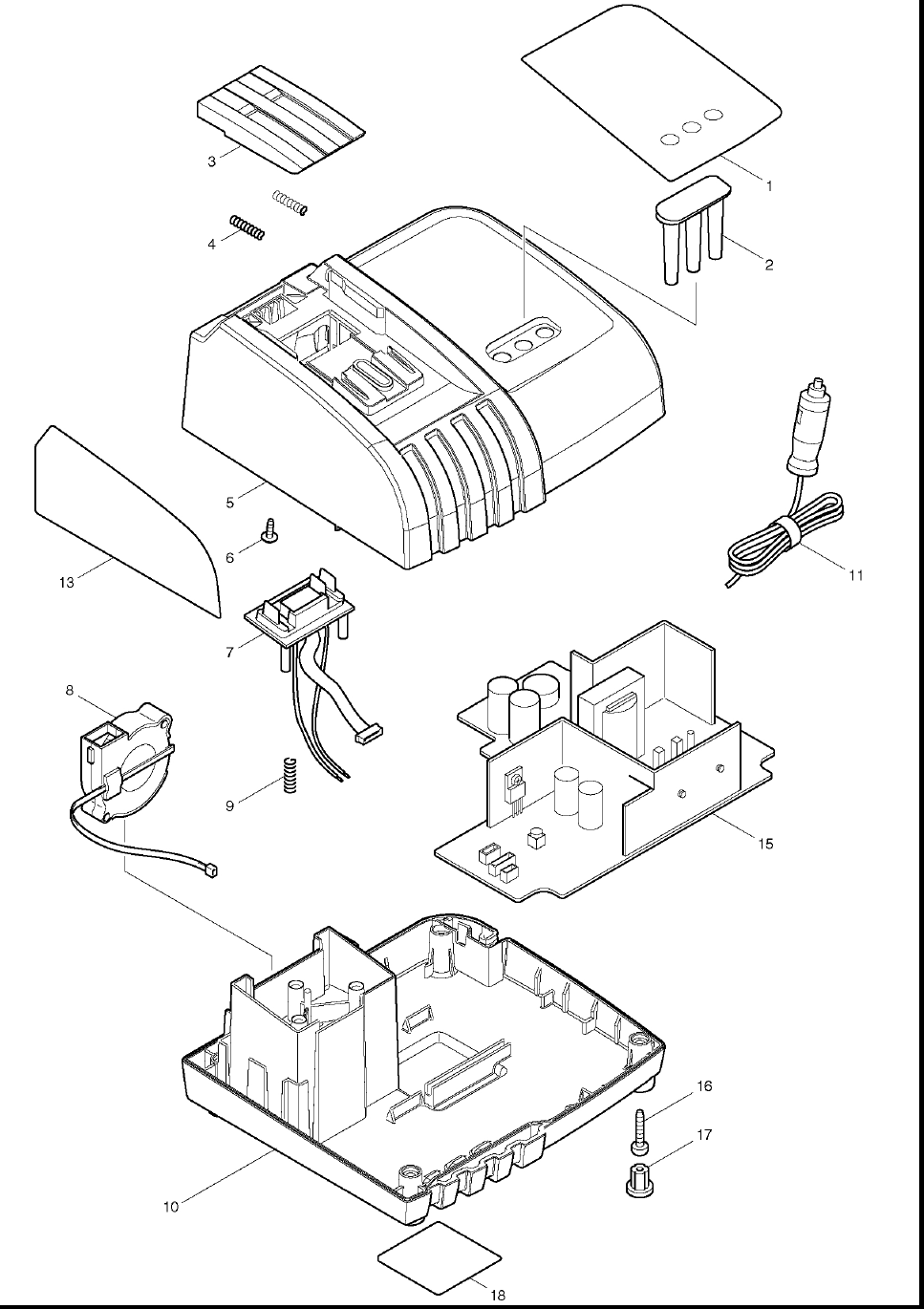

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	419570-2	ACRYRIC PIN, DC18RA	$2.84
3	419569-7	TERMINAL COVER, DC18RA	$5.48
4	231474-6	COMP. SPRING 4, DC18SC	$0.86
6	266278-7	TAPPING SCREW F. BT3X10, ADP03	$0.86
8	638499-5	SCIROCCO FAN, DC18RA	$17.25
9	233194-8	COMPRESSION SPRING 4, 5620DWA	$1.48

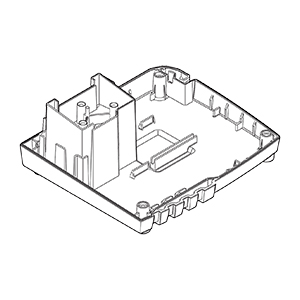

10	419567-1	CHARGER CASE COVER,DC18RA	$13.29
11	667857-8	POWER SUPPLY CORD, DC1822	$10.43
16	266346-6	T. SCREW BT 4X20, DC18SC	$0.86
17	286255-3	CAP 13, DC18RA	$2.84
