Makita DA4031 Electric Drill Parts

Makita DA4031 Electric Drill Parts Image

Makita DA4031 Parts
10 Amp 1/2-Inch Angle Drill

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DA4031
10 Amp 1/2 Inch Angl...
$398.99
Tool Diagram    (Click image to Zoom in) View larger Image

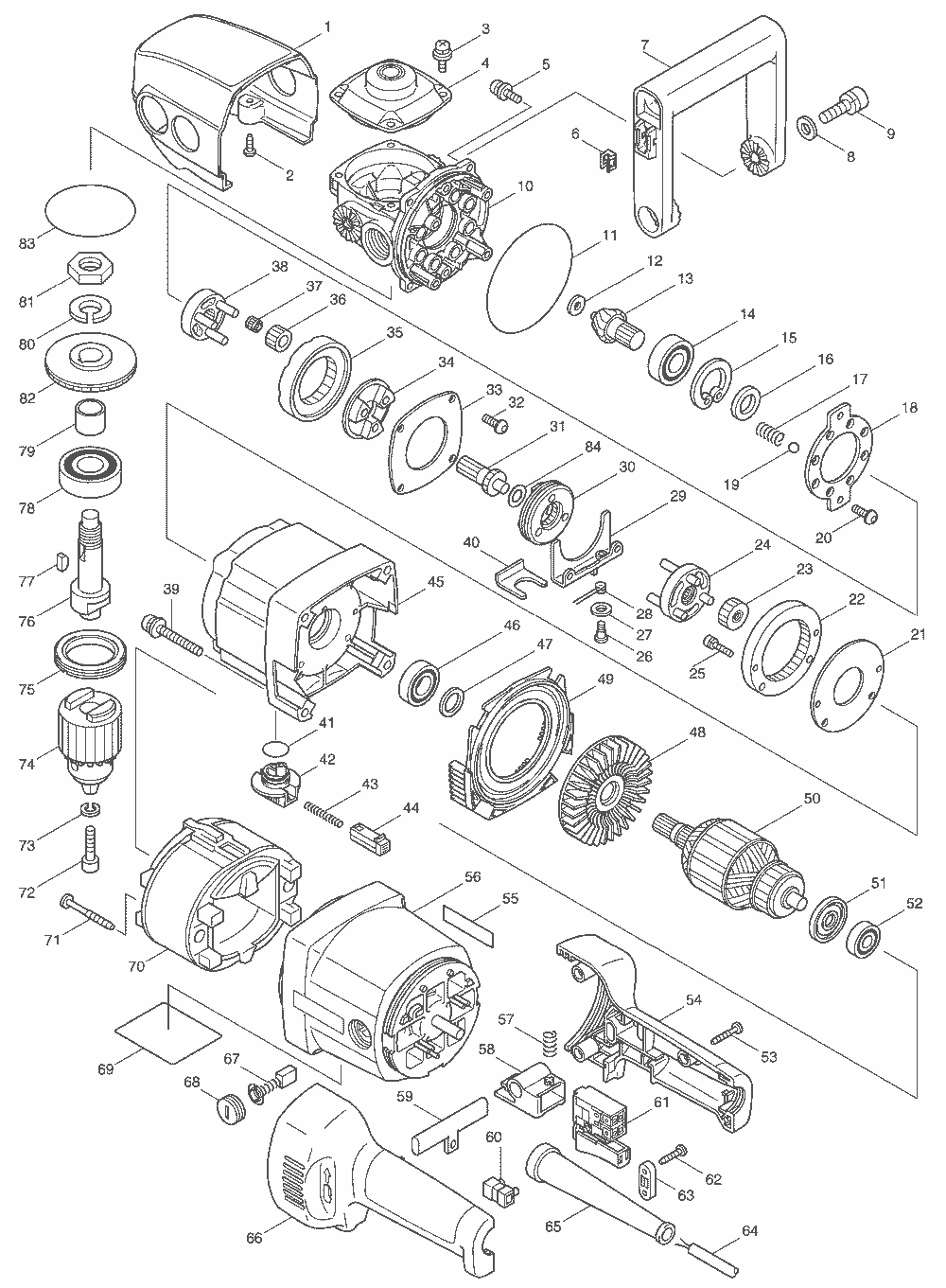

Makita DA4031 Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
1 417666-3 TOP COVER, DA4031 $14.94
2 266026-4 TAPPING SCREW 4X12,5477NB $0.86
3 911223-4 P.H. SCREW M5X16, 5007NK $0.86
3 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
4 152956-4 GEAR HOUSING COVER,DA4031 $15.27
5 911223-4 P.H. SCREW M5X16, 5007NK $0.86
5 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
6 344391-2 BIT HOLDER, 6233DWA $0.97
7 417665-5 FRONT GRIP, DA4031 $6.80
8 941202-8 F. WASHER 8, 5037NB $0.75
9 922441-9 H.S.H. BOLT M8X25, SC190DWDE $1.96
10 152958-0 GEAR HOUSING CPL., DA4031 $54.90
11 213803-5 O RING 85, DA4030 $5.37
12 253804-1 F. WASHER 6, 6012HDW $1.34
13 227415-8 SPIRAL BEVEL GEAR 13, DA4030 $15.27
14 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
15 962153-2 RETAINING RING R-35,HP2030 $1.48
16 257212-8 RING 15, DA4030 $4.16
17 233326-7 COMPRESSION SPRING 5, DA4031 $1.48
18 345189-0 GUIDE PLATE, DA4031 $4.16
19 216022-2 STEEL BALL 7.0, HR2400 $0.86
20 265491-4 H.S.BUTTON HEAD BOLT M5X16, DA4031 $1.34
21 345193-9 PLATE, DA4031 $2.84
22 227021-9 INTERNAL GEAR 49, DA4030 $8.45
23 152966-1 SPUR GEAR 19 CPL., GA4030 $7.02
24 152965-3 CARRIER A CPL., GA4031 $16.70
25 265493-0 H.S.H BOLT M4X20, DA4030 $1.96
26 251306-1 P.H. SCREW M5, 9217SPC $1.19
27 941152-7 F. WASHER 6, HM1500 $0.75
28 231657-8 TORSION SPRING 6, DA4031 $1.96
29 345191-3 CHANGE GUIDE, DA4031 $4.16
30 324201-9 CHANGE RING, DA4031 $29.37
31 227025-1 SPUR GEAR 10, DA4031 $18.02
32 265491-4 H.S.BUTTON HEAD BOLT M5X16, DA4031 $1.34
33 345188-2 RETAINER PLATE, DA4031 $4.16
34 223135-2 CAM DA40301 $4.16
35 227022-7 INTERNAL GEAR 38, DA4031 $8.45
36 227026-9 SPUR GEAR 14, DA4031 $8.45
37 216420-0 NEEDLE CAGE 6910 $5.48
38 152964-5 CARRIER CPL., DA4031 $10.10
39 911373-5 P.H. SCREW M6X50, LS1013 $1.48
40 961078-7 RETAINING RING S-18,BHR200SH $1.19
40 345190-5 LOCK PLATE, DA4031 $2.51
41 213265-7 O RING 17, HR4002 $0.86
42 417670-2 CHANGE LEVER, DA4031 $4.16
43 233279-0 COMP.SPRING 4, BHR200SH $1.63
44 417298-6 LOCK BUTTON, DA4031 $1.52
45 152960-3 GEAR CASE CPL., DA4031 $45.90
46 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
47 253853-8 F. WASHER 15, LS1211 $1.63
48 240003-4 FAN 80, 5007NK $4.16
49 417664-7 BAFFLE PLATE, DA4031 $4.16
50 516856-6 ARMATURE ASS'Y 115V, DA4031 $92.30
51 681649-1 INSULATION WASHER, 9921 $1.63
52 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
54 183392-3 HANDLE SET,DA4030 $25.17
55 819063-3 MAKITA LABEL, DA3010F $0.96
56 183400-0 MOTOR HOUSING,DA4030 $29.37
57 231402-1 COMP. SPRING 7, LS1045 $1.48
58 416998-5 LOCK BUTTON,9077SL $2.84
59 417663-9 F/R CHANGE LEVER, DA4031 $2.84
60 654532-5 TERMINAL BLOCK, BO4556 $3.06
61 650502-2 SWITCH,DA4031 $24.62
62 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
63 687063-9 STRAIN RELIEF, 4323K $1.26
65 682564-2 CORD GUARD, 5007NK $4.16
65 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
66 183392-3 HANDLE SET,DA4030 $25.17
67 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
68 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
69 853218-0 NAME PLATE, DA4031 $1.36
70 636226-4 FIELD 115V, DA4031 $31.51
71 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
72 266284-2 H.S.H. BOLT M6X25, DA4030 $1.74
73 942151-2 SPRING WASHER 6, 5007NB $0.90
75 285838-6 BEARING RETAINER 29-42, DA4000LR $2.84
76 324203-5 SPINDLE, DA4030 $17.80
77 254032-1 WOODRUFF KEY 5, 5037NB $1.63
78 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
79 257715-2 SLEEVE 17, DA4030 $2.84
80 942402-3 SPRING WASHER 16, DA4030 $1.34
81 252182-6 HEX. NUT M16-22, DA4030 $5.26
82 227416-6 SPIRAL BEVEL GEAR 40, DA4030 $26.16
83 213709-7 O RING 63,DA4030 $3.28
84 253215-0 F. WASHER 8, PV7001C $1.34
85 253771-0 F. WASHER 16, LS1011 $1.63
1001 273654-8 GRIP 27, DA4030/4031 $14.61
1002 410102-8 KEY HOLDER, 6013BR $1.26
1003 763434-5 CHUCK KEY 10, 6302H,6303H $6.00
1004 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
5001 810134-9 CAUTION LABEL, 3709 $0.93
