Makita DA4000LR Electric Drill Parts

Makita DA4000LR Electric Drill Parts Image

Makita DA4000LR Parts
1/2 Inch, 7.5 AMP, 0-900 RPM Angle Drill

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DA4000LR
1/2 Inch, 7.5 AMP, 0...
$322.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

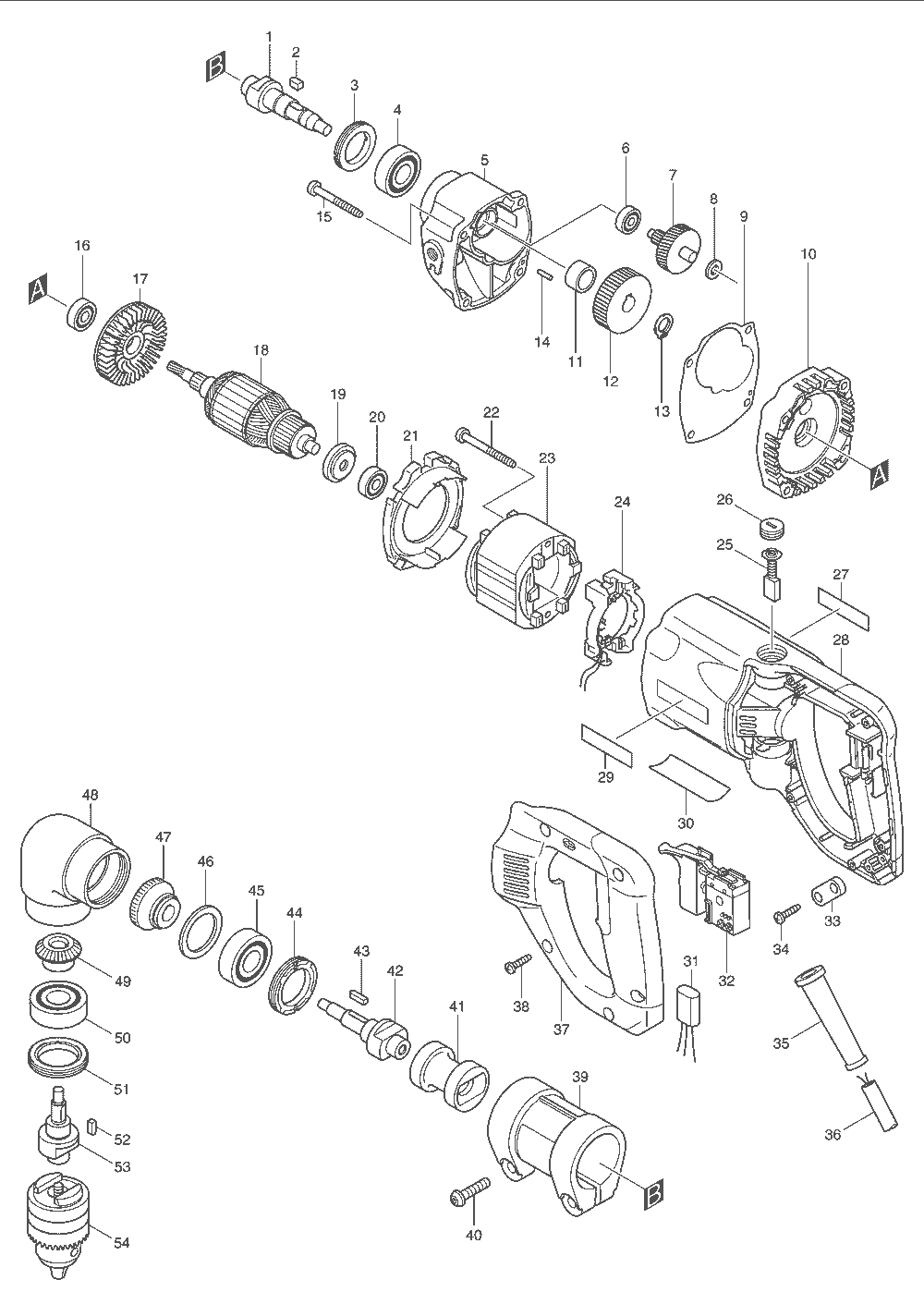

Makita DA4000LR Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 324171-2 SPINDLE, 6304LR $21.10
1001 317488-0 GRIP BASE, DA4000LR $10.65
2 254211-1 KEY 5, 6300LR $1.26
00 265485-9 HEX BOLT M8X35, DA4000LR $3.28
3 285808-5 BEARING RETAINER 25-36, DA4000LR $3.06
4 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
5 317482-2 GEAR HOUSING, 6304LR $26.82
6 211016-2 B. BEARING 626LLB, 6300LR $10.98
7 226144-0 GEAR CPL., 7-41 6304LR $19.34
8 253133-2 F. WASHER 7, DP4000 $1.34
9 417650-8 GASKET, DA4000LR $2.84
10 152889-3 GEAR HSG. COVER CPL., 6304LR $26.16
11 313105-0 SLEEVE 15, 6304LR $2.84
12 226544-4 HELICAL GEAR 41,6304LR $11.64
13 961055-9 RETAINING RING S-15, 5007F $1.19
14 256157-7 PIN 3, 6222DWE $0.86
15 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
16 211031-6 BALL BEARING 608LLB, 9227C $10.98
17 241850-6 FAN 60, BTW450 $4.16
18 516481-3 ARMATURE ASSY 115V, DA4000LR $72.30
19 681651-4 INSULATION WASHER, LS0711Z $2.18
20 211031-6 BALL BEARING 608LLB, 9227C $10.98
21 417649-3 BAFFLE PLATE, DA4000LR $2.84
22 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
23 634441-4 FIELD 115V, 6304LR $18.35
24 638081-0 SUPPORT CPL., 6304LR $5.48
25 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
26 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
27 819063-3 MAKITA LABEL, DA3010F $0.96
28 183395-7 MOTOR HOUSING,6304LR $29.37
29 819063-3 MAKITA LABEL, DA3010F $0.96
30 853151-6 NAME PLATE, DA4000LR $1.21
32 650510-3 SWITCH, DA4000LR $30.80
33 687063-9 STRAIN RELIEF, 4323K $1.26
34 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
35 682572-3 CORD GUARD, 6304LR $2.51
35 682567-6 CORD GUARD 8, HM0810B $4.16
35 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
36 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
36 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
37 417648-5 HANDLE COVER, DA4000LR $11.97
38 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
39 152932-8 JOINT CPL., DA4000LR $25.06
40 266281-8 H.S.H. BOLT M8X35, DA4000LR $1.74
41 324154-2 SOCKET, DA4000LR $14.61
42 324170-4 GEAR SHAFT L, DA4000LR $24.84
43 254226-8 KEY 4, 6920B $1.26
44 285838-6 BEARING RETAINER 29-42, DA4000LR $2.84
45 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
46 253854-6 F. WASHER 30, HR1821 $7.57
47 227411-6 ZEROL BEVEL GEAR 19, DA4000LR $18.02
48 152890-8 ANGLE HOUSING CPL., DA4000LR $28.76
49 227412-4 ZEROL BEVEL GEAR 13, DA4000LR $13.84
50 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
51 285838-6 BEARING RETAINER 29-42, DA4000LR $2.84
52 254219-5 KEY 4, 9741 $2.84
53 324169-9 GEAR SHAFT H, DA4000LR $23.41
54 193319-5 DRILL CHUCK S-13, 6304LR $74.40
1002 152892-4 GRIP, DA4000LR $8.01
1003 783216-9 HEX WRENCH 5 DA400LR $3.20
1005 410102-8 KEY HOLDER, 6013BR $1.26
1006 763434-5 CHUCK KEY 10, 6302H,6303H $6.00
5001 810134-9 CAUTION LABEL, 3709 $0.93
