Makita DA391D Cordless Drill Parts

Makita DA391D Cordless Drill Parts Image

Makita DA391D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

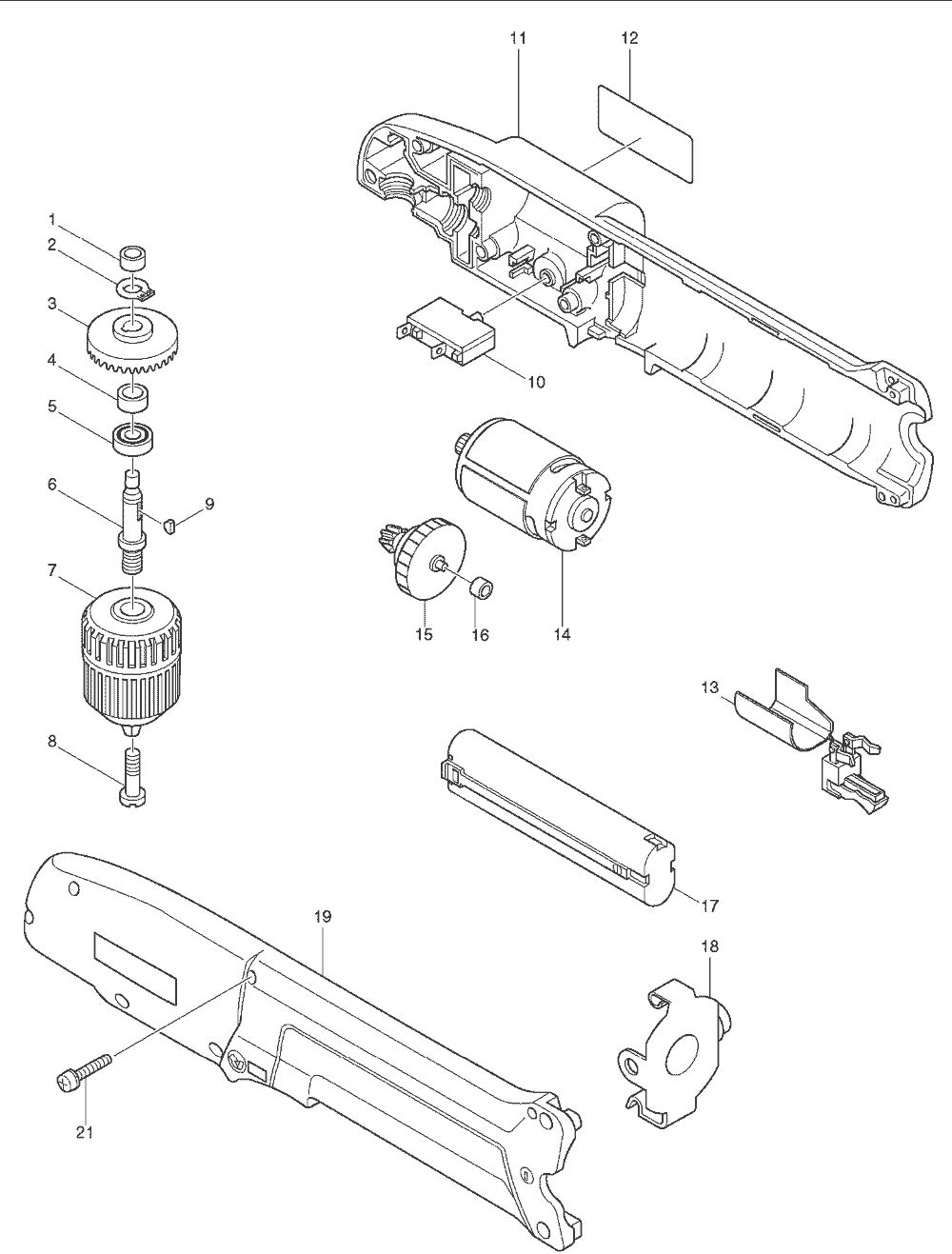

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	214017-9		P. BEARING 5, 6043D	$1.26
2	961004-6		RETAINING RING S-8, DA391D	$0.53
3	221387-9		SPIRAL B. GEAR 36, DA391DW	$25.83
4	257106-7		RING 8, DA391DW	$1.63
5	211031-6		BALL BEARING 608LLB, 9227C	$10.98
6	322278-8		SPINDLE, DA391DW	$17.47
7	763132-1		KEYLESS CHUCK, DA391D	$41.40
8	251451-2		P.H. SCREW M5X22, DA391DW	$1.96
9	254031-3		WOODRUFF KEY 3, 6801DBV	$1.26
10	652532-9		OVERLOAD PROTECTOR, DA391D	$7.46
12	856860-6		NAME PLATE, DA391D	$1.12
13	651914-2		SWITCH, 8400VD,DA391D	$31.72
14	629623-1		DC MOTOR, DA391D	$27.64
15	153193-3		GEAR, DA391DW	$33.66
16	214019-5		P. BEARING 4, 6043D	$1.26
21	911143-2		P.H. SCREW M4X22, 6211D	$0.86
1002	414938-7		BATTERY COVER, 6222DWE	$2.20
5001	810152-7		CAUTION LABEL, DA391D	$0.99
