Makita DA3010F Electric Drill Parts

Makita DA3010F Electric Drill Parts Image

Makita DA3010F Parts
3/8 Inch Angle Drill with L.E.D. Light

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DA3010F
3/8 Inch Angle Drill...
$225.99
Tool Diagram    (Click image to Zoom in) View larger Image

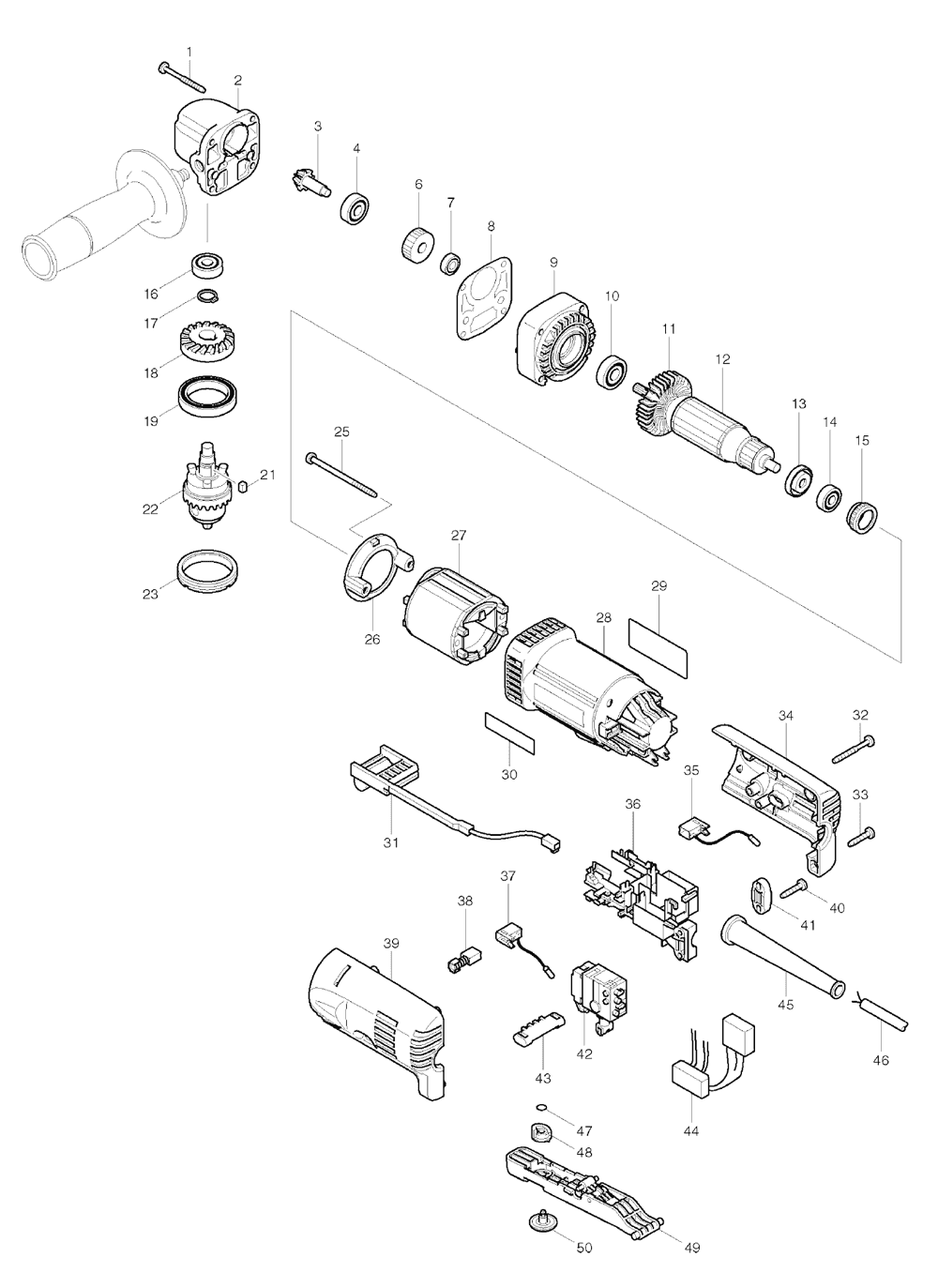

Makita DA3010F Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266048-4 T. SCREW 4X40, BO4556 $1.19
2 317635-3 GEAR HOUSING, DA3010F $26.16
3 227436-0 SPIRAL BEVEL GEAR 9, DA3010F $11.09
4 211031-6 BALL BEARING 608LLB, 9227C $10.98
4 210029-0 BALL BEARING 608ZZ, 5007NK $4.16
6 226567-2 HELICAL GEAR 28, DA301F $7.35
7 210026-6 BALL BEARING 696ZZ,DA3010F $6.03
8 418036-9 GASKET, DA3010F $2.84
9 418042-4 GEAR HOUSING COVER, DA3010F $4.27
10 211051-0 BALL BEARING 609LLB HR2400 $15.27
11 240061-0 FAN 48, DA3010F $2.84
12 517581-2 ARMATURE ASS'Y 115V, DA3010F $58.20
13 681636-0 INSULATION WASHER, GA4030 $3.72
14 211021-9 BALL BEARING 607LLB, LS1013 $8.78
15 421494-0 LABYRINTH RUBBER RING,HR2455, DA3010F $4.49
16 211031-6 BALL BEARING 608LLB, 9227C $10.98
16 210029-0 BALL BEARING 608ZZ, 5007NK $4.16
17 961052-5 RETAINING RING S-12, 9218PBL $0.86
18 227437-8 SPIRAL BEVEL GEAR 26, DA3010F $20.77
19 211419-0 BALL BEARING 6809DDW,DA3010F $21.76
21 254201-4 KEY 4, DA3010F $1.52
22 763174-5 DRILL CHUCK S10, DA3010F $41.40
23 285842-5 BEARING RETAINER 36-43, DA3010F $4.16
25 266315-7 TAPPING SCREW MT4X65, DA3010F $1.48
26 418033-5 BAFFLE PLATE, DA3010F $2.84
27 635076-4 FIELD, DA3010F $17.25
28 183560-8 MOTOR HOUSING,DA3010F $11.97
29 850083-8 NAME PLATE, DA3010F $1.21
30 819063-3 MAKITA LABEL, DA3010F $0.96
31 631516-0 LED CIRCUIT, DA3010F $17.25
32 266053-1 P.T. SCREW 4X35, 4304 $1.48
33 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
34 183559-3 REAR COVER SET,DA3010F $8.01
35 643802-7 BRUSH HOLDER, DA3010F $2.84
36 687139-2 SUPPORT, DA3010F $2.84
37 643802-7 BRUSH HOLDER, DA3010F $2.84
38 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.99
39 183559-3 REAR COVER SET,DA3010F $8.01
40 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
41 687063-9 STRAIN RELIEF, 4323K $1.26
42 650539-9 SWITCH,DA3010F $26.82
43 418038-5 F/R CHANGE LEVER, DA3010F $1.52
44 631528-3 POWER SUPPLY CIRCUIT, DA3010F $11.97
45 682559-5 CORD GUARD 8, 6824 $2.51
45 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
46 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
46 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
47 213034-6 O RING 3, AF502 $0.53
48 418040-8 CAM, DA3010F $1.52
49 153477-9 SWITCH LEVER CPL., DA3010F $5.48
50 418037-7 SPEED CHANGE DIAL, DA3010F $4.16
1001 411780-7 KEY HOLDER,6402 $1.26
1002 763415-9 CHUCK KEY, DA301DW $6.80
1003 153489-2 GRIP 36, 9557NB $2.84
5001 810134-9 CAUTION LABEL, 3709 $0.93
