Makita BUB360Z Cordless Blower Parts

Makita BUB360Z Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

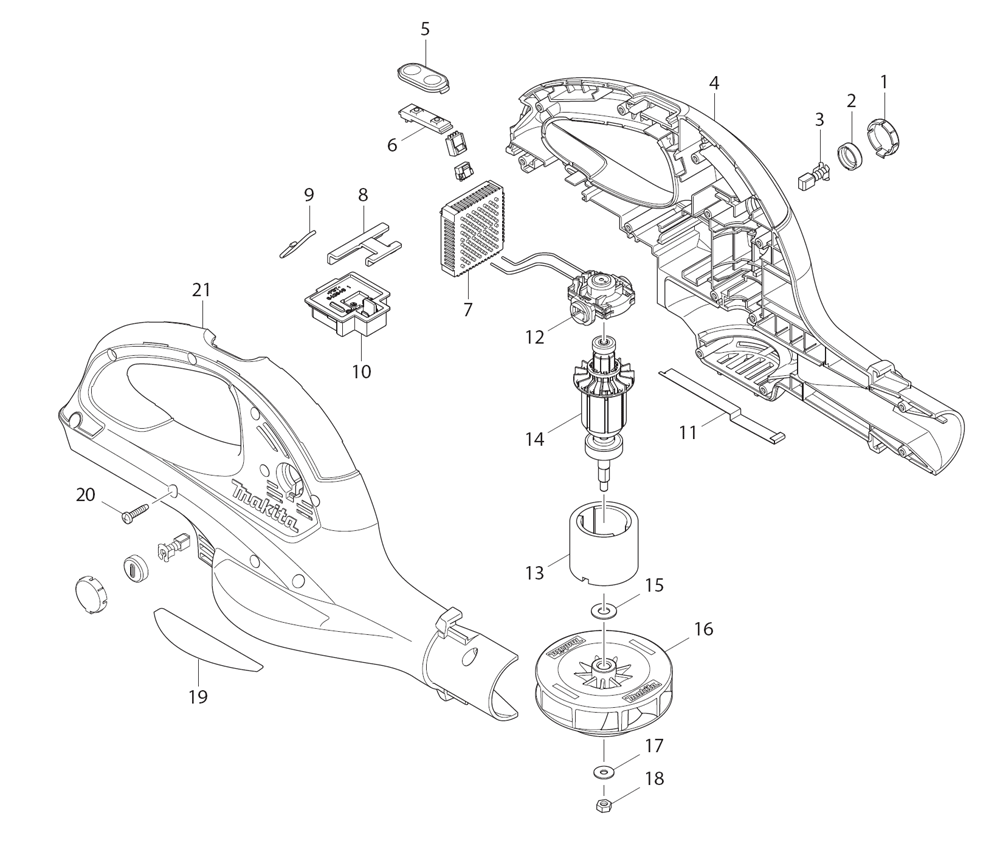

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	452145-4	HOLDER CAP COVER, BUB360Z	$2.51
1	452145-4	HOLDER CAP COVER, BUB360Z	$2.51
2	643929-3	HOLDER CAP, BPB180	$1.63
2	643929-3	HOLDER CAP, BPB180	$1.63
5	140463-9	SWITCH PLATE CPL., BUB360Z	$3.61
6	631973-2	SWITCH UNIT, BUB360Z	$7.02
6	631973-2	SWITCH UNIT, BUB360Z	$7.02
8	346039-2	SUPPORT PLATE, BHR261	$1.34
8	346039-2	SUPPORT PLATE, BHR261	$1.34
9	325973-9	HANGER, BUB360Z	$2.51
9	325973-9	HANGER, BUB360Z	$2.51
10	643849-1	TERMINAL, BUB360Z	$4.71
10	643849-1	TERMINAL, BUB360Z	$4.71
11	346328-5	EARTH PLATE, BUB360Z	$2.51
11	346328-5	EARTH PLATE, BUB360Z	$2.51
12	638725-2	ENDBELL CPL., BUB360Z	$3.61
12	638725-2	ENDBELL CPL., BUB360Z	$3.61
13	638420-4	YOKE UNIT, BPB180	$40.18
13	638420-4	YOKE UNIT, BPB180	$40.18
14	619260-9	ARMATURE, BUB360Z	$25.17
14	619260-9	ARMATURE, BUB360Z	$25.17
15	253865-1	F. WASHER 8, HR5000	$2.18
15	253865-1	F. WASHER 8, HR5000	$2.18
16	240124-2	FAN 95, BUB360Z	$13.84
16	240124-2	FAN 95, BUB360Z	$13.84
17	253194-2	F. WASHER 5, HM1303B	$1.63
17	253194-2	F. WASHER 5, HM1303B	$1.63
18	252177-9	HEX NUT M5-800V, BUB360Z	$0.90
18	252177-9	HEX NUT M5-800V, BUB360Z	$0.90
19	868211-1	NAME PLATE, BUB360Z	$2.40
19	868211-1	NAME PLATE, BUB360Z	$2.40
20	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
20	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
