Makita BTL061 Impact Wrench & Driver Parts

Makita BTL061 Impact Wrench & Driver Parts Image

Makita BTL061 Parts
18-Volt LXT Lithium-Ion Cordless Angle Impact Driver Kit

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BTL061
18 Volt LXT Lithium-...
$399.00
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

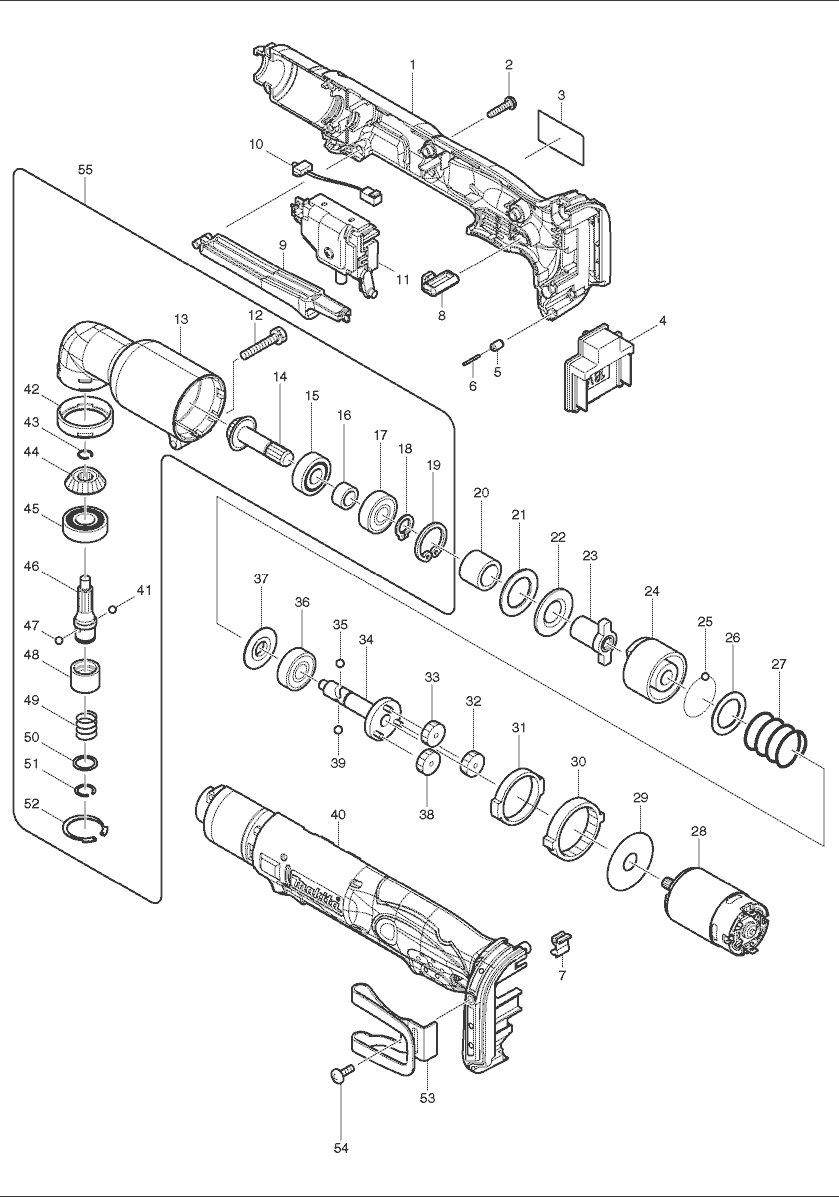

Makita BTL061 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 188395-2 HOUSING SET, BTL061 $28.56
2 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
3 864078-5 NAME PLATE, BTL061 $0.96
4 643838-6 TERMINAL, BTD140 $5.92
4 643843-3 TERMINAL, BFR750 $5.70
5 263036-2 RUBBER PIN 5, BTW251 $1.74
6 268184-2 PIN 1.5, BTW251 $0.86
7 424026-2 CUSHION, BTW251 $2.95
8 450126-2 FR CHANGE LEVER, BTL061 $2.84
9 450125-4 SWITCH LEVER, BTL061 $2.84
10 631778-0 LED CIRCUIT, BTL061 $8.01
11 650594-1 SWITCH, BTL061 $33.15
12 265409-5 HEX BOLT M5X30, 6940D $2.40
13 152461-1 ANGLE HEAD CPL., 6940D $40.29
14 226720-0 ZEROL BEVEL GEAR 13, 6940D $34.47
15 211064-1 B. BEARING 6000, 2414B $10.98
16 257660-1 SLEEVE 10, 6940D $1.63
17 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
18 961006-2 RETAINING RING S-10, N9501B $0.86
19 962105-3 RETAINING RING R-26, GA4530 $1.48
20 257662-7 SLEEVE 15, 6940D $8.01
21 261095-0 RUBBER WASHER 21, 6940D $3.72
22 267120-5 FLAT WASHER 15, 6940D $5.92
23 322689-7 ANVIL, 6940DWA $42.94
24 322688-9 HAMMER, 6940D $31.72
25 216001-0 STEEL BALL 3.5, 6800DBV $0.53
26 267121-3 FLAT WASHER 20, 6940D $2.18
27 233107-9 COMPRESSION SPRING 22, 6940D $4.16
28 629846-1 DC MPTOR, BTL061 $27.37
29 267053-4 F. WASHER 12, T220DW $1.63
30 226280-2 INTERNAL GEAR 69, 6940D $19.78
31 257187-1 RING 32, 6940D $4.16
32 226279-7 SPUR GEAR 29, 6940D $4.71
33 226279-7 SPUR GEAR 29, 6940D $4.71
34 154416-2 SPINDLE CPL., 6940D $26.92
35 216002-8 STEEL BALL 4.8, NHP1310 $0.53
36 211064-1 B. BEARING 6000, 2414B $10.98
37 322719-4 WASHER 10, 6940D $8.12
38 226279-7 SPUR GEAR 29, 6940D $4.71
39 216002-8 STEEL BALL 4.8, NHP1310 $0.53
40 188395-2 HOUSING SET, BTL061 $28.56
41 216001-0 STEEL BALL 3.5, 6800DBV $0.53
42 424044-0 RUBBER RING, BTL061 $3.28
43 231990-8 RING SPRING 9, 6940DW $0.86
44 226721-8 Z. BEVEL GEAR 13, 6940D $19.78
45 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
46 323922-0 SPINDLE, 6940DW $25.06
47 216001-0 STEEL BALL 3.5, 6800DBV $0.53
48 322718-6 SLEEVE, 6940D $7.46
49 233005-7 COMP.SPRING 13,6903VDW $1.48
50 267085-1 FLAT WASHER 12, 6903VDW $1.63
51 231951-8 RING SPRING 11, 6903VDW $1.48
52 962116-8 RETAINING RING R-28, 6940D $1.96
53 324705-1 HOOK, BHP451,BTW251 $2.84
54 251314-2 SCREW M4X12, BHP451 $0.86
55 135183-8 ANGLE HEAD ASS'Y, BTL061 $89.40
1001 784202-3 #2 PHILLIPS BIT 2-45, 6095D $3.40
