Makita BTD130FW Impact Wrench & Driver Parts

Makita BTD130FW Impact Wrench & Driver Parts Image

Makita BTD130FW Parts

Download Schematic

Time to buy a new tool?

Makita BTD130FW

6-5/8 Inch 14.4V LXT...

$291.99

Free Shipping

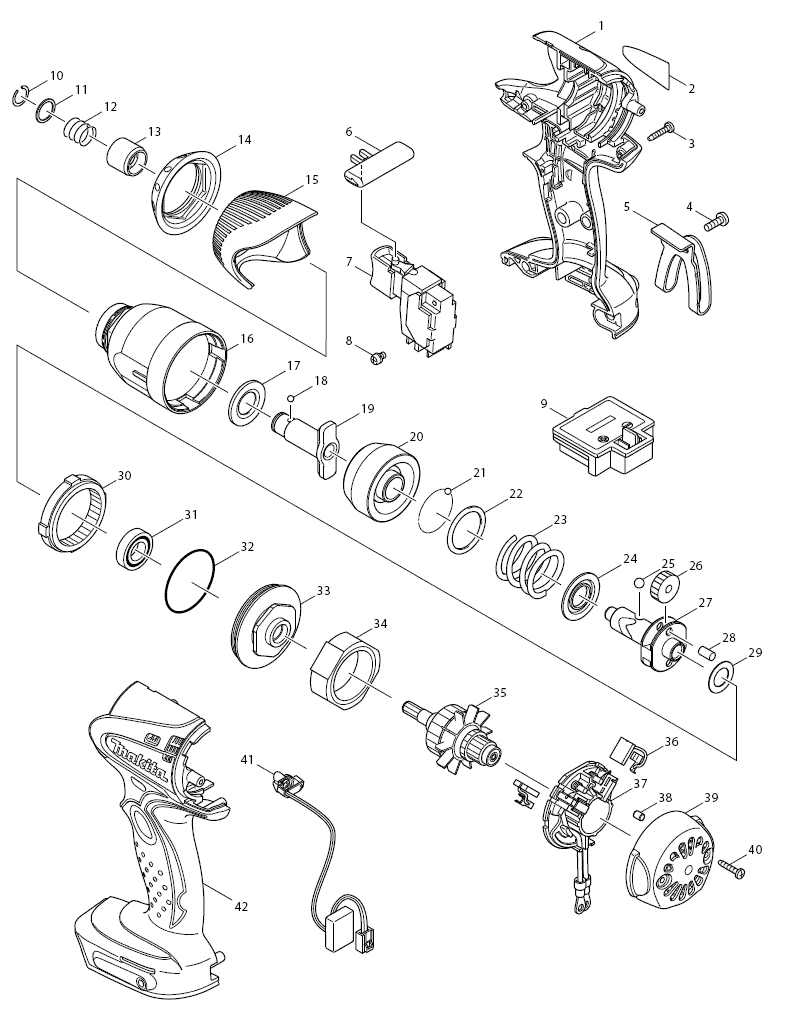

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	861532-0	NAME PLATE, BTD130F	$0.89
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	251314-2	SCREW M4X12, BHP451	$0.86
6	419041-9	F/R CHANGE LEVER, BTD140	$1.52
7	650564-0	SWITCH, BTD140	$30.70
8	652045-0	PAN HEAD SCREW M3.5 X 5, BTD130F	$0.49
009-1	643811-6	TERMINAL, BTD130F	$4.16
10	231951-8	RING SPRING 11, 6903VDW	$1.48
11	267085-1	FLAT WASHER 12, 6903VDW	$1.63
12	233005-7	COMP.SPRING 13,6903VDW	$1.48
13	324420-7	SLEEVE, 6903VDW	$7.46
16	154590-6	HAMMER CASE, BTD141	$19.78
17	261108-7	NYLON WASHER 14, 6908DWA	$1.63
18	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
19	324432-0	ANVIL M, 6980FDWDE	$22.86
20	324583-9	HAMMER, BTD130F	$15.93
21	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
22	267175-0	FLAT WASHER 24, 6914DWA	$1.63
23	233430-2	COMPRESSION SPRING 24, BTD141	$3.61
24	267766-7	CUP WASHER 14, BTW121SA	$1.63
25	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
26	226336-1	SPUR GEAR 22, 6908DWA	$6.25
27	324552-0	SPINDLE, BTD130F	$17.25
28	256253-1	PIN 5, 6908DWA	$1.19
29	267212-0	FLAT WASHER 12, 6918DWD	$1.34
30	227150-8	INTERNAL GEAR 51, BTD130F	$4.27
31	211140-1	BALL BEARING 6901LLB, 6918DWD	$9.99
32	213507-9	O RING 40, HR1821	$1.96
033-1	154769-9	BEARING BOX ., BTD141	$14.61
34	638396-5	YORK UNIT, BTD140	$15.93
37	638387-6	BRUSH HOLDER,BTD140	$4.16
38	263032-0	RUBBER PIN 4, BTD130F	$0.86
39	418982-6	REAR COVER, BTD130FW (WHITE)	$8.01
40	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
41	631631-0	LIGHT CIRCUIT, BTD130F	$19.45
C10	417724-5	LATCH, HP2070F	$1.26
C30	324207-7	SHAFT, LXFD01CW	$1.26
A03-1	824753-5	PLASTIC TOOL CASE, BTD140	$60.20
C10	324207-7	SHAFT, LXFD01CW	$1.26
C20	413098-2	PLATE FOR CASE, BTD130F	$0.97
C30	417724-5	LATCH, HP2070F	$1.26
C40	419215-2	PLASTIC CASE LID, BTD130F	$8.01
C50	419216-0	HANDLE FOR CASE, BTD130F	$2.84
