Makita BTD062 Impact Wrench & Driver Parts

Makita BTD062 Impact Wrench & Driver Parts Image

Makita BTD062 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

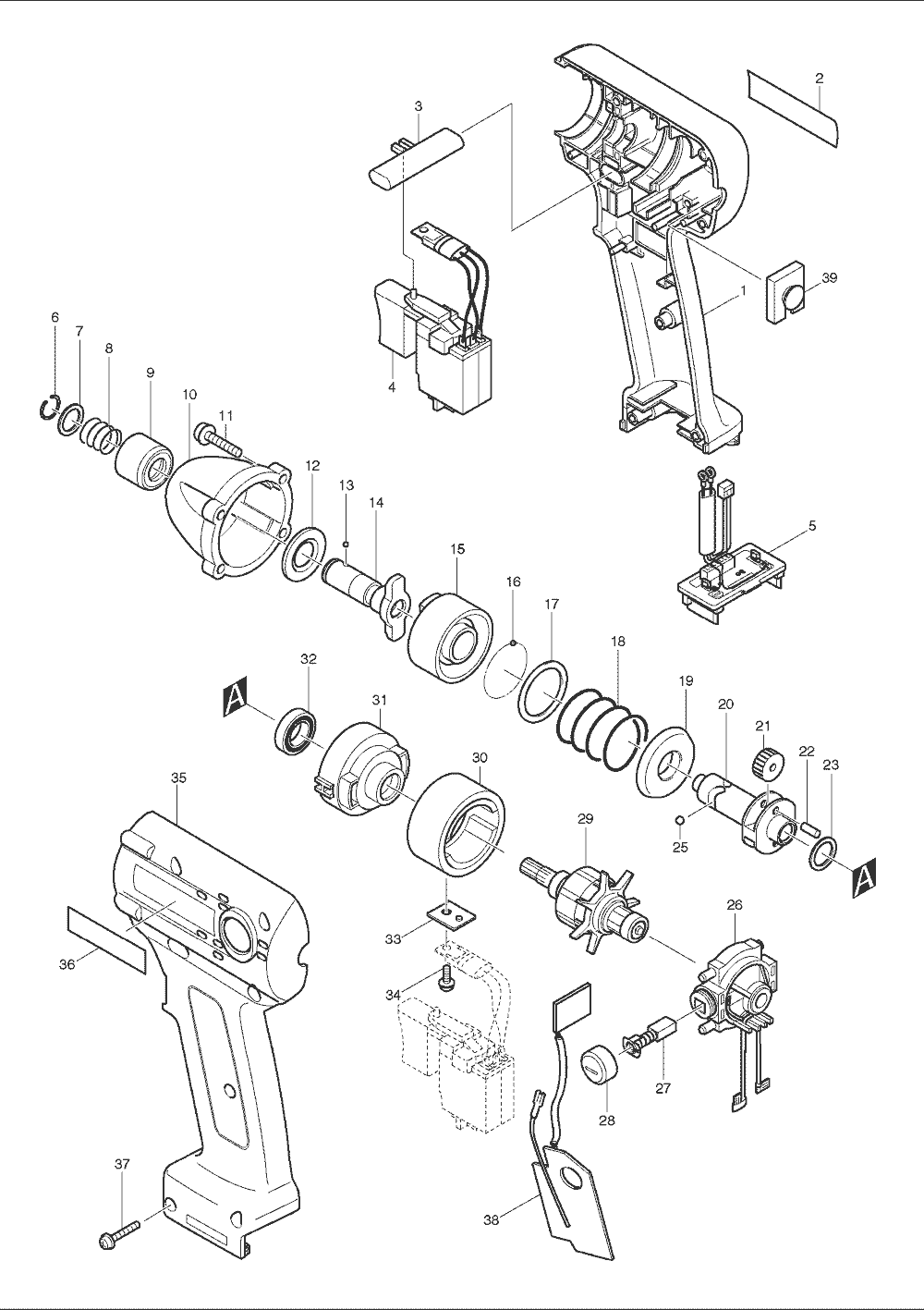

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	183388-4	HOUSING SET, BTD042	$26.38
2	853316-0	NAME PLATE BTD062, BTD062Z	$0.96
3	417283-9	F/R CHANGE LEVER, 8390D	$2.84
4	650533-1	SWITCH, BTD042	$49.47
5	638085-2	TERMINAL UNIT, BTD042	$18.57
6	231965-7	RING SPRING 10, DF030DW	$0.86
7	267143-3	FLAT WASHER 11, BTD060Z	$1.63
8	233005-7	COMP.SPRING 13,6903VDW	$1.48
9	162218-2	SLEEVE, BTD060Z	$6.80
10	152661-3	HAMMER CASE CPL., BTD060Z	$30.49
11	911138-5	P.H. SCREW M4X20, 9218SB	$0.86
11	911536-3	PAN HEAD SCREW M4X20, 6904VH	$1.19
12	261117-6	NYLON WASHER 12, BTD060Z	$2.18
13	216019-1	STEEL BALL 3, BTD060Z	$0.53
14	324054-6	ANVIL M, BTD060Z	$29.37
15	324033-4	HAMMER B, BTD060Z	$26.92
16	216019-1	STEEL BALL 3, BTD060Z	$0.53
17	267175-0	FLAT WASHER 24, 6914DWA	$1.63
18	233296-0	COMPRESSION SPRING 24, BTD060Z	$3.61
19	344907-3	SPRING HOLDER, BTD060Z	$3.06
20	324051-2	SPINDLE B, BTD060Z	$37.02
21	227009-9	SPUR GEAR 16, BTD060Z	$7.02
22	268064-2	PIN 3.5, BTD060Z	$1.10
23	267104-3	FLAT WASHER 12, HR2400	$2.16
25	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
26	638105-2	ENDBELL COMPLETE, GBTD042Z	$13.29
27	195020-8	CARBON BRUSH CB-434 SET, BTW121SA	$5.92
28	643933-2	HOLDER CAP, 6908DWA	$1.63
29	619058-4	ARMATURE, BTD060Z	$50.69
30	632966-2	YOKE UNIT, BTD060Z	$43.65
31	152772-4	INTERNAL GEAR CASE CPL., BTD060Z	$7.02
32	211136-2	BALL BEARING 6801LLB, SC190DWDE	$9.99
33	689096-0	FET SPACER, 6918DWD	$1.52
34	266170-7	TAPPING SCREW ST3X8, 6918DWD	$0.53
35	183388-4	HOUSING SET, BTD042	$26.38
36	819063-3	MAKITA LABEL, DA3010F	$0.96
37	265095-2	PAN HEAD SCREW M3X20, BTD040Z	$1.19
38	631452-0	CONTROLLER, BTD042	$66.80
40	227107-9	INTERNAL GEAR 39, BTD061	$5.70
41	417346-1	INTERNAL GEAR CASE, BTD061	$4.27
