Makita BST221 Stapler Parts

Makita BST221 Stapler Parts Image

Makita BST221 Parts
18V LXT Lithium-Ion Cordless 3/8 Inch Crown Stapler Kit

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BST221
18V LXT Lithium-Ion ...
$439.00
Tool Diagram    (Click image to Zoom in) View larger Image

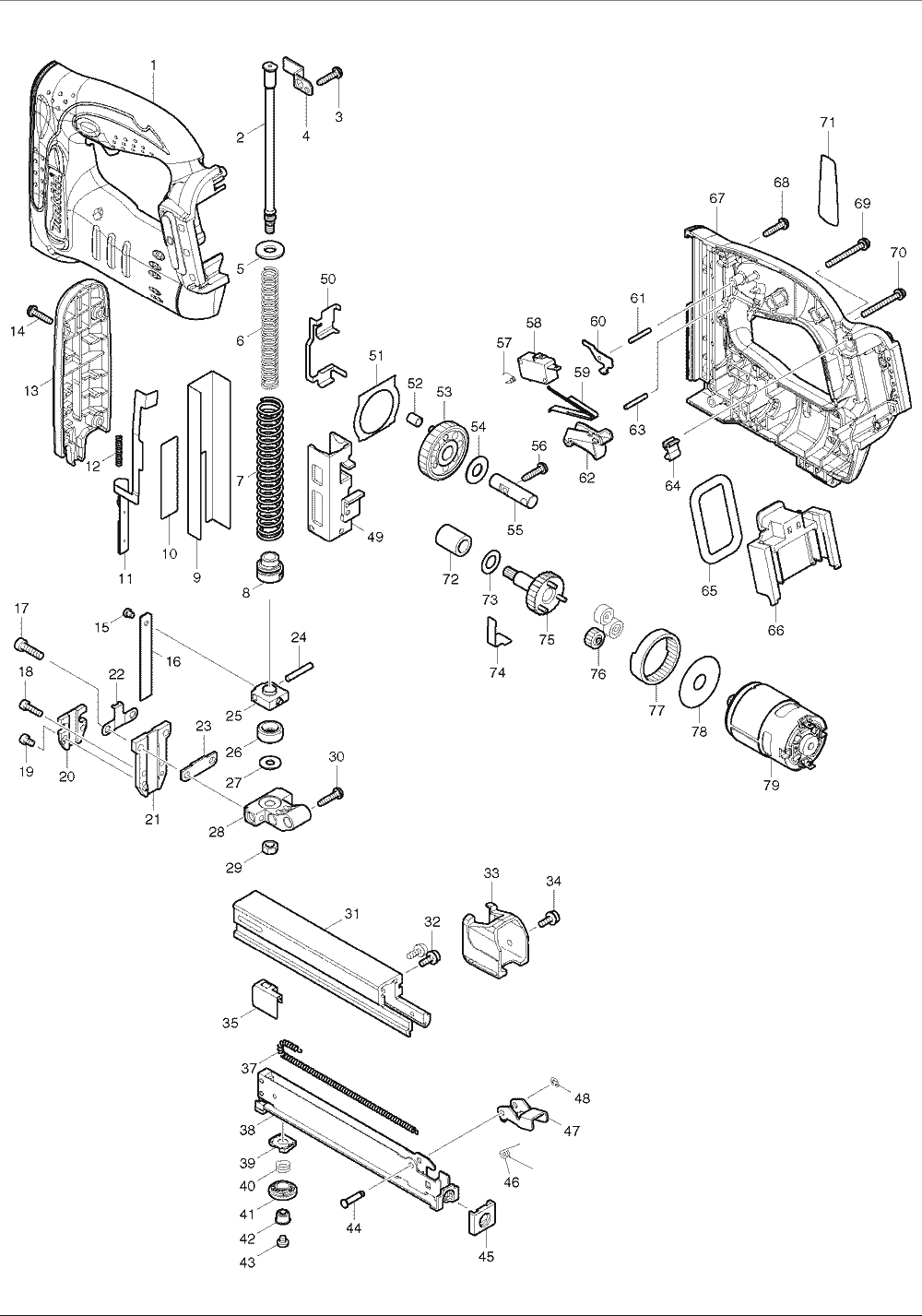

Makita BST221 Stapler Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 188588-1 HOUSING SET, BST221 $48.55
2 325635-9 GUIDE BOLT, BST221 $9.22
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
4 345907-6 FIX PLATE, BST221 $3.61
5 253762-1 F. WASHER 8, LS1040 $2.18
6 234060-2 COMPRESSION SPRING 9, BST221 $3.61
7 234101-4 COMPRESSION SPRING 13, BST221 $4.71
8 424135-7 SPRING HOLDER, BST221 $4.71
9 345978-3 GUIDE PLATE, BST221 $3.61
10 345906-8 UPPER PLATE, BST221 $2.51
11 165503-2 SAFETY LEVER, BST221 $12.63
11 165602-0 SAFETY LEVER, BST221 $12.63
12 234078-3 COMPRESSION SPRING 4, BST221 $1.12
14 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
15 268157-5 PIN 4, BST221 $2.51
16 345996-1 DRIVER, BST221 $13.84
17 922227-1 H.S.H. BOLT M5X18, 2030N $1.08
18 266201-2 HEX SOCKET HEAD BOLT M4X14, BST221 $0.90
19 266199-3 HEX SOCKET HEAD BOLT M4X6, BST221 $0.90
20 450541-0 SAFETY LEVER GUIDE, BST221 $2.51
20 451801-3 SAFETY LEVER GUIDE, BST221 $2.51
21 158759-4 DRIVER GUIDE CPL., BST221 $22.86
22 345910-7 SPRING BASE, BST221 $3.61
23 344670-8 SET PLATE, BST221 $1.34
24 256206-0 PIN 4, T220DW $1.48
25 313150-5 DRIVER LOCK, BST221 $14.94
26 424099-5 CUSHION, BST221 $2.51
27 253804-1 F. WASHER 6, 6012HDW $1.34
28 318267-9 HOLDER, BST221 $10.43
29 931302-2 HEX NUT M6, HR2400 $0.79
30 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
31 158758-6 MAIN MAGAZINE CPL., BST221 $52.70
32 911113-1 P.H. SCREW M4X10, 4301BV $0.86
33 450540-2 END CAP, BST221 $4.71
34 911113-1 P.H. SCREW M4X10, 4301BV $0.86
35 345997-9 PUSHER, BST221 $10.43
37 231854-6 TENSION SPRING 3, BST221 $4.71
38 165532-5 SUB MAGAZINE, BST221 $74.40
39 450775-5 ADJUSTER BASE, BST221 $2.51
40 231323-7 COMP. SPRING 9, BST211 $0.90
41 450702-2 ADJUSTER, BST221 $2.51
42 450774-7 LOCK SLEEVE, BST221 $2.51
43 265127-5 P.H. SCREW M4X4, BFT040FZ $0.53
44 268029-4 PIN 4, BST221 $2.51
45 421637-4 MAGAZINE END, BST221 $3.61
46 233528-5 TORSION SPRING 5, BST221 $2.51
47 345861-4 LEVER, BST221 $8.12
48 961017-7 STOP RING E-3, 4304, SH01 $0.53
49 165506-6 HAMMER, BST221 $21.76
50 345914-9 SLIDE PLATE, BST221 $5.92
51 343629-2 PLATE, T220DW $3.06
52 257772-0 SLEEVE 5, BST221 $4.71
53 158646-7 SPUR GEAR 55 CPL., BST221 $17.25
54 253171-4 F. WASHER 10, T220DW $1.34
55 324947-7 PIN 10, BST221 $5.92
56 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
57 233531-6 TORSION SPRING 3, BST221 $2.51
58 651891-8 SWITCH, 6900DW, SH01W $6.47
59 232240-4 LEAF SPRING, BST221 $4.71
60 345908-4 RELEASE PLATE, BST221 $3.61
61 256221-4 PIN 3, JR3020 $1.19
62 450536-3 TRIGGER, BST221 $3.61
63 256221-4 PIN 3, JR3020 $1.19
64 424026-2 CUSHION, BTW251 $2.95
65 424030-1 CUSHION, BHR240 $1.52
66 643841-7 TERMINAL, BHR240 $9.33
67 188588-1 HOUSING SET, BST221 $48.55
68 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
69 911163-6 P.H. SCREW M4X35, 4014NV $0.86
70 911163-6 P.H. SCREW M4X35, 4014NV $0.86
71 865830-4 NAME PLATE, BST221 $1.08
72 214058-5 PLANE BEARING 10, T220DW $3.06
73 253758-2 F. WASHER 10, 9901 $1.01
74 232241-2 LEAF SPRING, BST221 $3.61
75 158647-5 SPUR GEAR 7 CPL., BST221 $7.02
76 221961-3 SPUR GEAR 27, T220DW $6.25
77 221999-8 INTERNAL GEAR 69, T220DW $16.81
78 267053-4 F. WASHER 12, T220DW $1.63
79 629858-4 DC MOTOR, BST221 $25.17
1002 251314-2 SCREW M4X12, BHP451 $0.86
1003 324705-1 HOOK, BHP451,BTW251 $2.84
