Makita BSS611 Cordless Saw Parts

Makita BSS611 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

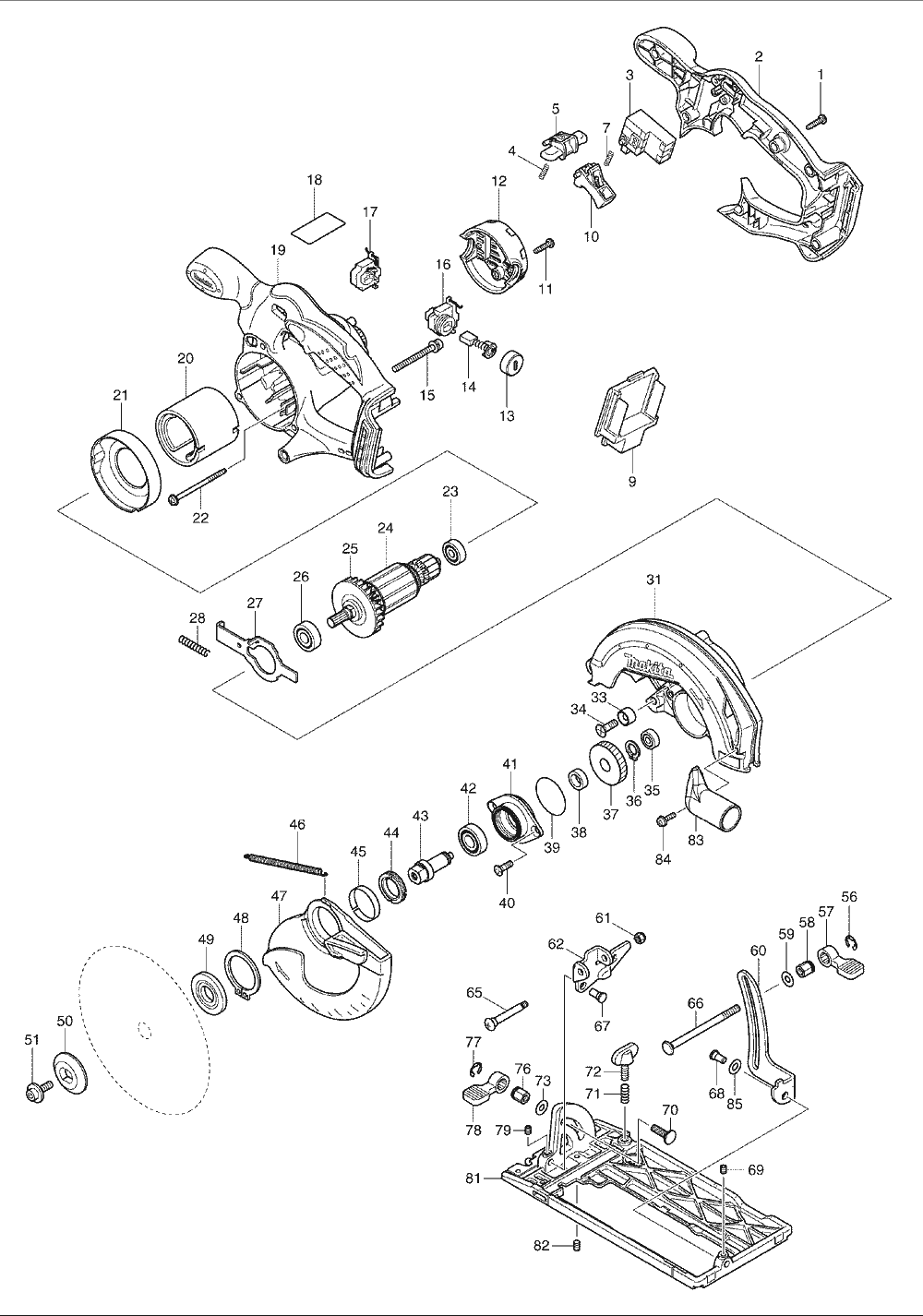

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
2	450227-6	HANDLE COVER, BSS6110Z	$7.02
3	651976-0	SWITCH TG72BD, BSS611Z	$13.84
4	231469-9	COMP. SPRING 4, SH01W	$0.86
5	419664-3	LOCK OFF LEVER, BCS550/Z	$1.63
7	231469-9	COMP. SPRING 4, SH01W	$0.86
9	643838-6	TERMINAL, BTD140	$5.92
10	419665-1	SWITCH LEVER, BCS550/Z	$1.63
11	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
12	419281-9	REAR COVER, BSS610	$4.16
13	643829-7	HOLDER CAP, BJR182Z	$0.97
14	195022-4	CARBON BRUSH SET CB-441, BJR181	$4.71
15	911263-2	P.H. SCREW M5X40, 4131	$1.74
16	643825-5	BRUSH HOLDER, BSS611Z	$2.51
17	643824-7	BRUSH HOLDER, BSS611Z	$2.51
18	864619-7	NAME PLATE, BSS611	$1.08
19	158604-3	MOTOR HOUSING COMPLETE, BSS611Z	$10.43
20	638571-3	YOKE UNIT, BJR182Z	$8.01
21	419285-1	BAFFLE PLATE, BSS610	$2.84
22	266292-3	TAPPING SCREW 4X65, 5402NA	$1.74
23	210045-2	BALL BEARING 627DDW, BSS611Z	$2.51
24	510095-0	ARMATURE ASS'Y 18V, BSS611Z	$20.55
25	241869-5	FAN 55, 5621DWA	$4.16
26	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
27	346059-6	SHAFT LOCK, BSS610	$2.84
28	233092-6	COMP. SPRING 5, 5740NB	$0.86
31	158617-4	BLADE CASE COMPLETE, BSS611Z	$13.84
33	262049-0	RUBBER RING 6, HM1303B	$1.19
34	251368-9	COUNTERSUNK SCREW M6, 5620DWA	$1.74
35	210028-2	BALL BEARING 606ZZ, BSS611Z	$4.16
36	961052-5	RETAINING RING S-12, 9218PBL	$0.86
37	227156-6	SPUR GEAR 52, BSS610	$9.77
38	257173-2	RING 12, 5740NB	$1.26
39	213512-6	O RING 39, HK1800	$3.61
40	265034-2	C.S.H. SCREW, BCS550	$1.19
41	318009-1	BEARING BOX W/O BEARING, BSS610	$4.16
42	210109-2	BALL BEARING 6001DDW, BSS611Z	$2.51
43	324626-7	SPINDLE, BSS610	$12.63
44	285845-9	BEARING RETAINER 19-29, BSS610	$4.16
45	345469-4	THICKNESS RING, BSS610	$2.84
46	231821-1	TENSION SPRING 3, BSS610	$4.16
47	419280-1	SAFETY COVER, BSS610	$8.01
48	961152-1	RETAINING RING (EXT)S-34, BSS610	$1.74
49	224411-7	INNER FLANGE 35, 5007NK	$1.52
50	224409-4	OUTER FLANGE 35, 5007NK	$2.84
51	266133-3	HEX BOLT M6X20, 5620DWA	$1.48
56	961014-3	STOP RING E-8, 3901	$0.86
57	272229-0	LEVER 40, BCS550	$5.92
58	252158-3	HEX. NUT M6, 5620DWA	$3.61
59	941151-9	F. WASHER 6, 5007NB	$0.75
60	345658-1	DEPTH GUIDE, BSS610	$2.84
61	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
62	345657-3	ANGULAR GUIDE, BSS610	$4.16
65	265056-2	PAN HEAD SCREW M5, 5620DWA,SH01W	$3.61
66	266194-3	F.H. SCREW M6X90, 5620DWA	$4.93
67	256480-0	SHOULDER PIN 6-7, 5740NB	$0.86
68	256480-0	SHOULDER PIN 6-7, 5740NB	$0.86
69	266264-8	H.S.H.SCREW M5X8, BSS730SH	$1.19
70	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
71	231007-7	COMPRESSION SPRING 6, BSS610	$0.86
72	251896-4	SCREW M5X20, BSS611Z	$3.61
73	941151-9	F. WASHER 6, 5007NB	$0.75
76	252133-9	HEX NUT M6, BSS611Z	$4.71
77	961014-3	STOP RING E-8, 3901	$0.86
78	272251-7	LEVER 30, BSS610	$1.52
79	266264-8	H.S.H.SCREW M5X8, BSS730SH	$1.19
81	154831-0	BASE CPL., BSS610	$52.50
82	266229-0	HEX.SCREW M5X8, 4200N	$1.19
85	253186-1	F. WASHER 7, JR3010	$1.34
1001	164095-8	GUIDE RULE, 4200H	$12.60
1005	783203-8	HEX WRENCH 5, 2708	$3.24
