Makita BSS610 Cordless Saw Parts

Makita BSS610 Parts

6-1/2 inch 18V LXT Lithium-ion Circular Saw Kit

Download Schematic

Time to buy a new tool?

Makita BSS610

6-1/2 inch 18V LXT ...

$349.00

Free Shipping

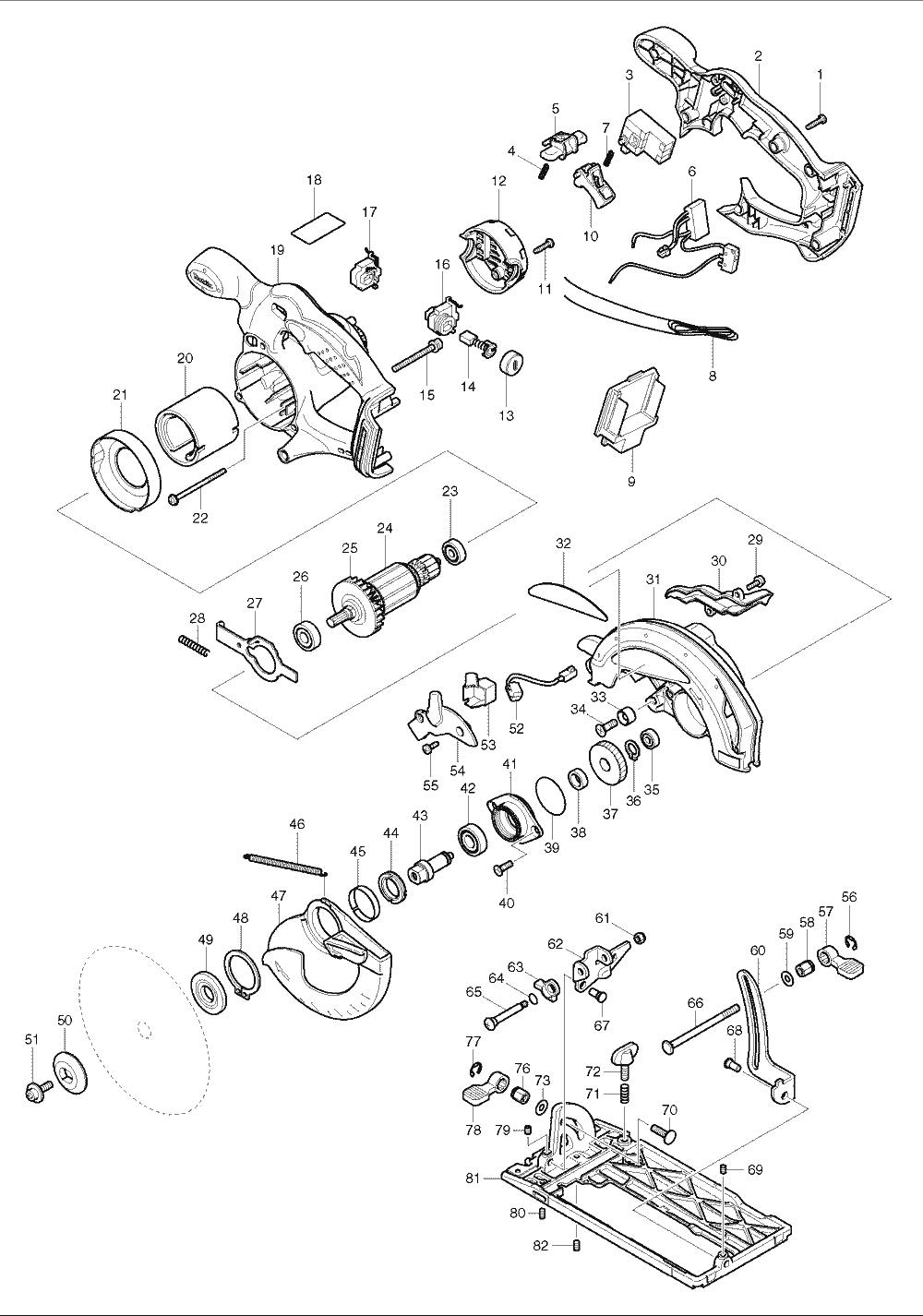

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
00	82BSS610	SLEEVE BSS610	$1.30
2	419279-6	HANDLE COVER,BSS610	$30.49
3	651956-6	SWITCH, BSS501	$17.25
4	231469-9	COMP. SPRING 4, SH01W	$0.86
5	419322-1	LOCK OFF LEVER, BSS610	$2.84
6	631695-4	POWER SUPPLEY CIRCUIT, BSS610	$17.25
7	231469-9	COMP. SPRING 4, SH01W	$0.86
8	638432-7	LEAD UNIT, BSS610	$4.16
9	643838-6	TERMINAL, BTD140	$5.92
10	419176-6	SWITCH LEVER, BSS610	$2.84
11	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
12	419281-9	REAR COVER, BSS610	$4.16
13	643941-3	HOLDER CAP, BJR181	$4.49
14	195022-4	CARBON BRUSH SET CB-441, BJR181	$4.71
15	911263-2	P.H. SCREW M5X40, 4131	$1.74
16	643814-0	BRUSH HOLDER, BSS610	$4.16
17	643813-2	BRUSH HOLDER, BSS610	$4.16
18	862352-5	NAME PLATE, BSS610	$0.89
19	419278-8	MOTOR HOUSING, BSS610	$30.49
20	638107-8	YOKE UNIT, BSS610	$34.98
21	419285-1	BAFFLE PLATE, BSS610	$2.84
22	266292-3	TAPPING SCREW 4X65, 5402NA	$1.74
23	210023-2	BALL BEARING 627DDW, 9910	$6.69
24	519173-3	ARMATURE ASS'Y, BSS610	$61.00
25	241869-5	FAN 55, 5621DWA	$4.16
26	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
27	346059-6	SHAFT LOCK, BSS610	$2.84
28	233092-6	COMP. SPRING 5, 5740NB	$0.86
29	911118-1	P.H. SCREW M4X12, 6221D	$0.86
30	419284-3	BLOWER NOZZLE, BSS610	$2.84
31	188045-9	BLADE CASE SET, BSS610	$52.50
32	819217-2	MAKITA LOGO PLATE, BSS610	$5.48
33	262049-0	RUBBER RING 6, HM1303B	$1.19
34	251368-9	COUNTERSUNK SCREW M6, 5620DWA	$1.74
35	210028-2	BALL BEARING 606ZZ, BSS611Z	$4.16
36	961052-5	RETAINING RING S-12, 9218PBL	$0.86
37	227156-6	SPUR GEAR 52, BSS610	$9.77
38	257173-2	RING 12, 5740NB	$1.26
39	213512-6	O RING 39, HK1800	$3.61
40	265034-2	C.S.H. SCREW, BCS550	$1.19
41	318009-1	BEARING BOX W/O BEARING, BSS610	$4.16
42	211131-2	BALL BEARING 6001DDW,BO4556	$13.07
43	324626-7	SPINDLE, BSS610	$12.63
44	285845-9	BEARING RETAINER 19-29, BSS610	$4.16
45	345469-4	THICKNESS RING, BSS610	$2.84
46	231821-1	TENSION SPRING 3, BSS610	$4.16
47	419280-1	SAFETY COVER, BSS610	$8.01
48	961152-1	RETAINING RING (EXT)S-34, BSS610	$1.74
49	224151-7	INNER FLANGE, 5007FK	$7.46
50	224275-9	OUTER FLANGE, 5620DWA	$5.92
51	266133-3	HEX BOLT M6X20, 5620DWA	$1.48
52	631694-6	LED CIRCUIT, BSS610	$19.78
53	419341-7	CONNECTOR BOX, BSS610	$1.52
54	419282-7	LIGHT COVER, BSS610	$2.84
55	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
56	961014-3	STOP RING E-8, 3901	$0.86
57	272229-0	LEVER 40, BCS550	$5.92
58	252158-3	HEX. NUT M6, 5620DWA	$3.61
59	941151-9	F. WASHER 6, 5007NB	$0.75
60	345658-1	DEPTH GUIDE, BSS610	$2.84
61	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
62	345657-3	ANGULAR GUIDE, BSS610	$4.16
63	317986-4	STOPPER, BSS610	$4.16
64	213062-1	O RING 9, LS1211	$0.86
65	265084-7	TROSS HEAD SCREW M5, BSS730SH	$1.74
66	266194-3	F.H. SCREW M6X90, 5620DWA	$4.93
67	256480-0	SHOULDER PIN 6-7, 5740NB	$0.86
67	256442-8	SHOULDER PIN 6-7, 5007NHK	$1.48
68	256480-0	SHOULDER PIN 6-7, 5740NB	$0.86
68	256442-8	SHOULDER PIN 6-7, 5007NHK	$1.48
69	266264-8	H.S.H.SCREW M5X8, BSS730SH	$1.19
70	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
71	231007-7	COMPRESSION SPRING 6, BSS610	$0.86
72	251896-4	SCREW M5X20, BSS611Z	$3.61
73	941151-9	F. WASHER 6, 5007NB	$0.75
76	252133-9	HEX NUT M6, BSS611Z	$4.71
77	961014-3	STOP RING E-8, 3901	$0.86
78	272251-7	LEVER 30, BSS610	$1.52
79	266264-8	H.S.H.SCREW M5X8, BSS730SH	$1.19
80	266229-0	HEX.SCREW M5X8, 4200N	$1.19
81	154831-0	BASE CPL., BSS610	$52.50
82	266229-0	HEX.SCREW M5X8, 4200N	$1.19
85	253186-1	F. WASHER 7, JR3010	$1.34
1001	164095-8	GUIDE RULE, 4200H	$12.60
1004	783203-8	HEX WRENCH 5, 2708	$3.24
1006	A-85092	6-1/2 CARBIDE BLADE 24T, 5620DWA	$27.00
1008	450128-8	BATTERY COVER FOR 18V/14.4V LI-ION BATTERY	$2.40
