Makita BO6040 Sander & Polisher Parts

Makita BO6040 Sander & Polisher Parts Image

Makita BO6040 Parts

6 Inch Random Orbit Sander

Download Schematic

Time to buy a new tool?

Makita BO6040

6 Inch Random Orbit ...

$329.99

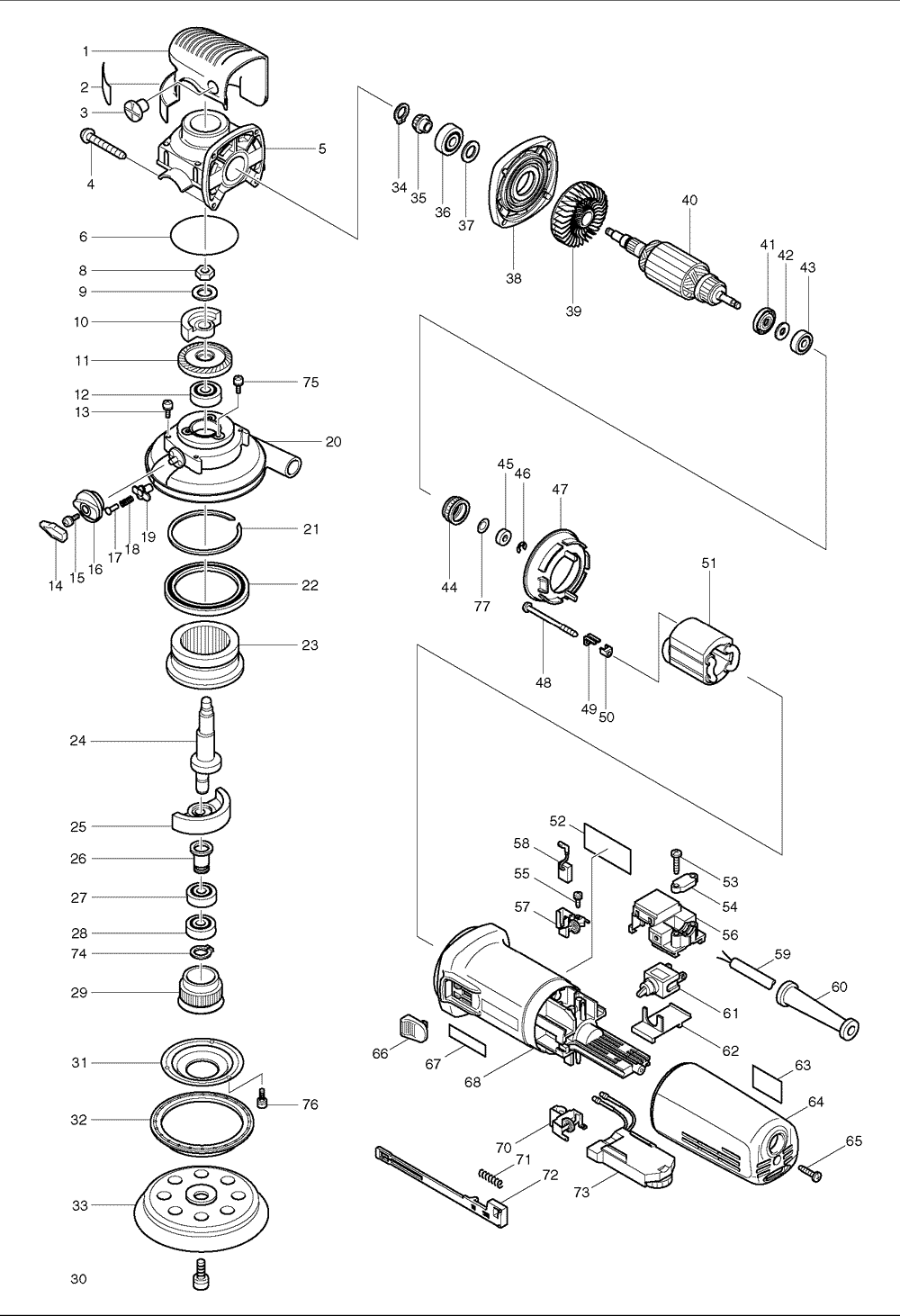

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	417371-2	HEAD COVER, BO6040	$22.42
26	82BO6040	SLEEVE, BO6040	$3.50
2	816367-4	INDICATION LABEL, BO6040	$1.53
3	265083-9	F.H. SCREW M8X11, BO6040	$1.74
4	266050-7	P.T. SCREW 4X30, 4304	$1.19
5	152671-0	GEAR HOUSING CPL., BO6040	$27.59
6	213724-1	O RING 62, BO6040	$3.28
9	253024-7	F. WASHER 10, LS0714	$1.34
10	324071-6	UPPER BALANCE WEIGHT, BO6040	$25.06
11	152674-4	SPIRAL BEVEL GEAR 42 CPL., BO6040	$27.59
12	211106-1	B. BEARING 6201LLB, 9227C	$13.07
13	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
14	417373-8	CAP, BO6040	$4.16
15	911119-9	P.H. SCREW M4X12, BO6040	$0.86
16	152987-3	KNOB COMPLETE, T2	$3.61
16	153428-2	KNOB COMPLETE, BO6040	$4.16
17	417382-7	SPRING HOLDER, BO6040	$3.06
18	231230-4	COMP. SPRING 4, BO6040	$1.48
19	345209-0	HOLDER, BO6040-T2	$9.33
20	152948-3	SKIRT, BO6040 T2	$51.40
21	257933-2	STOP RING (EXT) WR-55, BO6040	$1.52
22	211654-0	BALL BEARING 6811LLB, BO6040	$51.00
23	227008-1	INTERNAL GEAR 29, BO6040	$4.27
24	324069-3	SPINDLE, BO6040	$19.45
25	324072-4	LOWER BALANCE WEIGHT, BO6040	$29.37
26	324070-8	SLEEVE, BO6040	$8.01
27	211131-2	BALL BEARING 6001DDW,BO4556	$13.07
28	211131-2	BALL BEARING 6001DDW,BO4556	$13.07
29	152760-1	SPUR GEAR 26 COMPLETE, BO6040	$26.16
30	266270-3	H.S.H.BOLT M8X14, BO6040	$1.74
31	152761-9	BEARING RETAINER 80 CPL., BO6040	$10.65
32	421763-9	RUBBER GUARD, BO6040	$4.16
33	A-91207	6 RUBBER SANDING PAD-SOFT, BO6030	$53.80
34	961002-0	RETAINING RING S-6, 6012HDW	$0.53
35	227402-7	SPIRAL BEVEL GEAR 9, BO6040	$11.09
36	211142-7	BALL BEARING 6001LLB, 9565CV	$9.99
37	253084-9	F. WASHER 12, 5014NB	$1.63
38	317359-1	GEAR HOUSING COVER, 9564CV	$12.52
39	240033-5	FAN 57, BO6040	$5.48
40	515201-2	ARMATURE ASS'Y 115V, BO6040	$45.39
40	515221-6	ARMATURE ASSEMBLY, BO6040	$67.20
41	681656-4	INSULATION WASHER, GD0800C	$1.34
42	253823-7	F. WASHER 7, LS1011	$1.34
43	210027-4	BALL BEARING 627DDW, BO6040	$6.03
44	421738-8	LABYRINTH RUBBER RING 22, BO6040	$8.01
45	688117-5	MAGNET SLEEVE, GD0800C	$4.16
46	259039-2	SELF LOCK 6, 3707FC	$0.49
46	961011-9	STOP RING E-4, 4301BV	$1.48
47	413076-2	BAFFLE PLATE, GD0800C	$2.84
48	266274-5	TAPPING SCREW 4X55, BO6040	$1.19
49	344871-8	RETAINER, GD0800C	$1.26
50	417237-6	INSULATION COVER, 9564CV	$1.52
51	626531-7	FIELD 115V, BO6040	$53.10
52	852515-1	NAME PLATE, BO6040	$1.12
53	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
54	687063-9	STRAIN RELIEF, 4323K	$1.26
55	266256-7	TAPPING SCREW PT3X10, GD0800C	$0.86
56	632999-7	SWITCH BLOCK, GD0800C	$8.01
57	643760-7	BRUSH HOLDER, 9557NB	$4.16
59	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
59	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
60	682559-5	CORD GUARD 8, 6824	$2.51
60	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
61	651418-4	SWITCH, 9564CV	$17.25
62	687113-0	COVER, GD0800C	$1.52
63	816365-8	INDICATION LABEL, BO6040	$1.48
64	417185-9	REAR COVER, BO6040	$8.01
65	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
66	417813-6	SWITCH KNOB, BO6040	$1.52
67	819720-3	MAKITA LABEL, 3707fc	$1.21
68	417812-8	MOTOR HOUSING SET, BO6040	$16.04
68	417184-1	MOTOR HOUSING,9560CV	$12.63
70	643760-7	BRUSH HOLDER, 9557NB	$4.16
71	233071-4	COMPRESSION SPRING 4, JN1601	$0.86
72	417187-5	SWITCH LEVER, GD0800C	$2.84
73	631390-6	CONTROLLER, GD0800C	$59.70
74	961052-5	RETAINING RING S-12, 9218PBL	$0.86
75	911119-9	P.H. SCREW M4X12, BO6040	$0.86
76	911119-9	P.H. SCREW M4X12, BO6040	$0.86
77	267756-0	WAVE WASHER 6, 9561CV	$1.01
78	152988-1	DUST SEAL WASHER COMPLETE,	$3.61
78	153427-4	DUST SEAL WASHER CPL., BO6040	$4.38
1001	410047-0	WRENCH HOLDER, GV5000	$1.63
1002	783203-8	HEX WRENCH 5, 2708	$3.24
1003	824591-5	PLASTIC TOOL CASE, BO6040	$40.20
1004	794610-0	6 ABR. DISC #120 10/PKG, BO6040	$31.20
5001	810134-9	CAUTION LABEL, 3709	$0.93
