Makita BO6030 Sander & Polisher Parts

Makita BO6030 Sander & Polisher Parts Image

Makita BO6030 Parts
6 Inch Random Orbit Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BO6030
6 Inch Random Orbit ...
$195.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

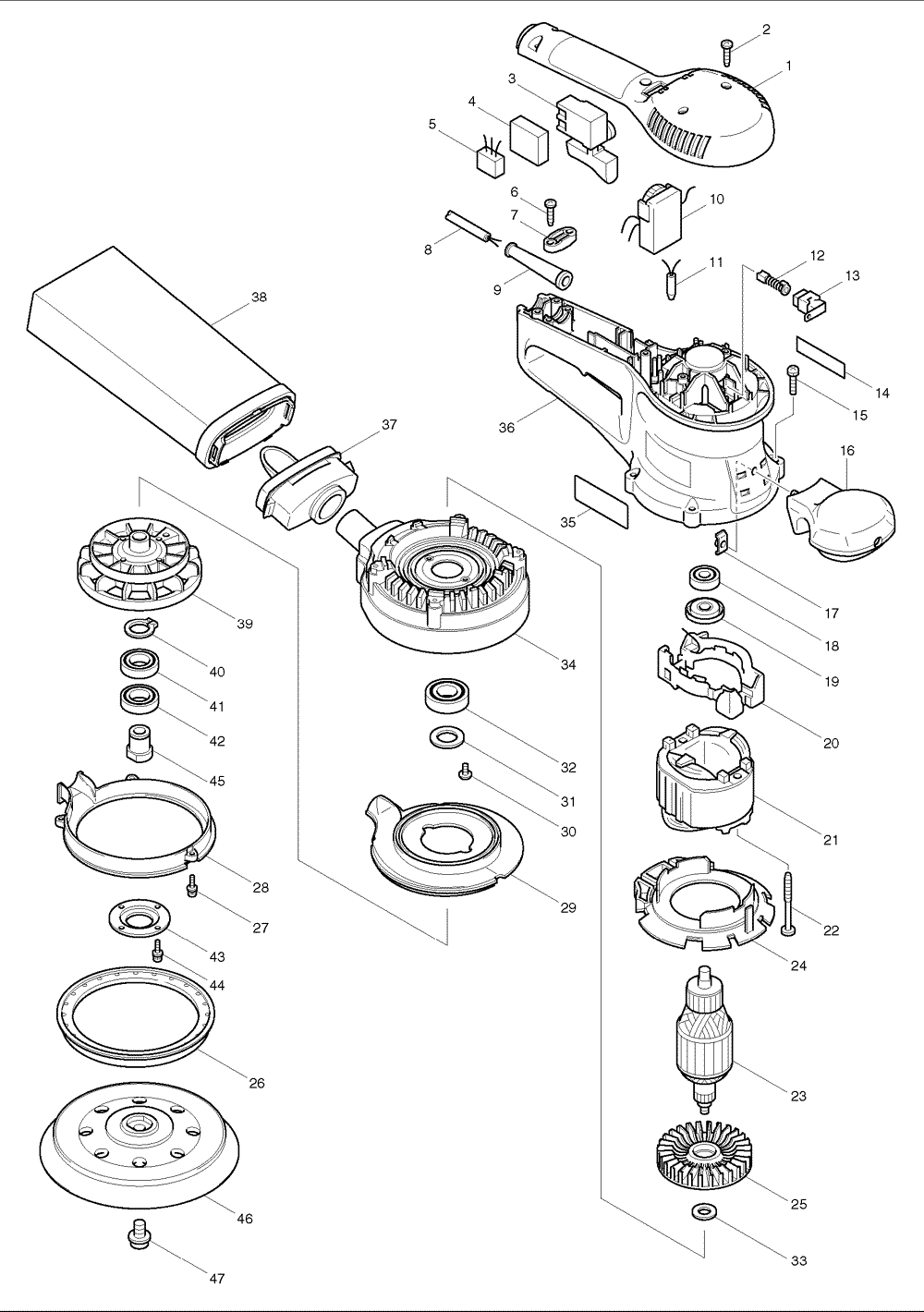

Makita BO6030 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 417416-6 TOP COVER, BO6030 $25.06
2 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
3 651286-5 SWITCH, BO5021 $9.22
6 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
7 687063-9 STRAIN RELIEF, 4323K $1.26
8 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
8 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
9 682559-5 CORD GUARD 8, 6824 $2.51
9 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19

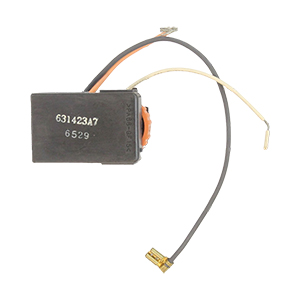

10 631423-7 CONTROLLER, BO6030 $34.17
12 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
13 643923-5 BRUSH HOLDER, HR2410 $1.63
14 819063-3 MAKITA LABEL, DA3010F $0.96
15 911138-5 P.H. SCREW M4X20, 9218SB $0.86
16 168324-1 FRONT GRIP, BO5021K $7.46
17 252042-2 SQ. NUT M5, UM140D $3.61
18 210005-4 BALL BEARING 608DDW, 9031 $13.07
19 681644-1 INSULATED WASHER, 9227C $1.63
20 638067-4 SUPPORT CPL.,BO6030 $5.48
21 634406-6 FIELD 115V, BO6030 $17.03
22 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
23 516451-2 ARMATURE ASS'Y 115V, BO6030 $62.00
24 417415-8 BAFFLE PLATE, BO6030 $4.16
25 240043-2 FAN 70, BO6030 $4.16
26 421763-9 RUBBER GUARD, BO6040 $4.16
27 911018-5 P.H. SCREW M3X12, VR250DW $0.86
28 183323-2 SCROLL HOUSING SET, BO6030 $8.01
29 183323-2 SCROLL HOUSING SET, BO6030 $8.01
30 251291-8 SCREW M4X8, BO6030 $0.86
31 253315-6 THIN WASHER 15, UM401DW $1.34
32 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
33 253878-2 F. WASHER 10, 4301BV $1.63
34 317416-5 SKIRT, BO6030 $36.61
35 852996-9 NAME PLATE, BO6030 $0.96
36 183322-4 MOTOR HOUSING SET, BO6030 $28.15
37 151518-5 DUST NOZZLE COMPLETE, BO5021K $14.60
38 151517-7 DUST BAG COMPLETE, BO5021K $14.60
39 241665-1 FAN 92, BO6030 $18.57
40 961055-9 RETAINING RING S-15, 5007F $1.19
41 211234-2 BALL BEARING 6902LLB, BO6030 $11.97
41 211239-2 BALL BEARING 6902DDW, BO6030 $9.22
42 211239-2 BALL BEARING 6902DDW, BO6030 $9.22
42 211244-9 BALL BEARING 6902LLU, BO6030 $11.97
43 285702-1 BEARING RETAINER, BO6030 $2.84
44 911018-5 P.H. SCREW M3X12, VR250DW $0.86
45 324144-5 SPINDLE, BO6030 $6.80
46 A-91207 6 RUBBER SANDING PAD-SOFT, BO6030 $53.80
47 266270-3 H.S.H.BOLT M8X14, BO6040 $1.74
1001 410047-0 WRENCH HOLDER, GV5000 $1.63
1002 794610-0 6 ABR. DISC #120 10/PKG, BO6040 $31.20
1003 783203-8 HEX WRENCH 5, 2708 $3.24
5001 810134-9 CAUTION LABEL, 3709 $0.93
