Makita BO5041 Sander & Polisher Parts

Makita BO5041 Sander & Polisher Parts Image

Makita BO5041 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

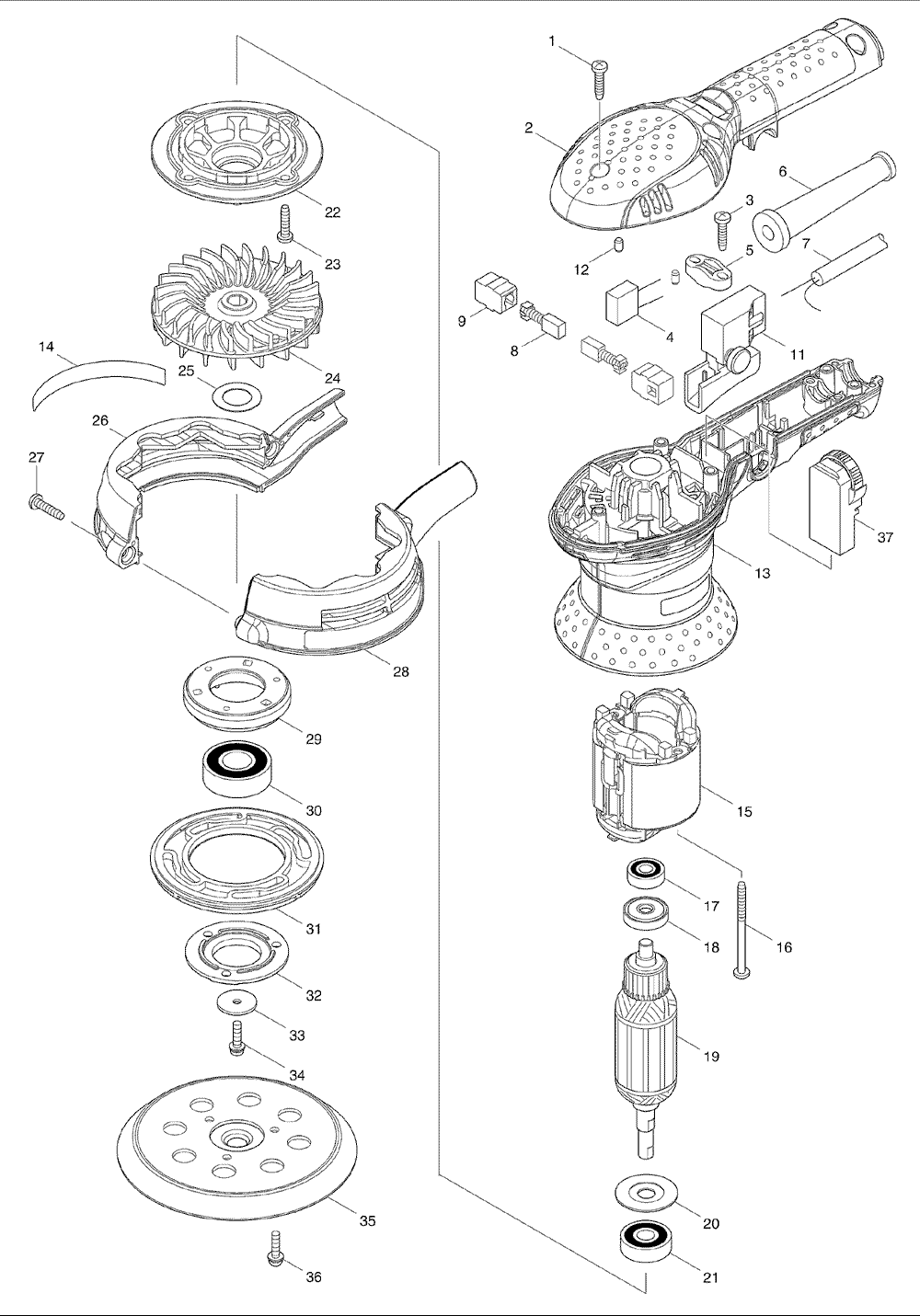

Makita BO5041 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 451619-2 TOP COVER, BO5041K $5.92
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 687063-9 STRAIN RELIEF, 4323K $1.26
5 687063-9 STRAIN RELIEF, 4323K $1.26
6 682502-4 CORD GUARD 8-85, HP2010N $2.51
6 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
6 682502-4 CORD GUARD 8-85, HP2010N $2.51
6 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
7 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
7 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
9 643552-4 BRUSH HOLDER, BO5012K $1.63
11 651286-5 SWITCH, BO5021 $9.22
9 643552-4 BRUSH HOLDER, BO5012K $1.63
12 263002-9 RUBBER PIN 4, 5007NK $0.86
11 651286-5 SWITCH, BO5021 $9.22
13 451617-6 MOTOR HOUSING, BO5041K $11.53
12 263002-9 RUBBER PIN 4, 5007NK $0.86
14 867887-1 NAME PLATE, BO5041K $2.40
13 451617-6 MOTOR HOUSING, BO5041K $11.53
15 633721-5 FIELD, BO5041K $13.84
16 266147-2 TAPPING SCREW 4X55, 6824 $1.96
14 867887-1 NAME PLATE, BO5041K $2.40
15 633721-5 FIELD, BO5041K $13.84
17 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
16 266147-2 TAPPING SCREW 4X55, 6824 $1.96
18 681652-2 INSULATION WASHER, BO4556 $1.34
17 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
19 515731-3 ARMATURE ASS'Y 115V, B05030K $21.76
18 681652-2 INSULATION WASHER, BO4556 $1.34
19 515731-3 ARMATURE ASS'Y 115V, B05030K $21.76
20 267806-1 WASHER 9, BO4556K $1.01
20 267806-1 WASHER 9, BO4556K $1.01
21 211092-6 B. BEARING 629DDW, BO4556 $10.98
21 211092-6 B. BEARING 629DDW, BO4556 $10.98
22 450672-5 BRACKET, B05030K $2.51
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
22 450672-5 BRACKET, B05030K $2.51
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 241673-2 FAN 88, B05030K $3.61
24 241673-2 FAN 88, B05030K $3.61
25 267164-5 FLAT WASHER 15, HP2040 $1.63
25 267164-5 FLAT WASHER 15, HP2040 $1.63
26 188877-4 SKIRT SET, BO5041K $7.02
26 188877-4 SKIRT SET, BO5041K $7.02
26 816493-9 CAUTION LABEL, BO5041K $2.40
27 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
27 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
28 188877-4 SKIRT SET, BO5041K $7.02
28 188877-4 SKIRT SET, BO5041K $7.02
29 318304-9 BEARING BOX, B5030K $2.51
30 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
28 816493-9 CAUTION LABEL, BO5041K $2.40
31 424131-5 BRAKE RING, B05030K $3.61
29 318304-9 BEARING BOX, B5030K $2.51
32 318303-1 BEARING BOX COVER, B05030K $1.34
30 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
33 253739-6 FLAT WASHER 4, BO5010 $1.63
31 424131-5 BRAKE RING, B05030K $3.61
34 911128-8 P.H. SCREW M4X16, 1902 $1.48
32 318303-1 BEARING BOX COVER, B05030K $1.34
35 743081-8 BASE/PAD , BO5010 $31.20
35 RSP27 This item will be shipped Free 5 Inch Sander Pad - Hook and Loop Replaces Makit... $9.99
33 253739-6 FLAT WASHER 4, BO5010 $1.63
36 911128-8 P.H. SCREW M4X16, 1902 $1.48
34 911128-8 P.H. SCREW M4X16, 1902 $1.48
37 631955-4 CONTROLLER, BO5041K $18.35
35 743081-8 BASE/PAD , BO5010 $31.20
35 RSP27 This item will be shipped Free 5 Inch Sander Pad - Hook and Loop Replaces Makit... $9.99
36 911128-8 P.H. SCREW M4X16, 1902 $1.48
37 631955-4 CONTROLLER, BO5041K $18.35
A01 140440-1 GRIP BASE CPL., BO5041K $4.71
A01 451622-3 GRIP, BO5041K $3.61
A01 451623-1 GRIP COVER, BO5041K $3.61
A02 166078-4 DUST BAG, BO4556K $12.60
A03 257202-1 RING 25, BO4556 $3.06
A04 416063-0 DUST BAG NOZZLE, BO5010 $4.40
A05 416064-8 DUST NOZZLE, BO4556 $4.49
1002 166078-4 DUST BAG, BO4556K $12.60
1003 257202-1 RING 25, BO4556 $3.06
1004 416063-0 DUST BAG NOZZLE, BO5010 $4.40
1005 416064-8 DUST NOZZLE, BO4556 $4.49
