Makita BO5031 Sander & Polisher Parts

Makita BO5031 Sander & Polisher Parts Image

Makita BO5031 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

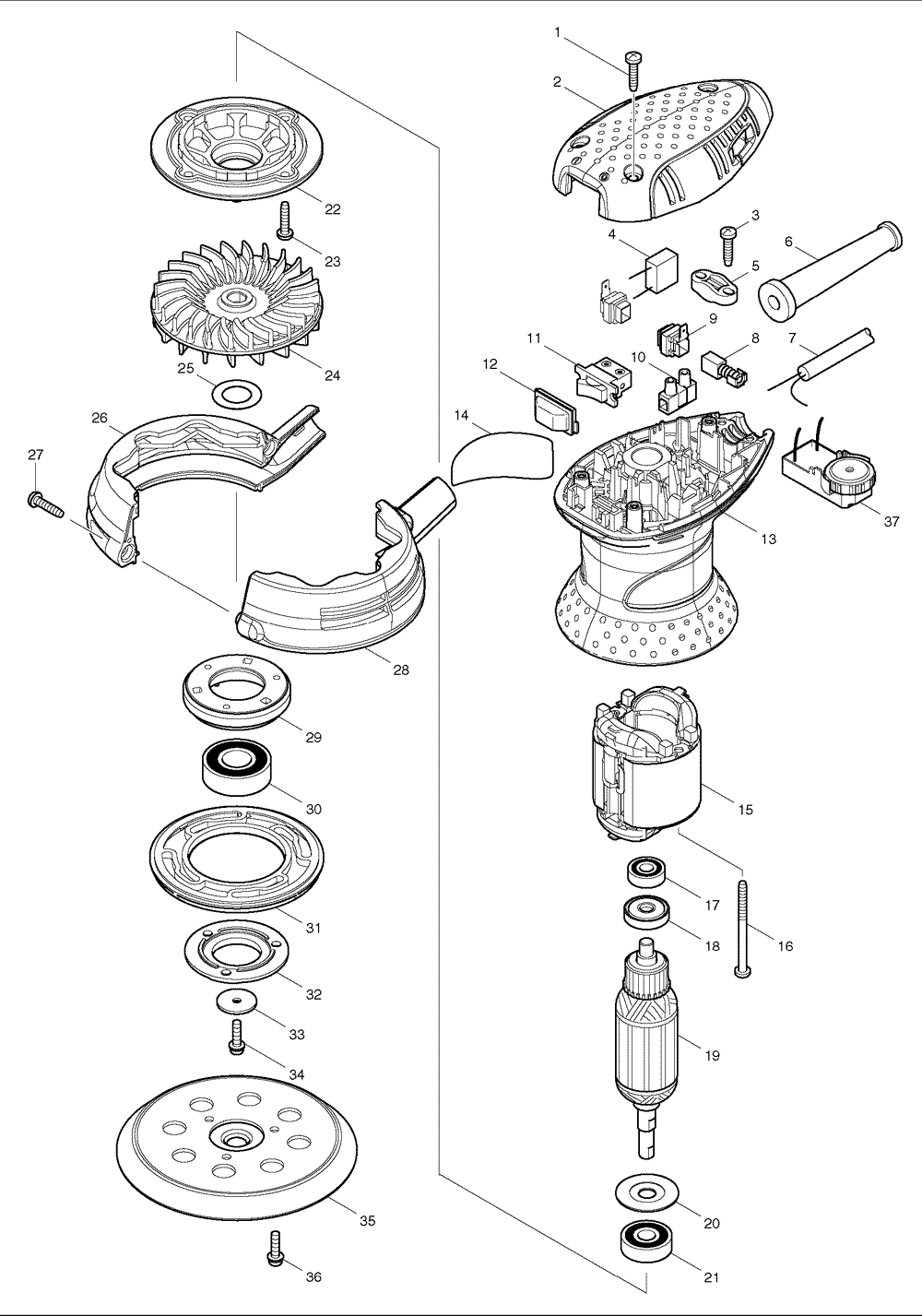

Makita BO5031 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 450810-9 TOP COVER, B05031K $3.61
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 687063-9 STRAIN RELIEF, 4323K $1.26
6 682502-4 CORD GUARD 8-85, HP2010N $2.51
6 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
7 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
7 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
8 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.99
8 K38 This item will be shipped Free Carbon Brush Set Replaces Makita (CB407), CB-419... $8.50
9 643995-0 BRUSH HOLDER, BO4556K $1.52
10 654532-5 TERMINAL BLOCK, BO4556 $3.06
11 651527-9 SWITCH, BO4556K $9.22
12 424039-3 SWITCH COVER, BO4556K $1.26
13 450809-4 MOTOR HOUSING, B05031K $7.02
14 866159-1 NAME PLATE, B05031K $1.08
15 633671-4 FIELD 115V, B05030K $8.12
16 266147-2 TAPPING SCREW 4X55, 6824 $1.96
17 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
18 681652-2 INSULATION WASHER, BO4556 $1.34
19 515731-3 ARMATURE ASS'Y 115V, B05030K $21.76
20 267806-1 WASHER 9, BO4556K $1.01
21 211092-6 B. BEARING 629DDW, BO4556 $10.98
22 450672-5 BRACKET, B05030K $2.51
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 241673-2 FAN 88, B05030K $3.61
25 267164-5 FLAT WASHER 15, HP2040 $1.63
26 188579-2 SKIRT L/R SET, B05030K $4.71
27 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
28 188579-2 SKIRT L/R SET, B05030K $4.71
29 318304-9 BEARING BOX, B5030K $2.51
30 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
31 424131-5 BRAKE RING, B05030K $3.61
32 318303-1 BEARING BOX COVER, B05030K $1.34
33 253739-6 FLAT WASHER 4, BO5010 $1.63
34 911128-8 P.H. SCREW M4X16, 1902 $1.48
35 743081-8 BASE/PAD , BO5010 $31.20
35 RSP27 This item will be shipped Free 5 Inch Sander Pad - Hook and Loop Replaces Makit... $9.99
36 911128-8 P.H. SCREW M4X16, 1902 $1.48
37 631831-2 CONTROLLER, B05031K $20.55
1001 166078-4 DUST BAG, BO4556K $12.60
1002 257202-1 RING 25, BO4556 $3.06
1003 416063-0 DUST BAG NOZZLE, BO5010 $4.40
1004 416064-8 DUST NOZZLE, BO4556 $4.49
1006 183782-0 PLASTIC TOOL CASE, BO4552K $30.20
