Makita BO5020 Sander & Polisher Parts

Makita BO5020 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

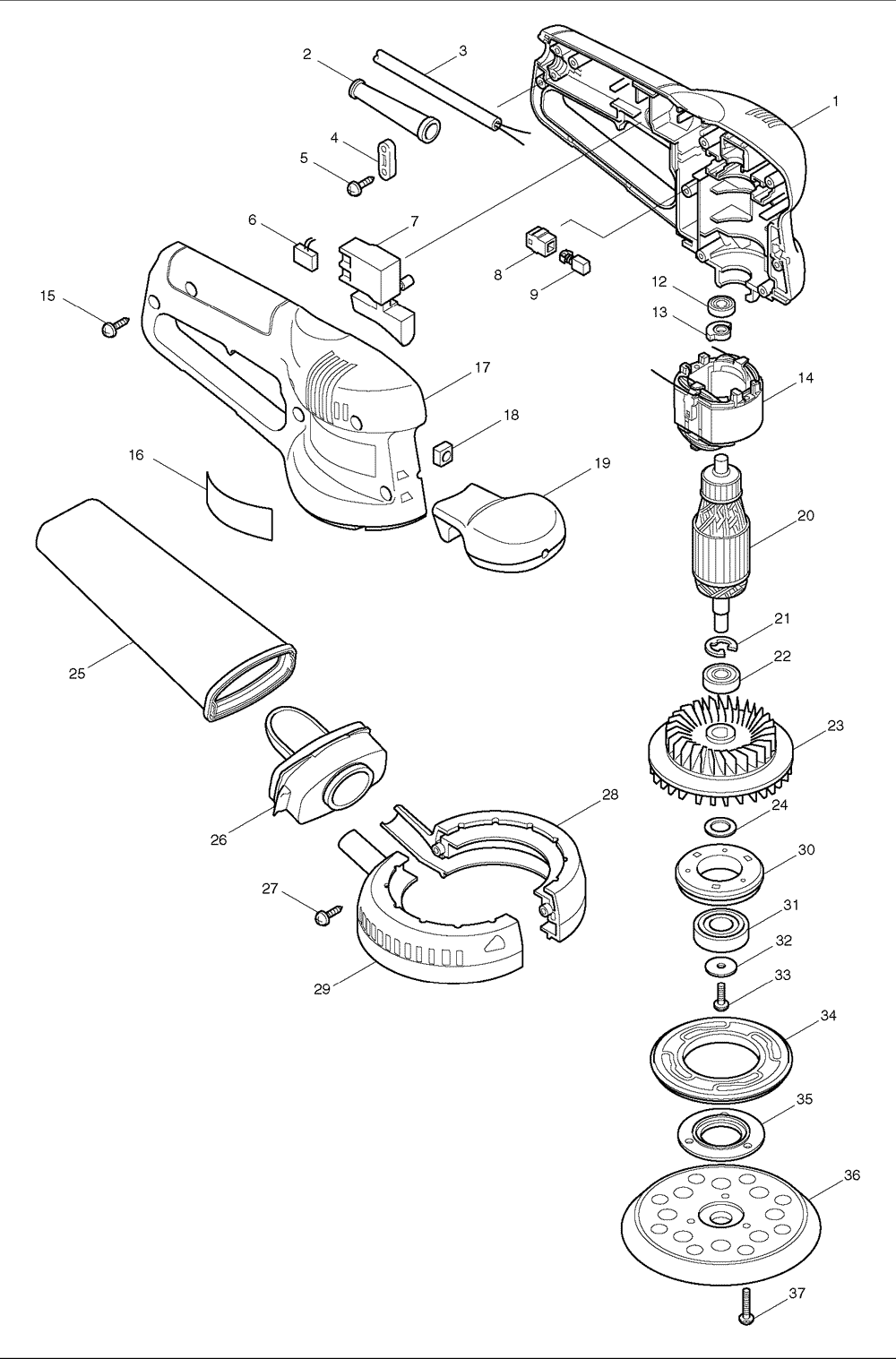

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	183107-8	HOUSING SET, BO5020	$14.61
2	682502-4	CORD GUARD 8-85, HP2010N	$2.51
2	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
3	664002-6	CORD	$9.22
3	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
4	687063-9	STRAIN RELIEF, 4323K	$1.26
5	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
7	651286-5	SWITCH, BO5021	$9.22
8	643552-4	BRUSH HOLDER, BO5012K	$1.63
12	210017-7	BALL BEARING 607DDW, 420S,T2	$10.98
13	313080-0	COUNTER WEIGHT, BO5010	$3.06
14	633431-4	FIELD 115V, BO5021K	$19.01
15	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
16	851741-9	NAME PLATE, BO5020	$1.12
17	183107-8	HOUSING SET, BO5020	$14.61
18	252045-6	SQUARE NUT M5, BO5021K	$1.96
19	168324-1	FRONT GRIP, BO5021K	$7.46
20	517231-9	ARMATURE ASS'Y 115V, BO5010	$42.22
21	961015-1	STOP RING E-9, BO5021	$0.86
22	210020-8	BALL BEARING 6000DDU, BO5010	$8.78
23	241896-2	FAN 88, BO5010	$10.32
24	253315-6	THIN WASHER 15, UM401DW	$1.34
25	151517-7	DUST BAG COMPLETE, BO5021K	$14.60
26	151518-5	DUST NOZZLE COMPLETE, BO5021K	$14.60
27	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
28	183088-6	SKIRT SET, B05010,T2	$6.80
29	183088-6	SKIRT SET, B05010,T2	$6.80
30	316835-2	BEARING BOX, BO5021K	$5.92
31	211236-8	BALL BEARING 6002DDW, 5007NK	$13.07
32	253739-6	FLAT WASHER 4, BO5010	$1.63
33	911116-5	P.H. SCREW M4X12, 4301BV	$0.53
34	421866-9	BRAKE RING, BO5010	$6.80
35	316834-4	BEARING BOX COVER, BO5010	$4.49
36	743081-8	BASE/PAD , BO5010	$31.20
36	RSP27	5 Inch Sander Pad - Hook and Loop Replaces Makit...	$9.99
37	911128-8	P.H. SCREW M4X16, 1902	$1.48
1002	183782-0	PLASTIC TOOL CASE, BO4552K	$30.20
