Makita BO5011 Sander & Polisher Parts

Makita BO5011 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

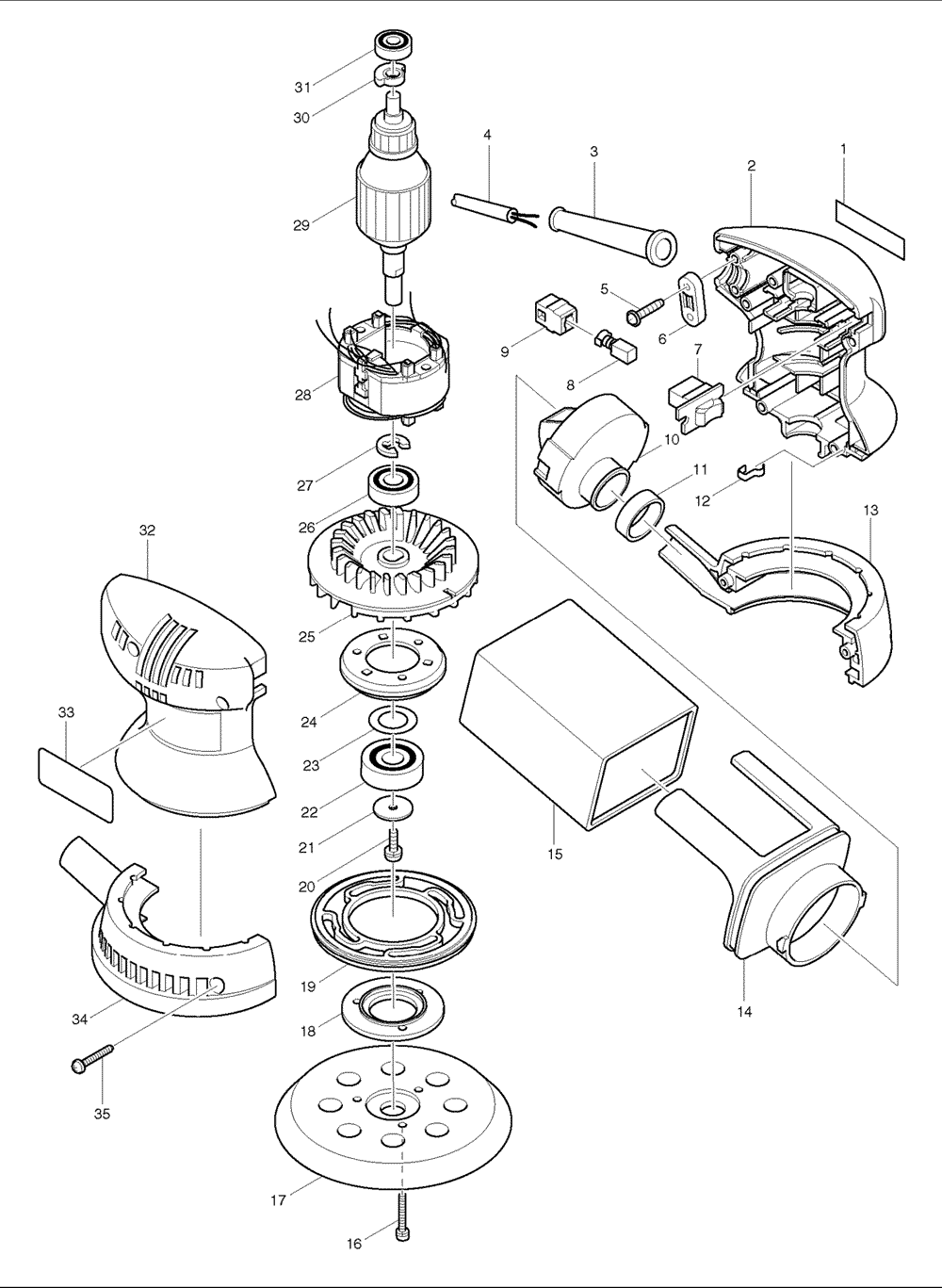

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	819063-3	MAKITA LABEL, DA3010F	$0.96
2	183048-8	MOTOR HOUSING SET, BO5010	$12.63
3	682502-4	CORD GUARD 8-85, HP2010N	$2.51
3	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
4	664002-6	CORD	$9.22
4	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
5	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
6	687063-9	STRAIN RELIEF, 4323K	$1.26
9	643552-4	BRUSH HOLDER, BO5012K	$1.63
10	416064-8	DUST NOZZLE, BO4556	$4.49
11	257202-1	RING 25, BO4556	$3.06
12	213755-0	O RING 75, HM1500	$3.61
13	183088-6	SKIRT SET, B05010,T2	$6.80
14	416063-0	DUST BAG NOZZLE, BO5010	$4.40
16	911128-8	P.H. SCREW M4X16, 1902	$1.48
17	743056-7	PSA BASE/PAD, BO5011	$22.20
18	316834-4	BEARING BOX COVER, BO5010	$4.49
19	421866-9	BRAKE RING, BO5010	$6.80
20	911116-5	P.H. SCREW M4X12, 4301BV	$0.53
21	253739-6	FLAT WASHER 4, BO5010	$1.63
22	211236-8	BALL BEARING 6002DDW, 5007NK	$13.07
23	253315-6	THIN WASHER 15, UM401DW	$1.34
24	316835-2	BEARING BOX, BO5021K	$5.92
25	241896-2	FAN 88, BO5010	$10.32
26	210020-8	BALL BEARING 6000DDU, BO5010	$8.78
27	961015-1	STOP RING E-9, BO5021	$0.86
28	593381-4	FIELD ASS'Y 115V, BO5011	$22.86
29	517231-9	ARMATURE ASS'Y 115V, BO5010	$42.22
30	313080-0	COUNTER WEIGHT, BO5010	$3.06
31	210017-7	BALL BEARING 607DDW, 420S,T2	$10.98
32	183048-8	MOTOR HOUSING SET, BO5010	$12.63
34	183088-6	SKIRT SET, B05010,T2	$6.80
35	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
