Makita BO4556K Sander & Polisher Parts

Makita BO4556K Sander & Polisher Parts Image

Makita BO4556K Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BO4556K
1/4 Inch Sheet Finis...
$64.99
Tool Diagram    (Click image to Zoom in) View larger Image

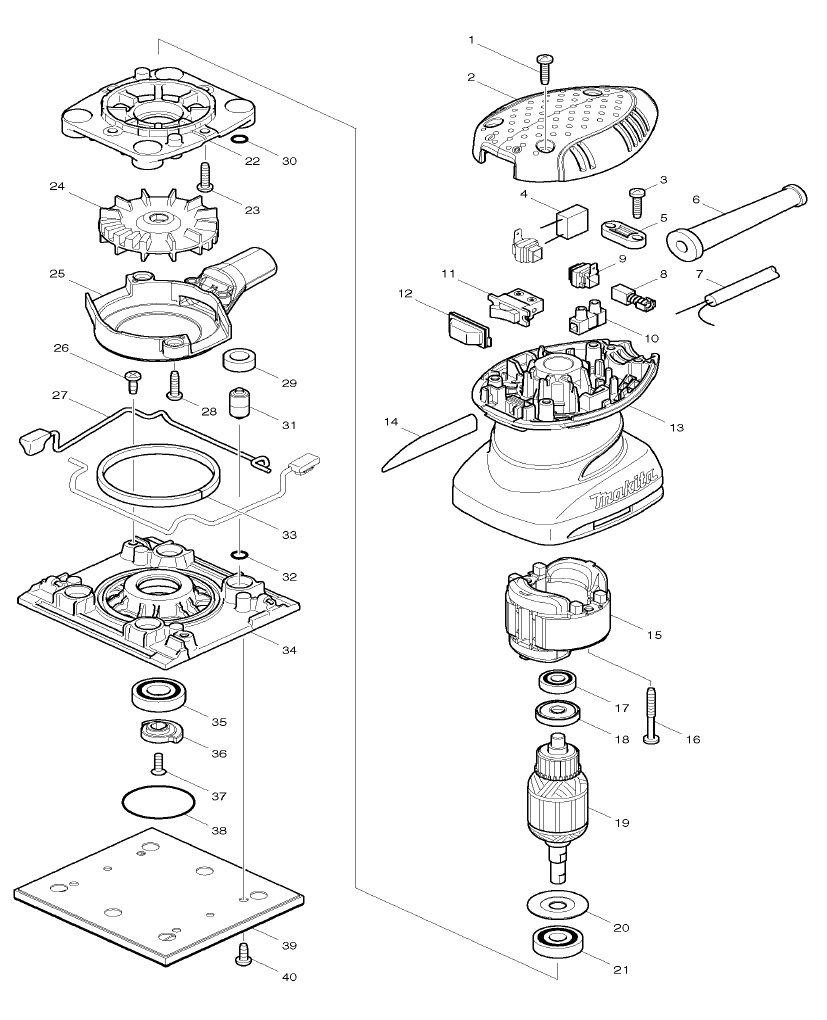

Makita BO4556K Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 450071-1 TOP COVER, BO4556K $4.16
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 687123-7 STRAIN RELIEF, JV0600K $0.75
6 682569-2 CORD GUARD, BO4556 $2.51
6 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
7 664881-2 CORD $10.43
7 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
8 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
9 643995-0 BRUSH HOLDER, BO4556K $1.52
10 654532-5 TERMINAL BLOCK, BO4556 $3.06
11 651527-9 SWITCH, BO4556K $9.22
12 424039-3 SWITCH COVER, BO4556K $1.26

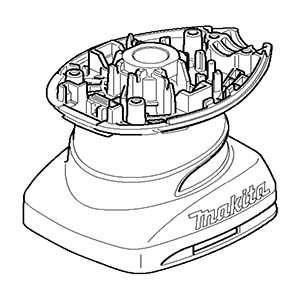

13 158373-6 MOTOR HOUSING CPL., BO4556K $11.97
14 863715-8 NAME PLATE, BO4556 $1.21

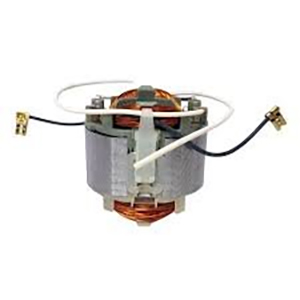

15 593646-4 FIELD ASS'Y 115V, BO4556K $10.43
16 266048-4 T. SCREW 4X40, BO4556 $1.19
17 210034-7 BALL BEARING 607LLB, BO4556 $4.16
18 681652-2 INSULATION WASHER, BO4556 $1.34
19 515706-2 ARMATURE ASS'Y 115V, BO4556K $15.82
20 267806-1 WASHER 9, BO4556K $1.01
21 211092-6 B. BEARING 629DDW, BO4556 $10.98
22 450070-3 BEARING BOX, BO4556K $4.16
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 241671-6 FAN 63, BO4556K $4.16
25 450069-8 FAN GUIDE, BO4556K $1.52
26 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
27 162259-8 LEVER CPL., BO4556K $2.84
28 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
29 424023-8 SPONGE SLEEVE 9, BO4556K $0.49
30 213983-7 O RING 4, BO4556K $0.86
31 318151-8 FOOT, BO4556K $0.90
32 213983-7 O RING 4, BO4556K $0.86
33 424038-5 SPONGE 6X18X3, BO4556K $0.49
34 450067-2 BASE, BO4556K $4.16
35 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
36 313141-6 BALANCER, BO4556K $1.26
37 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
38 213510-0 O RING 36, BO4556 $1.48
39 158324-9 PAD CPL., BO4556K $6.40
39 SPD17 This item will be shipped Free Sanding Pad -1/4 Sheet PSA 6 Holes Replaces Maki... $7.99
40 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
1001 166078-4 DUST BAG, BO4556K $12.60
1002 257202-1 RING 25, BO4556 $3.06
1003 416063-0 DUST BAG NOZZLE, BO5010 $4.40
1004 416064-8 DUST NOZZLE, BO4556 $4.49
1005 450066-4 PUNCH PLATE, BO4556K $4.40
