Makita BO4552 Sander & Polisher Parts

Makita BO4552 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

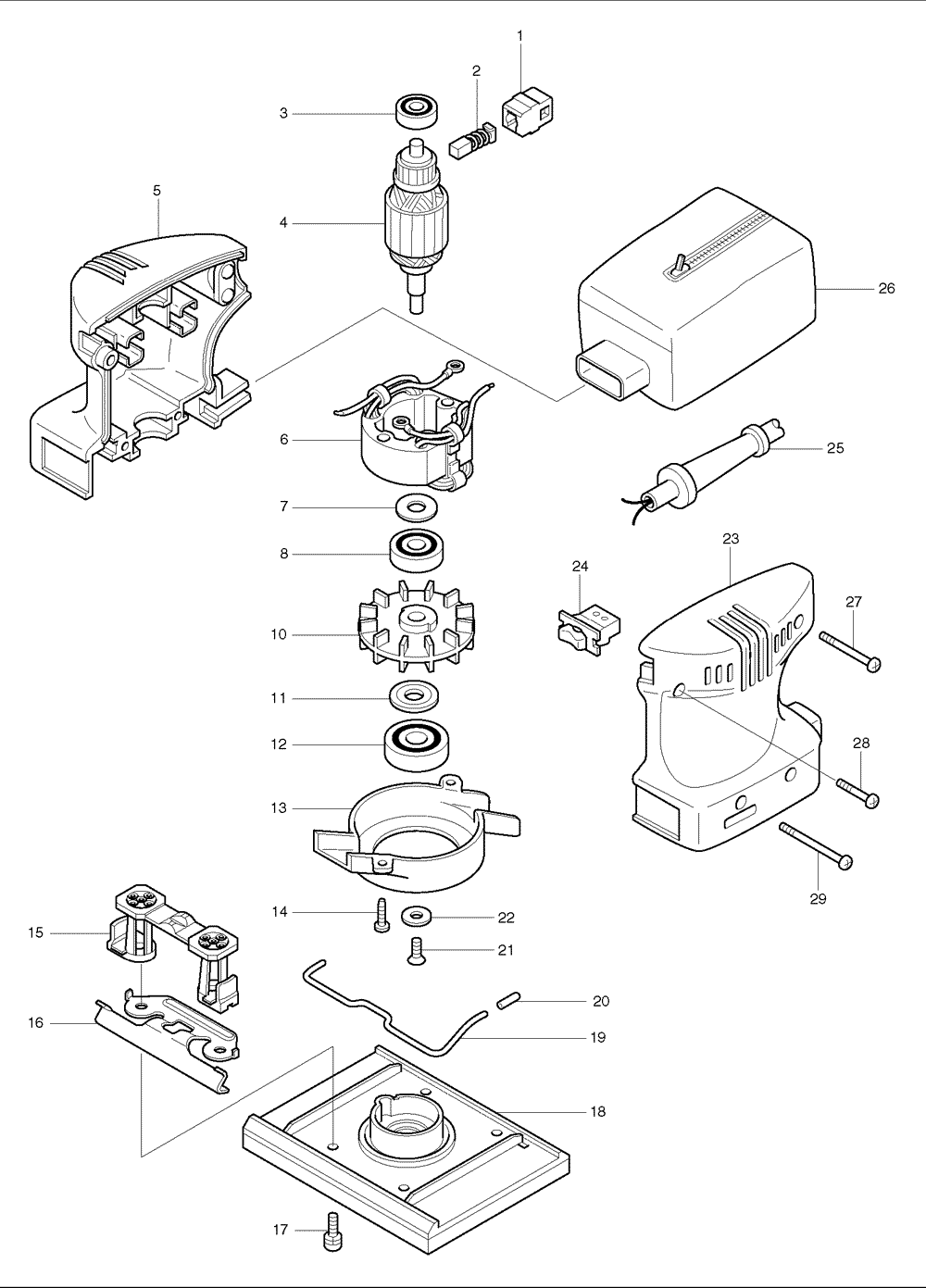

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	643552-4	BRUSH HOLDER, BO5012K	$1.63
3	211021-9	BALL BEARING 607LLB, LS1013	$8.78
3	211016-2	B. BEARING 626LLB, 6300LR	$10.98
5	182902-3	HOUSING SET, BO4562	$13.84
6	593371-7	FIELD, BO4562	$20.88
7	253214-2	F. WASHER 9, 9607BL	$1.63
8	211056-0	B. BEARING 629LLB, 4101RH	$10.98
10	241658-8	FAN 63, BO4551	$4.49
11	213051-6	DUST SEAL 10, 2711	$1.63
12	211066-7	B. BEARING 6200LLB, BO4552	$10.98
14	265871-4	TAPPING SCREW BT4X16,BO4551	$0.53
15	414312-9	FOOT, BO4562	$3.61
16	344123-7	CLAMP, BO4552	$3.06
17	251364-7	P.H. SCREW M4X14, BO4550	$1.48
19	322685-5	LEVER, BO4552	$1.63
20	415551-4	CAP 5, BO4552	$1.26
21	912117-6	C.S.H. SCREW M4X12, BO4556	$0.53
22	253825-3	F. WASHER 6, BO4510	$1.34
23	182902-3	HOUSING SET, BO4562	$13.84
26	166027-1	DUST BAG, BO4550	$12.60
27	265876-4	TAPPING SCREW BT4X40, BO5001	$0.86
28	265875-6	TAPPING SCREW BT4X25, N1900B	$0.53
29	265872-2	TAPPING SCREW BT4X50, BO4550	$0.86
1001	413094-0	PUNCH PLATE,(PLASTIC),BO4552	$4.40
1005	183782-0	PLASTIC TOOL CASE, BO4552K	$30.20
5001	810146-2	CAUTION LABEL, 6906	$1.17
