Makita BML185 Flashlight Parts

Makita BML185 Parts

18V LXT Lithium-ion Rechargeable Flashlight

Download Schematic

Time to buy a new tool?

Makita BML185

18V LXT Lithium-ion ...

$80.99

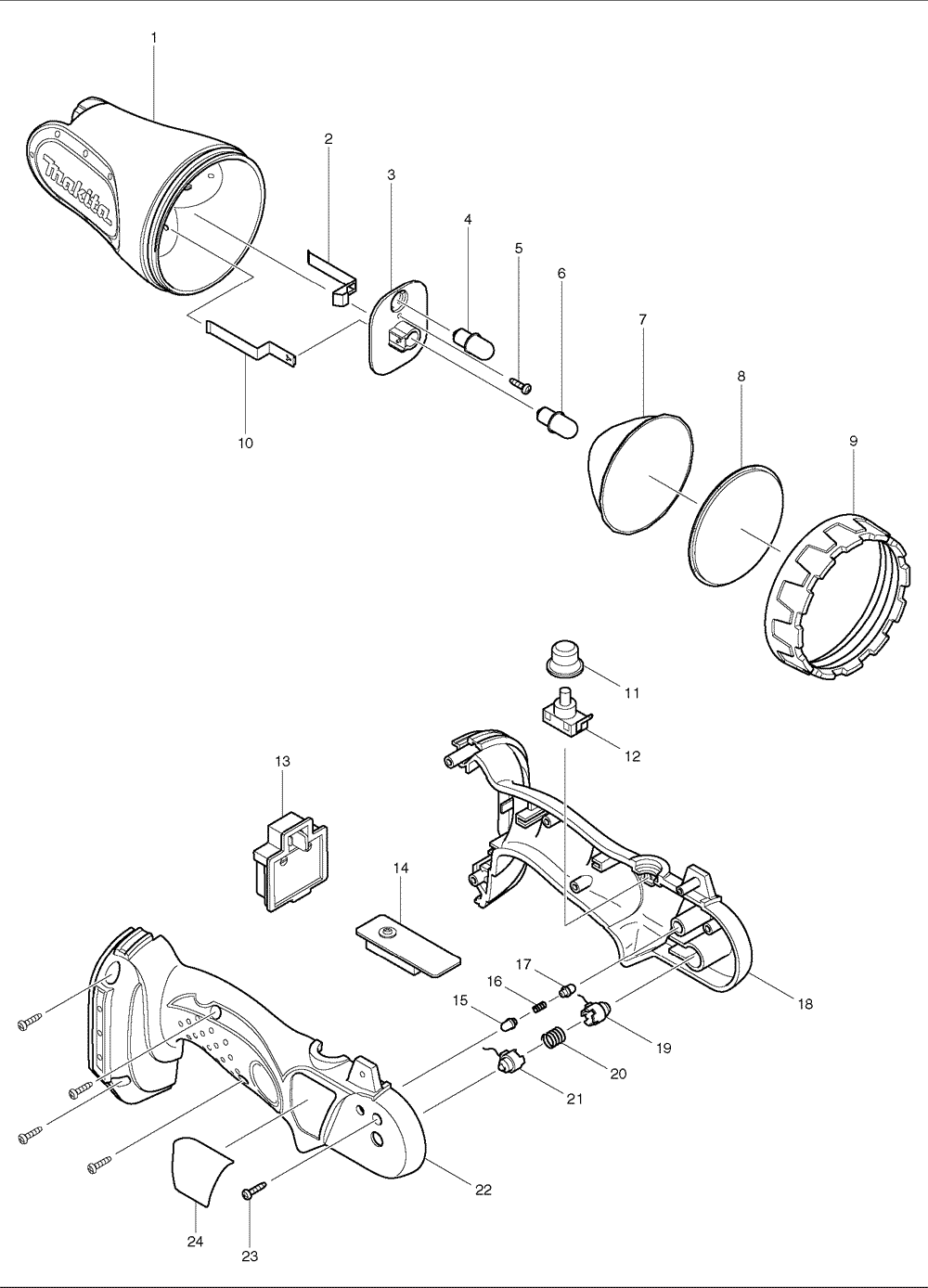

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	GM00001003	CASE HEAD, BML185	$4.16
00	82BML185	CLAMSHELL & ARTBOARD, BML185	$3.05
2	GM00001010	BULB CONTACT PLATE(-),BML185	$0.97
3	GM00001002	PROTECTOR F/CONTACT, BML185	$1.26
4	A-90261	BULB SET (2/PKG), BML185	$6.40
5	GM00001012	SCREW 3X12, BML185	$0.53
6	A-90261	BULB SET (2/PKG), BML185	$6.40
7	GM00000130	REFLECTOR, ML140	$5.92
8	GM00000070	LENS, ML140	$4.49
9	GM00001001	REFLECTOR RETAINER, BML185	$1.26
10	GM00001009	BULB CONTACT PLATE(+),BML185	$0.97
11	GM00001006	RUBBER COVER, BML185	$0.75
12	GM00000200	SWITCH, ML180	$4.60
13	GM00001116	BATTERY HOLDER, BML185	$2.51
14	GM00001029	PCB, BML185	$4.16
15	GM00001005	KNOCK SHAFT, BML185	$0.97
16	GM00000090	COMPRESSION SPRING 4, BML185	$0.86
17	GM00001005	KNOCK SHAFT, BML185	$0.97
18	GM00001000	HOUSING SET, BML185	$8.12
19	632524-4	PIVOT TERMINAL UNIT R, BML185	$1.63
19	GM00001004	LEFT CASE SHAFT, BML185	$1.26
20	233144-3	COMPRESSION SPRING 7, ML702	$0.86
21	632524-4	PIVOT TERMINAL UNIT R, BML185	$1.63
21	GM00001004	LEFT CASE SHAFT, BML185	$1.26
22	GM00001000	HOUSING SET, BML185	$8.12
23	GM00001013	SCREW 3X14, BML185	$0.86
24	GM00001008	NAME PLATE, BML185	$0.66
5001	810320-2	CAUTION LABEL, BML185W	$0.71
