Makita BML184 Flashlight Parts

Makita BML184 Parts

18V LXT Lithium-Ion rechargeable fluorescent/incandescent flashlight

Download Schematic

Time to buy a new tool?

Makita BML184

18V LXT Lithium-Ion ...

$82.99

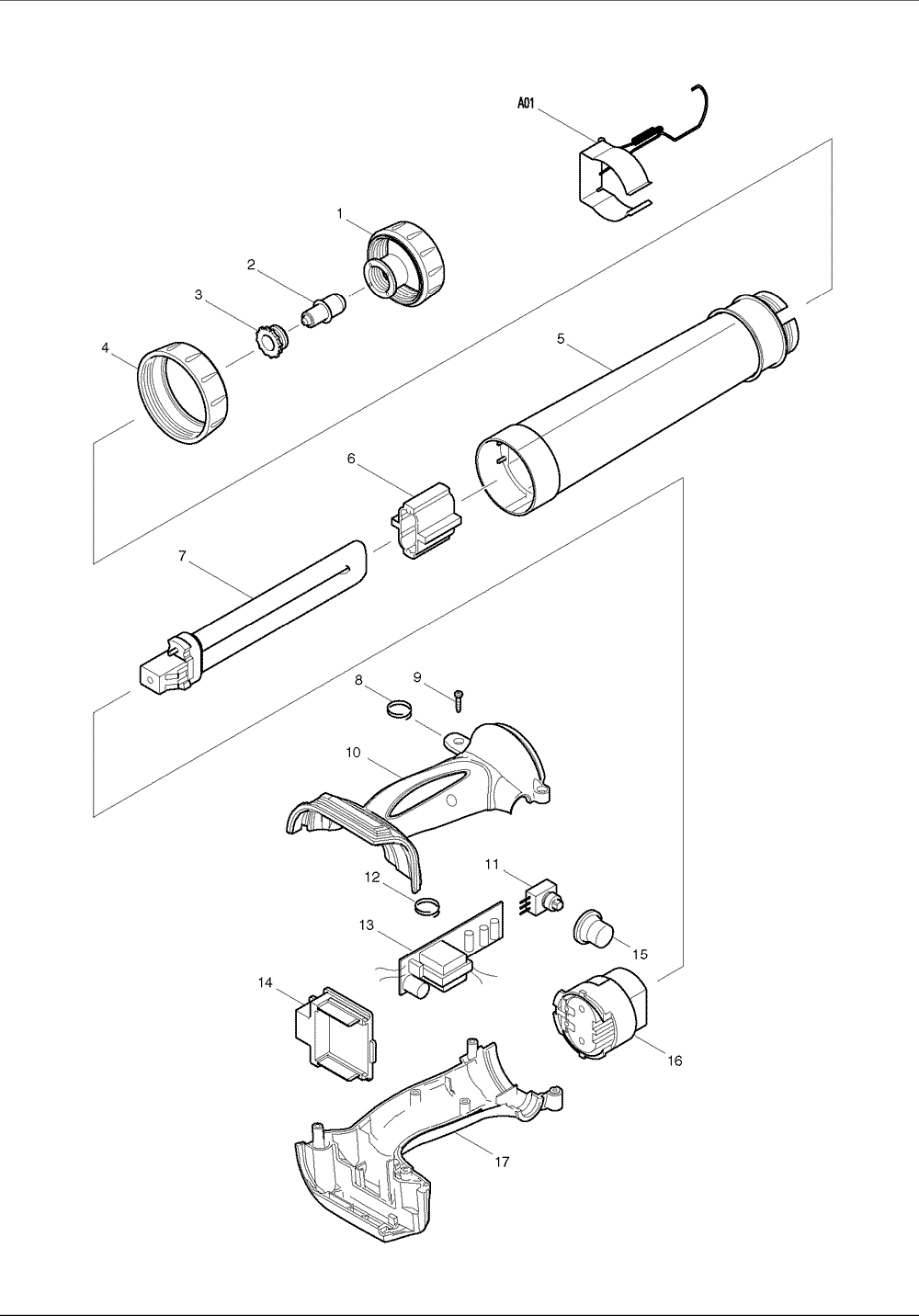

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	GM00001021	REFLECTOR, BML184	$4.16
00	82BML184	CLAMSHELL & ARTBOARD, BML184	$3.05
2	A-94502	LIGHT BULB SET,BML184	$6.20
3	GM00001020	BULB HOLDER, BML184	$0.75
4	GM00001019	LOCK RING, BML184	$0.97
5	GM00001017	LAMP COVER, BML184	$4.16
6	GM00001023	ABSORBER, BML184	$1.52
7	SM00000050	FLUORESCENT TUBE, BML184	$9.20
8	SM00000190	RING, ML123	$0.75
9	GM00001024	SCREW 3X12, BML184	$0.53
10	GM00001047	HOUSING SET, BML184	$9.22
11	GM00001025	SWITCH, BML184	$3.61
12	SM00000190	RING, ML123	$0.75
13	GM00001049	PCB, BML184	$13.29
14	GM00000530	BATTERY HOLDER,BML184	$2.84
14	GM00001117	BATTERY HOLDER, BML184	$2.51
15	GM00001022	SWITCH COVER, BML184	$0.75
16	GM00001018	HOLDER, BML184	$4.16
17	GM00001047	HOUSING SET, BML184	$9.22
1001	GM00001027	METAL HOOK, BML184	$3.40
1002	GM00001028	SHOULDER HOOK SET,BML184	$2.80
