Makita BML145 Flashlight Parts

Makita BML145 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

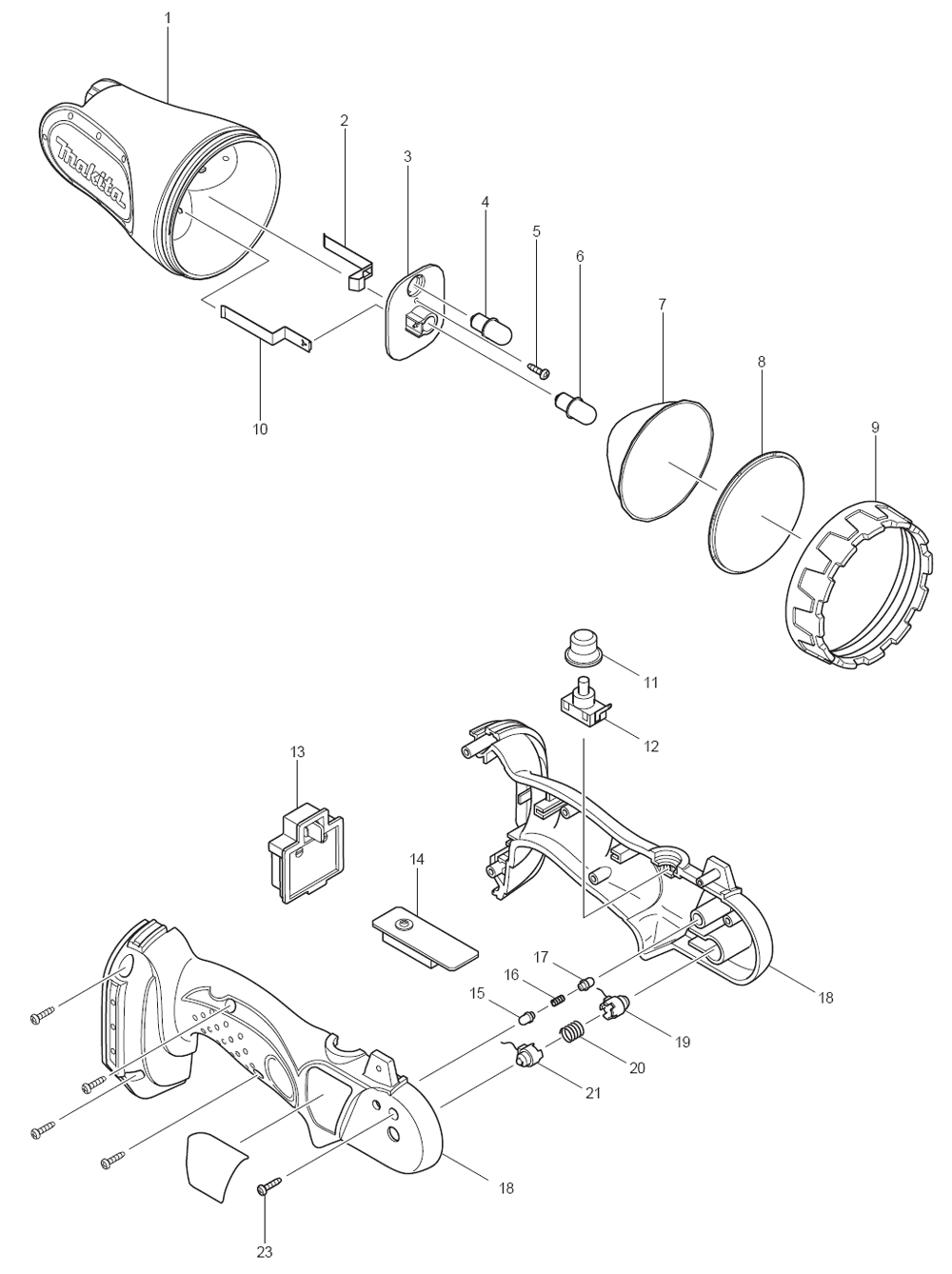

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	GM00001003	CASE HEAD, BML185	$4.16
2	GM00001010	BULB CONTACT PLATE(-),BML185	$0.97
3	GM00001002	PROTECTOR F/CONTACT, BML185	$1.26
4	A-90233	BULB 2/PKG. ML120 ML140	$6.40
5	GM00001012	SCREW 3X12, BML185	$0.53
6	A-90233	BULB 2/PKG. ML120 ML140	$6.40
7	GM00000130	REFLECTOR, ML140	$5.92
8	GM00000070	LENS, ML140	$4.49
9	GM00001001	REFLECTOR RETAINER, BML185	$1.26
10	GM00001009	BULB CONTACT PLATE(+),BML185	$0.97
11	GM00001006	RUBBER COVER, BML185	$0.75
12	651709-3	SWITCH, ML140	$3.61
13	GM00001007	BATTERY HOLDER, BML145	$2.84
15	GM00001005	KNOCK SHAFT, BML185	$0.97
16	GM00000090	COMPRESSION SPRING 4, BML185	$0.86
17	GM00001005	KNOCK SHAFT, BML185	$0.97
19	632524-4	PIVOT TERMINAL UNIT R, BML185	$1.63
20	233144-3	COMPRESSION SPRING 7, ML702	$0.86
21	632523-6	PIVOT TERMINAL UNIT L, ML140	$1.63
23	GM00001013	SCREW 3X14, BML185	$0.86
