Makita BJS130 Shear Parts

Makita BJS130 Shear Parts Image

Makita BJS130 Parts
18-Volt LXT Lithium-Ion 18 Gauge Straight Shear Kit

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BJS130
18-Volt LXT Lithium-...
$499.00
Free Shipping

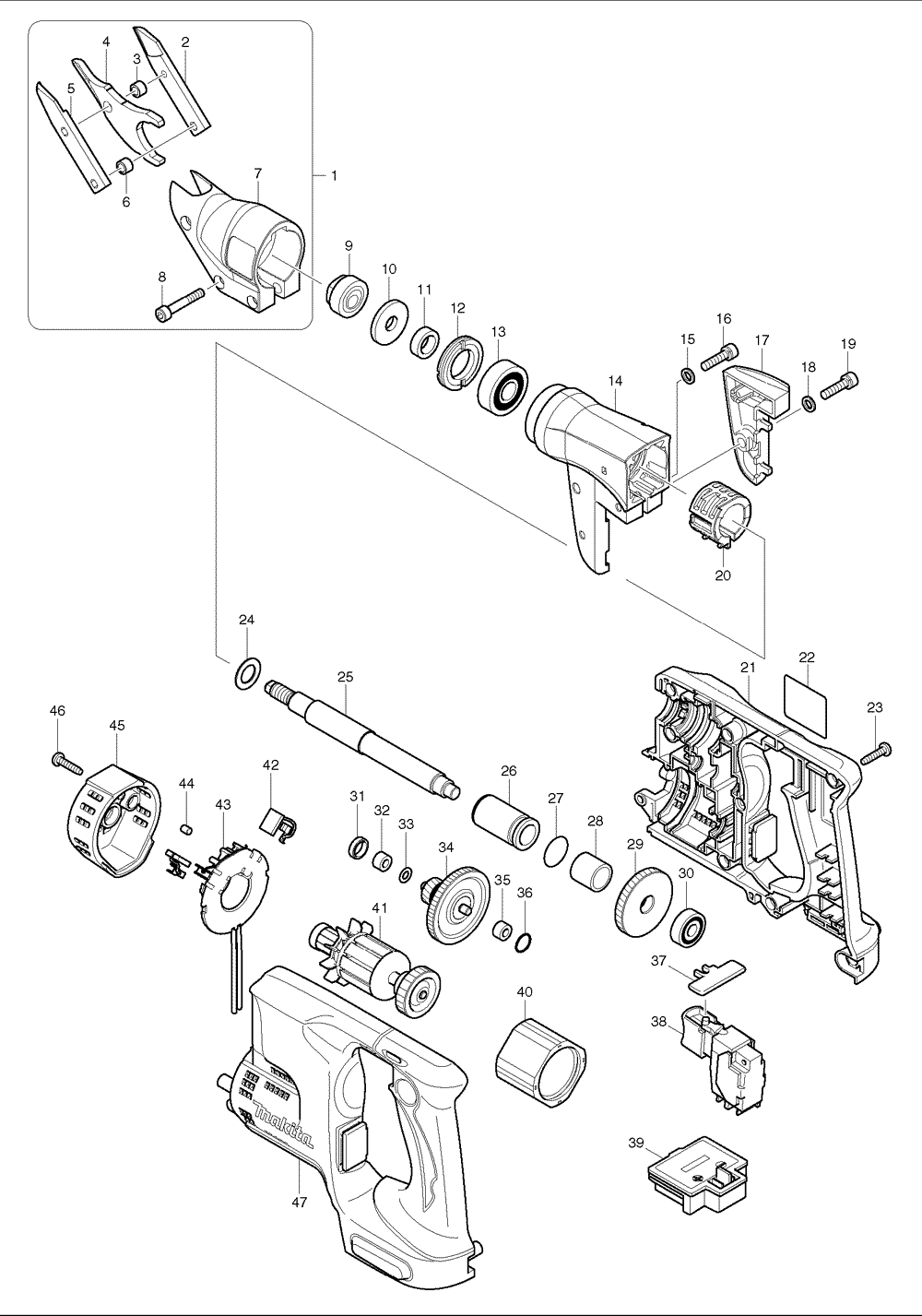

Tool Diagram    (Click image to Zoom in) View larger Image
Makita BJS130 Shear Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 125112-9 SHEAR HEAD ASS'Y, JS1300 $196.00
3 257705-5 SLEEVE 5, JS1300 $4.16
6 257705-5 SLEEVE 5, JS1300 $4.16
7 152663-9 CUTTING HEAD CPL., JS1300 $104.09
8 266268-0 HEX.SOCKET.HEAD BOLT, JS1300 $4.93
9 125111-1 BEARING ASS'Y, JS1300 $39.06
10 267223-5 FLAT WASHER 10, JS1300 $3.72
11 257173-2 RING 12, 5740NB $1.26
12 285802-7 BEARING RETAINER 19-33, 5740NB $3.06
13 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
14 158795-0 BARREL COMPLETE, BJS130Z $33.86
15 941102-2 F. WASHER 5, HM1100C $0.75
16 922231-0 H.S.H. BOLT M5X20, HR2010 $1.48
17 450757-7 HOLDER, BJS130Z $5.15
18 941102-2 F. WASHER 5, HM1100C $0.75
19 922231-0 H.S.H. BOLT M5X20, HR2010 $1.48
20 450755-1 CLAMPER, BJS130Z $5.15
21 188540-9 HOUSING SET, BJS130Z $38.04
22 865590-8 NAME PLATE, BJS130Z $1.17
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 253744-3 F. WASHER 12, HR2410 $1.34
25 324937-0 SPINDLE, BJS130Z $37.02
26 214174-3 PLANE BEARING 14, BFS450Z $5.15
27 213262-3 O RING 18, 5005BA $1.96
28 257773-8 SLEEVE 14, BJS130Z $3.94
29 226686-4 HELICAL GEAR 39, BJS130Z $15.16
30 211034-0 BALL BEARING 608, 2106 $13.07
31 165115-1 RUBBER SLEEVE 10, 6831DWH $4.16
32 214017-9 P. BEARING 5, 6043D $1.26
33 253811-4 F. WASHER 5, 5007NK $1.34
34 226154-7 GEAR COMPLETE 11-44, BJS103Z $36.41
35 214017-9 P. BEARING 5, 6043D $1.26
36 213055-8 O RING 10, HR3851 $0.53
37 450756-9 LOOK OFF LEVER, BJS130Z $3.94
38 650575-5 SWITCH TG513SBA, BJS130Z $25.17
39 643838-6 TERMINAL, BTD140 $5.92
39 643843-3 TERMINAL, BFR750 $5.70
40 638426-2 YORK UNIT, BFS450Z $24.95
41 619237-4 ARMATURE, BJS130Z $30.39
42 195021-6 CARBON BRUSH SET CB-440, BHP451 $4.71
43 638433-5 BRUSH HOLDER COMPLETE, BFS450Z $3.94
44 263032-0 RUBBER PIN 4, BTD130F $0.86
45 419307-7 FRONT COVER, BJS130Z $4.71
46 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
47 188540-9 HOUSING SET, BJS130Z $38.04
1001 281220-7 HOOK, BFS450Z $3.94
1002 783202-0 HEX WRENCH 4, JR3000V $3.24
