Makita BHR261 Rotary Hammer Parts

Makita BHR261 Rotary Hammer Parts Image

Makita BHR261 Parts
36-Volt LXT 1-Inch Lithium-Ion Cordless SDS-PLUS Rotary Hammer Kit

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BHR261
36-Volt LXT 1-Inch L...
$779.99
Tool Diagram    (Click image to Zoom in) View larger Image

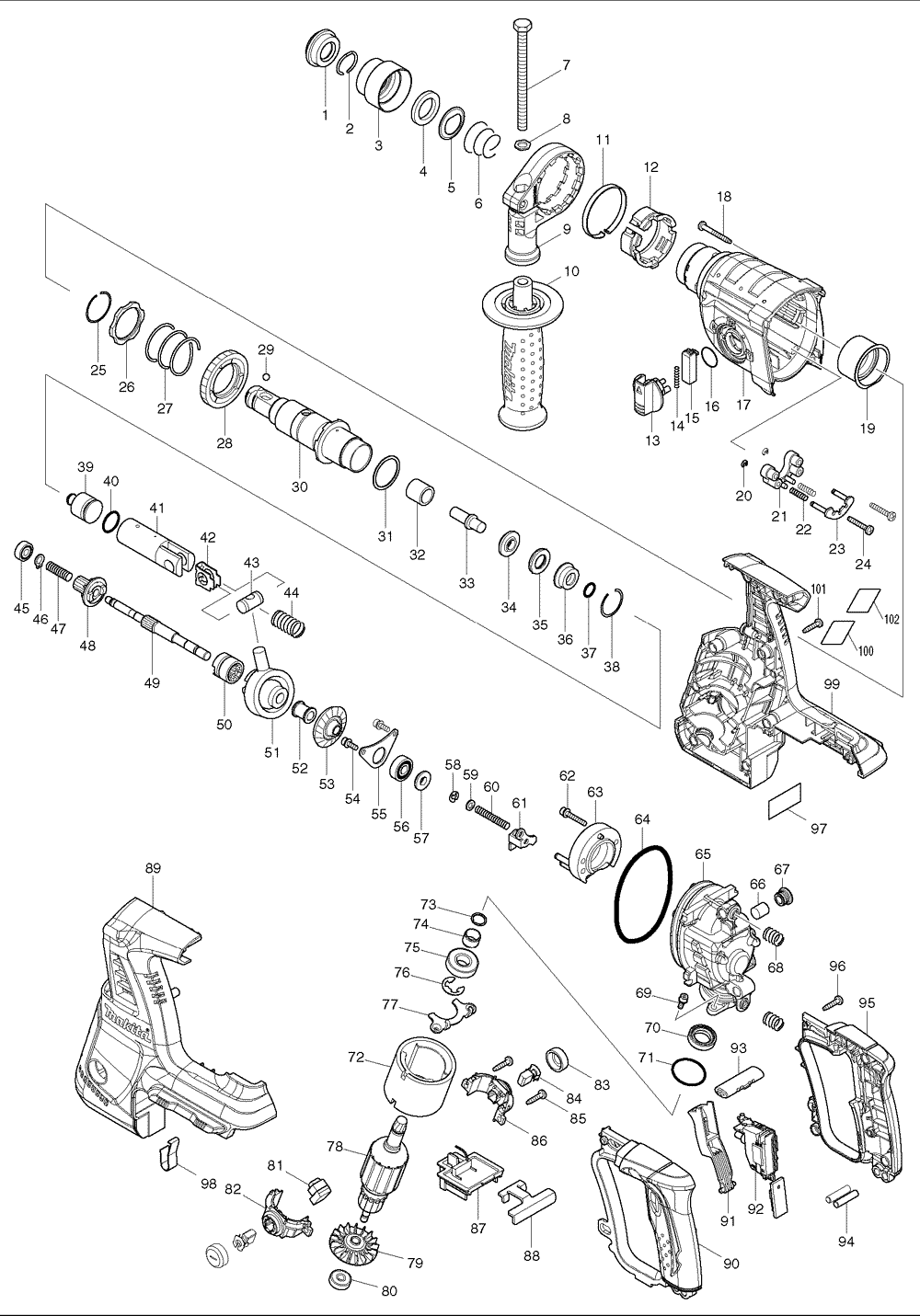

Makita BHR261 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286263-4 CAP 35, HR2450F $1.52
49 325636-7 SHAFT, BHR261 $2.51
2 233940-9 RING SPRING 19, HR2450F $0.86
90 450990-1 HANDLE, BHR261 $2.51
3 417629-9 CHUCK COVER,HR2450F $5.92
00 810502-6 CAUTION LABEL, BHR261 $0.42
4 257241-1 RING 21, HR2450F $1.52
00 810532-7 CAUTION LABEL, BHR261 $0.64
5 345187-4 GUIDE WASHER, HR2450F $1.63

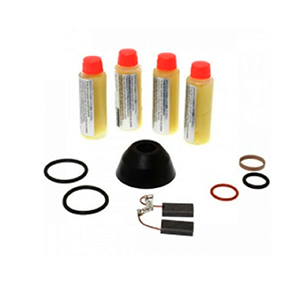

00 195189-8 HAMMER SERVICE KIT, BHR261 $17.25
102 893038-0 CLEAR LABEL, BHR261 $0.64
6 233916-6 CONICAL COMP. SPRING 21-29, HR2450F $1.96
7 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
102 893072-0 CLEAR LABEL, BHR261 $0.42
8 345280-4 HEX. WASHER, HP2050F $1.01
9 417630-4 GRIP BASE, HP1640 $2.84
10 158057-6 GRIP 36 CPL., HR2811F $5.48
13 450980-4 CHANGE LEVER, BHR261 $3.61
14 233279-0 COMP.SPRING 4, BHR200SH $1.63
15 450978-1 LOCK BUTTON, BHR261 $1.12
16 213278-8 O RING 17,HR2450F $0.86
17 140059-6 GEAR HOUSING CPL., BHR261 $8.12
18 266351-3 TAPPING SCREW 4X35, 9557PB $0.53
19 153290-5 NEEDLE BEARING CPL., HR2450F $7.02
20 961017-7 STOP RING E-3, 4304, SH01 $0.53
21 417796-0 GUIDE BASE, HR2455 $0.97
22 233344-5 COMP. SPRING 4, HR2450F $0.86
23 163430-7 LOCK PLATE CPL., HR2450F $1.52
24 266374-1 TAPPING SCREW 4X25, GA7021 $0.53
25 233929-7 RING SPRING 29, BHR240 $0.86
27 233401-9 COMP. SPRING 32, BHR240 $3.61
28 227109-5 SPUR GEAR 51, BHR240 $12.52
29 216022-2 STEEL BALL 7.0, HR2400 $0.86
30 158574-6 TOOL HOLDER CPL., HR2475 $23.96
31 267229-3 FLAT WASHER 28, BHR240 $1.34
32 331769-8 SLEEVE 9, HR2470F $2.84
33 324669-9 IMPACT BOLT, BHR240 $3.06
34 324402-9 RING 10, BHR240 $1.52
35 421955-0 CUSHION RING 13, BHR240 $2.84
36 324216-6 O RING CASE, HR2455 $5.48
37 213073-6 O RING 9,HR2455 $1.74
38 233917-4 RING SPRING 28, HR2450F $0.86
39 324214-0 STRIKER, HR2450F $4.16
40 213227-5 O RING 16M, HR2455 $3.61
41 318132-2 PISTON CYLINDER, HR2470F $9.33
42 346036-8 GUIDE PLATE, BHR261 $0.90
43 324215-8 PISTON JOINT, HR2450F $2.84
44 234098-7 DOMPRESSION SPRING 14, BHR261 $0.66
45 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
46 961003-8 RETAINING RING S-7, 9015B $0.53
47 233343-7 COMP. SPRING 7, HR2450F $0.86
48 227179-4 SPUR GEAR 10, HR2470F $18.02
51 219014-0 SWASH BEARING 10, HR2455 $34.17
52 325640-6 SLEEVE 9, BHR261 $1.34
53 227549-7 SPIRAL BEVEL GEAR 26, BHR261 $4.71
54 266273-7 H.S.H. BOLT M4X12, HR2450F $1.34
55 346038-4 BEARING RETAINER B, BHR261 $1.12
56 211032-4 B. BEARING 608ZZ, N1900B $8.78
57 324212-4 RING 8, HR2450F $4.16
58 961011-9 STOP RING E-4, 4301BV $1.48
59 941102-2 F. WASHER 5, HM1100C $0.75
60 233342-9 COMP. SPRING 6, HR2450F $0.86
61 345220-2 CHANGE PLATE, BHR261 $1.34
62 922148-7 H.S.H. BOLT M4X25, 6922NB $1.34
63 158944-9 INNER SUPPORT CPL., BHR261 $5.92
64 213728-3 O-RING 68, BHR261 $1.34
65 318392-6 INNER HOUSING, BHR261 $13.84
66 443143-9 FILTER, BHR261 $1.12
67 424185-2 CAP, BHR261 $0.90
68 234097-9 DOMPRESSION SPRING 10, BHR261 $0.66
69 266273-7 H.S.H. BOLT M4X12, HR2450F $1.34
70 213231-4 OIL SEAL 15, HR4500C $5.48
71 213437-4 O RING 28, AG125 $1.08
72 632828-4 YOKE UNIT, 5620DWA $34.98
73 961082-6 RETAINING RING WR12, BHR261 $0.90
74 331596-3 SLEEVE 12, HR4041C $5.48
75 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
76 961016-9 STOP RING E-10, BJR182 $0.86
77 346037-6 BEARING RETAINER A, BHR261 $2.51
78 519235-7 ARMATURE ASS'Y, BHR261 $27.37
79 240037-7 FAN 44, BHR200SH $4.16
80 210022-4 BALL BEARING 626DDW, 9910 $6.69
81 631850-8 LIGHT CIRCUIT, BHR261 $4.71
82 638660-4 BRUSH HOLDER, BHR261 $3.61
83 643829-7 HOLDER CAP, BJR182Z $0.97
84 195023-2 CARBON BRUSH SET CB-442, BHR261 $3.61
85 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
86 638661-2 BRUSH HOLDER, BHR261 $3.61
87 638657-3 TERMINAL UNIT, BHR261 $8.12
88 346039-2 SUPPORT PLATE, BHR261 $1.34
90 188639-0 HANDLE SET, BHR261 $7.02
91 450981-2 SWITCH LEVER, BHR261 $1.34
92 650619-1 SWITCH, BHR261 $32.74
93 450979-9 F/R CHANGE LEVER, BHR261 $1.12
94 256261-2 PIN 6, BHR261 $1.12
95 188639-0 HANDLE SET, BHR261 $7.02
96 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
97 814981-0 SERIAL NO. LABEL, BHR261 $0.42
98 344903-1 VIBRATION ISOLATOR PLATE, BHR200SH $2.84
100 866450-7 NAME PLATE, BHR261 $0.64
101 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
102 893038-0 CLEAR LABEL, BHR261 $0.64
1001 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1002 324219-0 DEPTH GAUGE,HP2050F $4.40
1005 808660-0 PLASTIC CASE LABEL, BHR261 $0.64
