Makita BHR240 Rotary Hammer Parts

Makita BHR240 Parts

18-Volt 7/8-Inch LXT Lithium-Ion Cordless SDS-Plus Rotary Hammer Kit

Download Schematic

Time to buy a new tool?

Makita BHR240

18-Volt 7/8-Inch LXT...

$436.99

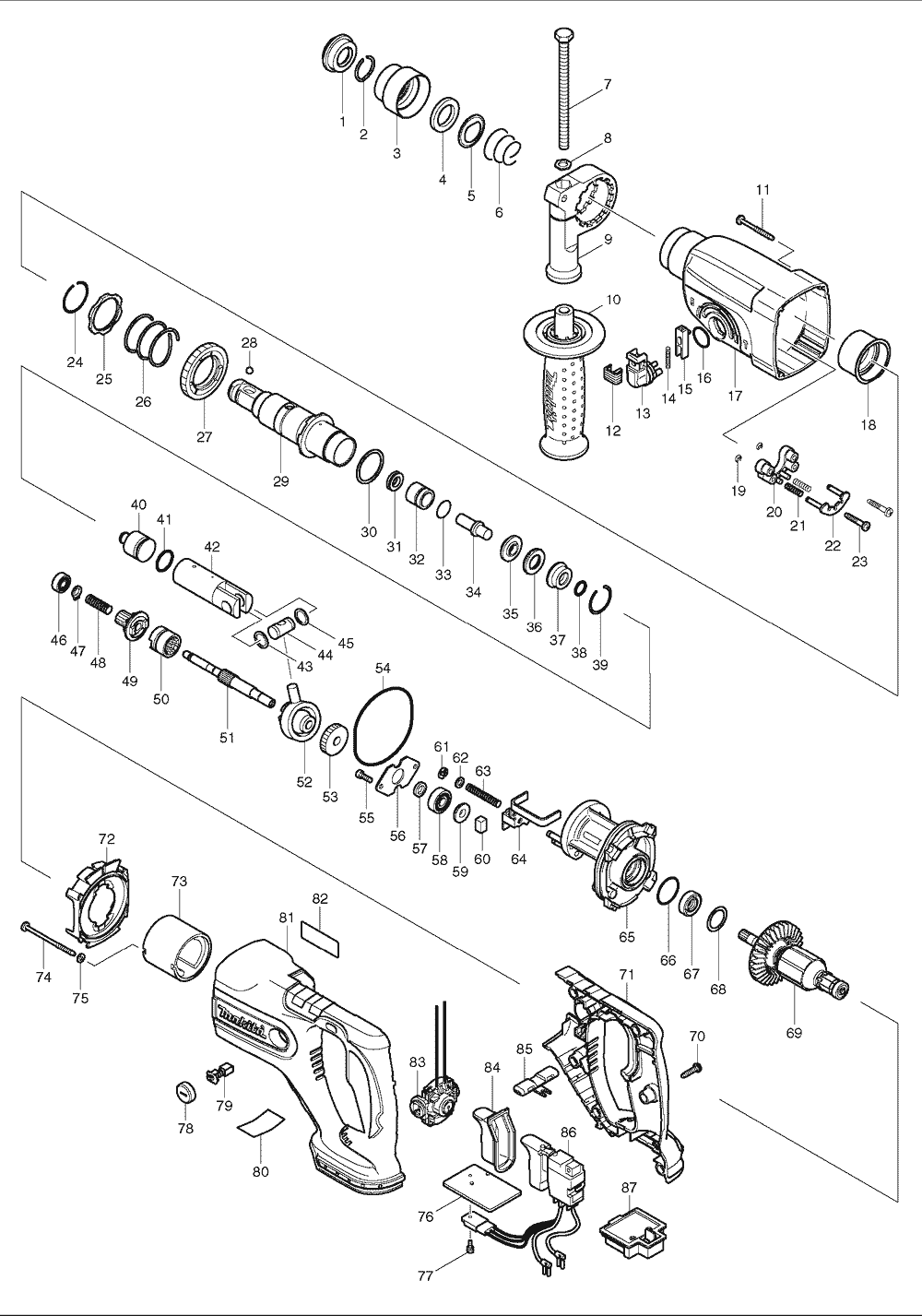

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	286263-4	CAP 35, HR2450F	$1.52
00	213345-9	O-RING 25, HR2475	$2.51
2	233940-9	RING SPRING 19, HR2450F	$0.86
3	417629-9	CHUCK COVER,HR2450F	$5.92
4	257241-1	RING 21, HR2450F	$1.52
5	345187-4	GUIDE WASHER, HR2450F	$1.63
6	233916-6	CONICAL COMP. SPRING 21-29, HR2450F	$1.96
7	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
8	345280-4	HEX. WASHER, HP2050F	$1.01
9	417630-4	GRIP BASE, HP1640	$2.84
10	158057-6	GRIP 36 CPL., HR2811F	$5.48
11	266048-4	T. SCREW 4X40, BO4556	$1.19
12	417794-4	CAP, HR2455	$0.97
13	162229-7	CHANGE LEVER,HR2455	$2.84
14	233341-1	COMP. SPRING 3, HR2450F	$0.86
15	417795-2	LOCK BUTTON, HR2455	$0.97
16	213278-8	O RING 17,HR2450F	$0.86
17	154880-7	GEAR HOUSING, BHR240	$8.45
18	153290-5	NEEDLE BEARING CPL., HR2450F	$7.02
19	961017-7	STOP RING E-3, 4304, SH01	$0.53
20	417796-0	GUIDE BASE, HR2455	$0.97
21	233344-5	COMP. SPRING 4, HR2450F	$0.86
22	163430-7	LOCK PLATE CPL., HR2450F	$1.52
24	233929-7	RING SPRING 29, BHR240	$0.86
26	233401-9	COMP. SPRING 32, BHR240	$3.61
27	227109-5	SPUR GEAR 51, BHR240	$12.52
28	216022-2	STEEL BALL 7.0, HR2400	$0.86
29	154890-4	TOOL HOLDER, BHR240	$22.09
30	267229-3	FLAT WASHER 28, BHR240	$1.34
31	213075-2	X-RING 9, BHR240	$1.48
32	324686-9	SLEEVE 9, BHR240	$2.84
33	213226-7	O-RING 16, 5177B	$5.37
34	324669-9	IMPACT BOLT, BHR240	$3.06
35	324402-9	RING 10, BHR240	$1.52
36	421955-0	CUSHION RING 13, BHR240	$2.84
37	324216-6	O RING CASE, HR2455	$5.48
38	213073-6	O RING 9,HR2455	$1.74
39	233917-4	RING SPRING 28, HR2450F	$0.86
40	324214-0	STRIKER, HR2450F	$4.16
41	213227-5	O RING 16M, HR2455	$3.61
42	331632-5	PISTON CYLINDER, HR2450F	$22.42
43	267104-3	FLAT WASHER 12, HR2400	$2.16
44	324215-8	PISTON JOINT, HR2450F	$2.84
45	267104-3	FLAT WASHER 12, HR2400	$2.16
46	211012-0	BALL BEARING 606ZZ, HR2410	$15.27
47	961003-8	RETAINING RING S-7, 9015B	$0.53
48	233343-7	COMP. SPRING 7, HR2450F	$0.86
49	226399-7	SPUR GEAR 10, BHR200SH	$20.77
51	324668-1	CAM SHAFT, BHR240	$8.01
52	219014-0	SWASH BEARING 10, HR2455	$34.17
53	226632-7	HELICAL GEAR 25, BHR240	$4.49
54	213727-5	O-RING 63, BHR240	$4.93
55	266273-7	H.S.H. BOLT M4X12, HR2450F	$1.34
56	345179-3	BEARING RETAINER, HR2450F	$0.97
57	267234-0	FLAT WASHER 8, HM1304B	$1.01
58	211032-4	B. BEARING 608ZZ, N1900B	$8.78
59	324212-4	RING 8, HR2450F	$4.16
60	443126-9	FELT, HR2475	$0.75
61	961011-9	STOP RING E-4, 4301BV	$1.48
62	941102-2	F. WASHER 5, HM1100C	$0.75
63	233342-9	COMP. SPRING 6, HR2450F	$0.86
64	345363-0	CHANGE PLATE, HR2450F	$2.84
65	154879-2	INNER HOUSING, BHR240	$5.70
66	213380-7	O RING 24, 6805BV	$1.96
67	213966-7	OIL SEAL 9, BHR240	$4.16
68	253349-9	THIN WASHER 18, BHR240	$1.63
69	619190-4	ARMATURE, BHR240	$23.96
70	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
71	419555-8	HANDLE COVER, BHR240	$9.33
71	450014-3	HANDLE COVER, BHR240	$17.25
72	419201-3	BAFFLE PLATE, HR2450F	$0.97
73	638461-0	YORK UNIT, BHR240	$7.02
74	266091-3	TAPPING SCREW 4X50, 6812	$1.19
75	941051-3	F. WASHER 4, 2107F	$0.75
76	689099-4	HEAT SINK, BHR240	$2.84
77	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
78	643929-3	HOLDER CAP, BPB180	$1.63
81	450013-5	MOTOR HOUSING, BHR240 replaces 419554-0	$14.61
81	450013-5	MOTOR HOUSING, BHR240	$29.58
83	638462-8	ENDBELL CPL.,BHR240	$2.84
84	421957-6	SWITCH COVER, BHR240	$4.16
85	419457-8	F/R CHANGE LEVER, BHR240	$2.84
86	650581-0	SWITCH, BHR240	$21.76
86	650587-8	SWITCH, BHR240	$26.27
87	643838-6	TERMINAL, BTD140	$5.92
87	643841-7	TERMINAL, BHR240	$9.33
88	424030-1	CUSHION, BHR240	$1.52
1001	324219-0	DEPTH GAUGE,HP2050F	$4.40
1006	450128-8	BATTERY COVER FOR 18V/14.4V LI-ION BATTERY	$2.40
