Makita BHR200 Hammer Drill Parts

Makita BHR200 Hammer Drill Parts Image

Makita BHR200 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

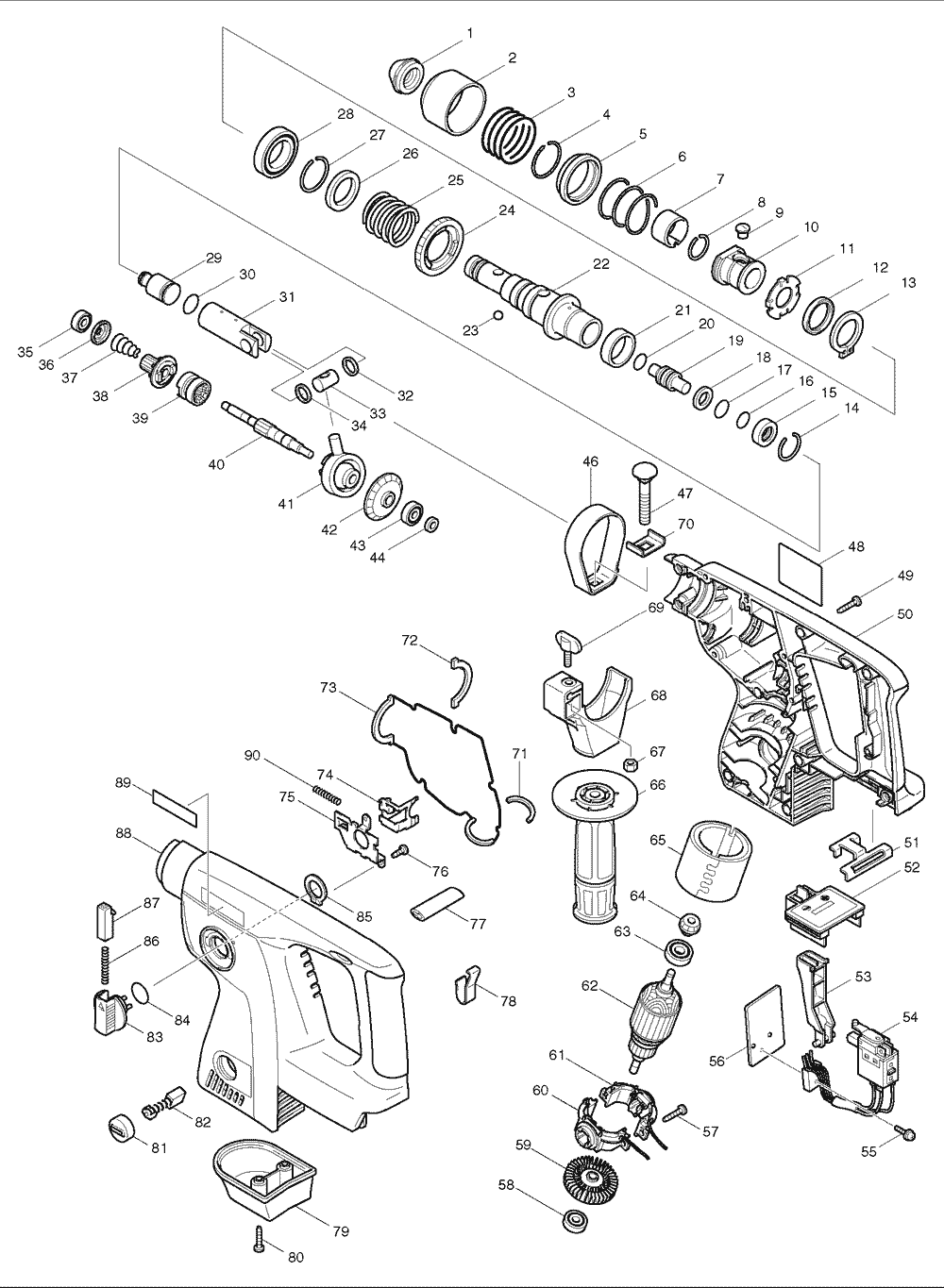

Makita BHR200 Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286265-0 CAP 31, HR2400,T2 $1.26
2 417299-4 CHUCK COVER, BHR200SH $2.84
3 233203-3 COMPRESSION SPRING 38, HR2400 $2.07
4 231936-4 RING SPRING 30.5, HR2000 $1.48
5 323819-3 SPRING GUIDE, HR2410 $3.61
6 233234-2 COMP. SPRING 35, HR2410 $1.48
7 232190-3 LEAF SPRING 26, HR2410 $4.16
8 231979-6 RING SPRING 16, HR2400 $0.86
9 256447-8 PIN 8, HR2420 $3.61
10 323820-8 CHUCK RING, HR2410 $14.61
11 344690-2 GUIDE WASHER, HR2410 $2.18
12 213360-3 OIL SEAL, 6906 $4.49
13 961105-0 RETAINING RING S-25,8015DW $1.48
14 231987-7 RING SPRING 21, HK0500 $1.63
15 323846-0 O RING CASE, HK0500 $4.49
16 213117-2 O RING 11, HR2410 $3.61
17 213125-3 O RING 12, BHR200SH $3.28
18 257231-4 RING 12, BHR200SH $1.52
19 324015-6 IMPACT BOLT, BHR200SH $5.92
20 213124-5 O RING 12, BHR200SH $1.74
21 214405-0 PLANE BEARING 26, BHR200SH $1.52
22 324014-8 TOOL HOLDER, BHR200SH $60.90
23 216022-2 STEEL BALL 7.0, HR2400 $0.86
24 227002-3 SPUR GEAR 49, BHR200SH $13.84
25 233109-5 COMPRESSION SPRING 29, HR2410 $4.16
26 267132-8 FLAT WASHER 29, HR2410 $4.16
27 231962-3 RING SPRING 26, HR2410 $0.86
28 211377-0 BALL BEARING 6905LLB, BHR200SH $11.97
29 324016-4 STRIKER, BHR200SH $5.48
30 213230-6 O RING 15, BHR200SH $3.28
31 317380-0 PISTON CYLINDER, BHR200SH $18.57
32 267104-3 FLAT WASHER 12, HR2400 $2.16
33 324017-2 PISTON JOINT, BHR200SH $5.48
34 267104-3 FLAT WASHER 12, HR2400 $2.16
35 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
36 344905-7 CUP WASHER 6, BHR200SH $1.63
37 231999-0 CONICAL COMP.SPRING 7-14,BHR200SH $1.63
38 226399-7 SPUR GEAR 10, BHR200SH $20.77
39 323988-0 CLUTCH CAM, BHR200SH $11.97
40 324018-0 CAM SHAFT, BHR200SH $18.57
41 219014-0 SWASH BEARING 10, HR2455 $34.17
42 226792-5 ZEROL BEVEL GEAR 32, BHR200SH $19.34
43 210022-4 BALL BEARING 626DDW, 9910 $6.69
44 257235-6 RING 6, BHR200SH $4.16
46 344901-5 GRIP SPRING 50, BHR200SH $4.16
47 266250-9 CUP SQUARE NECK BOLTM8X50,BHR200SH $1.74
48 852433-3 NAME PLATE, BHR200 $1.36
49 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
50 183247-2 HOUSING SET, BHR200SH $53.80
50 183393-1 HOUSING SET,BHR200SH $47.53
50 183891-5 HOUSING SET, BHR200 $49.98
51 344898-8 SUPPORT PLATE, BDF460SH $2.84
52 643955-2 TERMINAL, BDF460SH $4.16
53 417291-0 SWITCH LEVER, BHR200SH $2.84
54 651990-6 SWITCH, BHR200SH $46.81
55 911006-2 P.H. SCREW M3X8, 6233DWAE $0.53
56 689099-4 HEAT SINK, BHR240 $2.84
57 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
58 210022-4 BALL BEARING 626DDW, 9910 $6.69
59 240037-7 FAN 44, BHR200SH $4.16
60 643963-3 BRUSH HOLDER, BHR200SH $4.16
61 643964-1 BRUSH HOLDER, BHR200SH $4.16
62 519060-6 ARMATURE ASS'Y, BHR200SH $45.39
62 519066-4 ARMATURE ASSEMBLY 24V, BHR200SH $65.00
63 210024-0 BALL BEARING 608 2RS, HR2811F $6.69
64 226793-3 ZEROL BEVEL GEAR 11, BHR200SH $12.52
65 632828-4 YOKE UNIT, 5620DWA $34.98
66 152624-9 GRIP 36 CPL., BHR200SH $4.16
67 931202-6 HEX NUT M5, HR2410 $0.79
68 417294-4 GRIP BASE, BHR200SH $5.48
69 265720-5 THUMB SCREW M5X14, HR2410 $3.61
70 344902-3 PLATE, BHR200SH $1.52
71 421750-8 SEAL RING B, BHR200SH $1.52
72 421749-3 SEAL RING A, BHR200SH $2.84
73 421748-5 SEAL RING, BHR200SH $4.16
74 344899-6 CHANGE PLATE, BHR200SH $4.16
75 344900-7 GUIDE PLATE, BHR200SH $3.61
75 345457-1 GUIDE PLATE, BHR200 $4.16
76 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
77 417292-8 F/R CHANGE LEVER, BHR200SH $1.52
78 344903-1 VIBRATION ISOLATOR PLATE, BHR200SH $2.84
79 417297-8 FOOT, BHR200SH $4.16
80 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
81 643941-3 HOLDER CAP, BJR181 $4.49
83 417293-6 CHANGE LEVER, BHR200SH $5.48
84 213265-7 O RING 17, HR4002 $0.86
85 961078-7 RETAINING RING S-18,BHR200SH $1.19
86 233279-0 COMP.SPRING 4, BHR200SH $1.63
87 417298-6 LOCK BUTTON, DA4031 $1.52
88 183247-2 HOUSING SET, BHR200SH $53.80
88 183393-1 HOUSING SET,BHR200SH $47.53
88 183891-5 HOUSING SET, BHR200 $49.98
89 819063-3 MAKITA LABEL, DA3010F $0.96
90 233278-2 COMPRESSION SPRING 4, BHR200SH $3.61
91 685730-0 SPONGE, BHR200SH $0.97
92 345458-9 STOPPER PLATE, BHR200 $2.84
93 345456-3 SUB PLATE, BHR200 $1.52
94 231678-0 TORSION SPRING 9, BHR200 $1.96
95 911110-7 SCREW M4X8, AN451 $1.08
1004 193737-7 24V,2.OAH BATTERY BH2420,BJR240SHE $294.20
1004 193740-8 24V,3.3AH, BATTERY BH2433, BLS820 $358.20
