Makita BFT124R Cordless Screwdriver Parts

Makita BFT124R Cordless Screwdriver Parts Image

Makita BFT124R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

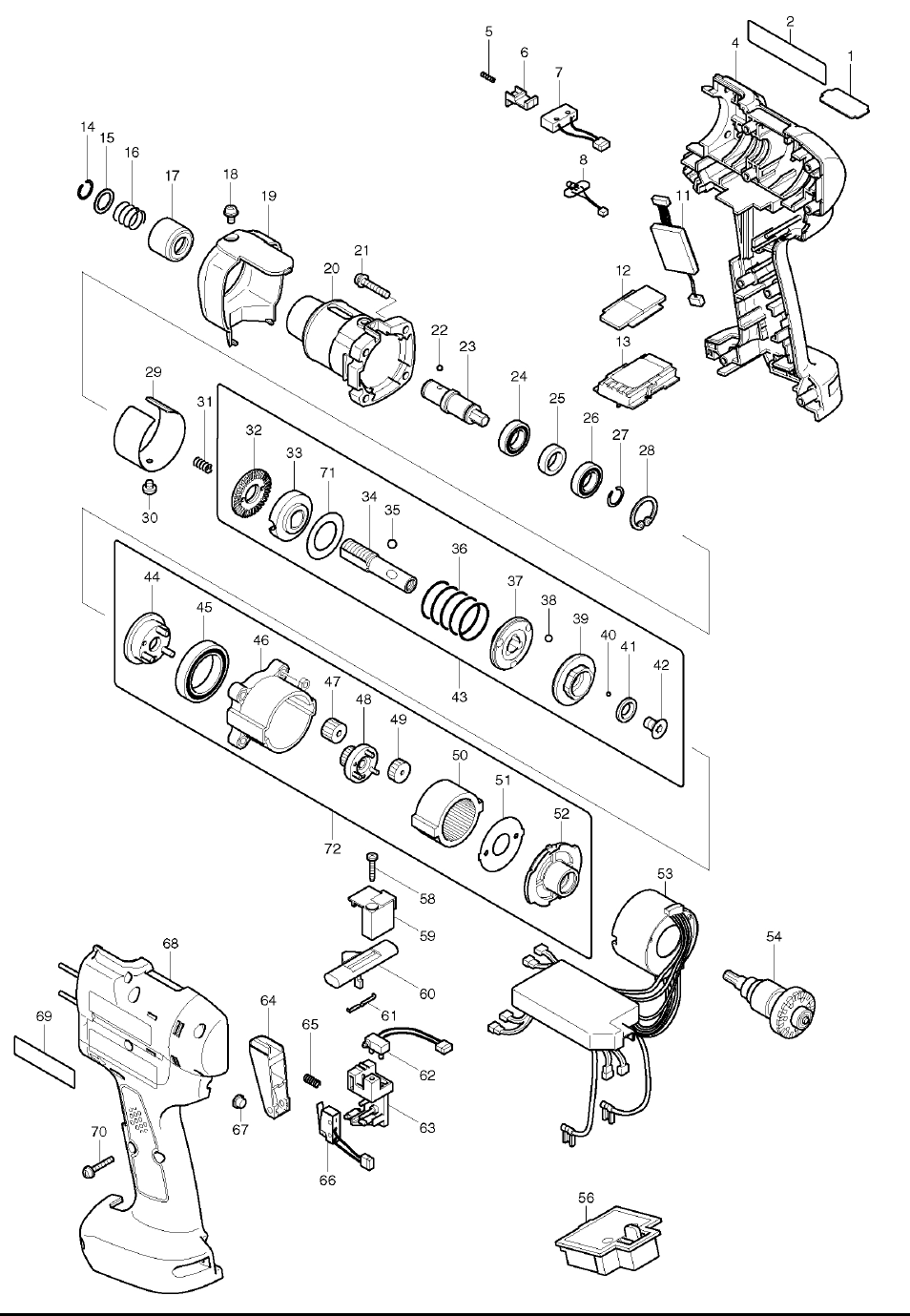

Makita BFT124R Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 345792-7 PLATE P, BFT124RZ $3.61
2 864020-6 NAME PLATE, BFT124R $1.08
5 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
6 418002-6 SWITCH LEVER, BFT122FZ $1.52
7 638274-9 SWITCH UNIT, BFT123 $10.21
8 631513-6 LED CIRCUIT, BFL080FZ $11.97
11 631756-0 POWER SUPPLY UNIT, BFT041R $37.94
13 631717-0 RF UNIT, BFL201R $819.07
14 231965-7 RING SPRING 10, DF030DW $0.86
15 267143-3 FLAT WASHER 11, BTD060Z $1.63
16 233005-7 COMP.SPRING 13,6903VDW $1.48
17 162218-2 SLEEVE, BTD060Z $6.80
18 265171-2 P.H. SCREW M4X8, BFH040 $1.19
19 418289-0 CLUTCH CASE COVER, BFT041R $7.90
20 317694-7 CLUTCH CASE, BFH040 $21.76
21 265145-3 P.H. SCREW M4 X 22, BFH040 $1.19
23 324377-2 SPINDLE M, BFH040 $18.57
25 257011-8 RING 12, LS711DWBEK $1.26
26 211136-2 BALL BEARING 6801LLB, SC190DWDE $9.99
27 231951-8 RING SPRING 11, 6903VDW $1.48
28 962111-8 RETAINING RING R-21,BFT041R $1.48
29 345794-3 RING 38P, BFT124R $29.07
30 265127-5 P.H. SCREW M4X4, BFT040FZ $0.53
31 233019-6 COMP. SPRING 5, BFL080FZ $1.48
32 324834-0 LOCK NUT M12, BFH040 $9.88
33 158408-3 ADJUST RING CPLT., BFH040 $5.48
34 324296-2 SPINDLE, BFL080FZ $14.61
35 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
36 233358-4 COMPRESSION SPRING 19C, BFL200FZ $6.58
37 223146-7 CAM D BFH040Z $15.93
38 216024-8 STEEL BALL 4, LS1016L $0.53
39 223139-4 CAM A BFL080FZ $19.78
40 216019-1 STEEL BALL 3, BTD060Z $0.53
41 267247-1 FLAT WASHER 7, BFL080FZ $3.72
42 266305-0 TORX C.S.H. SCREW M5X10, BFL080FZ $1.48
43 125394-3 CLUTCH ASSEMBLY G, BFH120F $66.80
44 153444-4 CARRIER COMPLETE B, BFL120FZ $10.65
45 211375-4 BALL BEARING 6805LLB,6222DWE $41.92
46 418004-2 GEAR CASE, BFL080FZ $4.27
47 227052-8 SPUR GEAR 18, BFT122FZ $1.63
48 153447-8 SPUR GEAR 9 CPL. A, BFL120FZ $7.02
49 227049-7 SPUR GEAR 18, BFL080FZ $1.63
50 227048-9 INTERNAL GEAR 47, BFL080FZ $5.70
51 267774-8 LOCK WASHER, BFL080FZ $2.18
52 418003-4 MOTOR BRACKET, BFL080FZ $4.16
53 631763-3 MOTOR CONTROL UNIT, BFT124R $585.21
54 619208-1 ROTOR, BFT124R $336.89
56 643811-6 TERMINAL, BTD130F $4.16
58 266130-9 TAPPING SCREW PT3X16, 6233DWA $0.86
59 418204-4 COVER, BFH040 $5.48
60 418201-0 F/R CHANGE LEVER, BFH040 $5.48
61 232201-4 LEAF SPRING, BPB180 $3.61
62 638276-5 SWITCH UNIT,BFL300FZ $9.22
63 418202-8 SWITCH BASE, BFH040 $6.80
64 418203-6 SWITCH LEVER A, BFH040 $6.80
65 231397-8 COMPRESSION SPRING 4, 2414B $0.86
66 638275-7 SWITCH UNIT, BFH040 $11.64
67 419829-7 LENS, BFT124R $7.79
69 819216-4 MAKITA LOGO LABEL, BFT125FZ $1.30
70 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
71 267276-4 FLAT WASHER 18, BFL080F $2.18
72 125190-9 GEAR ASSEMBLY B, BFL120FZ $55.30
