Makita BFT081F Cordless Drill Parts

Makita BFT081F Cordless Drill Parts Image

Makita BFT081F Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

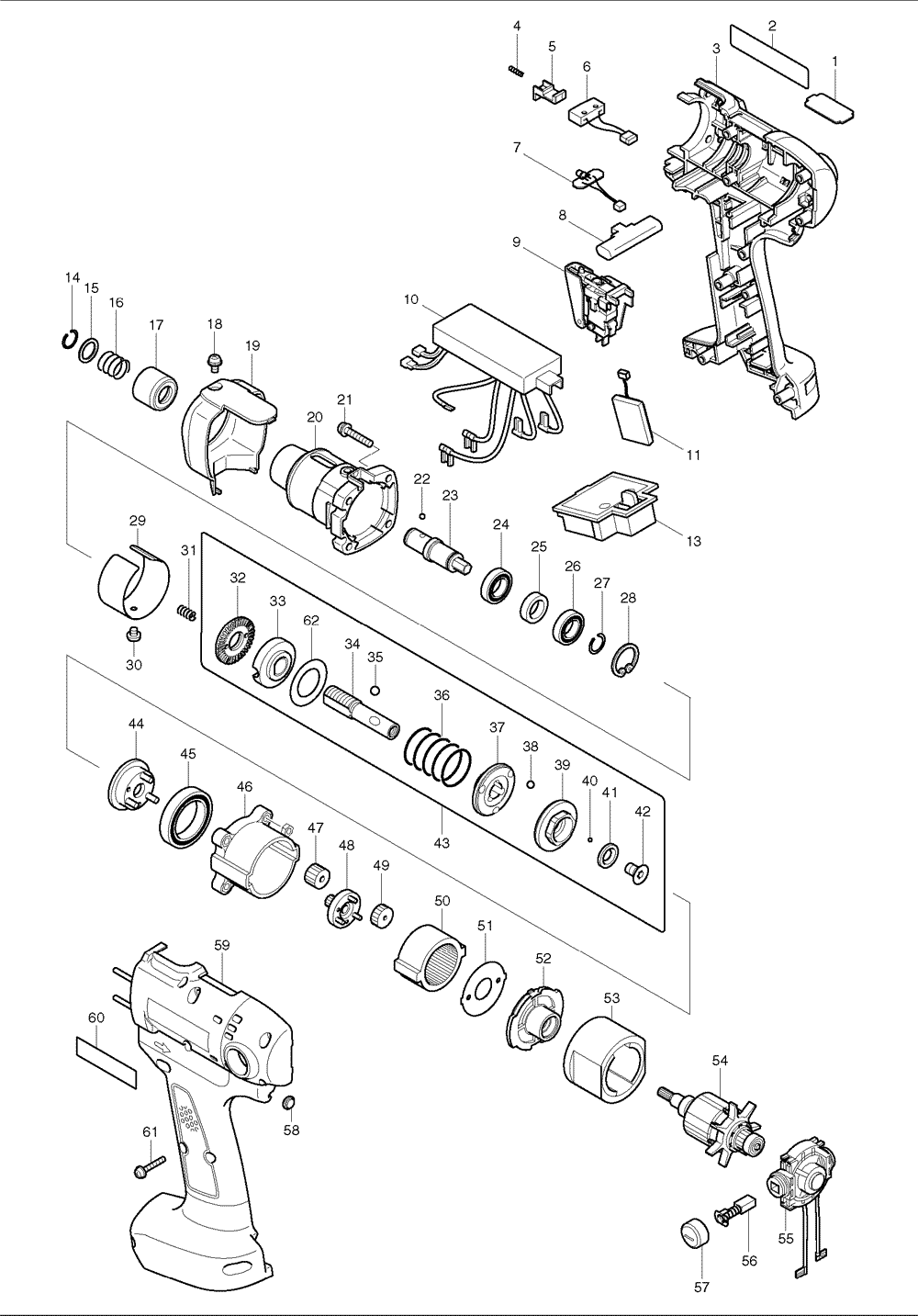

Makita BFT081F Cordless Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 345646-8 PLATE M, BFT081F $4.16
00 345381-8 BELT, BFT081F $25.06
2 861581-7 NAME PLATE, BFT081F $0.96
00 266287-6 S.H. BOLT M6X25, BFT081F $3.28
3 183679-3 HOUSING SET, BFT081F $41.20
00 317552-7 GRIP BASE, BFT081F $12.63
4 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
5 418002-6 SWITCH LEVER, BFT122FZ $1.52
6 638274-9 SWITCH UNIT, BFT123 $10.21
7 631513-6 LED CIRCUIT, BFL080FZ $11.97
8 417511-2 F/R CHANGE LEVER, 6796FDZ $2.84
9 650536-5 SWITCH, BFL080F $29.47
10 638903-4 CONTROLLER BFT081F $88.20
11 631514-4 BUZZER CIRCUIT, BFL080FZ $11.97
13 643983-7 TERMINAL,BFT123F $4.16
14 231965-7 RING SPRING 10, DF030DW $0.86
15 267143-3 FLAT WASHER 11, BTD060Z $1.63
16 233005-7 COMP.SPRING 13,6903VDW $1.48
17 162218-2 SLEEVE, BTD060Z $6.80
18 911108-4 P.H. SCREW M4X8, LS1013 $0.86
18 265171-2 P.H. SCREW M4X8, BFH040 $1.19
19 158133-6 CLUTCH CASE COVER CPLT., BFT081F $6.80
19 418289-0 CLUTCH CASE COVER, BFT041R $7.90
20 317694-7 CLUTCH CASE, BFH040 $21.76
21 265145-3 P.H. SCREW M4 X 22, BFH040 $1.19
22 216019-1 STEEL BALL 3, BTD060Z $0.53
23 324377-2 SPINDLE M, BFH040 $18.57
24 211136-2 BALL BEARING 6801LLB, SC190DWDE $9.99
25 257011-8 RING 12, LS711DWBEK $1.26
26 211136-2 BALL BEARING 6801LLB, SC190DWDE $9.99
27 231951-8 RING SPRING 11, 6903VDW $1.48
28 962111-8 RETAINING RING R-21,BFT041R $1.48
29 345350-9 RING 38H, BFT080FZ $6.80
30 265127-5 P.H. SCREW M4X4, BFT040FZ $0.53
31 233019-6 COMP. SPRING 5, BFL080FZ $1.48
32 324281-5 LOCK NUT M12, BFL080FZ $8.12
32 324834-0 LOCK NUT M12, BFH040 $9.88
33 153442-8 ADJUST RING CPL. $5.48
33 158408-3 ADJUST RING CPLT., BFH040 $5.48
34 324296-2 SPINDLE, BFL080FZ $14.61
35 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
36 233384-3 COMPRESSION SPRING 19E, BFT080FZ $4.93
37 223146-7 CAM D BFH040Z $15.93
38 216024-8 STEEL BALL 4, LS1016L $0.53
39 223139-4 CAM A BFL080FZ $19.78
40 216019-1 STEEL BALL 3, BTD060Z $0.53
41 267247-1 FLAT WASHER 7, BFL080FZ $3.72
42 266305-0 TORX C.S.H. SCREW M5X10, BFL080FZ $1.48
43 125393-5 CLUTH ASSEMBLY F, BFT080F $67.20
44 153443-6 CARRIER CPL. A, BFL080FZ $10.65
45 211375-4 BALL BEARING 6805LLB,6222DWE $41.92
46 418004-2 GEAR CASE, BFL080FZ $4.27
47 227050-2 SPUR GEAR 13, BFL080FZ $1.63
48 153446-0 SPUR GEAR 20 CPL., BFL121FZ $7.02
49 227051-0 SPUR GEAR 19, BFL121FZ $1.30
50 227048-9 INTERNAL GEAR 47, BFL080FZ $5.70
51 267774-8 LOCK WASHER, BFL080FZ $2.18
52 418003-4 MOTOR BRACKET, BFL080FZ $4.16
53 638191-3 YOKE UNIT, BFT040FZ $58.20
54 619129-7 ARMATURE, BFT080FZ $47.53
55 638195-5 ENDBELL CPL., BFT040FZ $5.48
56 195020-8 CARBON BRUSH CB-434 SET, BTW121SA $5.92
57 643933-2 HOLDER CAP, 6908DWA $1.63
58 416764-0 LENS, 6796FDZ $4.16
59 183679-3 HOUSING SET, BFT081F $41.20
60 819063-3 MAKITA LABEL, DA3010F $0.96
61 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
62 267276-4 FLAT WASHER 18, BFL080F $2.18
