Makita BFR750 Cordless Screwdriver Parts

Makita BFR750 Cordless Screwdriver Parts Image

Makita BFR750 Parts
18 Volt LXT Lithium-Ion Cordless Autofeed Screwdriver Kit

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BFR750
18-Volt LXT Lithium-...
$451.99

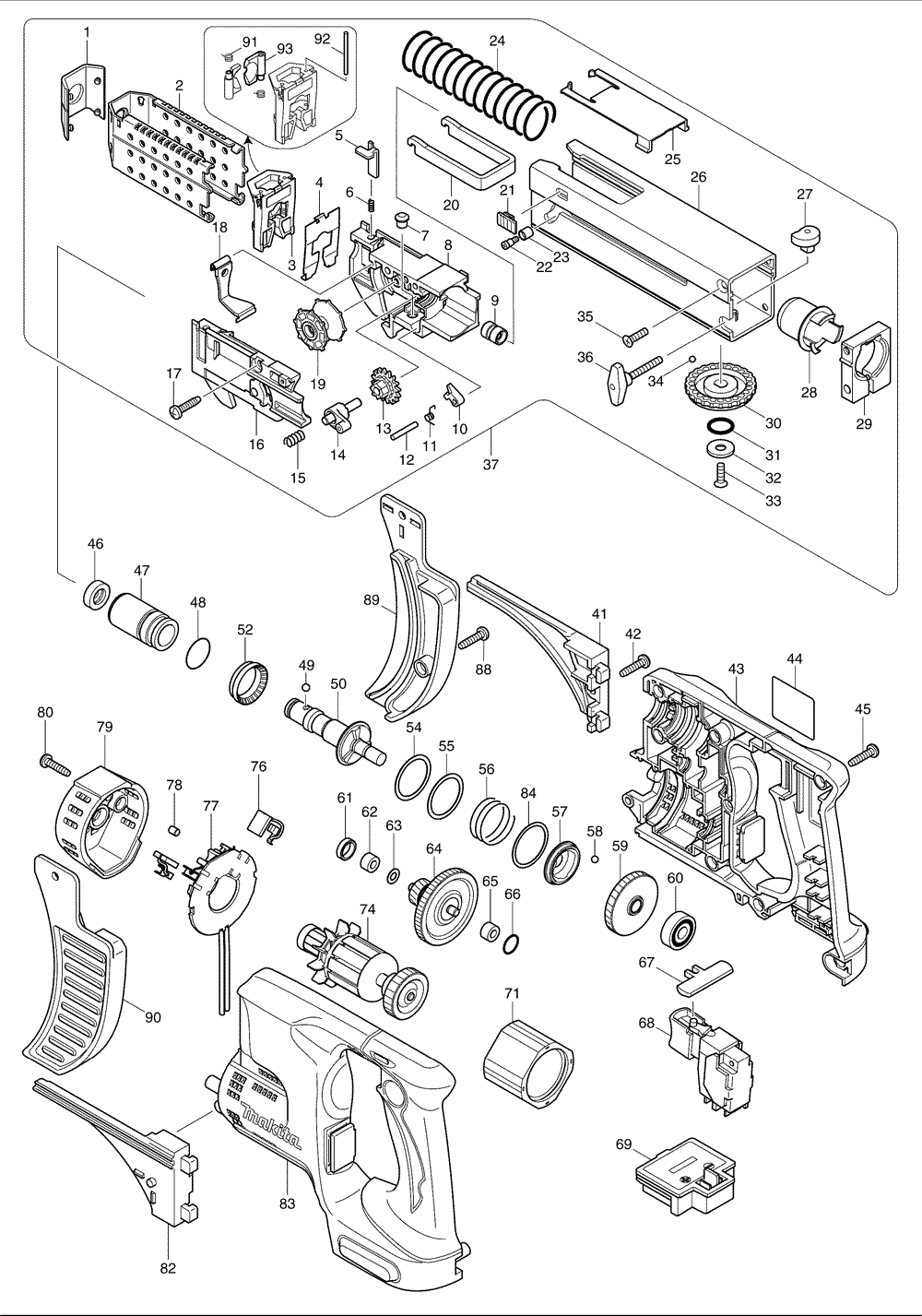

Tool Diagram    (Click image to Zoom in) View larger Image
Makita BFR750 Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 424043-2 CAP, BFR750Z $2.73
2 345841-0 STOPPER BASE 75, BFR750Z $14.94
3 140493-0 GUIDE BOX CPL., BFR750Z $11.42
3 158776-4 GUIDE BOX COMPLETE, BFR750Z $11.42
4 345840-2 GUARD, BFR750Z $2.73
4 346269-5 GUARD, BFR750Z $2.73
5 345837-1 LEVER, BFR750Z $1.48
6 233211-4 COMP. SPRING 2, 6834 $0.86
7 256451-7 PIN 6, 6834 $1.96
8 450107-6 FEEDER BOX, BFR750Z $3.94
9 257685-5 SLEEVE 5, 6834 $4.49
10 310062-3 STOPPER, 6834 $5.92
11 231636-6 TORSION SPRING 4, 6834 $1.63
12 256158-5 PIN 3, BJR181 $1.19
13 226344-2 SPUR GEAR 16, 6834 $3.17
14 158374-4 RATCHET ARM COMPLETE, BFR750Z $16.04
15 233212-2 COMP. SPRING 6, 6834 $0.86
16 158378-6 BOX COVER COML. , BFR750Z $7.02
17 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
18 162201-9 DUST COVER, 6834 $4.49
19 416518-5 WHEEL, 6834 $4.49
20 345838-9 PLATE, BFR750Z $3.94
21 450111-5 STOPPER, BFR750Z $2.73
22 265177-0 S.F.H. SCREW M3X5, BFR750Z $2.84
23 257764-9 SLEEVE 4, BFR750Z $2.73
24 234032-7 COMPRESSION SPRING 23, BFR750Z $3.61
25 450114-9 CASING COVER, BFR750Z $1.48
26 158385-9 CASING 75 COMPLETE, BFR750Z $38.04
27 310237-4 SHIFTER PIN, BFR750Z $5.15
28 450110-7 INSULATION SLEEVE, BFR750Z $2.73
29 318181-9 CLAMPER, BFR750Z $7.68
30 417056-0 DIAL 42, 6835DWA $2.84
31 213107-5 O RING 12, JR3000V $0.86
32 267201-5 FLAT WASHER 6, 6835DWA $2.18
33 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
34 216001-0 STEEL BALL 3.5, 6800DBV $0.53
35 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
37 125814-7 CASING 75 ASS'Y, BFR750 $131.15
41 188306-7 SCREW GUIDE SET, BFR750Z $7.68
42 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
43 188557-2 HOUSING SET, BFR750Z $37.23
44 863792-0 BFR750 NAME PLATE, BFR750Z $1.17
45 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
46 421467-3 DUST COVER, 6830 $1.63
47 214172-7 PLANE BEARING 14, BFR750Z $5.15
48 213262-3 O RING 18, 5005BA $1.96
49 216001-0 STEEL BALL 3.5, 6800DBV $0.53
50 324807-3 SPINDLE A, BFR750Z $22.64
52 421927-5 SLEEVE 20, BFS450Z $1.19
54 267331-2 FLAT WASHER 25, BFS450Z $1.63
55 267331-2 FLAT WASHER 25, BFS450Z $1.63
56 234017-3 COMPRESSION SPRINGS 25, BFS450Z $4.16
57 223169-5 CLUTCH CAM C, BFS450Z $16.04
58 216008-6 STEEL BALL 4.0, 5007NK $0.53
59 226670-9 HELICAL GEAR 48, BFS450Z $26.72
60 211034-0 BALL BEARING 608, 2106 $13.07
61 165115-1 RUBBER SLEEVE 10, 6831DWH $4.16
62 214017-9 P. BEARING 5, 6043D $1.26
63 253811-4 F. WASHER 5, 5007NK $1.34
64 154937-4 GEAR COMPLETE 18-44, BFS450Z $26.52
65 214017-9 P. BEARING 5, 6043D $1.26
66 213055-8 O RING 10, HR3851 $0.53
67 419304-3 F/R CHANGE LEVER, BFS450Z $2.73
68 650575-5 SWITCH TG513SBA, BJS130Z $25.17
69 643838-6 TERMINAL, BTD140 $5.92
69 643843-3 TERMINAL, BFR750 $5.70
71 638426-2 YORK UNIT, BFS450Z $24.95
74 619216-2 ARMATURE, BFS450Z $32.84
76 195021-6 CARBON BRUSH SET CB-440, BHP451 $8.99
76 K36 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-440), 19502... $8.50
77 638433-5 BRUSH HOLDER COMPLETE, BFS450Z $3.94
78 263032-0 RUBBER PIN 4, BTD130F $0.86
79 419307-7 FRONT COVER, BJS130Z $4.71
80 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
82 188306-7 SCREW GUIDE SET, BFR750Z $7.68
83 188557-2 HOUSING SET, BFR750Z $37.23
84 267332-0 FLAT WASHER 26, BFS450Z $1.63
88 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
89 188310-6 GUIDE ATTACHMENT SET, BFR750Z $6.47
90 188310-6 GUIDE ATTACHMENT SET, BFR750Z $6.47
91 233516-2 TORSION SPRING 4, BFR750Z $1.34
91 233567-5 TORSION SPRING 4, BFR750Z $1.34
92 268188-4 PIN 2, BFR750Z $1.52
93 310282-9 GUIDE, BFR750Z $3.94
1001 281217-6 HOOK BFR750Z $8.40
1002 B-10475 +BIT 2-182L (5PK) BFR750Z $14.20
