Makita BFH090 Cordless Drill Parts

Makita BFH090 Cordless Drill Parts Image

Makita BFH090 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

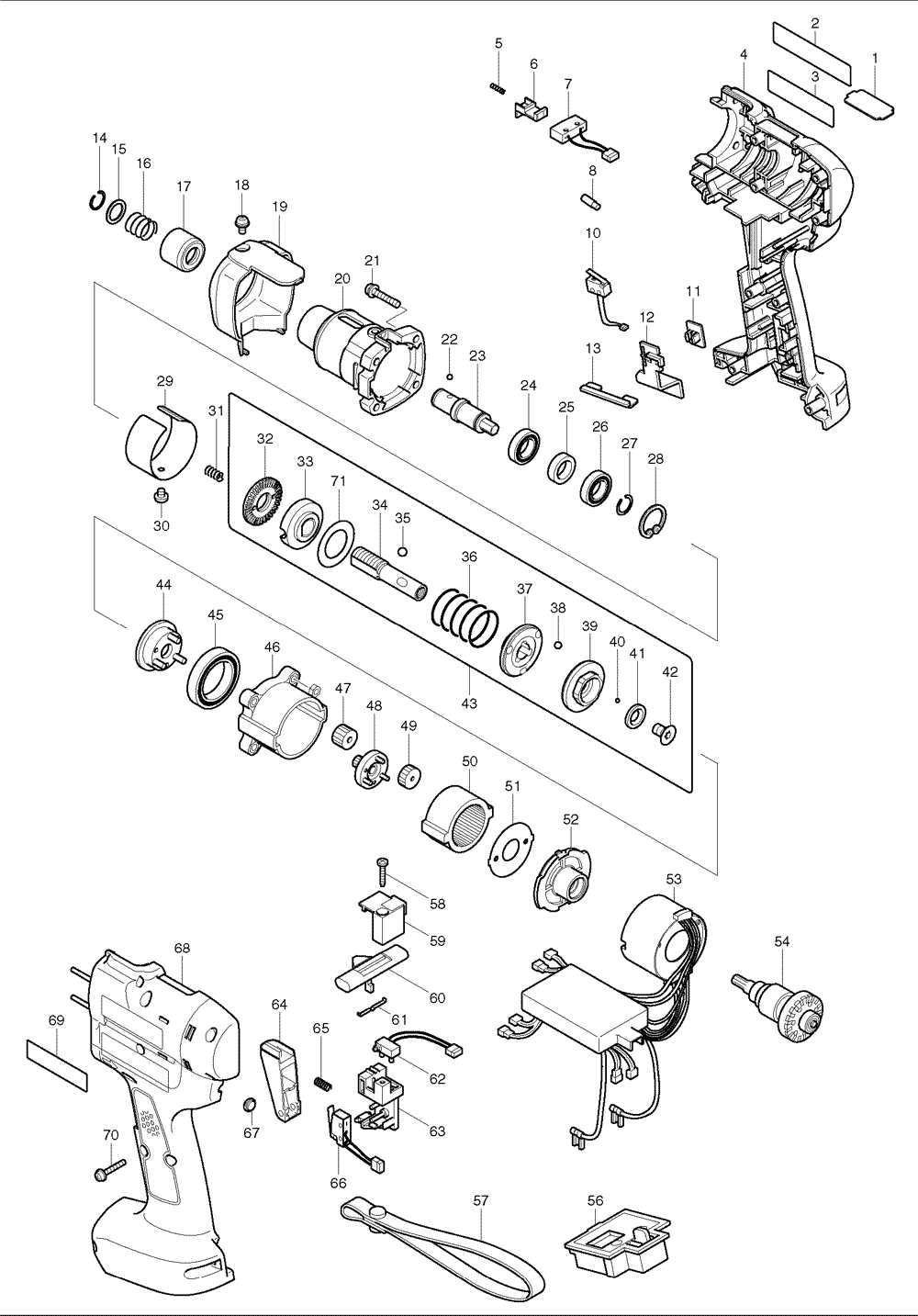

Makita BFH090 Cordless Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 345331-3 PLATE E, BFH090 $4.16
2 850562-6 NAME PLATE, BFH090 $2.51
3 817576-8 CAUTION LABEL $1.48
4 183770-7 HOUSING SET, BFH040 $62.00
5 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
6 418002-6 SWITCH LEVER, BFT122FZ $1.52
7 638274-9 SWITCH UNIT, BFT123 $10.21
8 263013-4 RUBBER PIN 4, 1806B $1.48
10 638273-1 SWITCH UNIT, BFH120 $10.21
11 418210-9 SWITCH LEVER B, BFH040 $4.16
12 418208-6 LEVER GUIDE, BFH040 $5.48
13 418209-4 SPACER, BFH040 $4.16
14 231965-7 RING SPRING 10, DF030DW $0.86
15 267143-3 FLAT WASHER 11, BTD060Z $1.63
16 233005-7 COMP.SPRING 13,6903VDW $1.48
17 162218-2 SLEEVE, BTD060Z $6.80
18 911108-4 P.H. SCREW M4X8, LS1013 $0.86
18 265171-2 P.H. SCREW M4X8, BFH040 $1.19
19 418289-0 CLUTCH CASE COVER, BFT041R $7.90
19 158134-4 CLUTCH CASE COVER CPLT., BFH040 $6.80
20 317694-7 CLUTCH CASE, BFH040 $21.76
21 911143-2 P.H. SCREW M4X22, 6211D $0.86
21 265145-3 P.H. SCREW M4 X 22, BFH040 $1.19
22 216019-1 STEEL BALL 3, BTD060Z $0.53
23 324377-2 SPINDLE M, BFH040 $18.57
24 211136-2 BALL BEARING 6801LLB, SC190DWDE $9.99
25 257011-8 RING 12, LS711DWBEK $1.26
26 211136-2 BALL BEARING 6801LLB, SC190DWDE $9.99
27 231951-8 RING SPRING 11, 6903VDW $1.48
28 962111-8 RETAINING RING R-21,BFT041R $1.48
29 345347-8 RING 38E, BFH090 $6.80
30 265127-5 P.H. SCREW M4X4, BFT040FZ $0.53
31 233019-6 COMP. SPRING 5, BFL080FZ $1.48
32 324281-5 LOCK NUT M12, BFL080FZ $8.12
32 324834-0 LOCK NUT M12, BFH040 $9.88
33 153442-8 ADJUST RING CPL. $5.48
33 158408-3 ADJUST RING CPLT., BFH040 $5.48
34 324296-2 SPINDLE, BFL080FZ $14.61
35 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
36 233385-1 COMPRESSION SPRING 19 D, BFH040FZ $5.92
37 223146-7 CAM D BFH040Z $15.93
38 216024-8 STEEL BALL 4, LS1016L $0.53
39 223139-4 CAM A BFL080FZ $19.78
40 216019-1 STEEL BALL 3, BTD060Z $0.53
41 267247-1 FLAT WASHER 7, BFL080FZ $3.72
42 266305-0 TORX C.S.H. SCREW M5X10, BFL080FZ $1.48
43 125392-7 CLUTCH ASSEMBLY E, BFH090 $64.40
44 153444-4 CARRIER COMPLETE B, BFL120FZ $10.65
45 211375-4 BALL BEARING 6805LLB,6222DWE $41.92
46 418004-2 GEAR CASE, BFL080FZ $4.27
47 227052-8 SPUR GEAR 18, BFT122FZ $1.63
48 153448-6 SPUR GEAR 9 CPL., BFL200 $7.02
49 227051-0 SPUR GEAR 19, BFL121FZ $1.30
50 227048-9 INTERNAL GEAR 47, BFL080FZ $5.70
51 267774-8 LOCK WASHER, BFL080FZ $2.18
52 418003-4 MOTOR BRACKET, BFL080FZ $4.16
53 631544-5 MOTOR CONTROL UNIT,BFH040 $399.84
54 619123-9 ROTOR, BFH040F $319.52
56 643983-7 TERMINAL,BFT123F $4.16
57 163400-6 HAND STRAP, BFH040 $1.52
58 266130-9 TAPPING SCREW PT3X16, 6233DWA $0.86
59 418204-4 COVER, BFH040 $5.48
60 418201-0 F/R CHANGE LEVER, BFH040 $5.48
61 232201-4 LEAF SPRING, BPB180 $3.61
62 638276-5 SWITCH UNIT,BFL300FZ $9.22
63 418202-8 SWITCH BASE, BFH040 $6.80
64 418203-6 SWITCH LEVER A, BFH040 $6.80
65 231397-8 COMPRESSION SPRING 4, 2414B $0.86
66 638275-7 SWITCH UNIT, BFH040 $11.64
67 416764-0 LENS, 6796FDZ $4.16
68 183770-7 HOUSING SET, BFH040 $62.00
69 819063-3 MAKITA LABEL, DA3010F $0.96
70 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
71 267276-4 FLAT WASHER 18, BFL080F $2.18
72 125192-5 GEAR ASSEMBLY D, BFL200FZ $55.30
1002 193346-2 BATTERY BH1220,NIMH,2.0, BFH090SAE $174.20
