Makita BBX7600CA Electric Blower Parts

Makita BBX7600CA Electric Blower Parts Image

Makita BBX7600CA Parts
Commercial Grade 4-Stroke 75.6cc Backpack Blower (CARB Compliant)

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BBX7600CA
Commercial Grade 4-S...
$452.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11

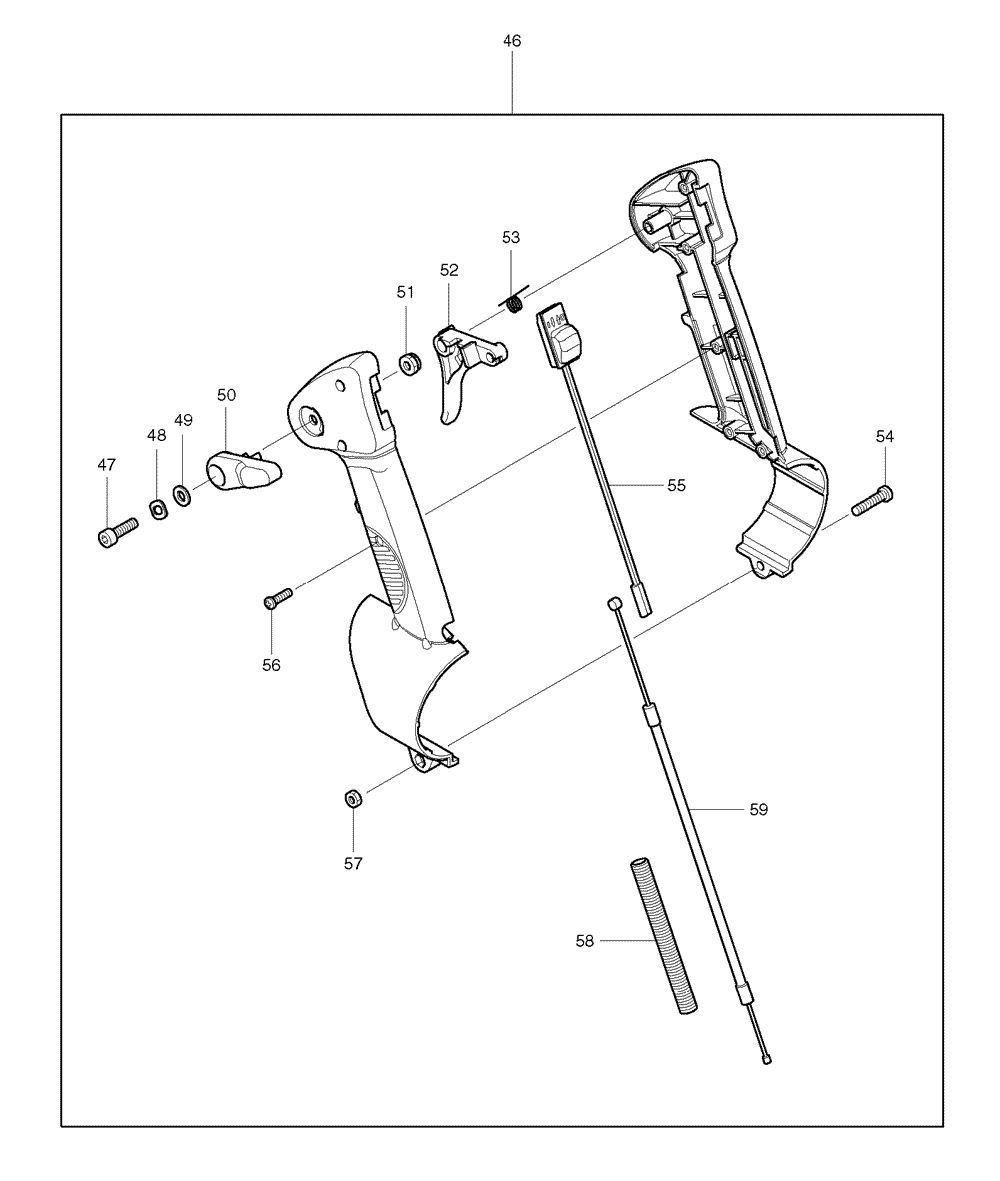

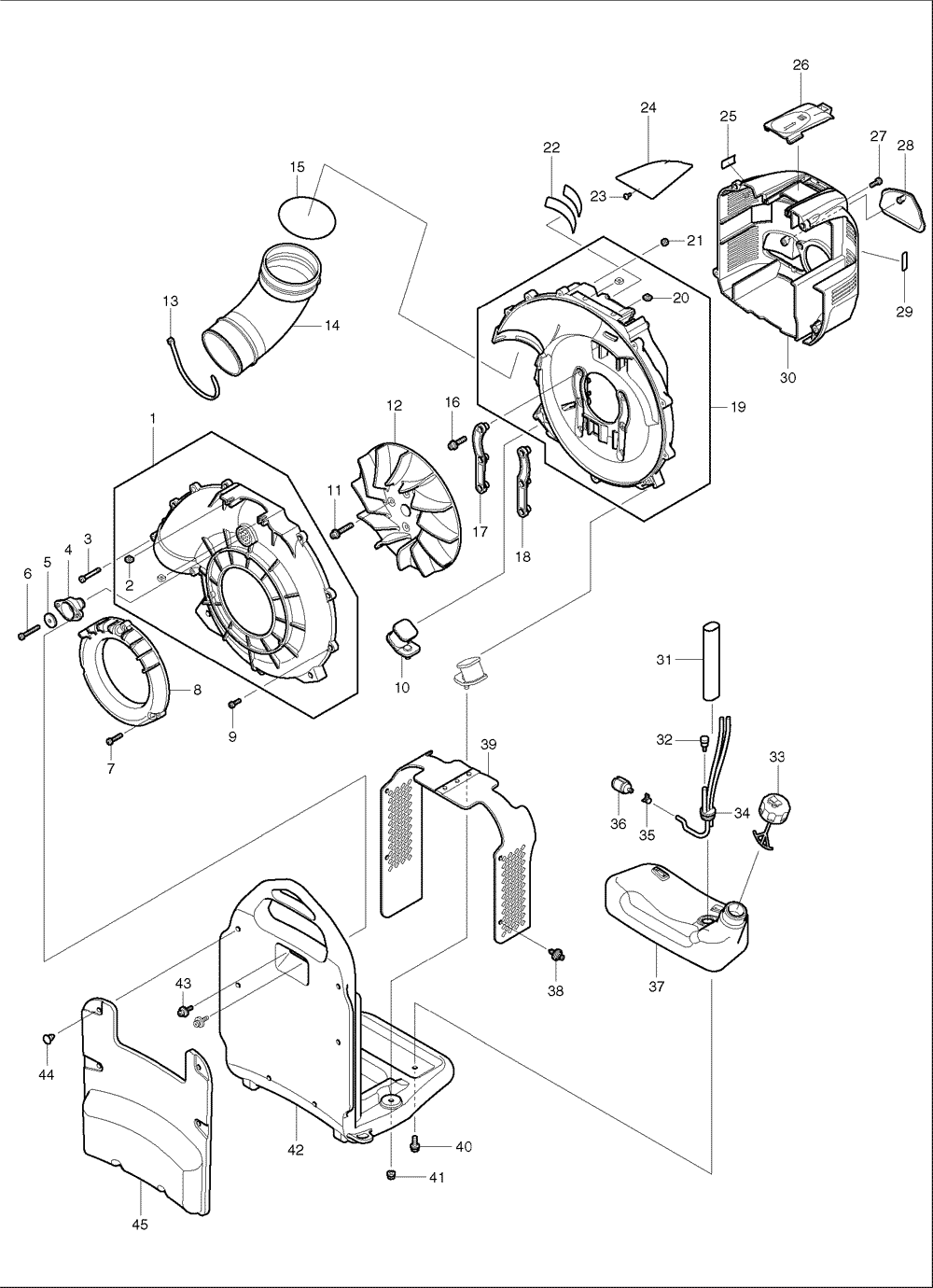

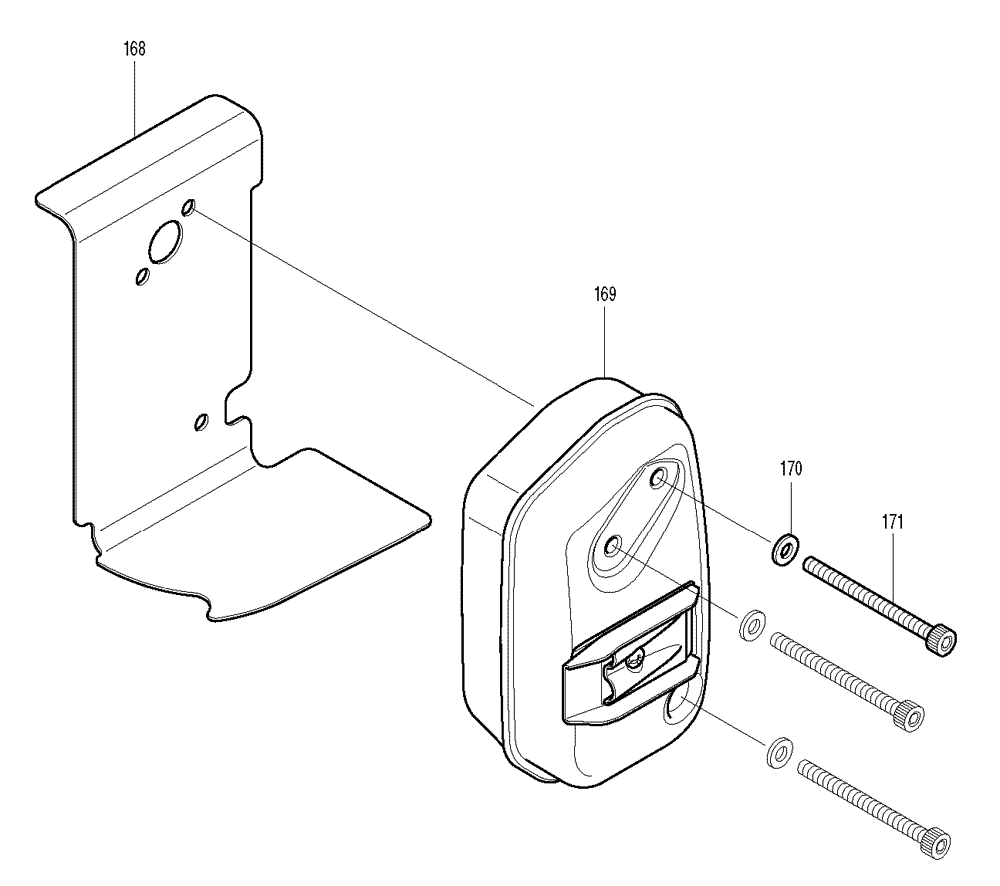

Tool Diagram    (Click image to Zoom in) View larger Image

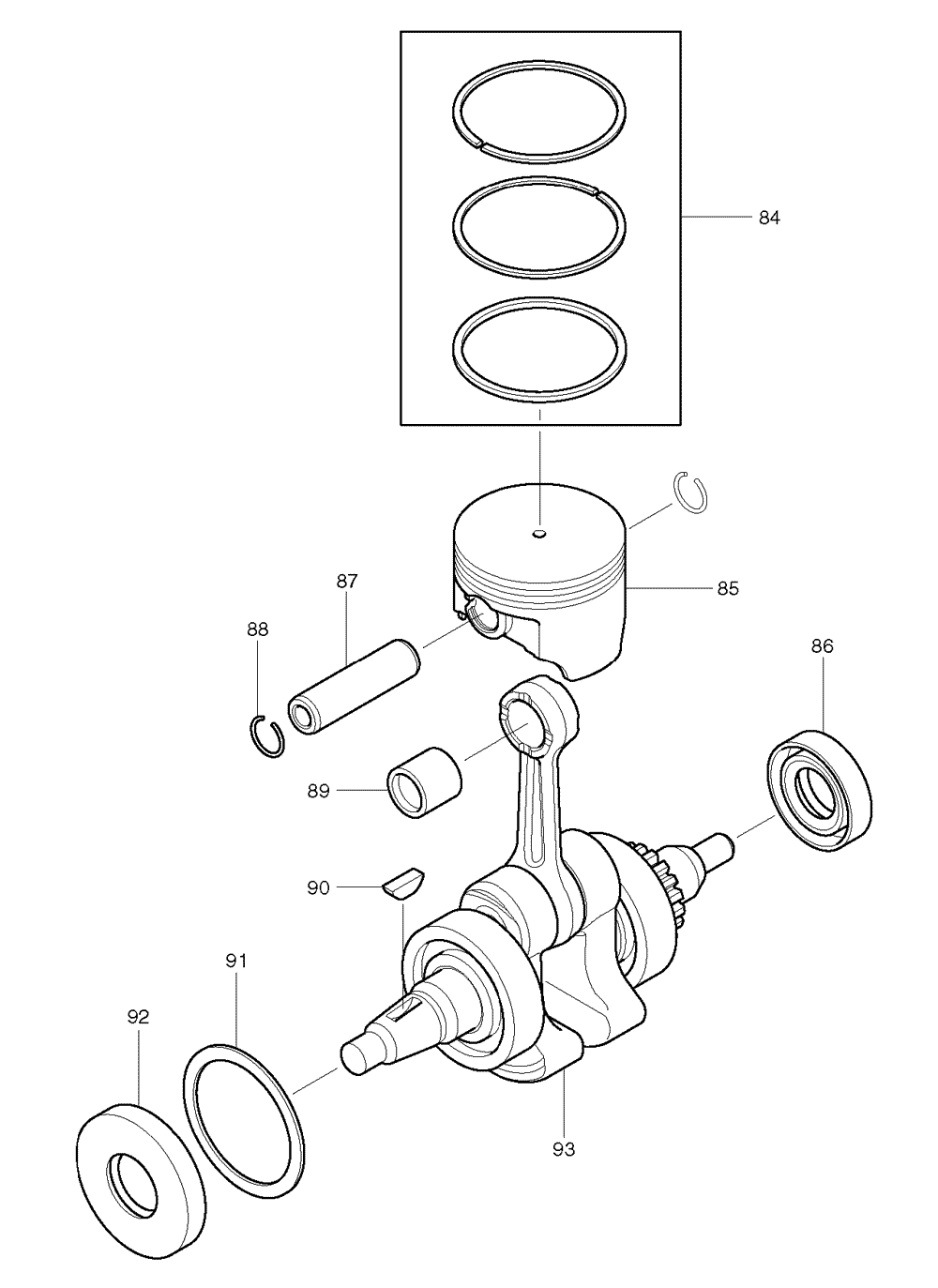

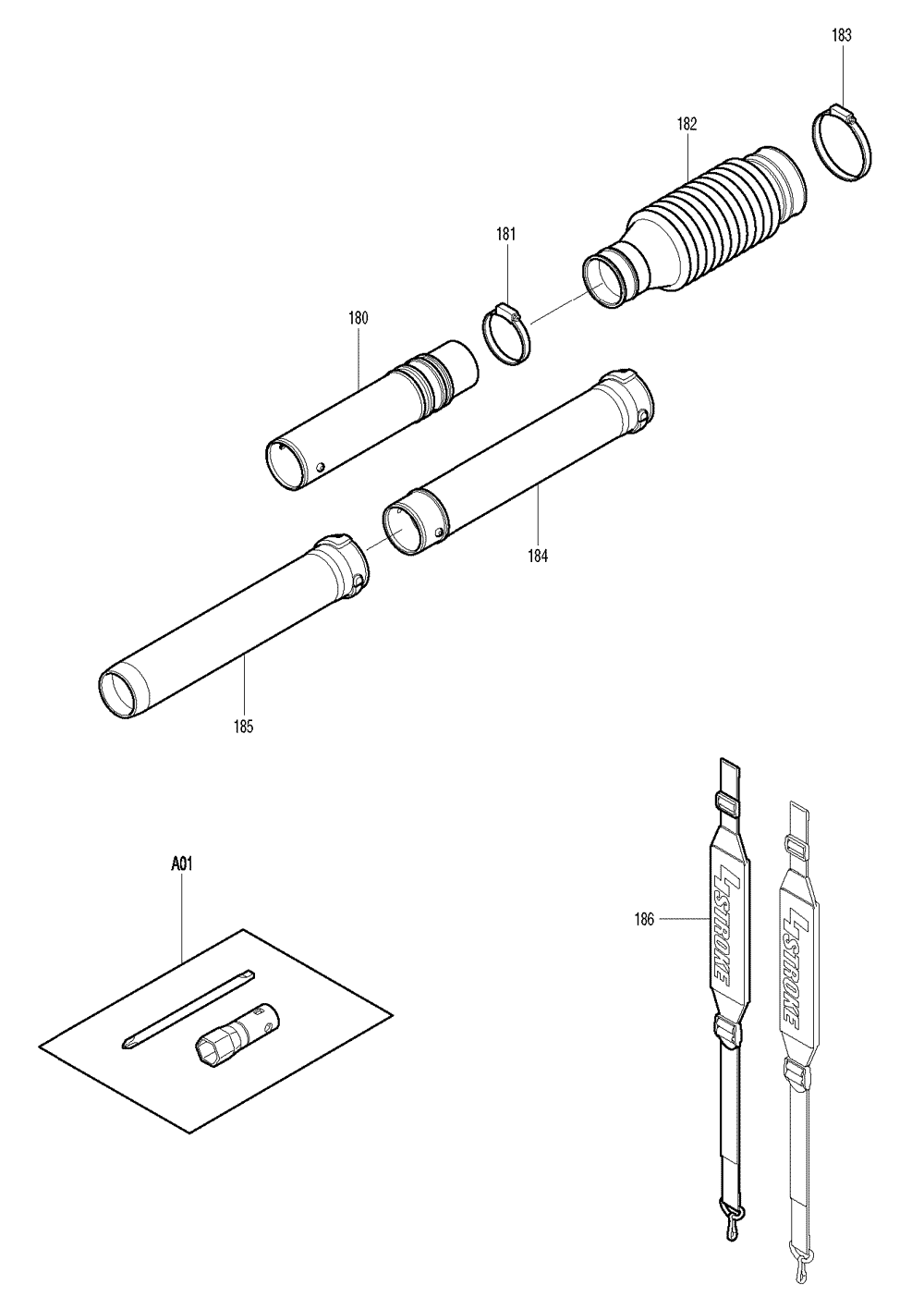

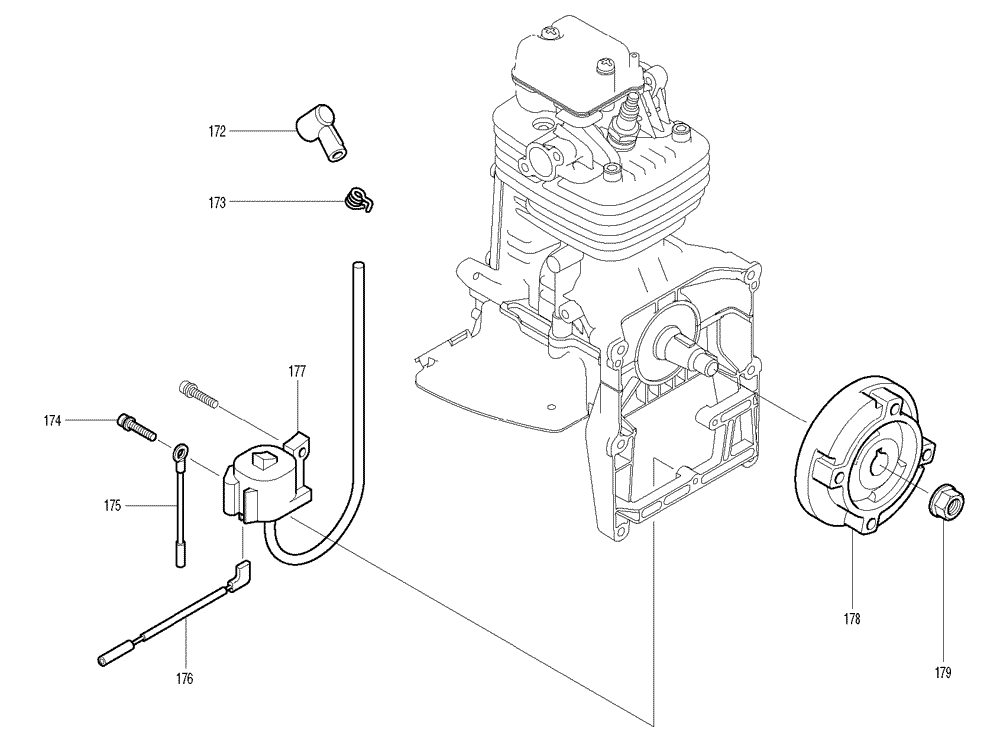

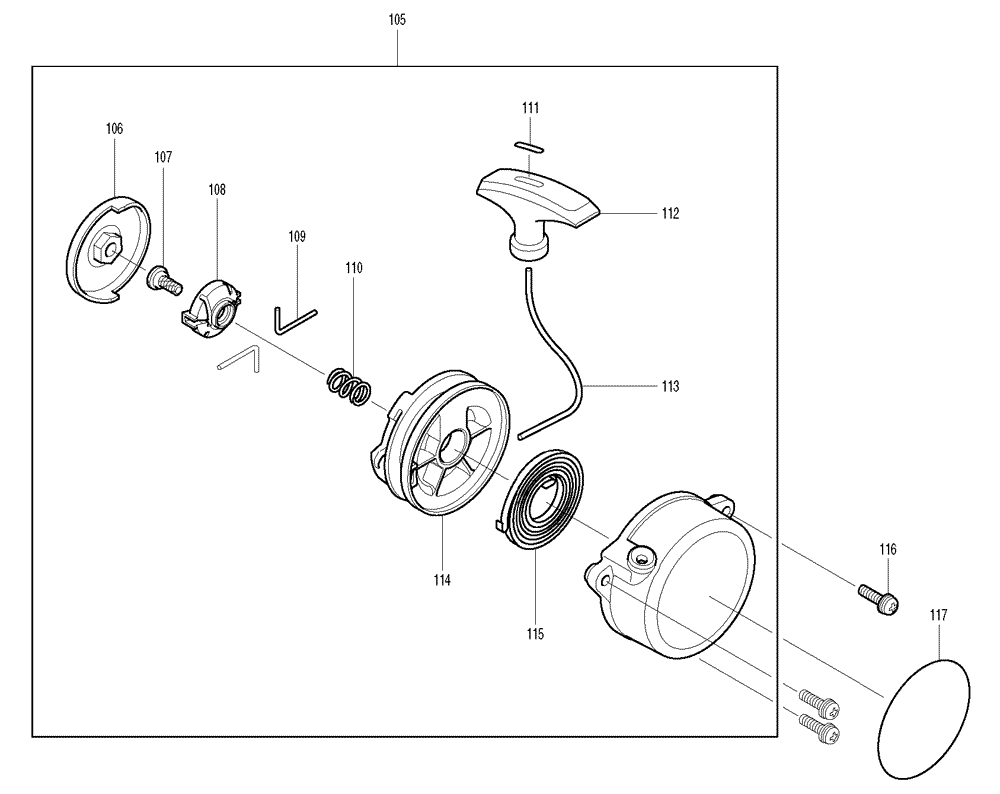

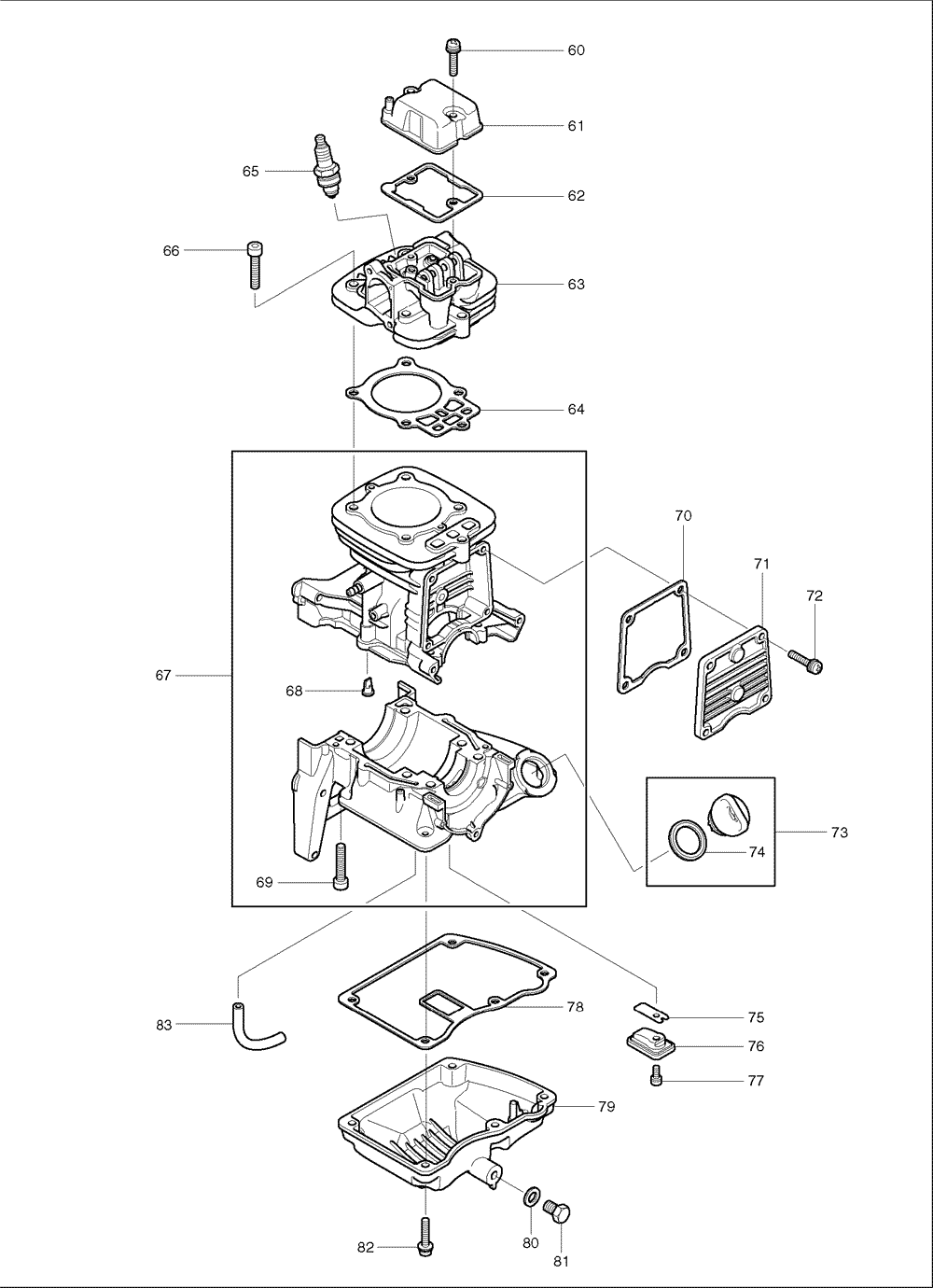

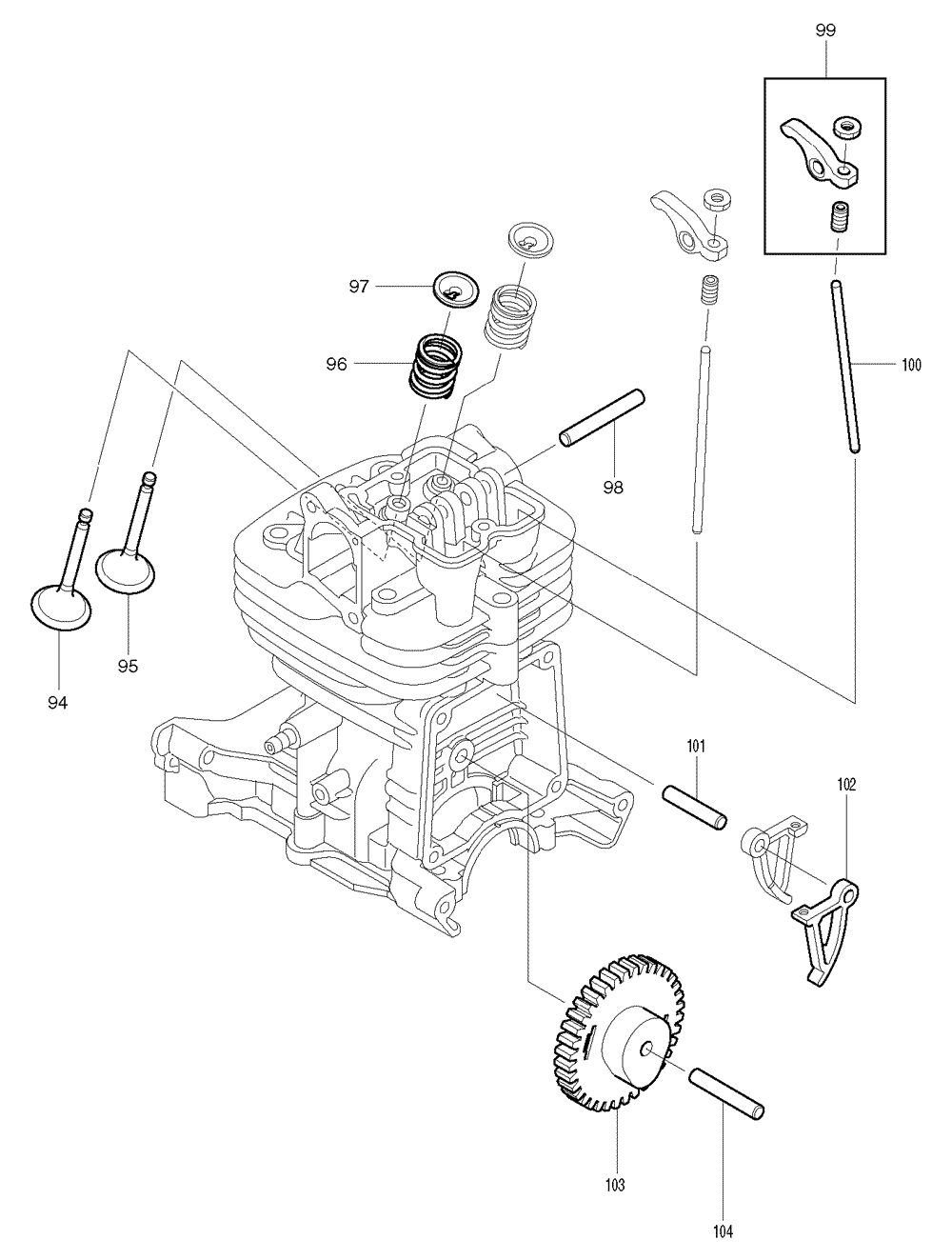

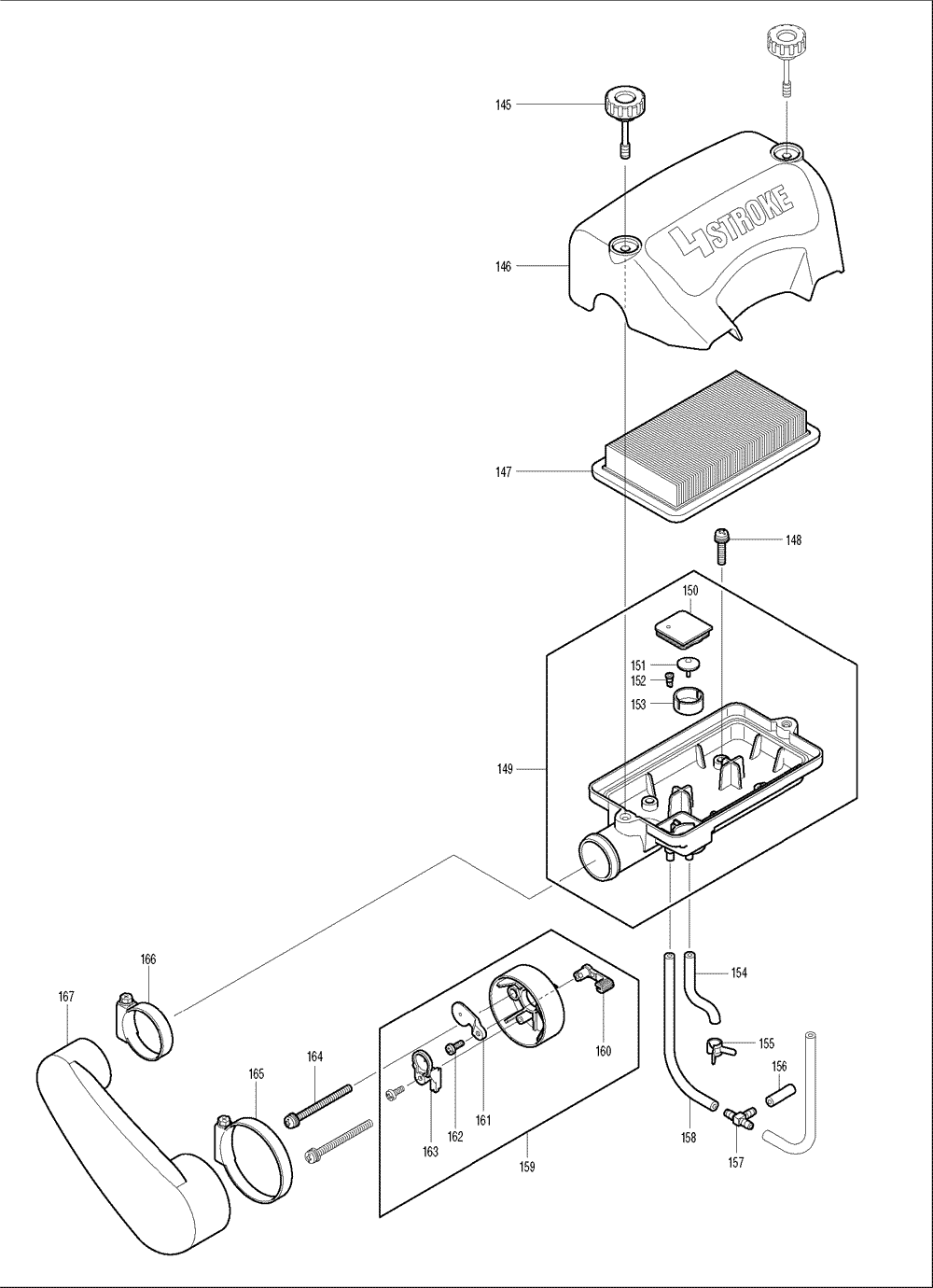

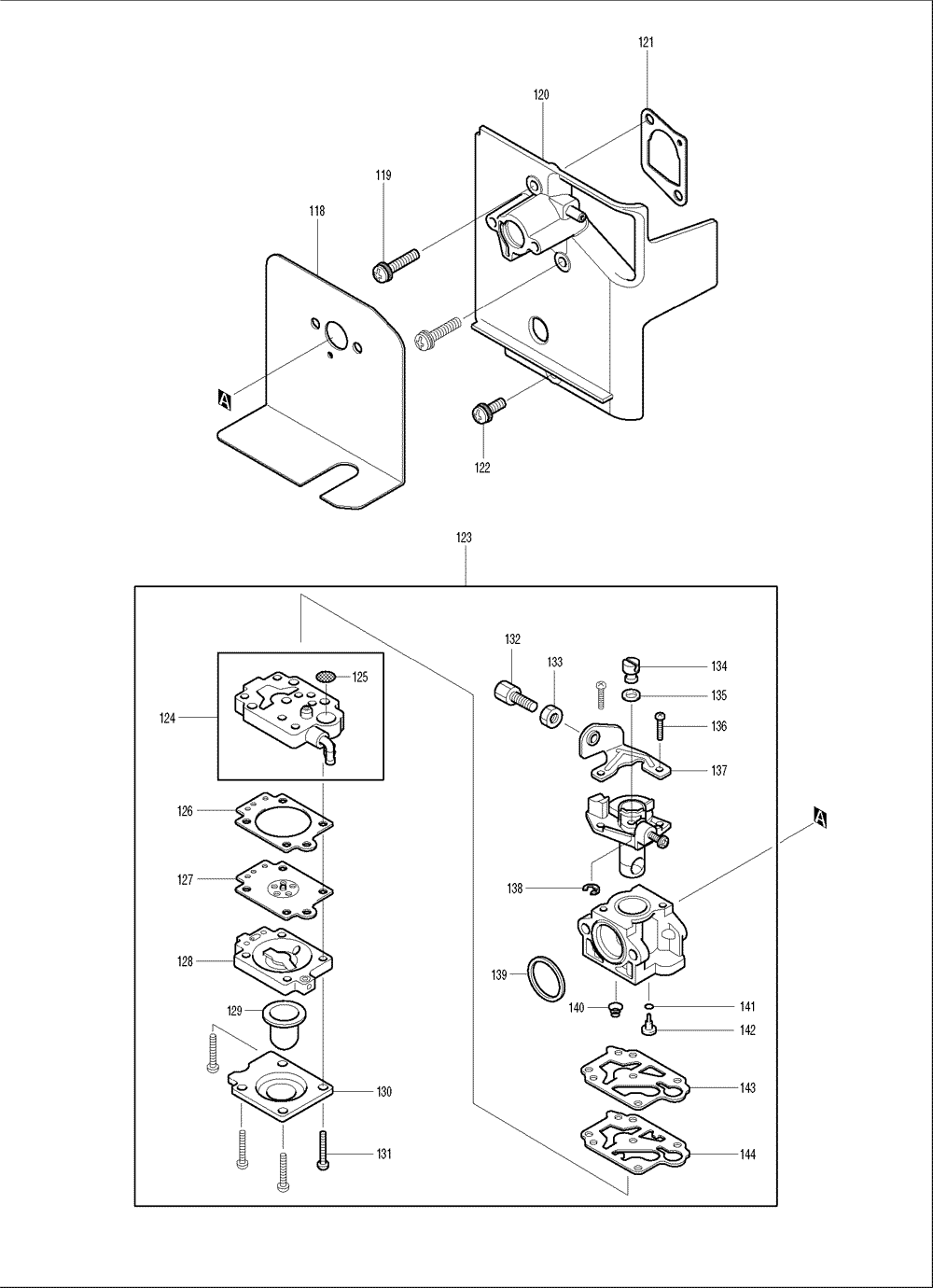

Makita BBX7600CA Electric Blower Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 667-10070-01 VOLUTE CASE 1 ASS'Y, BBX7600 $33.76
1 6659504000 EXTENSION PIPE BHX2500 $25.66
2 667-10050-10 SQUARE NUT, BBX7600 $1.96
3 014-00592-20 SCREW ASSY M5X65, BBX7600 $1.48
4 667-10020-00 DAMPER 1 COMP., BBX7600 $11.42
5 020-00599-10 WASHER M5, BBX7600 $1.63
6 004-31054-00 P.H. SCREW M5X65 (W.SW), BBX7600 $1.19
7 015-00597-30 TAPPING SCREW 5X25, BBX7600 $1.48
8 667-10010-00 INLET COVER COMP., BBX7600 $8.89
9 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
10 667-10030-00 DAMPER 2 COMPL., BBX7600 $10.21
11 011-90696-90 S.H. BOLT M6X40, BBX7600 $3.06
12 667-10040-00 IMPELLER COMPL., BBX7600 $26.82
13 056-33799-90 WIRE BAND, BBX7600 $1.48
14 667-15004-00 ELBOW, BBX7600 $6.47
15 024-09899-90 O RING, BBX7600 $2.73
16 011-90696-80 S.H. BOLT M6X30, BBX7600 $1.48
17 667-15002-00 BASE 1, BBX7600 $5.15
18 667-15003-00 BASE 2, BBX7600 $5.15
19 667-10080-01 VOLUTE CASE 2 ASS'Y, BBX7600 $38.35
20 667-10050-10 SQUARE NUT, BBX7600 $1.96
21 017-00599-50 NUT M5, BBX7600 $1.34
22 073-62899-80 CAUTION LABEL, BHX2500 $3.50
23 015-00498-20 TAPPING SCREW 4X6, BBX7600 $1.19
25 073-63098-70 LABEL, BBX7600 $1.17
26 665-65001-00 PLUG COVER, BHX2500 $4.71
27 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
28 667-65001-00 OIL GUARD, BBX7600 $3.94
29 641-95043-00 CHOKE LABEL, BBX7600 $2.62
30 667-65008-03 ENGINE COVER, BBX7600 $48.75
31 085-11598-61 TUBE, BBX7600 $2.73
32 168396-6 BREATHER, BBX7600 REPLACES 531-65033-00 $3.94
34 085-13399-60 TUBE, BBX7600 $8.89
35 056-10599-90 HOSE CLAMP, EM4251 $1.41
36 580-65029-00 FILTER, BBX7600 $6.47
37 667-30060-00 FUEL TANK ASS'Y, BBX7600CA $58.00
38 667-25003-00 ROCK RIVET, BBX7600 $2.73
39 667-20020-00 GUARD COMPL, BBX7600 $8.89
40 004-37061-20 SCREW ASSY M6X12, BBX7600 $1.19
41 002-37060-00 FLANGE NUT, BBX7600 $1.96
42 667-20010-00 FRAME COMPL., BBX7600 $33.76
43 014-00592-10 SCREW ASSY M5X16, BBX7600 $1.48
44 667-25002-00 ROCK RIVET, BBX7600 $2.73
45 667-20030-00 CUSHION, BBX7600 $22.64
47 667-50010-10 S.H. BOLT M6X20, BBX7600 $1.48
48 003-22060-00 WAVE WASHER, BBX7600 $1.85
49 003-11060-00 WASHER, BBX7600 $1.34
50 662-55007-01 THROTTLE LEVER 2, RBL500 $8.12
51 017-00699-60 NUT, BBX7600 $1.96
52 662-55006-01 THROTTLE LEVER 1, RBL500 $8.12
53 662-55009-01 TORSION SPRING, RBL500 $4.93
54 667-50010-30 SCREW M5X25, BBX7600 $1.48
55 667-50040-00 SWITCH COMPL., BBX7600 $6.47
56 667-50010-20 TAPPING SCREW 4X16, BBX7600 $1.48
57 017-00599-50 NUT M5, BBX7600 $1.34
58 667-55000-01 CABLE TUBE, BBX7600 $3.94
59 063-01398-20 CONTROL CABLE, BBX7600 $8.12
60 911253-5 P.H. SCREW M5X30, 2030S $1.19
61 597-15007-00 ROCKER COVER, BBX7600 $3.94
62 597-15009-00 ROCKER COVER GASKET, BBX7600 $2.73
63 597-10030-01 CYLINDER HEAD COMPL., BBX7600 $110.49
64 597-15005-02 CYLINDER HEAD GASKET, BBX7600 $5.15
65 065-01099-50 SPARK PLUG CMR6A, EM4251 $11.20
66 011-90696-70 S.H. BOLT M6X35, BBX7600 $1.48
67 597-10070-00 CYLINDER BLOCK SET, BBX7600 $255.60
68 424201-0 CHECK VALVE, EM2650LH $2.40
69 011-90699-30 H.S.H. BOLT M6X30, BBX7600 $1.48
70 597-15008-00 CAMGEAR COVER GASKET, BBX7600 $4.16
71 597-15006-00 CAMGEAR COVER, BBX7600 $5.37
72 004-36051-60 SCREW ASS'Y M5X16(W,SW), EM4251 $1.41
73 667-60050-00 OIL CAP ASSY, BBX7600 $3.94
74 021-32299-80 GASKET, BBX7600 $2.73
75 592-15010-00 LEAD VALVE, EM4251 $4.71
76 593-15013-00 RETAINER PLATE, BBX7600 $2.73
77 011-90499-80 S.H. BOLT M4X10, EM4251 $1.96
78 597-65001-00 OIL CASE GASKET, BBX7600 $3.94
79 597-65000-00 OIL CASE, BBX7600 $11.42
80 003-70080-00 ALUMINUM GASKET, BBX7600 $1.48
81 001-66081-20 BOLT M8X12, BBX7600 $1.48
82 014-00596-80 SCREW M5X25, BBX7600 $1.41
83 085-11099-60 TUBE, BBX7600 $2.73
84 597-20030-00 PISTON RING SET, BBX7600 $23.85
86 044-01799-10 OIL SEAL, BBX7600 $6.47
87 580-25007-01 PISTON PIN, BBX7600 $3.94
88 056-51199-90 CLIP, BBX7600 $1.96
89 061-01299-40 NEEDLE ROLLER BEARING, BBX7600 $5.15
90 032-30499-50 WOODRUFF KEY, BBX7600 $2.73
91 597-25008-00 CLIP, BBX7600 $3.06
92 044-02098-90 OIL SEAL (L), BBX7600 $5.15
94 597-35001-00 INTAKE VALVE, BBX7600 $7.68
95 597-35002-02 EXHAUST VALVE, BBX7600 $8.89
96 597-35003-01 VALVE SPRING, BBX7600 $3.06
97 597-35004-00 SPRING RETAINER, BBX7600 $4.71
98 597-35005-00 SHAFT, BBX7600 $1.48
99 126005-3 ROCKER ARM ASS'Y, BBX7600 $11.09
100 256526-2 PUSH ROD, BBX7600 $2.73
101 597-35007-00 SHAFT, BBX7600 $1.48
102 597-35006-01 CAM LIFTER (INTAKE SIDE), BBX7600 $5.15
104 256200-2 PIN 5, 2704 $3.28
105 597-50010-00 STARTER REWIND, BBX7600 $22.64
106 597-55000-00 PULLEY, BBX7600 $5.15
107 266585-8 TAPPING SCREW 5X12, EM2650LH $1.30
108 597-50020-40 COLLAR, BBX7600 $2.73
109 597-50020-50 SWING ARM, BBX7600 $1.48
110 597-50020-30 FRICTION SPRING, BBX7600 $3.06
111 531-50010-30 STOPPER, BBX7600 $1.48
112 530-50021-10 STARTER KNOB, BBX7600 $10.65
113 597-50021-10 STARTER ROPE, BBX7600 $3.94
114 597-50020-20 REEL, BBX7600 $5.15
115 525-50400-30 SPIRAL SPRING, BBX7600 $5.92
116 014-00593-60 SCREW & WASHER ASS'Y, BBX7600 $1.63
117 667-95025-00 MODEL LABEL, BBX7600CA $2.40
118 597-35012-00 CARBURETOR GASKET, BBX7600 $3.94
119 014-00596-80 SCREW M5X25, BBX7600 $1.41
120 597-30090-01 INSULATOR COMPL., BBX7600 $7.68
121 162333-2 INSULATOR GASKET, BBX7600 $2.62
122 922218-2 H.S.H. BOLT M5X14 WITH WR, EM2650LH $0.64
123 597-60010-00 CARBURETOR, BBX7600 $64.80
124 597-60010-10 BODY PUMP ASSY., BBX7600 $23.85
125 352010-6 INLET SCREEN, EM2650LH $2.40
126 442154-1 METERING DIAPHRAGM GASKET, EM2650LH $3.50
127 592-60080-10 METERING DIAPHRAGM, EM4251 $33.45
128 140438-8 AIR PURGE BODY, EM2650LH $9.00
129 424314-7 PRIMER PUMP, EM2650LH $3.50
130 346270-0 PRIMER PUMP COVER, EM2650LH $3.50
131 266582-4 TAPPING SCREW 3X24, EM2650LH $1.30
132 521-60080-10 CABLE ADJUST SCREW, RBL500 $4.93
133 531-60054-50 CABLE ADJUST NUT, BBX7600 $3.61
134 325922-6 SWIVEL, EM2650LH $3.50
135 413140-9 WASHER, EM2650LH $1.30
136 524-60012-40 THROTTLE COLLAR SCREW, BBX7600 $3.50
137 523-60520-20 BRACKET CABLE, BBX7600 $19.01
138 257964-1 STOP RING E-3, EM2650LH $2.40
139 523-60180-20 RING PACKING, BBX7600 $4.93
140 234183-6 CONICAL COMPRESSION SPRING 5-9, EM2650LH $2.40
141 213538-8 O RING 2, EM2650LH $2.40
142 597-60010-20 JET #60, BBX7600 $5.15
143 442155-9 PUMP GASKET, EM2650LH $2.40
144 168575-6 PUMP DIAPHRAGM, EM2650LH $4.60
145 667-65012-00 KNOB BOLT, BBX7600 $5.15
146 667-60020-02 AIR CLEANER COVER, BBX7600 $13.95
147 667-65002-01 AIR CLEANER ELEMENT, BBX7600 $13.95
148 004-36051-60 SCREW ASS'Y M5X16(W,SW), EM4251 $1.41
149 667-60030-02 AIR CLEANER CASE ASSY, BBX7600 $23.85
150 667-65013-00 SEPARATOR PLATE, BBX7600 $5.15
151 531-65007-01 CHECK VALVE, EM4251 $4.71
152 424316-3 CHECK VALVE, EM2650LH $3.50
153 667-65005-00 CHECK VALVE PLATE, BBX7600 $2.73
154 085-11399-20 TUBE, BBX7600 $2.73
155 056-10799-90 HOSE CLAMP, BBX7600 $1.48
156 085-10299-30 TUBE, BBX7600 $1.48
157 597-35022-00 JOINT PIPE, BBX7600 $2.73
158 085-11999-60 TUBE, BBX7600 $3.94
159 597-30060-00 INTAKE CASE ASSY, BBX7600 $6.47
160 597-35018-00 CHOKE LEVER, BBX7600 $2.73
161 597-35017-00 CHOKE PLATE, BBX7600 $2.73
162 597-30060-10 TAPPING SCREW 4X12, BBX7600 $1.48
163 597-35019-00 INTAKE PLATE, BBX7600 $2.73
164 014-00594-70 SCREW M5X62, RBC256 $1.85
165 056-16799-90 HOSE CLAMP, BBX7600 $3.94
166 056-14399-90 HOSE CLAMP, BBX7600 $3.94
167 667-65004-00 AIR CLEANER DUCT, BBX7600 $12.63
168 597-35013-01 MUFFLER GASKET, BBX7600 $8.89
170 020-00698-90 WASHER, BBX7600 $1.63
171 011-90696-50 S.H. BOLT M6X70, BBX7600 $3.06
172 592-75001-00 PLUG CAP, EM4251 $3.17
173 065-40099-31 PLUG CAP SPRING,RBC221 $3.50
174 011-90499-70 SOCKET HEAD BOLT, BBX7600 $1.48
175 616-55002-01 WIRE, BBX7600 $3.61
176 592-70110-00 WIRE 2, BHX2500 $4.71
177 597-70010-10 IGNITION COIL, BBX7600 $26.38
178 597-70010-20 FLYWHEEL COMP., BBX7600 $17.69
179 002-37100-00 FLANGE NUT M10, BBX7600 $1.96
180 667-90020-00 SWIVEL PIPE CPOMP., BBX7600 $12.63
181 056-17699-90 HOSE CLAMP, BBX7600 $3.94
182 667-95000-00 FLEXIBLE PIPE, BBX7600 $13.95
183 056-10099-90 HOSE CLAMP, BBX7600 $3.94
184 667-95018-01 STRAIGHT PIPE, BBX7600 $8.89
185 667-95019-00 END PIPE, BBX7600 $8.89
186 667-90010-00 BAND COMPL., BBX7600 $17.69
