Makita AT1150A Nailer Parts

Makita AT1150A Parts

7/16 Inch Medium Crown Stapler

Download Schematic

Time to buy a new tool?

Makita AT1150A

7/16 Inch Medium Cro...

$266.99

Free Shipping

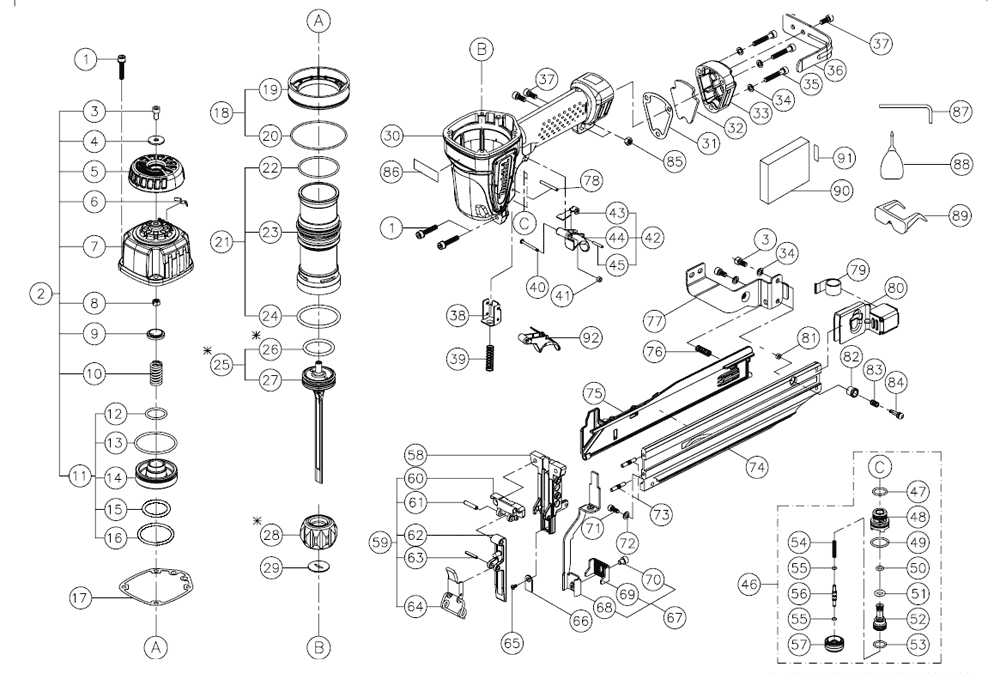

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
44	A0500-0831	TRIGGER, AT1150A	$3.17
1	B0000-0301	SCREW SET 5X25, AT1150A	$1.41
43	A0501-0551	INNER TRIGGER, AT1150A	$3.17
2	B0300-3431	TOP CAP SET, AT1150A	$54.60
48	A0503-0391	"TRIGGER VALVE GUIDE ""POM"",AT1150A"	$3.17
2	A0000-1131	SCREW 5X10, AT1150A	$1.41
57	A0503-0671	TRIGGER VALVE CASE, AT1150A	$9.22
3	A0005-1271	FLAT WASHER, AT1150A	$2.18
56	A0504-0621	TRIGGER VALVE STEM, AT1150A	$3.17
4	A0304-0611	EXHAUST COVER, AT1150A	$4.71
52	A0504-0641	PILOT VALVE, AT1150A	$6.14
5	A0105-0081	LEAF SPRING, AT1150A	$3.61
75	A0700-2011	MAGAZINE COVER, AT1150A	$7.68
6	A0301-1221	TOP CAP, AT1150A	$29.37
7	A0004-0001	HEX. NUT M5, AF632	$1.96
74	A0702-0971	MAGAZINE, AT1150A	$54.60
4	A0304-0611	EXHAUST COVER, AT1150A	$4.71
8	A0311-0631	SEAL AIR, AT1150A	$4.71
33	A0306-0811	INLET CAP (18NPT), AT1150A	$12.19
9	A0100-2391	COMP. SPRING, AT1150A	$1.96
13	A0308-0591	DISC VALVE, AT1150A	$18.13
10	B0300-3441	DISC VALVE SET, AT1150A	$22.64
22	A0303-0831	CYLINDER, AT1150A	$32.13
11	A0200-2121	O-RING 20.8X2.4, AT1150A	$1.41
45	A0011-0251	SPRING PIN 2.5X16, AT1150A	$1.34
12	A0200-1701	O-RING 47.3X2.62, AT1150A	$3.17
13	A0308-0591	DISC VALVE, AT1150A	$18.13
63	A0011-0601	SPRING PIN 3X8, AT1150A	$1.63
81	A0005-0291	PIN RETAINER 6X2.9, AT1150A	$1.08
14	A0200-4131	O-RING 30X4, AT1150A	$1.74
41	A0005-0311	PIN RETAINER 5.5X2, AT1150A	$1.08
15	A0200-4121	O-RING 41.7X3.5, AT1150A	$1.74
72	A0005-0561	WASHER 4X8X0.5, AT1150A	$1.34
16	A0205-0571	TOP CAP GASKET, AT1150A	$9.22
3	A0005-1271	FLAT WASHER, AT1150A	$2.18
17	B0300-3451	SPACER SET, AT1150A	$4.71
61	A0006-0671	PIN, AT1150A	$1.08
18	A0800-0861	"SPACER ""POM"", AT1150A"	$3.17
40	A0006-0732	TRIGGER PIN, AT1150A	$1.41
19	A0200-1011	O-RING 64X2, AT1150A	$3.17
73	A0006-1481	PIN, AT1150A	$1.74
20	B0300-3461	CYLINDER SET, AT1150A	$33.45
84	A0007-0621	RETAINER, AT1150A	$4.71
21	A0200-2231	O-RING 45X2, AT1150A	$3.17
22	A0303-0831	CYLINDER, AT1150A	$32.13
76	A0100-0241	COMP. SPRING, AT1150A	$1.63
54	A0100-1301	COMP. SPRING, AT1150A	$1.63
23	A0200-3821	O-RING 44.7X3.5, AT1150A	$3.17
39	A0100-2371	SPRING, AT1150A	$1.34
24	B0600-1831	PISTON UNIT, AT1150A	$65.50
9	A0100-2391	COMP. SPRING, AT1150A	$1.96
25	A0200-2921	O-RING 33.8X3.5, AT1150A	$3.17
83	A0100-2461	SPRING, AT1150A	$1.34
26	B0600-2361	DRIVER CPL.,AT1150A	$64.10
79	A0102-0151	SPRING, AT1150A	$9.22
27	A0309-0751	BUMPER, AT1150A	$15.16
5	A0105-0081	LEAF SPRING, AT1150A	$3.61
28	A0310-0671	NOZZLE, AT1150A	$1.74
32	A0203-0151	INLET FILTER, AT1150A	$6.14
29	K0400-0631	HOUSING CPL.,AT1150A	$83.10
30	A0204-1391	GRIP, AT1150A	$6.14
30	A0401-1611	MAIN BODY, AT1150A	$65.50
30	A0204-1391	GRIP, AT1150A	$6.14
31	A0205-0551	INLET CAP GASKET, AT1150A	$4.71
16	A0205-0571	TOP CAP GASKET, AT1150A	$9.22
30	A0919-4721	CAUTION LABEL, AT1150A	$1.65
6	A0301-1221	TOP CAP, AT1150A	$29.37
30A	A0316-0301	HOUSING BUMPER (R), AT1150A	$7.68
2	A0000-1131	SCREW 5X10, AT1150A	$1.41
30B	A0316-0291	HOUSING BUMPER (L), AT1150A	$7.68
31	A0205-0551	INLET CAP GASKET, AT1150A	$4.71
65	A0000-1451	SCREW M3X6, AT1150A	$1.41
32	A0203-0151	INLET FILTER, AT1150A	$6.14
37	A0000-0161	SCREW 5X30, AT1150A	$1.41
33	A0306-0811	INLET CAP (18NPT), AT1150A	$12.19
71	A0000-0231	SCREW 4X12, AT1150A	$1.41
34	A0005-0031	WASHER #5X1.1T, AF632	$1.34
37	A0000-0061	SCREW 5X12, AT1150A	$1.41
35	A0000-0161	SCREW 5X30, AT1150A	$1.41
74	A0919-5611	LABEL, AT1150A	$3.10
69	A0714-0491	SAFETY ELEMENT, AT1150A	$4.71
36	A0316-0311	HOOK, AT1150A	$4.71
37	A0000-0061	SCREW 5X12, AT1150A	$1.41
1	B0000-0301	SCREW SET 5X25, AT1150A	$1.41
2	B0300-3431	TOP CAP SET, AT1150A	$54.60
38	A0712-1421	HOLDER, AT1150A	$4.71
39	A0100-2371	SPRING, AT1150A	$1.34
10	B0300-3441	DISC VALVE SET, AT1150A	$22.64
40	A0006-0732	TRIGGER PIN, AT1150A	$1.41
17	B0300-3451	SPACER SET, AT1150A	$4.71
41	A0005-0311	PIN RETAINER 5.5X2, AT1150A	$1.08
20	B0300-3461	CYLINDER SET, AT1150A	$33.45
30	A0919-4721	CAUTION LABEL, AT1150A	$1.65
42	B0500-1371	TRIGGER ASS'Y, AT1150A	$4.71
43	A0501-0551	INNER TRIGGER, AT1150A	$3.17
75	A0919-5531	WARNING LABEL, AT1150A	$3.10
44	A0500-0831	TRIGGER, AT1150A	$3.17
30	A0919-5551	CAUTION LABEL, AT1150A	$3.10
45	A0011-0251	SPRING PIN 2.5X16, AT1150A	$1.34
75	A0919-5571	CAUTION LABEL, AT1150A	$1.65
60	A0719-0981	STOPPER, AT1150A	$12.19
46	B0500-1351	TRIGGER VALVE SET, AT1150A	$19.67
82	A0719-0991	RETAINER SEAY, AT1150A	$3.17
47	A0200-2111	O-RING 13.8X1.9, AT1150A	$1.41
48	A0503-0391	"TRIGGER VALVE GUIDE ""POM"",AT1150A"	$3.17
18	A0800-0861	"SPACER ""POM"", AT1150A"	$3.17
38	A0712-1421	HOLDER, AT1150A	$4.71
49	A0200-2071	O-RING 17.8X1.9, AT1150A	$1.41
58	A0713-0791	DRIVER GUIDE, AT1150A	$50.50
50	A0200-4061	O-RING 5.5X1.8, AT1150A	$0.82
62	A0713-0801	DOOR, AT1150A	$34.88
51	A0200-2471	O-RING 7.59X2.62, AT1150A	$1.41
52	A0504-0641	PILOT VALVE, AT1150A	$6.14
66	A0708-0571	PLATE, AT1150A	$9.22
68	A0711-2401	CONTACT ARM, AT1150A	$12.19
53	A0200-4071	O-RING 12.1X1.7, AT1150A	$0.82
54	A0100-1301	COMP. SPRING, AT1150A	$1.63
80	A0707-1921	PUSHER, AT1150A	$12.19
77	A0706-1521	SUPPORT, AT1150A	$7.68
55	A0200-3891	O-RING 2.5X1.5, AT1150A	$0.82
56	A0504-0621	TRIGGER VALVE STEM, AT1150A	$3.17
27	A0309-0751	BUMPER, AT1150A	$15.16
57	A0503-0671	TRIGGER VALVE CASE, AT1150A	$9.22
28	A0310-0671	NOZZLE, AT1150A	$1.74
58	A0713-0791	DRIVER GUIDE, AT1150A	$50.50
8	A0311-0631	SEAL AIR, AT1150A	$4.71
30B	A0316-0291	HOUSING BUMPER (L), AT1150A	$7.68
59	B0700-5111	DRIVER GUIDE COVER SET,AT1150A	$50.08
60	A0719-0981	STOPPER, AT1150A	$12.19
30A	A0316-0301	HOUSING BUMPER (R), AT1150A	$7.68
61	A0006-0671	PIN, AT1150A	$1.08
36	A0316-0311	HOOK, AT1150A	$4.71
62	A0713-0801	DOOR, AT1150A	$34.88
30	A0401-1611	MAIN BODY, AT1150A	$65.50
63	A0011-0601	SPRING PIN 3X8, AT1150A	$1.63
74	K0700-5591	MAGAZINE COVER CPL.,AT1150A	$10.65
74	K0700-5601	MAGAZINE CPL.,AT1150A	$57.30
64	B0800-0341	CLICK LEVER SET, AT1150A	$6.14
65	A0000-1451	SCREW M3X6, AT1150A	$1.41
29	K0400-0631	HOUSING CPL.,AT1150A	$83.10
66	A0708-0571	PLATE, AT1150A	$9.22
46	B0500-1351	TRIGGER VALVE SET, AT1150A	$19.67
42	B0500-1371	TRIGGER ASS'Y, AT1150A	$4.71
67	B0700-5101	CONTACT ARM SET, AT1150A	$15.16
68	A0711-2401	CONTACT ARM, AT1150A	$12.19
24	B0600-1831	PISTON UNIT, AT1150A	$65.50
69	A0714-0491	SAFETY ELEMENT, AT1150A	$4.71
26	B0600-2361	DRIVER CPL.,AT1150A	$64.10
70	A0000-0331	SCREW 5X6, AF632	$1.41
64	B0800-0341	CLICK LEVER SET, AT1150A	$6.14
71	A0000-0231	SCREW 4X12, AT1150A	$1.41
67	B0700-5101	CONTACT ARM SET, AT1150A	$15.16
72	A0005-0561	WASHER 4X8X0.5, AT1150A	$1.34
59	B0700-5111	DRIVER GUIDE COVER SET,AT1150A	$50.08
73	A0006-1481	PIN, AT1150A	$1.74
74	K0700-5601	MAGAZINE CPL.,AT1150A	$57.30
74	A0702-0971	MAGAZINE, AT1150A	$54.60
74	A0919-5611	LABEL, AT1150A	$3.10
75	A0700-2011	MAGAZINE COVER, AT1150A	$7.68
75	A0919-5571	CAUTION LABEL, AT1150A	$1.65
76	A0100-0241	COMP. SPRING, AT1150A	$1.63
77	A0706-1521	SUPPORT, AT1150A	$7.68
78	A0011-0151	SPRING PIN 3X28, AF632	$1.34
79	A0102-0151	SPRING, AT1150A	$9.22
80	A0707-1921	PUSHER, AT1150A	$12.19
81	A0005-0291	PIN RETAINER 6X2.9, AT1150A	$1.08
82	A0719-0991	RETAINER SEAY, AT1150A	$3.17
83	A0100-2461	SPRING, AT1150A	$1.34
84	A0007-0621	RETAINER, AT1150A	$4.71
85	A0004-0021	NYLON NUT M5, AF632	$1.34
