Makita AN943 Nailer Parts

Makita AN943 Parts

31 Degree Clipped Head Framing Nailer (Replacement of AN942)

Download Schematic

Time to buy a new tool?

Makita AN943

31 Degree Clipped He...

$333.99

Free Shipping

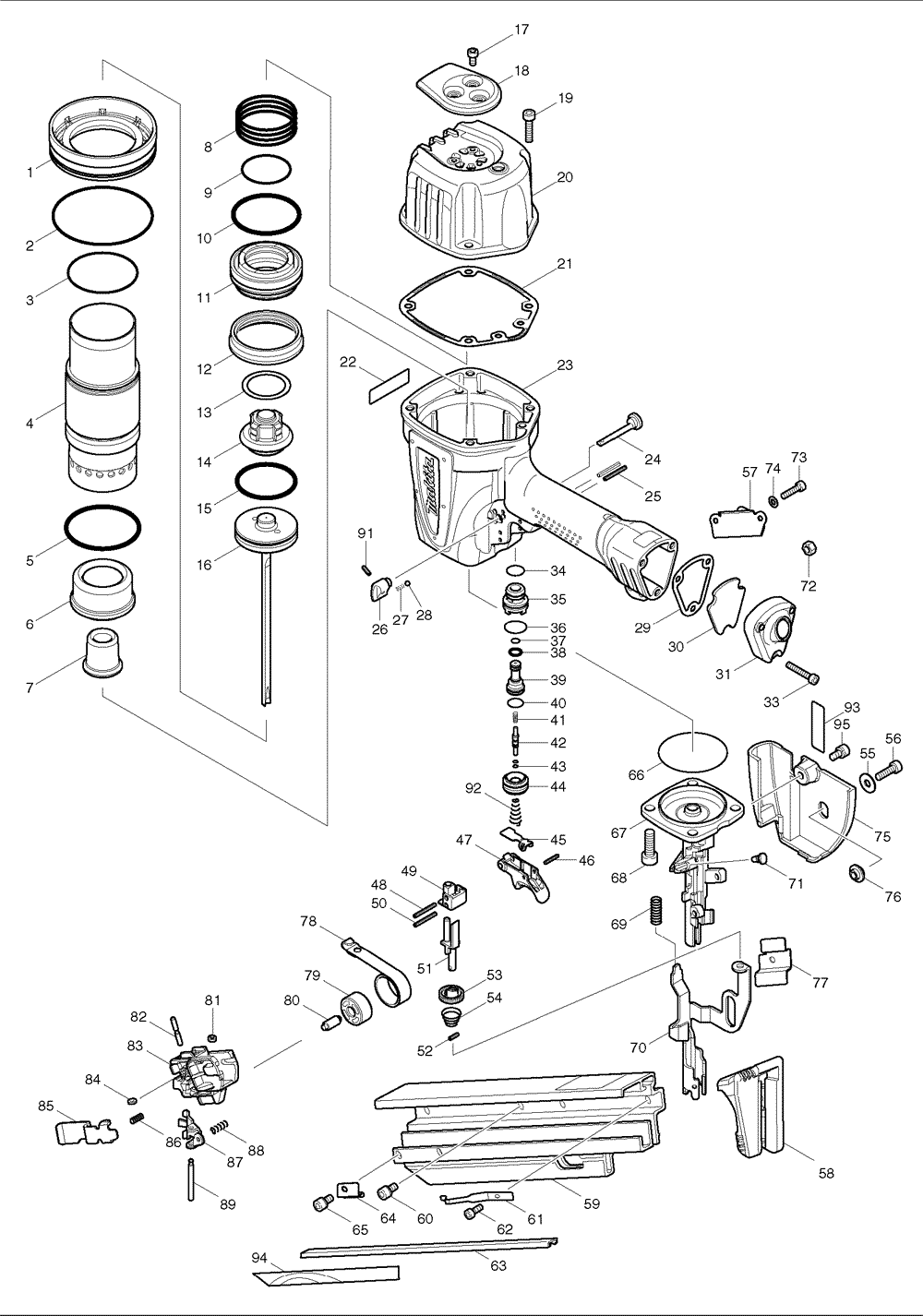

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	419115-6	CYKINDER SEPARATOR, AN923	$6.14
23	154818-2	HOUSING CPL.,AN943	$98.10
2	213809-3	O RING 87, HM1307CB	$5.15
59	154654-6	MAGAZINE, AN943	$60.92
3	213668-5	O RING 60, AN922	$1.85
4	331700-4	CYLINDER, AN923	$37.63
5	213667-7	O RING 61, HM1800	$15.71
6	421680-3	CUSHION F, AN922	$25.61
7	421687-9	CUSHION GUIDE, AN922	$9.22
8	233243-1	COMPRESSION SPRING 50, AN922	$3.50
9	213504-5	O RING, 9820-2	$1.96
10	213669-3	O RING 56, AN922	$1.74
11	419114-8	HEAD VALVE, AN923	$9.22
12	421925-9	VALVE SEAT, AN923	$3.17
13	267742-1	WASHER 34, AN922	$2.18
14	421924-1	CUSHION REAR, AN923	$7.68
15	213619-8	O RING 49, AN922	$1.41
16	154652-0	DRIVER CPL.,AN943	$76.30
17	265499-8	H.S.H.BOLT M5X10, AN923	$1.74
18	345618-3	EXHAUST COVER, AN923	$4.71
19	922342-1	H.S.H. BOLT M6X25, HR2511	$1.34
20	317950-5	TOP CAP, AN923	$40.39
21	162238-6	TOP CAP GASKET, AN923	$12.19
23	158085-1	HOUSING CPL.,AN923	$99.50
24	324117-8	LOCK PIN 8, AN923	$10.65
25	951075-1	SPRING PIN 3-28, AN611	$0.90
26	417824-1	LEVER 8, AN923	$6.14
27	233368-1	COMP. SPRING 3, AN923	$1.96
28	216008-6	STEEL BALL 4.0, 5007NK	$0.53
29	162239-4	INLET CAP GASKET, AN923	$4.71
30	419356-4	INLET FILTER, AN923	$6.14
31	317951-3	INLET CAP, AN923	$15.16
33	922252-2	H.S.H. BOLT M5X30, AF501	$1.34
34	213176-6	O RING 14, AN922	$0.82
35	417695-6	TRIGGER VALVE GUIDE, AN922	$4.71
36	213262-3	O RING 18, 5005BA	$1.96
37	213039-6	O RING 6, AN922	$0.82
38	213040-1	O RING 8, AN922	$0.82
39	317959-7	PILOT VALVE, AN923	$6.14
40	213122-9	O RING 12, AN922	$0.82
41	233239-2	COMPRESSION SPRING 3, AN922	$2.07
42	324591-0	TRIGGER VALVE STEM, AN923	$3.17
43	213044-3	O RING 3, AN901	$0.82
44	318010-6	TRIGGER VALVE CASE, AN923	$9.22
45	345687-4	IDLER, AN923	$3.17
46	258004-8	SPRING PIN 2.5-16, 420S	$2.07
47	419418-8	TRIGGER, AN923	$3.17
48	951075-1	SPRING PIN 3-28, AN611	$0.90
49	310165-3	HOLDER, AN923	$13.62
50	951075-1	SPRING PIN 3-28, AN611	$0.90
51	310166-1	STOPPER, AN923	$13.62
52	951054-9	SPRING PIN 3-10, AN451	$0.90
53	310163-7	ADJUSTER, AN923	$6.14
54	231978-8	CONICAL COMP SPRING 9-16, AN611	$2.07
55	267300-3	FLAT WASHER 5, AN923	$1.34
56	266369-4	H.S.H.BOLT M5X20, AN923	$1.74
57	345626-4	JOINT, AN943	$4.71
58	419117-2	MAGAZINE CAP, AN943	$4.71
59	154654-6	MAGAZINE, AN943	$60.92
60	266370-9	H.S.H.BOLT M6X12, AN923	$1.41
61	345619-1	NAIL STOPPER, AN923	$3.17
62	922216-6	H.S.H. BOLT M5X14, 5077B	$1.34
63	345620-6	MAGAZINE RAIL, AN943	$9.22
64	344765-7	HOLDER, AN922	$3.50
65	266370-9	H.S.H.BOLT M6X12, AN923	$1.41
66	213654-6	O RING 60, HR3851	$1.96
67	310164-5	DRIVER GUIDE, AN943	$84.50
68	266368-6	H.S.H.BOLT M8X25, AN923	$3.17
69	233463-7	COMP. SPRING 10, AN923	$1.63
70	345622-2	CONTACT ARM, AN943	$15.16
71	421418-6	RUBBER PIN 9.5, AN611	$1.41
72	931302-2	HEX NUT M6, HR2400	$0.79
73	265498-0	H.S.H.BOLT M6X20, AN923	$3.17
74	267314-2	FLAT WASHER 7, AN923	$2.18
75	419118-0	COVER, AN923	$4.71
76	267743-9	SHOULDER WASHER 6, AN922	$3.72
77	344766-5	HOLDER, AN922	$5.15
78	163456-9	SPIRAL SPRING CPL.,AN923	$10.65
79	419112-2	SPRING GUIDE, AN923	$1.96
80	256428-2	PIN 5-8, AN8300	$3.50
81	262054-7	URETHANE RING 3, AN451	$1.85
82	256770-1	PIN 4, AN923	$3.17
83	419116-4	PUSHER LEVER, AN943	$9.22
84	262054-7	URETHANE RING 3, AN451	$1.85
85	345673-5	LOCK PLATE, AN923	$4.71
86	231309-1	.COMP. SPRING 5, AF502	$2.07
87	345621-4	PUSHER, AN943	$9.22
88	233038-2	COMPRESSION SPRING 5, AN451	$2.07
89	256490-7	PIN 4, AN943	$3.17
91	951054-9	SPRING PIN 3-10, AN451	$0.90
92	233908-5	C. COMP. SPRING 4-11, AN923	$1.96
93	810097-9	INDICATION LABEL, AN923	$1.37
94	819181-7	INDICATION LABEL, AN943	$3.10
95	266370-9	H.S.H.BOLT M6X12, AN923	$1.41
1001	122742-7	HOOK ASS'Y, AN943	$25.00
1003	181434-7	OIL SUPPLY 30CC, AF502	$4.50
